Balcony power stations
Mounting kit for 2 solar modules on tiled roofs – with black module clamps
With this complete installation kit, you can securely and permanently mount two solar panels on your tiled roof. The pack contains everything you need for the substructure: six height-adjustable stainless steel roof hooks, four aluminium mounting rails, and end and centre clamps in black. The dark module clamps blend discreetly into the overall appearance of the black solar panels. Ideal for a balcony power plant on the roof or a small PV system on a garden shed, garage or house.The highlights at a glanceComplete set for 2 modules: Roof hooks, rails, clamps, connectors, end caps and screws in one pack.6 stainless steel roof hooks: sturdy, corrosion-resistant and height-adjustable from 120 to 160 mm to suit different tile shapes.2460 mm rail length per row: Two rails, each 1230 mm long, are joined using a rail connector to form a continuous row.Black module clamps: for modules with a frame height of 30 to 40 mm and a width of up to 1134 mm; visually compatible with full-black modules.Designed to withstand wind and snow: wind speeds of up to 35 m/s and snow loads of 3 kN/m².Contents of the package6 adjustable stainless steel roof hooks with L-brackets and connectors4 mounting rails, each 1230 mm long (two of each make a row of 2460 mm)2 rail connectors 40 x 40 mm4 end clamps and 2 centre clamps (black)4 end capsM10 x 25 screws, flange nuts and 18 wood screwsFixing roof hooks correctlyThe roof hooks bear the entire load of the solar panels, including wind and snow loads. For this reason, they are not fixed to the tiles, but are screwed directly onto the rafters using the timber screws supplied. Before installation, measure the rafter spacing and plan the fixing points so that each hook sits centrally on a rafter. Screws that are too close to the edge of the rafter or positioned next to it are one of the most common installation errors.After installation, the tile must not rest on the roof hook, otherwise it may break under load. Thanks to the height adjustment, the hook can be set precisely to the height of the tile. If necessary, lightly sand down the tile at the point of contact using an angle grinder.Important note: Any alterations to the roof covering may affect your roofer’s warranty and your building insurance. It is best to clarify this before installation. Work on the roof should only be carried out with suitable fall protection, protective equipment and at least two people present.Installation in six stepsLifting tiles: Lift or remove the tiles at the planned hook positions across the rafters.Screwing in the roof hooks: Pre-drill holes in the rafter using a 6.7 mm drill bit and screw the roof hooks securely in place using timber screws.Adjust the height and insert the tile: Adjust the hook height so that all hooks are in a straight line and the tile does not rest on them. Tighten the clamping screws to 13–15 Nm and reinsert the tile.Connecting and fitting the rails: Connect two rails at a time using the rail connector to form a row. Position the joint between two hooks, clip the rail into the clamps and tighten to 13–15 Nm.Securing solar modules: Secure the first panel on the outside with the end clamp and on the inside with the centre clamp; secure the second panel in the opposite direction. Tighten all panel clamps to 13–15 Nm.Fitting the end caps: Clip the end caps into the ends of the rails and, finally, check and retighten all screws. Frequently asked questionsWhich solar panels is this mounting kit suitable for?For two framed solar modules, each up to 1150 mm wide.What frame height is the mounting kit suitable for?35 mm. This is standard for most solar panels, but check the data sheet for your panels before purchasing.Can I expand to three or four modules?Yes. For each additional module, you’ll need an extension kit containing 2 roof hooks, 2 rails, 2 rail connectors and 2 centre clamps.Does the fitting kit fit any tiled roof?It is designed for traditional roof tiles and roof pans. For plain tiles, slate or metal roofs, different roof hooks are required.Why are the roof hooks height-adjustable?Tiles vary in shape and height. Thanks to the adjustment range of 120 to 160 mm, the tile does not rest on the hook and is not damaged.Where are the roof hooks fixed?Always on the rafters, never on the tiles. The screws should be positioned in the centre of the rafter.
Balcony Power Station Solar Mount 0–30° adjustable for balconies, railings & walls for PV modules 30/35 mm
Product informationThe adjustable solar mounting bracket for balconies, railings and walls is a flexible mounting solution for framed solar modules and is ideal for balcony power stations and compact PV systems.Thanks to the manually adjustable tilt angle of 0° and 15–30° the solar panel can be optimally aligned with the sun. This allows for better utilisation of sunlight, depending on the location, season and mounting position.The mounting kit is pre-assembled and designed for particularly easy installation. The mounting bracket is unfolded, positioned and secured – making it ideal for quick installation on balconies, railings or walls.The mounting system is manufactured from high-quality, corrosion-resistant materials such as AL6005-T5, AL5052 and SUS304 stainless steel. This makes it robust, durable and suitable for long-term outdoor use. Highlights at a glance Adjustable to 0° and 15–30°Flexible adjustment of the tilt angle for optimum module alignment.Pre-assembled mounting kitQuick and straightforward installation.For balconies, railings & wallsVersatile for use in a variety of installation scenarios.Suitable for framed solar modulesCompatible with modules with a frame height of 30 or 35 mm.Wide range of modulesFor solar modules up to 2,200 mm in length and 751–1,313 mm in width.Corrosion-resistant materialsAluminium alloys AL6005-T5 and AL5052, and SUS304 stainless steel.High stabilityDesigned for wind speeds of up to 40 m/s.Ideal for balcony power stationsIdeal for use with solar panels and micro-inverters.10-year warrantyFor long-term planning certainty. Flexible tilt from 0° to 30° The mounting bracket allows the solar panel to be manually adjusted to various positions. The following are available: 0°Adjustable from 15–30° This allows the solar panel to be positioned optimally depending on the installation location and desired orientation. An adjusted tilt angle can help to make better use of sunlight throughout the day and year, particularly for balcony or wall installations. Quick and easy installation The solar mounting kit is largely pre-assembled and designed for particularly easy installation. The system simply needs to be unfolded, aligned and secured. The modular design enables quick assembly and reduces the installation effort. This makes the mounting system particularly suitable for: Balcony power stationsBalcony parapetsRailingWall mountingCompact PV systemsPrivate solar installations High-quality and corrosion-resistant materials Robust materials are used for the mounting bracket: AL6005-T5 aluminiumAL5052 aluminiumSUS304 stainless steel These materials are characterised by high corrosion resistance and stability. The mounting system is therefore designed for long-term outdoor use. Suitable for many solar modules The balcony mounting bracket is designed for framed solar modules and supports various module sizes. Suitable modules are those with: with a length of up to 2,200 mma width of 751 to 1,313 mma frame thickness of 30 or 35 mm This means the mounting system is compatible with many standard solar panels for balcony power stations and smaller PV systems. Ideal for balcony power stations The mounting bracket is particularly suitable for installing solar panels on balconies and railings. The adjustable tilt allows the module to be aligned more effectively with the sun than with a purely vertical installation. Typical areas of application are: Balcony parapetMetal railingWall surfacesPatiosGarden shedsSmall PV systemsBalcony power stations Technical Specifications FeaturesValue Product nameAdjustable solar mounting bracket for balconies and walls MaterialAL6005-T5, AL5052, SUS304 Suitable modulesFramed solar modules Module orientationLandscape Suitable module thickness30 & 35 mm Max. module length≤ 2,200 mm Suitable module width751–1,313 mm Tilt angleAdjustable to 0° and 15–30° Max. wind speed40 m/s Installation locationsBalcony, railing, wall CertificationISO9001, CE Package size370 × 150 × 80 mm Weightapprox. 2.5 kg Warranty10 years Advantages of the adjustable balcony mounting bracket The mounting system offers several advantages over fixed module installation. Due to the variable tilt angle the module can be better adapted to local conditions. Further advantages: Easy installationCompact designPre-assembled structureShort installation timeFlexible module orientationHigh-quality materialsHigh corrosion resistanceSuitable for various module sizesSuitable for use with numerous balcony power plant systems Installation instructions Before installation, you must check whether the balcony, railing or wall is suitable for the loads involved. In particular, the following must be taken into account: Net weight of the solar moduleWeight of the mounting bracketWind loadslocal weather conditionsCondition of the railing or substrateSecure fastening of all screw and clamp connections Installation must be carried out in accordance with the locally applicable building and safety regulations. If in doubt, the mounting should be checked by a suitably qualified specialist. FAQ on the adjustable solar mounting bracket Which solar panels is the mounting system suitable for? The mounting system is designed for framed solar modules with a frame thickness of 30 or 35 mm suitable. The maximum module length is 2,200 mm, the supported width ranges from 751 and 1,313 mm. Can the angle be adjusted? Yes. The mounting bracket can be fitted to 0° and within the range of 15–30° can be adjusted. This allows the solar panel to be flexibly adapted to the specific installation site. Is the mounting bracket already pre-assembled? Yes. The structure is largely pre-assembled and has been designed for quick installation. The system is unfolded, positioned and then securely fastened. Can the mounting bracket be attached to a balcony? Yes. The mounting system has been designed specifically for balconies and railings developed. However, prior to installation, it must be checked whether the structure in question is sufficiently load-bearing and suitable for the wind loads that may occur. Is wall mounting also possible? Yes. Depending on the local conditions, the system can also be used for wall mounting. The fasteners must be selected to suit the specific wall structure. Is the mounting bracket suitable for outdoor use? Yes. The aluminium alloys and stainless steel components used are corrosion-resistant and designed for long-term outdoor use. Contents of the package 1 × pre-assembled solar mounting kitRequired mounting and connection components as per the set contentsInstallation accessories as specified by the manufacturer The solar panel and micro-inverter are not included in the scope of delivery, unless expressly stated otherwise.
NEP Micro Inverter BDM-800 - 800W for balcony power plants
The NEP BDM-800 (Northern Electric & Power) is a high-performance, dual micro-inverter designed specifically for modern balcony power plants. With a maximum output power of 800 watts it makes full use of the statutory feed-in limits and ensures maximum yields.A key advantage of this model over many of its competitors is the built-in Wi-Fi moduleYou do not need an additional base station (such as a DTU) to read the yield data. The inverter connects directly to your home router. Thanks to two independent MPPT trackers, it controls two connected solar panels individually, which optimises the total yield, particularly in cases of partial shading or different orientations (e.g. east/west).Highlights at a glanceHigh output power (800 watts): Reliably supplies up to 800 VA to the home network, ideal for maximising output from standard balcony solar systems.Integrated Wi-Fi: No external gateway or additional dongle is required; the device sends yield data directly to the free NEPViewer app.Two independent MPPT trackers: Guarantees the best yield from each of the two modules, even if one is partially in the shade.Integrated over-current protection: Complies with the German standard VDE-AR-N 4105 (including an integrated relay) for safe and legal operation in Germany.High module compatibility: It can handle high input currents and is therefore ideally suited to modern high-performance modules (400W to 600W+ per input).Robust & weatherproof: The aluminium housing is dust- and waterproof to IP67 standard and built to last for decades of outdoor use.Areas of applicationThe NEP BDM-800 is the straightforward all-rounder for:Balcony power stations (2 modules): The classic ‘plug-and-play’ system mounted on the balcony railing to directly reduce your electricity bill.Garden & flat roof installation: This is ideal, as the device’s IP67 rating means it can be installed outdoors, directly behind the modules mounted on the frame.Smart homes: For users who want to monitor their electricity generation conveniently on their smartphone (iOS/Android) without the need for additional hardware.Installation & Safety InstructionsWi-Fi reception at the installation site: As the Wi-Fi module is housed in the inverter’s metal casing, check with your smartphone before permanent installation to ensure that there is still a sufficient Wi-Fi signal from your router on the balcony or roof.Ventilation: The inverter uses its housing as a heat sink. Do not mount it directly onto flammable materials and leave space at the rear of the module to allow air to circulate.Throttling possible: If your local network operator still insists on a 600-watt limit, the NEP BDM-800 can usually be certified to be throttled via support or the app (and later unthrottled back to 800W). FAQs on the NEP BDM-800Do I need an extra aerial or a gateway for the app?No. The Wi-Fi module and the antenna are already discreetly integrated into the BDM-800’s housing. During the initial setup, you simply need to connect the device to your home network (2.4 GHz) via the app.What plugs do I need to connect to the socket?The device usually has a standardised AC socket (often of the type Betteri BC01). To connect it to the mains socket, you’ll need a suitable ‘Betteri -to-Schuko’ (or Wieland-plug) connection cable that’s long enough for your setup.What happens if my router fails? Will the NEP still generate electricity?Yes, absolutely. The Wi-Fi connection is used solely for viewing statistics and energy yields in the app. As soon as the sun is shining and mains voltage is present, the inverter feeds electricity into your home network – completely independently of the internet.

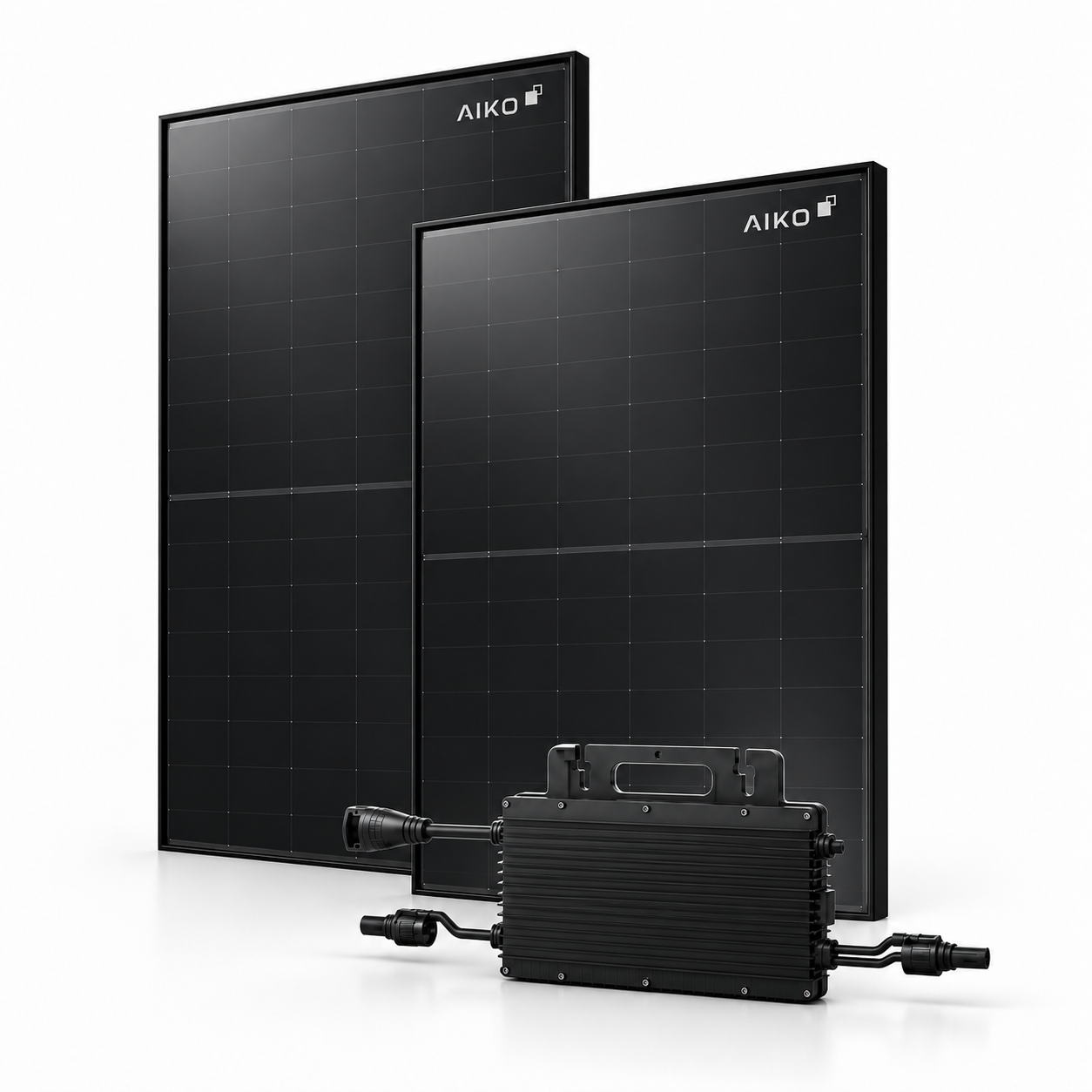

Complete BKW set 800W / 960Wp with 2x AIKO Neostar 3S+ 480W Full Black & Hoymiles HiFlow 800 Pro
Product informationThe Balcony power station with 960 Wp solar output and 800 VA inverter output is a high-performance, all-in-one solution for easy self-generation of electricity in the private sector.The kit combines Two AIKO Neostar 3S+ 54 Full Black glass-glass solar modules, each with an output of 480 W with the Hoymiles HiFlow 800 Pro HMS-800-2WB micro-inverter. This results in an installed module capacity of 960 Wp, whilst the Hoymiles inverter has a Rated output power of 800 VA offers. The Hoymiles inverter features two independent MPPT trackers, so that each module can be controlled separately. This is particularly advantageous in cases of differing orientations, varying tilt angles or temporary shading, as both modules are operated independently of one another at their optimum operating point. Thanks to with integrated Wi-Fi and Bluetooth The inverter can be controlled directly via the Hoymiles S-Miles Home App monitor and configure. An additional DTU is not required for normal use of the HMS-800-2WB. Key features at a glance 960 Wp total power outputTwo high-performance AIKO solar modules, each with an output of 480 W.800 VA inverter powerHigh-performance micro-inverter for modern balcony power stations.2 independent MPPT trackersOptimum energy yield with two modules connected.Integrated Wi-Fi & BluetoothDirect monitoring via the S-Miles Home app.No additional DTU requiredConvenient setup and monitoring without the need for additional equipment.Full Black glass-glass modulesHigh-quality appearance, robust construction and long service life.AIKO N-type ABC cell technologyModern cell technology for high efficiency and high yields.IP67 inverterDesigned for outdoor use.30-year product warranty on the modulesLong-term investment security.12-year manufacturer’s warranty on the inverterReliable technology for long-term use. Two AIKO Neostar 3S+ 480 W Full Black solar modules The components included in the set AIKO Neostar 3S+ 54 solar modules are high-quality full-black modules with 480 W power per module. Taken together, this results in a total output of: 2 × 480 W = 960 Wp The modules utilise modern N-type ABC cell technology and achieve a Module efficiency of approx. 24.0 %This makes them particularly suitable for applications where the aim is to achieve as much power as possible within a limited space. The bifacial glass-on-glass design, the black anodised aluminium frames as well as the IP68 junction box ensure a robust, durable construction. AIKO also offers 30-year product warranty and 30-year linear power guarantee. Advantages of the AIKO modules 480 W power per module total solar power output of 960 Wp approx. 24.0% efficiency N-type ABC cell technology bifacial glass-on-glass design Full Black Design black anodised aluminium frame IP68 junction box 30-year product warranty 30-year linear power output warranty Hoymiles HiFlow 800 Pro with two MPPT The centrepiece of the set is the Hoymiles HiFlow 800 Pro HMS-800-2WB. The micro-inverter was designed for Balcony power stations and compact PV systems and offers a Rated output power of 800 VA. The inverter has two separate PV inputs and two independent MPPT trackers. This allows both modules to be controlled separately. This is particularly useful for: East/west orientation with varying module tilts intermittent partial shading varying irradiation conditions The HMS-800-2WB also features Integrated 2.4 GHz Wi-Fi and Bluetooth. This allows the system to be controlled directly via the S-Miles Home App can be monitored and configured without an additional Hoymiles-DTU. Ideal for balcony power stations With 800 VA output power According to the product description, the HMS-800-2WB is particularly suitable for Balcony power stations with two solar panels Typical installation locations include balconies, terraces, garages, carports, garden sheds, as well as flat and pitched roofs. The combination of two high-performance AIKO modules and the Hoymiles inverter makes the kit an attractive solution for private users who wish to cover part of their electricity consumption with their own solar energy. Installation & Safety Instructions To maximise solar yield, the modules should be installed in a position with as little shading as possible. However, thanks to the two separate MPPT trackers, different orientations of the two modules can also be utilised effectively. According to the product page, the Hoymiles inverter is designed for a Simple plug-and-play installation . Nevertheless, the applicable electrical regulations as well as the Grid operator specifications Please note. Scope of delivery 2 × AIKO Neostar 3S+ 54 bifacial double-glass module with 480 W1 × Hoymiles HiFlow 800 Pro HMS-800-2WB micro-inverter1 × Hoymiles MS Plug-and-Play cable1 × removal tool1 × User manual FAQs on the 800W / 960Wp balcony power station What is the total power output of the set? The set consists of two solar modules, each with a power output of 480 W. This results in a total module power output of 960 Wp. The inverter offers a Rated output power of 800 VA. How many modules can be connected? The Hoymiles HMS-800-2WB features two DC inputs and two MPPT trackersThis allows for the direct connection of two solar modules intended. Do I need a Hoymiles DTU? No.The HMS-800-2WB already features Integrated Wi-Fi and Bluetooth and can be connected directly to the S-Miles Home App can be connected. An additional DTU is not required for normal use. What are the advantages of having two MPPT controllers? Due to the two independent MPPT trackers Each module can be controlled separately. This offers advantages in cases of differing orientations, varying module tilts or partial shading. Can the output power be limited? Yes.According to the product description, the maximum output power of the HMS-800-2WB limited by the software The exact setting options may depend on the app version, firmware and system configuration. For which applications is the set suitable? The kit is particularly suitable for Balconies, terraces, garages, carports, garden sheds and small private PV systems.
Complete PV kit 2000W / 1920Wp with 4x AIKO Neostar 3S+ 480W Full Black & Hoymiles HiFlow 2000 Pro
Product informationThe Complete PV kit with 1,920 Wp solar power and 2,000 W output power is a high-performance solution for the decentralised generation of your own solar power.The kit combines Four high-quality AIKO Neostar 3S+ 54 Full Black glass-glass solar modules, each with an output of 480 W with the high-performance Hoymiles HiFlow 2000 Pro HMS-2000-4WB microinverter.With a total of 1,920 Wp module power and an inverter output of up to 2,000 VA The system is ideally suited for high-performance mini-PV systems on terraces, garages, carports, garden sheds and suitable roof and open spaces.The Hoymiles inverter features four independent MPPT trackers, so that each of the four solar modules is controlled separately. This enables high solar yields to be achieved even with different orientations, partial shading or varying irradiation conditions.Thanks to with integrated Wi-Fi and Bluetooth The system can be conveniently operated via the Hoymiles S-Miles Home App monitor – an additional DTU is not required for normal use. Key features at a glance 1,920 Wp solar power outputFour high-performance AIKO Neostar 3S+ solar modules, each with an output of 480 W.2,000 VA inverter powerHoymiles ’s high-performance HiFlow 2000 Pro micro-inverter.4 independent MPPT trackersEach solar module is individually regulated and can reach its optimum operating point.4 separate PV inputsDirect connection of the four solar modules to the inverter.AIKO N-type ABC cell technologyModern high-performance cell technology with very high module efficiency.24.0% module efficiencyHigh output on a compact module area.Glass-on-glass Full Black designHigh-quality appearance combined with a robust double-glazed construction.Integrated Wi-Fi & BluetoothDirect communication with the Hoymiles S-Miles Home app.No additional DTU requiredWi-Fi and Bluetooth are already integrated into the inverter.IP67 inverterDesigned for long-term outdoor use.30-year ‘ AIKO ’ product guaranteeLong-term investment and planning security for the solar modules. Four AIKO Neostar 3S+ 480 W Full Black solar modules The components included in the set AIKO Neostar 3S+ 54 solar modules are among the most powerful modules in their size class. With each 480 W power output Together, the four modules achieve an installed PV capacity of: 4 × 480 W = 1,920 Wp The modern N-type ABC cell technology enables a module efficiency of around 24,0 %. This allows a particularly high level of solar power to be installed in a comparatively small area. The high-quality bifacial glass-on-glass design ensures both high mechanical stability and long-term reliability. Advantages of the AIKO modules 480 W power per moduleTotal solar power output: 1,920 Wpapprox. 24.0% module efficiencyN-type ABC cell technologybifacial glass-on-glass designElegant full-black designblack anodised aluminium frameHigh resistance to micro-cracksIP68 junction box30-year product warranty30-year linear power guarantee Hoymiles HiFlow 2000 Pro with four MPPT The heart of the system is the Hoymiles HiFlow 2000 Pro HMS-2000-4WB. The micro-inverter has four separate PV inputs and four independent MPPT trackers. This ensures that each of the four AIKO solar modules is controlled individually. This offers particular advantages for: East/west orientationdifferent module tiltsPartial shadingvarying irradiation conditionsInstallation of the modules on various surfaces If, for example, one of the modules is temporarily shaded, the remaining modules can still reach their optimum operating point independently of this. Wi-Fi & Bluetooth already integrated When Hoymiles HiFlow 2000 Pro HMS-2000-4WB Wi-Fi and Bluetooth are already integrated directly into the inverter. About the Hoymiles S-Miles Home App These include, amongst others: current PV outputEnergy generationOperating statusSystem dataInverter information can be conveniently monitored. An additional Hoymiles-DTU is not required for normal use of this inverter. High performance even under changing conditions The combination of 1,920 Wp module power and four separate MPPT trackers enables highly efficient use of the available solar area. The individual control of the four solar modules allows the system to offer advantages, particularly where irradiation conditions are not entirely identical. This is of particular interest, for example, when the modules are distributed as follows: East and Westdifferent sides of the roofPatio and garagedifferent tilt anglespartially shaded areas Areas of application The complete PV kit is particularly suitable for: PatiosGaragesCarportsGarden shedsFlat roofsPitched roofsFacadesOpen spacesprivate mini-PV systemssmaller photovoltaic systems for self-consumption The actual installation options depend on local conditions, the type of installation and the electrical requirements. Installation & Safety Instructions Select a suitable installation location To maximise solar yield, the modules should be positioned in a location with minimal shading and oriented as favourably as possible towards the sun’s rays. However, the four independent MPPT trackers also allow for different orientations of the modules. Secure mounting A substructure suitable for the respective application must be used for the modules. Depending on the installation, brackets are available for, for example: Tiled roofFlat roofBalconyWallPatioOpen space into account. Electrical connection The The HMS-2000-4WB has a maximum output power of 2,000 VA. Installation, connection and commissioning must therefore be carried out in accordance with the applicable electrical regulations and the requirements of the relevant grid operator. What to do in the event of a power cut In the event of a failure of the public electricity grid, the grid-connected micro-inverter switches off automatically for safety reasons. The system therefore does not provide an emergency or off-grid power supply without additional components designed for this purpose. Scope of delivery 4 × AIKO Neostar 3S+ 54 480 W glass-on-glass Full Black solar module1 × Hoymiles HiFlow 2000 Pro HMS-2000-4WB micro-inverter1 × Hoymiles MS Plug-and-Play cable1 × Hoymiles disassembly tool1 × User manual FAQs on the 1,920 Wp complete PV kit with Hoymiles 2,000 W What is the total solar output? Each of the four AIKO solar modules has a rated power of 480 W. This means: 4 × 480 W = 1,920 Wp total power How many MPPT channels does the Hoymiles inverter have? The Hoymiles The HMS-2000-4WB features four independent MPPT trackers and four separate PV inputs. This allows each of the four solar modules to be controlled individually. Why are four independent MPPT controllers useful? The four MPPT controllers enable each solar module to be operated at its optimal operating point independently of the other modules. This is particularly useful for: Partial shadingEast/west orientationdifferent module tiltsvarying levels of solar radiation Do I need a DTU ( Hoymiles )? No. The Hoymiles HiFlow 2000 Pro already features an integrated Wi-Fi and Bluetooth. Communication with the Hoymiles S-Miles Home App can therefore be carried out without a separate DTU. Can I connect all four AIKO modules directly? Yes. The HMS-2000-4WB has four DC inputs. Each of the four AIKO 480-W modules is connected to its own input or MPPT. What is the efficiency of the AIKO modules? The AIKO Neostar 3S+ 54 480 W achieve a module efficiency of around 24,0 %. This makes them among the most powerful modules in their size class. Is the system suitable for outdoor use? Yes. Both the solar modules and the micro-inverter are designed for long-term outdoor use. The Hoymiles HMS-2000-4WB has the protection class IP67, the junction box for the AIKO modules IP68. Is this kit a classic 800 W balcony power station? No. The included Hoymiles HMS-2000-4WB can achieve an output power of up to 2,000 VA achieve. The set should therefore be regarded as a high-performance Mini PV system or complete PV kit be taken into account. When connecting, registering and commissioning the system, the applicable legal and electrical requirements, as well as the specifications of the relevant grid operator, must be observed.
Hoymiles HiFlow 800 Pro HMS-800-2WB Micro-inverter 800W Wi-Fi & Bluetooth 2 MPPT
Product informationThe Hoymiles HiFlow 800 Pro HMS-800-2WB is a modern 800 VA micro-inverter for balcony power stations and compact PV systems.Thanks with integrated Wi-Fi and Bluetooth the inverter can be conveniently operated via the S-Miles Home App monitor and configure – without the need for an additional DTU.With two independent MPPT trackers two solar modules can be controlled separately. This is particularly advantageous in the event of differing orientations or temporary shading, as each module is operated independently at its optimum operating point.The HMS-800-2WB achieves a rated output power of 800 VA making it ideal for modern balcony power stations. Thanks to the plug-and-play design, the system can be installed quickly and easily. Highlights at a glance 800 VA output powerIdeal for high-performance balcony power stations.2 independent MPPT trackersOptimal power output with two connected solar panels.Integrated Wi-Fi & BluetoothDirect communication with the S-Miles Home app without a separate DTU.Plug & PlayQuick and easy installation.High efficiencyUp to 96.7% peak efficiency.High module compatibilityTypically suitable for solar modules with 320 to 540+ W per module.Robust IP67 housingSuitable for outdoor use.Passive coolingFanless operation via natural convection.12-year manufacturer’s warrantyFor long-term planning certainty. Two MPPT channels for maximum energy yield The Hoymiles HMS-800-2WB features two separate PV inputs, each with its own MPPT tracker. This allows two solar panels to be operated independently of one another. This offers particular advantages in: East/West orientationdifferent module inclinationsintermittent partial shadingvarying irradiation conditions This allows each connected module to reach its optimum operating point independently of the second module. Integrated Wi-Fi & Bluetooth With the HiFlow 800 Pro, 2.4 GHz Wi-Fi and Bluetooth already integrated into the inverter. About the Hoymiles S-Miles Home app operating data can be conveniently monitored and settings adjusted. An additional Hoymiles-DTU is not required for normal use of the HMS-800-2WB. Ideal for balcony power stations With an output power of 800 VA the HMS-800-2WB is particularly suitable for balcony power stations with two solar panels. Typical applications: Balcony power stationsPatiosGarages and carportsGarden shedsFlat and pitched roofssmall domestic PV systems Simple plug-and-play installation The HiFlow 800 Pro has been specially developed for straightforward installation. The Hoymiles Plug-and-Play connection system enables quick and easy connection to the domestic mains supply. The relevant electrical regulations and the grid operator’s specifications must be observed during installation and operation. FAQs about the Hoymiles HiFlow 800 Pro HMS-800-2WB What is the difference between this and the Hoymiles HM-800? The HMS-800-2WB is part of the newer ‘ Hoymiles ’ generation and offers several advantages over the HM-800: Integrated Wi-Fi & BluetoothDirect integration into the S-Miles Home app without a separate DTU.Higher input currentsWith up to 14 A input current per MPPT Suitable for modern solar modules.Two independent MPPT trackersBoth connected solar modules are controlled independently of one another.Modern plug-and-play conceptSpecially developed for compact balcony power stations and domestic PV applications. Do I absolutely need a DTU? No. The Hoymiles HMS-800-2WB already features an integrated Wi-Fi and Bluetooth. This allows the inverter to be connected directly to the S-Miles Home App can be connected. Operating data can be monitored and available settings can be adjusted. An additional Hoymiles-DTU is not required for normal use of the HMS-800-2WB. Can the output power be limited? Yes. The maximum output power of the HMS-800-2WB can be limited via the software. The available settings may depend on the app version, firmware and system configuration. Contents of the package 1 × Hoymiles HiFlow 800 Pro HMS-800-2WB micro-inverter1 × Hoymiles MS Plug-and-Play cable1 × Disassembly tool1 × User manual
Hoymiles HiFlow 2000 Pro HMS-2000-4WB micro-inverter 2000W 4 MPPT Wi-Fi & Bluetooth
Product informationThe Hoymiles HiFlow 2000 Pro HMS-2000-4WB is a high-performance 2000 VA micro-inverter for modern balcony power stations, mini PV systems and compact photovoltaic systems with up to four solar modules.Thanks with integrated Wi-Fi and Bluetooth the inverter can be conveniently operated via the Hoymiles S-Miles Home app monitor and configure – without the need for an additional DTU.With four independent MPPT trackers Up to four solar modules can be controlled individually. This is particularly advantageous in cases of differing orientations, varying module tilts or temporary shading, as each connected module can be operated independently at its optimum operating point.The HMS-2000-4WB achieves a rated output power of 2000 VA It is ideal for high-performance mini-PV systems and domestic PV applications. Highlights at a glance 2000 VA output powerHigh performance for modern mini-PV and balcony solar systems.4 independent MPPT trackersOptimal power output with up to four connected solar panels.4 PV inputsDirect connection of up to four PV modules.Integrated Wi-Fi & BluetoothDirect communication with the S-Miles Home app without an additional DTU.Plug & PlayQuick and easy installation thanks to the ‘ Hoymiles ’ plug-and-play system.High efficiencyUp to 96.5% peak efficiency.High module compatibilitySuitable for modern solar modules with a typical 400 to 670+ W per module.High input currentUp to 16 A input current per PV input.Robust IP67 housingSuitable for long-term outdoor use.Passive coolingFanless operation via natural convection.12-year manufacturer’s warrantyFor long-term planning certainty. Four MPPT channels for maximum energy yield The Hoymiles HMS-2000-4WB features four separate PV inputs with four independent MPPT trackers. This allows up to four solar modules to be operated and controlled independently of one another. This offers particular advantages in: East/West orientationdifferent module tiltsintermittent partial shadingvarying irradiation conditionsInstallation on various roof or façade surfaces This enables each connected solar module to reach its optimal operating point independently of the other modules. Particularly in the case of installations with varying orientations or partial shading, this can improve energy yield compared to systems with shared MPP tracking. Integrated Wi-Fi & Bluetooth When HiFlow 2000 Pro are 2.4 GHz Wi-Fi and Bluetooth already integrated directly into the inverter. About the Hoymiles S-Miles Home app Among other things, you can monitor operating data, configure system settings and check the system’s performance. An additional Hoymiles-DTU is not required for normal use of the HMS-2000-4WB. Ideal for high-performance mini PV systems With an output power of 2000 VA With four separate PV inputs, the HMS-2000-4WB is particularly suitable for high-output systems with up to four solar modules. Typical applications: Balcony power stations and mini PV systemsPatiosGarages and carportsGarden shedsFacade systemsFlat and pitched roofssmall domestic photovoltaic systems Note: When connecting and operating the system, the applicable legal requirements, electrical regulations and the grid operator’s specifications must be observed. Simple plug-and-play installation The HiFlow 2000 Pro has been designed for the simplest possible installation. Hoymiles ’s plug-and-play connection system enables a quick connection between the inverter and the AC connection. Thanks to the integrated Wi-Fi and Bluetooth module, setup can then be carried out via the S-Miles Home App must be carried out. The relevant electrical regulations and the grid operator’s requirements must be observed during installation and operation. FAQs about the Hoymiles HiFlow 2000 Pro HMS-2000-4WB How many solar panels can be connected? On Hoymiles The HMS-2000-4WB can connect up to four solar panels be connected. Each module has its own PV input with a separate MPPT. This ensures that each module is controlled individually and can reach its optimum operating point independently of the other modules. Which solar modules are suitable? Hoymiles specifies a typical module power rating for the HMS-2000-4WB of 400 to 670+ W per module. Thanks to a maximum input current of 16 A per input the inverter is also suitable for many of today’s high-performance solar modules. For the final design, particular attention must also be paid to the module voltage, short-circuit current and temperature coefficients of the solar module used. Do I absolutely need a DTU? No. The Hoymiles HMS-2000-4WB already features an integrated Wi-Fi and Bluetooth. This allows the inverter to be connected directly to the S-Miles Home App be connected. Operating data can be monitored and available settings adjusted. An additional Hoymiles-DTU is not required for normal use of the HMS-2000-4WB. What are the advantages of the four MPPT trackers? Thanks to the four independent MPPT trackers Each connected solar panel is controlled separately. This is particularly advantageous for: different roof orientationsEast/West-facing installationsdifferent module tiltsPartial shadingvarying levels of solar irradiance As a result, the output of a module receiving less sunlight has a significantly smaller impact on the other connected modules. Can the output power be limited? The HiFlow series supports intelligent power management and corresponding system configurations via the Hoymiles system. The power limitations available in a specific application may depend on the firmware, app version, system configuration and the applicable grid requirements. Is the inverter suitable for outdoor use? Yes. The Hoymiles HMS-2000-4WB has the following protection rating IP67 and is therefore designed for outdoor use. Cooling is achieved passively via natural convection, so no fan is required. Contents of the package 1 × Hoymiles HiFlow 2000 Pro HMS-2000-4WB micro-inverter1 × Hoymiles MS Plug-and-Play cable1 × Disassembly tool1 × User manual
KSENG Adjustable Solar Universal Mounting Bracket (Black Anodised)
KSENG Adjustable universal solar mounting bracket – black anodisedProduct informationThe KSENG Universal solar mounting bracket in black anodised finish enables the installation of a solar panel in various locations. Whether on a suitable balcony railing, on a wall or on a flat surface: the mounting bracket offers various installation options for your photovoltaic system.The adjustable telescopic supports allow the panel tilt to be adapted to the installation situation. The black finish complements black-framed solar panels in particular, creating a uniform appearance.Highlights at a glance▪ Adjustable tilt: Angle adjustment via telescopic supports.▪ Various mounting options: For balcony, wall and freestanding installation in accordance with the instructions.▪ Black anodised finish: A suitable look for solar panels with black frames.▪ Foldable support arms: Folding support structure for assembly.▪ Inverter mounting provided: The instructions describe how to mount a micro-inverter.Technical specifications FeaturesSpecification ManufacturerKSENG Item numberKSEUESBLACK Product typeAdjustable universal solar mounting bracket Colour / FinishBlack anodised Tilt adjustmentAbout telescopic supports Mounting optionsBalcony, wall, flat surface as per the instructions Weight as stated in the shop5 kg Installation and compatibilityBefore purchasing, check the panel dimensions, frame profile and suitability of the installation site. The term ‘universal’ does not imply unrestricted compatibility with all panels and railings.The mounting and, where necessary, additional securing must be suitable for the surface and the local load conditions. Please follow the installation instructions.Frequently asked questionsIs the panel tilt adjustable?Yes, adjustment is carried out via the telescopic supports.Can the mount be fitted to a wall?Yes, the instructions show wall mounting. The fixings must be suitable for the respective surface.Is a solar panel or inverter included?This item is a mounting bracket. The solar panel and inverter must be selected separately.
