Low voltage
Low-voltage PV storage set: Deye SUN-6kW 3-phase hybrid inverter, 1x Deye SE-F5C Pro 5.12 kWh
The compact all-in-one package for your solar powerThis low-voltage storage kit from Deye combines the three-phase hybrid inverter SUN-6K-SG05LP3-EU-SM2 with a SE-F5C Pro lithium iron phosphate battery module with 5.12 kWh capacity. The set is ideal for detached houses with small to medium-sized PV systems and moderate electricity consumption. The inverter and battery are optimally matched in terms of power output: the battery can deliver a continuous output of around 5.1 kW, thereby utilising a large proportion of the inverter’s capacity. As both components are from the same manufacturer and communicate directly via CAN or RS485, installation and commissioning are particularly straightforward. And if your requirements grow, you can simply expand the storage system with additional modules.Deye SUN-6K-SG05LP3-EU-SM2: Efficient and versatileThe hybrid inverter delivers a rated output of 6 kW (max. 6.6 kVA) in three-phase mode and supports a PV connection capacity of up to 12 kWp, the maximum DC input power is 9 kW. Two MPP trackers, each with a 20 A input current and a wide voltage range of 200 to 650 V, ensure maximum yield even from roofs with varying orientations, such as east/west. With an efficiency of up to 97.6 % and an MPPT efficiency of over 99 %, virtually no energy is lost.For the battery, up to 135 A of charging and discharging current are available. In the event of a power cut, the inverter continues to supply your home in off-grid mode, providing three-phase power from the battery and PV system, whilst briefly delivering double the rated power for 10 seconds. The 100 % asymmetrical output allows up to 50 % of the rated power per phase, which is a real advantage in everyday life where loads are unevenly distributed.Furthermore, the inverter offers AC coupling for retrofitting existing PV systems, the integration of a diesel generator, six freely configurable time slots for charging and discharging (ideal for dynamic electricity tariffs), and the parallel connection of up to 10 units in both on-grid and off-grid operation. The IP65-rated housing allows for an operating temperature range of -40 to +60 °C, and at under 55 dB(A), the unit operates pleasantly quietly. The grid connection complies with VDE-AR-N 4105.Deye SE-F5C Pro: Safe LiFePO4 battery with displayThe SE-F5C Pro module utilises long-lasting and thermally stable lithium iron phosphate cells (LiFePO4) and offers 5.12 kWh at 51.2 V and 100 Ah. The C version features a display for direct viewing of the battery status. The advanced BMS with active fuse and the integrated circuit breaker ensure comprehensive protection.With at least 6,000 cycles, a guaranteed energy throughput of 16 MWh and a 10-year manufacturer’s warranty the storage system is designed for long-term, cost-effective operation. The module supports a continuous current of 100 A (1C) and a peak current of 150 A for 120 seconds. The storage system can be expanded to up to 32 modules in parallel (or even 64 with a CAN box) and can be mounted on the wall, on the floor or stacked. Using the optional Wi-Fi/Bluetooth module and the Deye app, you can monitor the battery locally or remotely, together with the inverter.Your benefits at a glanceYou receive a complete, optimally balanced system from a single source, with 6 kW three-phase power, up to 12 kWp PV connection capacity and 5.12 kWh storage capacity. The system is capable of providing emergency power, the LiFePO4 technology with a 10-year warranty ensures longevity, and the storage system scales flexibly to meet your needs. The 48 V low-voltage technology also offers greater safety during installation and maintenance than high-voltage systems.Contents of the package1x Deye SUN-6K-SG05LP3-EU-SM2 3-phase hybrid inverter1x Deye SE-F5 Pro LiFePO4 battery module, Config Version C with display (5.12 kWh) FAQs on the Deye low-voltage PV storage kit 6 kW inverter with 5.12 kWh storageWhich households is this kit suitable for?The kit is suitable for detached houses with a three-phase mains connection, a PV system of up to approximately 12 kWp and moderate electricity consumption, such as smaller families or couples. A 5.12 kWh storage unit typically covers a good portion of evening consumption. For larger PV systems or higher consumption, we also offer kits featuring the 8 kW inverter and up to three storage modules.Are the inverter and battery compatible in terms of power output?Yes, very well. An SE-F5 Pro module delivers up to 100 A continuously, which corresponds to around 5.1 kW. This means the battery can cover the majority of the 6 kW inverter output. The BMS automatically communicates the battery’s limit values to the inverter, ensuring the system always operates within safe parameters. With a second module, the inverter’s full battery current of 135 A can be utilised.How much PV capacity can I connect to the inverter?The SUN-6K-SG05LP3-EU-SM2 supports a PV connected load of up to 12 kWp, the maximum DC input power is 9 kW. The modules are distributed across two MPP trackers, each with one string, with an input current of up to 20 A per tracker and an MPPT voltage range of 200 to 650 V. The maximum DC input voltage of 800 V must not be exceeded, even at low temperatures, which is why string planning should be carried out by a specialist contractor.How much storage capacity is actually available?The capacity is 5.12 kWh. Deye recommends a depth of discharge of 90 %, which provides around 4.6 kWh of usable energy for everyday use. This reserve protects the cells and extends their service life.Does the system still work during a power cut?Yes. In the event of a power cut, the hybrid inverter can continue to operate in off-grid mode and supply your home with three-phase power from the battery and the PV system. In the absence of sunlight, the battery provides a continuous output of around 5 kW, and the stored energy is sufficient to power essential appliances such as the fridge, heating control, lighting and router. During the day, the PV system can supply additional electricity and recharge the battery. This requires the emergency power consumers to be wired appropriately during installation.How do I expand the storage capacity later?Additional SE-F5 Pro modules are simply connected in parallel and linked to the existing module via the communication ports (IN/OUT). Up to 32 modules are possible, with a CAN box, this can be increased to 64. To ensure smooth operation, it is recommended that you use modules of the same design and have the expansion carried out by a specialist contractor.Can I install the battery outdoors or in the garage?The inverter has an IP65 protection rating and is suitable for outdoor installation. The battery module, on the other hand, has an IP21 protection rating and should be installed in a dry indoor location, such as a cellar or utility room. Please also note that the battery can only be charged at temperatures between 0 and 55 °C; charging is therefore restricted in unheated rooms where frost is a risk.How long does the battery last?Deye specifies a cycle life of at least 6,000 cycles (at 25 °C down to 70 % remaining capacity). Based on one full cycle per day, this equates to over 16 years. In addition, Deye offers a 10-year warranty or 16 MWh of energy throughput, the manufacturer’s warranty terms and conditions apply.Can I retrofit an existing PV system?Yes. The inverter supports AC coupling, meaning that an existing PV system with its own inverter can be integrated. This also allows an older system, for example once EEG subsidies have ended, to be supplemented with a storage unit.Can I connect a generator?Yes, the inverter supports the integration of a diesel generator, for example for off-grid applications or as an additional safeguard during prolonged power cuts.How do I monitor my system?Using an optional data logger module (Wi-Fi, Bluetooth, 4G, GPRS or LAN), the system can be monitored via the Deye app. The battery can also be checked locally via Bluetooth, without the need for an internet connection. The app displays generation, consumption, grid draw, feed-in and charge status in real time.
Low-Voltage PV Storage Kit: Deye SUN-8kW 3-phase hybrid inverter, 2x Deye SE-F5C Pro 10.24 kWh
The tailored all-in-one package for self-consumption and emergency powerThis low-voltage storage kit from Deye combines the three-phase hybrid inverter SUN-8K-SG05LP3-EU-SM2 with two SE-F5 Pro lithium iron phosphate battery modules to provide a total storage capacity of 10.24 kWh. The inverter and battery are from the same manufacturer and communicate directly with each other via CAN or RS485, which significantly simplifies installation and commissioning. The result is a system that stores your solar power, increases your self-consumption and continues to supply you with electricity in the event of a power cut.Deye SUN-8K-SG05LP3-EU-SM2: Powerful and flexibleThe hybrid inverter delivers 8 kW rated power (max. 8.8 kVA) in three-phase mode and is designed for connection to large PV generators: up to 16 kW of PV power can be connected; the maximum DC input power is 12 kW. Two MPP trackers, each with an input current of 20 A and a wide voltage range from 200 to 650 V, ensure maximum yield even from roofs with varying orientations, such as east/west. With an efficiency of up to 97.6 % and an MPPT efficiency of over 99 %, virtually no energy is lost.For the battery, up to 190 A of charging and discharging current are available. In the event of a power cut, the inverter continues to supply your home in off-grid mode, briefly providing double the rated power for 10 seconds – enough to cover the start-up currents of pumps or compressors. The 100 % asymmetrical output allows up to 50 % of the rated power per phase, which is a real advantage in everyday use where loads are unevenly distributed.Furthermore, the inverter offers AC coupling for retrofitting existing PV systems, the integration of a diesel generator, six freely configurable time slots for charging and discharging (ideal for dynamic electricity tariffs), and the parallel connection of up to 10 units in both on-grid and off-grid operation. The IP65-rated housing allows for an operating temperature range of -40 to +60 °C, and at under 55 dB(A), the unit operates pleasantly quietly. The grid connection complies with VDE-AR-N 4105.Deye SE-F5 Pro: Safe LiFePO4 battery with displayThe SE-F5 Pro modules utilise durable and thermally stable lithium iron phosphate (LiFePO4) cells. Each module provides 5.12 kWh at 51.2 V and 100 Ah. The C version features a display showing the battery status in real time. The advanced BMS with active fuse and the integrated circuit breaker ensure comprehensive protection.With at least 6,000 cycles, a guaranteed energy throughput of 16 MWh and a 10-year manufacturer’s warranty is designed for long-term, cost-effective operation. Each module supports a continuous current of 100 A (1C) and a peak current of 150 A for 120 seconds, meaning that two modules can easily handle the inverter’s full battery current. The storage system can be expanded to up to 32 modules in parallel (or even 64 with a CAN box) and can be mounted on the wall, on the floor or stacked. Using the optional Wi-Fi/Bluetooth module and the Deye app, you can monitor the battery locally or remotely, together with the inverter.Your benefits at a glanceYou receive a fully integrated, complete system from a single source, offering 8 kW of three-phase power, up to 16 kW of PV connection capacity and 10.24 kWh of storage capacity. The emergency power capability provides protection in the event of a grid failure, the LiFePO4 technology with a 10-year warranty ensures longevity, and both the battery and the inverter can be flexibly expanded. The 48 V low-voltage technology also offers greater safety during installation and maintenance than high-voltage systems.Contents of the package1x Deye SUN-8K-SG05LP3-EU-SM2 3-phase hybrid inverter2x Deye SE-F5 Pro LiFePO4 battery module, Config Version C with display (5.12 kWh each) FAQs on the Deye Low-Voltage PV Storage Kit: 8 kW inverter with 10.24 kWh storageWhich households is this kit suitable for?The kit is ideal for detached houses with a three-phase grid connection and medium to high electricity consumption. With an 8 kW inverter output and 10.24 kWh of storage, a large proportion of evening and night-time consumption can be covered by your own solar power. For households with a heat pump or electric car, the storage capacity can easily be expanded at a later date.How much PV capacity can I connect to the inverter?The SUN-8K-SG05LP3-EU-SM2 supports a PV connected load of up to 16 kWp; the maximum DC input power is 12 kW. The modules are distributed across two MPP trackers, each with one string, with an input current of up to 20 A and an MPPT voltage range of 200 to 650 V. The maximum DC input voltage of 800 V must not be exceeded, even at low temperatures; for this reason, string planning should be carried out by a specialist contractor.How much storage capacity is actually available?The total capacity is 10.24 kWh (2 × 5.12 kWh). Deye recommends a depth of discharge of 90 %, which provides around 9.2 kWh of usable energy for everyday use. This reserve protects the cells and extends their service life.Does the system still work during a power cut?Yes. In the event of a mains power cut, the hybrid inverter can continue to operate in off-grid mode and supply your home with power from the battery and PV system, in three-phase mode. For a short period, it can even provide double the rated power for 10 seconds, for example to cover the start-up currents of pumps or compressors. This requires the emergency power consumers to be wired appropriately during installation.Can I expand the storage capacity later?Yes. The SE-F5 Pro modules can be expanded in parallel to up to 32 units, and with a CAN box even up to 64. The inverter can also be operated in parallel with up to 10 devices. Please note when expanding the system that the inverter charges and discharges at a maximum of 190 A; additional modules primarily increase the capacity, not the power output, of a single inverter.Can I install the batteries outdoors or in the garage?The inverter has an IP65 protection rating and is suitable for outdoor installation. The battery modules, on the other hand, have an IP21 protection rating and must be housed in a dry indoor space, such as a cellar or utility room. Please also note that the batteries can only be charged at temperatures between 0 and 55 °C; charging is therefore restricted in unheated rooms where frost is a risk.How long do the batteries last?Deye It specifies a cycle life of at least 6,000 cycles (at 25 °C down to 70 % of residual capacity). Assuming one full cycle per day, this equates to over 16 years. In addition, Deye offers a 10-year warranty or 16 MWh of energy output per module; the manufacturer’s warranty conditions apply.Can I retrofit an existing PV system?Yes. The inverter supports AC coupling, meaning that an existing PV system with its own inverter can be integrated. This also allows an older system – for example, once EEG subsidies have ended – to be supplemented with a storage unit.Can I connect a generator?Yes, the inverter supports the integration of a diesel generator, for example for off-grid applications or as an additional safeguard during prolonged power cuts.How do I monitor my system?Using an optional data logger module (Wi-Fi, Bluetooth, 4G, GPRS or LAN), the system can be monitored via the ‘ Deye ’ app. The batteries can also be read locally via Bluetooth, without the need for an internet connection. In the app, you can view generation, consumption, grid consumption, feed-in and state of charge in real time.

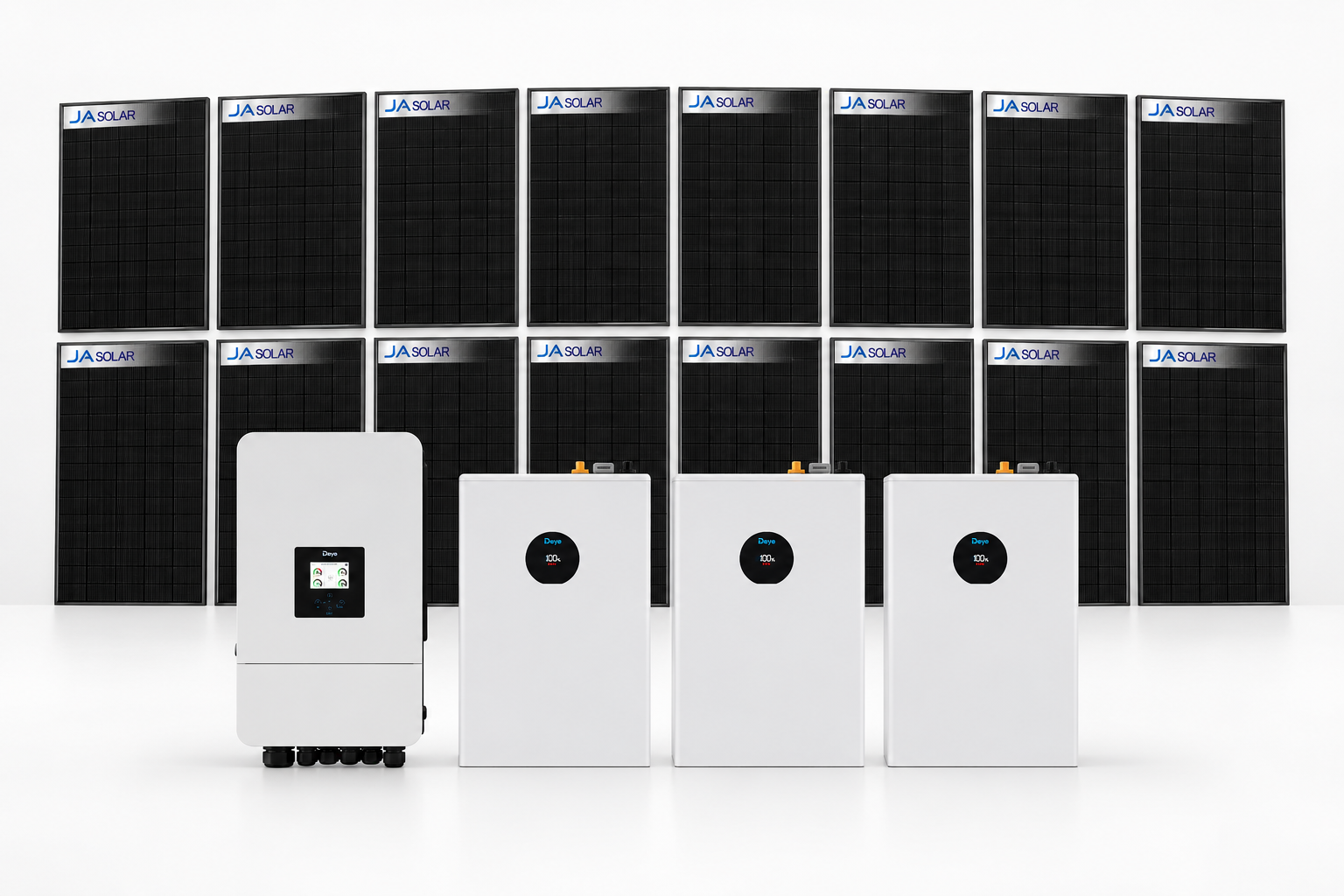

Low-Voltage PV Storage Kit: Deye SUN-8kW 3-phase hybrid inverter – 3x Deye SE-F5C Pro 15.36 kWh
The comprehensive package for maximum independenceThis low-voltage storage kit from Deye combines the three-phase hybrid inverter SUN-8K-SG05LP3-EU-SM2 with three SE-F5 Pro lithium iron phosphate battery modules to form a total storage capacity of 15.36 kWh. This makes the set particularly suitable for households with high electricity consumption, such as those with a heat pump, electric car or home office, and for anyone who wishes to be as independent as possible from the grid, even at night and on overcast days. The inverter and batteries are from the same manufacturer and communicate directly with each other via CAN or RS485, which significantly simplifies installation and commissioning.Deye SUN-8K-SG05LP3-EU-SM2: Powerful and flexibleThe hybrid inverter delivers 8 kW nominal power (max. 8.8 kVA) in three-phase configuration and is designed for connection to large PV generators: up to 16 kW of PV power can be connected, with a maximum DC input power of 12 kW. This is a particular advantage when combined with the large storage system, as surplus solar power can be fed entirely into the batteries during the day. Two MPP trackers, each with a 20 A input current and a wide voltage range of 200 to 650 V, ensure maximum yield even from roofs with varying orientations, such as east/west. With an efficiency of up to 97.6 % and an MPPT efficiency of over 99 %, virtually no energy is lost.For the battery, up to 190 A of charging and discharging current are available. In the event of a power cut, the inverter continues to supply your home in off-grid mode, briefly providing double the rated power for 10 seconds, enough to cover the start-up currents of pumps or compressors. With 15.36 kWh of storage capacity, you can also bridge longer outages. The 100 % asymmetrical output allows up to 50 % of the rated power per phase, which is a real advantage in everyday use where loads are unevenly distributed.Furthermore, the inverter offers AC coupling for retrofitting existing PV systems, the integration of a diesel generator, six freely configurable time slots for charging and discharging (ideal for dynamic electricity tariffs), and the parallel connection of up to 10 units in both on-grid and off-grid operation. The IP65-rated housing allows for an operating temperature range of -40 to +60 °C, and at under 55 dB(A), the unit operates pleasantly quietly. The grid connection complies with VDE-AR-N 4105.Deye SE-F5 Pro (Config C): Safe LiFePO4 battery with displayThe SE-F5 Pro modules utilise durable and thermally stable lithium iron phosphate (LiFePO4) cells. Each module provides 5.12 kWh at 51.2 V and 100 Ah. The C version features a display showing the battery status in real time. The advanced BMS with active fuse and the integrated circuit breaker ensure comprehensive protection.With at least 6,000 cycles, a guaranteed energy throughput of 16 MWh and a 10-year manufacturer’s warranty per module, the storage system is designed for long-term, cost-effective operation. As the inverter’s charging and discharging current is distributed across three modules, each individual module operates at significantly less than its permissible continuous current of 100 A, which further protects the cells. The storage system can be expanded to up to 32 modules in parallel (or even 64 with a CAN box) and can be mounted on the wall, on the floor or stacked. Using the optional Wi-Fi/Bluetooth module and the Deye app, you can monitor the batteries locally or remotely, together with the inverter.Your benefits at a glanceYou will receive a fully coordinated complete kit from a single source, featuring 8 kW three-phase power, up to 16 kW PV connection capacity and a generous 15.36 kWh storage capacity. The emergency power capability provides protection even during prolonged grid outages, the LiFePO4 technology with a 10-year warranty ensures longevity, and both the battery and the inverter can be flexibly expanded. The 48 V low-voltage technology also offers greater safety during installation and maintenance than high-voltage systems.Contents of the package1x Deye SUN-8K-SG05LP3-EU-SM2 3-phase hybrid inverter3x Deye SE-F5 Pro LiFePO4 battery module, Config Version C with display (5.12 kWh each) FAQs on the Deye Low-Voltage PV Storage Kit: 8 kW inverter with 15.36 kWh storageWhich households is this kit suitable for?The kit is designed for detached houses with a three-phase grid connection and high electricity consumption, for example those with a heat pump, an electric car or several people working from home. With 15.36 kWh of storage, evening and night-time consumption can, in many cases, be covered entirely by the home’s own solar power. For households with lower consumption, the version with two storage modules (10.24 kWh) is often the more economical choice.How much PV capacity can I connect to the inverter?The SUN-8K-SG05LP3-EU-SM2 supports a PV connected load of up to 16 kWp; the maximum DC input power is 12 kW. The modules are distributed across two MPP trackers, each with one string, with an input current of up to 20 A and an MPPT voltage range of 200 to 650 V. To ensure that the large storage system can be fully charged even during the day, a suitably sized PV system is recommended. The maximum DC input voltage of 800 V must not be exceeded, even at low temperatures, which is why string planning should be carried out by a specialist contractor.How much storage capacity is actually available?The total capacity is 15.36 kWh (3 × 5.12 kWh). Deye recommends a depth of discharge of 90 %, which provides around 13.8 kWh of usable energy for everyday use. This reserve protects the cells and extends their service life.Does the system still work during a power cut?Yes. In the event of a grid failure, the hybrid inverter can continue to operate in off-grid mode and supply your home with three-phase power from the battery and PV system. For a short period, it can even provide double the rated power for 10 seconds, for example to cover the start-up currents of pumps or compressors. Thanks to its large storage capacity, it can also effectively bridge longer outages. This requires the emergency power consumers to be wired appropriately during installation.Does the third storage unit also provide more power?The third battery primarily increases the capacity, i.e. how long you can use electricity from the battery. The charging and discharging current is limited by the inverter to a maximum of 190 A. There is, however, one advantage: the current is distributed across three modules, so that the load on each individual module is reduced, which can have a positive effect on their service life.Can I expand the storage system further at a later date?Yes. The SE-F5 Pro modules can be expanded in parallel to up to 32 units, and with a CAN box even up to 64. The inverter can also be operated in parallel with up to 10 units if you require more power at a later date.Can I install the batteries outdoors or in the garage?The inverter has an IP65 protection rating and is suitable for outdoor installation. The battery modules, on the other hand, have an IP21 protection rating and must be housed in a dry indoor space, such as a cellar or utility room. Please also note that the batteries can only be charged at temperatures between 0 and 55 °C; charging is therefore restricted in unheated rooms where frost is a risk.How long do the batteries last?Deye It specifies a cycle life of at least 6,000 cycles (at 25 °C down to 70 % of residual capacity). Assuming one full cycle per day, this equates to over 16 years. In addition, Deye offers a 10-year warranty or 16 MWh of energy output per module; the manufacturer’s warranty conditions apply.Can I retrofit an existing PV system?Yes. The inverter supports AC coupling, meaning that an existing PV system with its own inverter can be integrated. This also allows an older system, for example, once EEG subsidies have ended, to be supplemented with a large storage unit.Can I connect a generator?Yes, the inverter supports the integration of a diesel generator, for example for off-grid applications or as an additional safeguard during prolonged power cuts.How do I monitor my system?Using an optional data logger module (Wi-Fi, Bluetooth, 4G, GPRS or LAN), the system can be monitored via the ‘ Deye ’ app. The batteries can also be read locally via Bluetooth, without the need for an internet connection. In the app, you can view generation, consumption, grid consumption, feed-in and state of charge in real time.Can I install the kit myself?No. Installation and commissioning must only be carried out by a qualified electrician. The system must also be registered with the grid operator and entered in the market master data register. The inverter complies with the VDE-AR-N 4105 standard required in Germany.
Low-voltage PV storage set: Deye SUN-8kW 3-phase hybrid inverter & Felicity FLS48100SG2 battery storage unit 10.24 kWh
Hybrid inverter and energy storage system as a set – the heart of your solar systemThis set contains the two key components of a solar system with storage: the three-phase Deye SUN-8K-SG05LP3-EU-SM2 hybrid inverter and the Felicity FLS48100SG2 battery storage unit with a capacity of 10.24 kWh. Combine this set with solar panels of your choice to install a new system, or retrofit an existing PV system with this low-voltage PV storage set. Who is this kit suitable for?✅ Builders and homeowners who wish to select their own solar panels✅ Owners of an existing PV system who wish to retrofit a storage system (AC coupling)✅ Households with a three-phase domestic connection, as is common in Germany✅ Households with higher consumption who wish to upgrade to up to 40.96 kWh at a later date Components explained simply1. Hybrid inverter: Deye SUN-8K-SG05LP3-EU-SM2What it does: Solar panels generate direct current (DC), but your household needs alternating current (AC). The inverter converts the electricity. As a hybrid inverter, it also controls the storage system and automatically decides where the electricity flows: into the house, into the storage system or into the grid.Why choose this inverter:8 kW output, 3-phase: It feeds into all three phases of your domestic connection, as is standard practice in Germany.Unbalanced output: It can load the phases to different degrees, up to 50 % of the rated power (4 kW) per phase. This is useful because domestic appliances rarely use the phases evenly.Plenty of scope for solar modules: Up to 12.8 kW maximum PV input power, 800 V maximum input voltage and two MPP trackers. This also allows you to utilise two roof areas with different orientations, e.g. east and west.High efficiency: Up to 97.6 % (Euro efficiency 97.0 %).Retrofitting a storage system: The inverter can also be combined with an existing PV system via AC coupling.Smart charge control: With 6 freely adjustable time slots, you can specify when the storage unit is charged or discharged, e.g. to match a dynamic electricity tariff.Off-grid operation: According to the manufacturer, the inverter supports off-grid operation, i.e. operation without connection to the public grid. Whether and how your appliances will continue to be powered in the event of a power cut depends on the installation. Discuss this with your electrician.Future-proof: It supports charging via a diesel generator and the parallel operation of up to 10 inverters.Rugged: IP65 protection against dust and water jets, operating temperature range from −40 to +60 °C.Complies with standards: It complies with the German grid connection guideline VDE-AR-N 4105.Integrated protection functions: Insulation monitoring, residual current detection, anti-islanding protection, DC switch, reverse polarity protection and overvoltage protection (Type II, DC and AC).Good to know: The inverter weighs 35.2 kg and has a noise level of up to 55 dB. A utility room, utility cupboard, basement or garage is therefore a more suitable location than a living area. 2. Battery storage: Felicity FLS48100SG2 (10.24 kWh)What it does: The storage unit stores surplus solar power and releases it as soon as the panels are not supplying enough, i.e. mainly in the evening and at night.Why choose this storage system:10.24 kWh capacity: Two modules, each with a capacity of 5.12 kWh. With a depth of discharge of at least 95 %, approximately 9.7 kWh is available.LiFePO4 cells: Lithium iron phosphate is considered a particularly safe and long-lasting battery chemistry. The storage system can around 6,000 charge cycles (at 0.2C, 25 °C and 80 % depth of discharge).Multiple layers of protection: An intelligent BMS, a circuit breaker and a fuse protect the storage unit. According to the manufacturer, this is supplemented by a fire protection module as well as protection against overcurrent, overvoltage, undervoltage and overtemperature. The fuse can be easily replaced from the outside.Easy to expand: The modules are stacked on top of one another. This allows you to expand the capacity up to 40.96 kWh (8 modules).Display: The control module displays the key values on an LCD screen; each battery module has an LED indicator.Charging and discharging capacity: With two modules, Felicity recommends 100 A (approx. 5.1 kW); a maximum of 120 A (approx. 6.1 kW) is possible under continuous operation. Adding more modules also increases the possible charging power.Warranty: 10 years (in accordance with Felicity’s warranty terms and conditions).Important: The storage unit has an IP21 protection rating and must be installed indoors, e.g. in the cellar, utility room or garage. It is placed or stacked on the floor, it is not designed for wall mounting. Each module weighs approx. 46 kg (approx. 92 kg in total) and measures 600 × 450 × 180 mm. Charging is possible at 0–55 °C, and discharging at −20–55 °C. Scope of delivery1x Deye SUN-8K-SG05LP3-EU-SM2 hybrid inverter (3-phase)1x Felicity FLS48100SG2 battery storage system 10.24 kWh, comprising 1x control module FLS48100SCG2 and 1x battery module FLS48100SMG2 FAQs on the low-voltage PV storage setWhich solar modules are compatible with the inverter?The inverter handles up to 12.8 kW of PV input power via two solar inputs, each with one string. The voltage range is 200–650 V, with a maximum current of 20 A per input. This means it is compatible with most modern solar modules. Your installer will determine the exact wiring configuration.Can I combine the kit with my existing PV system?Yes. The inverter supports AC coupling. This allows an existing PV system to be retrofitted with a storage unit without replacing the existing inverter. Your electrician will advise you whether this is suitable for your system.How much energy can I actually store?The battery has a rated capacity of 10.24 kWh. With a depth of discharge of at least 95 %, you’ll have around 9.7 kWh of usable energy available.How quickly does the storage unit charge and discharge?With two modules, Felicity recommends a current of 100 A, which is around 5.1 kW. A maximum of 120 A (around 6.1 kW) is possible on a continuous basis, depending on temperature and state of charge. As the number of storage modules increases, so does the possible charging and discharging power.Can I expand the storage system later?Yes. The FLS48100SG2 can be expanded to accommodate up to 8 modules, which equates to 40.96 kWh. The modules are simply stacked on top of one another.Can the storage unit be wall-mounted?No. The storage unit is placed on the floor or stacked. It has an IP21 protection rating and must be located indoors, e.g. in the cellar, utility room or garage.Where is the inverter installed?The inverter is IP65-rated and can also be operated in harsh environments. With a noise level of up to 55 dB, a utility room, cellar or garage is more suitable than a living space.Will the system work during a power cut?According to the manufacturer, the inverter supports off-grid operation (stand-alone mode). Whether your appliances will continue to be powered in the event of a power cut depends on the installation. Seek advice from your electrician on this matter.What does ‘low voltage’ mean and what are the advantages?The battery operates at a nominal voltage of 51.2 V (48 V class). Low-voltage systems are considered particularly safe to use and can be easily expanded in a modular fashion.What warranties apply?The Felicity battery comes with a 10-year warranty in accordance with Felicity Solar’s warranty terms and conditions. The Deye inverter comes with a 5-year warranty in accordance with Deye’s warranty terms and conditions.Can I install the system myself?Connection to the domestic mains supply and commissioning must be carried out by a registered electrician. Furthermore, the system must be registered with the grid operator and in the market master data register.
