Product information

The Complete PV kit with 1,920 Wp solar power and 2,000 W output power is a high-performance solution for the decentralised generation of your own solar power.

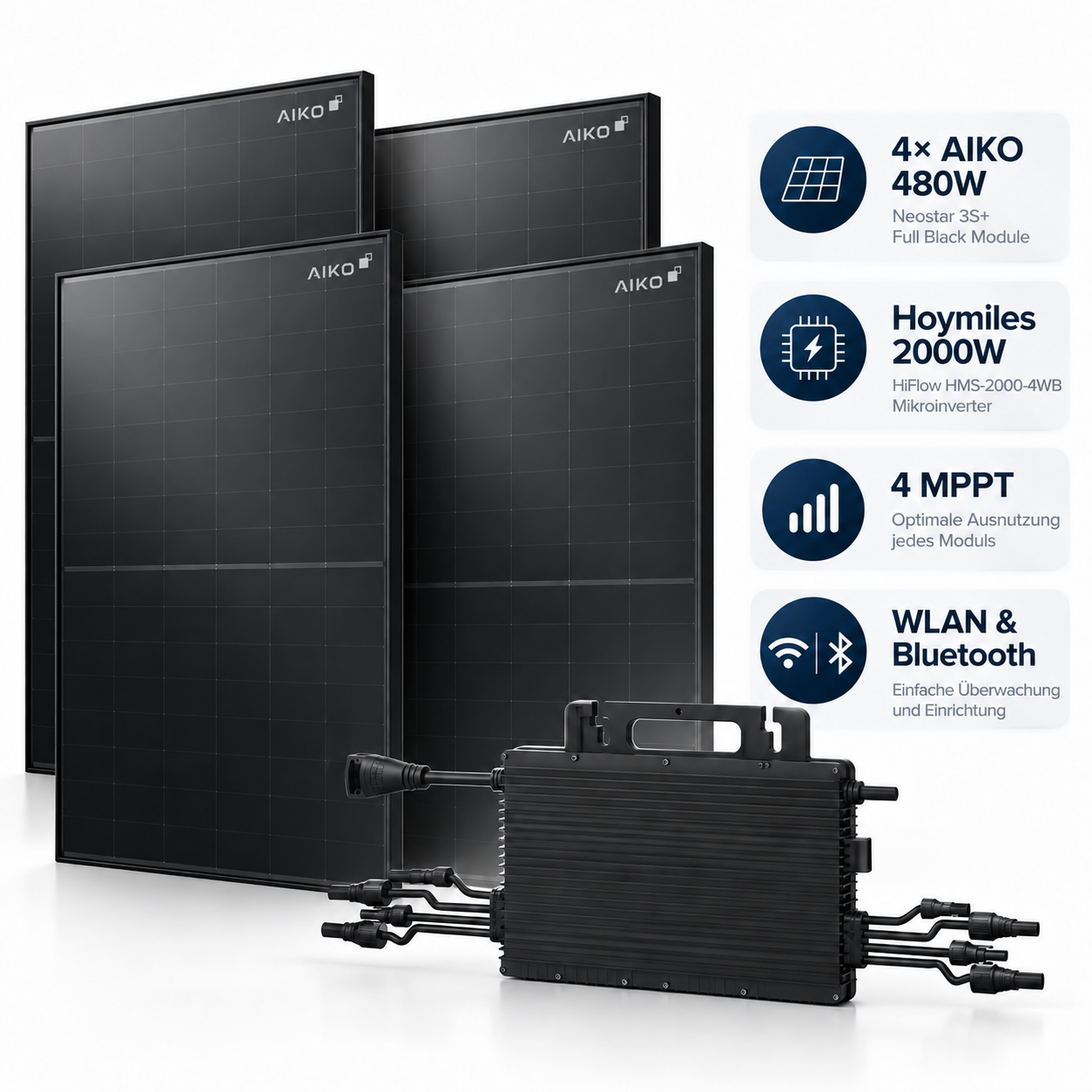

The kit combines Four high-quality AIKO Neostar 3S+ 54 Full Black glass-glass solar modules, each with an output of 480 W with the high-performance Hoymiles HiFlow 2000 Pro HMS-2000-4WB microinverter.

With a total of 1,920 Wp module power and an inverter output of up to 2,000 VA The system is ideally suited for high-performance mini-PV systems on terraces, garages, carports, garden sheds and suitable roof and open spaces.

The Hoymiles inverter features four independent MPPT trackers, so that each of the four solar modules is controlled separately. This enables high solar yields to be achieved even with different orientations, partial shading or varying irradiation conditions.

Thanks to with integrated Wi-Fi and Bluetooth The system can be conveniently operated via the Hoymiles S-Miles Home App monitor – an additional DTU is not required for normal use.

Key features at a glance

• 1,920 Wp solar power output
  Four high-performance AIKO Neostar 3S+ solar modules, each with an output of 480 W.

• 2,000 VA inverter power
  Hoymiles ’s high-performance HiFlow 2000 Pro micro-inverter.

• 4 independent MPPT trackers
  Each solar module is individually regulated and can reach its optimum operating point.

• 4 separate PV inputs
  Direct connection of the four solar modules to the inverter.

• AIKO N-type ABC cell technology
  Modern high-performance cell technology with very high module efficiency.

• 24.0% module efficiency
  High output on a compact module area.

• Glass-on-glass Full Black design
  High-quality appearance combined with a robust double-glazed construction.

• Integrated Wi-Fi & Bluetooth
  Direct communication with the Hoymiles S-Miles Home app.

• No additional DTU required
  Wi-Fi and Bluetooth are already integrated into the inverter.

• IP67 inverter
  Designed for long-term outdoor use.

• 30-year ‘ AIKO ’ product guarantee
  Long-term investment and planning security for the solar modules.

Four AIKO Neostar 3S+ 480 W Full Black solar modules

The components included in the set AIKO Neostar 3S+ 54 solar modules are among the most powerful modules in their size class.

With each 480 W power output Together, the four modules achieve an installed PV capacity of:

4 × 480 W = 1,920 Wp

The modern N-type ABC cell technology enables a module efficiency of around 24,0 %.

This allows a particularly high level of solar power to be installed in a comparatively small area.

The high-quality bifacial glass-on-glass design ensures both high mechanical stability and long-term reliability.

Advantages of the AIKO modules

• 480 W power per module

• Total solar power output: 1,920 Wp

• approx. 24.0% module efficiency

• N-type ABC cell technology

• bifacial glass-on-glass design

• Elegant full-black design

• black anodised aluminium frame

• High resistance to micro-cracks

• IP68 junction box

• 30-year product warranty

• 30-year linear power guarantee

Hoymiles HiFlow 2000 Pro with four MPPT

The heart of the system is the Hoymiles HiFlow 2000 Pro HMS-2000-4WB.

The micro-inverter has four separate PV inputs and four independent MPPT trackers.

This ensures that each of the four AIKO solar modules is controlled individually.

This offers particular advantages for:

• East/west orientation

• different module tilts

• Partial shading

• varying irradiation conditions

• Installation of the modules on various surfaces

If, for example, one of the modules is temporarily shaded, the remaining modules can still reach their optimum operating point independently of this.

Wi-Fi & Bluetooth already integrated

When Hoymiles HiFlow 2000 Pro HMS-2000-4WB Wi-Fi and Bluetooth are already integrated directly into the inverter.

About the Hoymiles S-Miles Home App These include, amongst others:

• current PV output

• Energy generation

• Operating status

• System data

• Inverter information

can be conveniently monitored.

An additional Hoymiles-DTU is not required for normal use of this inverter.

High performance even under changing conditions

The combination of 1,920 Wp module power and four separate MPPT trackers enables highly efficient use of the available solar area.

The individual control of the four solar modules allows the system to offer advantages, particularly where irradiation conditions are not entirely identical.

This is of particular interest, for example, when the modules are distributed as follows:

• East and West

• different sides of the roof

• Patio and garage

• different tilt angles

• partially shaded areas

Areas of application

The complete PV kit is particularly suitable for:

• Patios

• Garages

• Carports

• Garden sheds

• Flat roofs

• Pitched roofs

• Facades

• Open spaces

• private mini-PV systems

• smaller photovoltaic systems for self-consumption

The actual installation options depend on local conditions, the type of installation and the electrical requirements.

Installation & Safety Instructions

Select a suitable installation location

To maximise solar yield, the modules should be positioned in a location with minimal shading and oriented as favourably as possible towards the sun’s rays.

However, the four independent MPPT trackers also allow for different orientations of the modules.

Secure mounting

A substructure suitable for the respective application must be used for the modules.

Depending on the installation, brackets are available for, for example:

• Tiled roof

• Flat roof

• Balcony

• Wall

• Patio

• Open space

into account.

Electrical connection

The The HMS-2000-4WB has a maximum output power of 2,000 VA.

Installation, connection and commissioning must therefore be carried out in accordance with the applicable electrical regulations and the requirements of the relevant grid operator.

What to do in the event of a power cut

In the event of a failure of the public electricity grid, the grid-connected micro-inverter switches off automatically for safety reasons.

The system therefore does not provide an emergency or off-grid power supply without additional components designed for this purpose.

Scope of delivery

• 4 × AIKO Neostar 3S+ 54 480 W glass-on-glass Full Black solar module

• 1 × Hoymiles HiFlow 2000 Pro HMS-2000-4WB micro-inverter

• 1 × Hoymiles MS Plug-and-Play cable

• 1 × Hoymiles disassembly tool

• 1 × User manual

FAQs on the 1,920 Wp complete PV kit with Hoymiles 2,000 W

What is the total solar output?

Each of the four AIKO solar modules has a rated power of 480 W.

This means:

4 × 480 W = 1,920 Wp total power

How many MPPT channels does the Hoymiles inverter have?

The Hoymiles The HMS-2000-4WB features four independent MPPT trackers and four separate PV inputs.

This allows each of the four solar modules to be controlled individually.

Why are four independent MPPT controllers useful?

The four MPPT controllers enable each solar module to be operated at its optimal operating point independently of the other modules.

This is particularly useful for:

• Partial shading

• East/west orientation

• different module tilts

• varying levels of solar radiation

Do I need a DTU ( Hoymiles )?

No.

The Hoymiles HiFlow 2000 Pro already features an integrated Wi-Fi and Bluetooth.

Communication with the Hoymiles S-Miles Home App can therefore be carried out without a separate DTU.

Can I connect all four AIKO modules directly?

Yes.

The HMS-2000-4WB has four DC inputs. Each of the four AIKO 480-W modules is connected to its own input or MPPT.

What is the efficiency of the AIKO modules?

The AIKO Neostar 3S+ 54 480 W achieve a module efficiency of around 24,0 %.

This makes them among the most powerful modules in their size class.

Is the system suitable for outdoor use?

Yes.

Both the solar modules and the micro-inverter are designed for long-term outdoor use.

The Hoymiles HMS-2000-4WB has the protection class IP67, the junction box for the AIKO modules IP68.

Is this kit a classic 800 W balcony power station?

No.

The included Hoymiles HMS-2000-4WB can achieve an output power of up to 2,000 VA achieve.

The set should therefore be regarded as a high-performance Mini PV system or complete PV kit be taken into account.

When connecting, registering and commissioning the system, the applicable legal and electrical requirements, as well as the specifications of the relevant grid operator, must be observed.
