Battery storage

The Deye GE-F120-2H2 represents a new generation of high-performance hybrid energy storage systems for residential, commercial and industrial applications. With a rated output of 50 kW and an impressive storage capacity of 120 kWh, this high-voltage system is the ideal solution for complex energy requirements, maximum operational reliability and complete energy independence.Highlights at a glanceGenerous storage capacity: 120 kWh of energy for peak loads & long-term buffering Fast charging/discharging: Optimised for dynamic energy cycles Redundant power supply: Maximum reliability for critical applications Black-start function: Independent restart possible without grid connection Safe battery technology: Long-lasting & thermally stable LiFePO₄ cells Intelligent storage solution with maximum flexibilityWith the GE-F120-2H2, Deye combines highly advanced technology in one complete system: hybrid inverter, lithium iron phosphate batteries (LFP) and an advanced energy management system (EMS) work seamlessly together. This allows energy flows to be optimised, self-consumption to be maximised and peak loads to be efficiently absorbed, all without external support.Redundancy & black start: Reliable even in extreme casesThe redundant power supply design guarantees continuous operation even in the event of partial failures. The black-start function allows the system to restart completely without an external power source, ideal for off-grid installations or during power outages in critical infrastructures.LFP technology: Safety & service lifeThe installed LiFePO₄ batteries stand for: High thermal stability Long service life & over 6000 charge cycles Low risk of thermal runaway Sustainability & environmental friendliness Who is the GE-F120-2H2 suitable for?Industrial installations with peak load management PV-backed emergency power supply in commercial buildings Off-grid energy supply Critical systems with redundancy requirements Large private properties with high energy consumption  ModelDEYDE-F120-2H2 Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 Battery module quantity in series (optional)12 System nominal voltage (V)614.4 System operating voltage (V)480~700 System capacity (kWh)122.8 Charge/discharge current (A) - recommendation50 Charge/discharge current (A) - nominal value100 Charge/discharge current (A) - peak discharge (2 min,25°C)125 Operating temperature (°C)Charging: -30 ~ 60 / Discharging: -30 ~ 60 LCD displaySOC%, Power, Total Voltage Communication portCAN2.0, RS485 Humidity5% ~ 90% Altitude≤2000m IP protection class of the enclosureIP65 Storage temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)783 * 1059 * 2235 Weight (kg)1070 Installation locationFloor mounting Recommended depth of discharge90% Cycle life25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsUN38.3 / CB / CE / CEC / IEC 62040 For further details, see data sheet.FAQs about the Deye GE-F120-2H2 energy storage systemHow much energy is actually available?One cabinet provides 120 kWh gross capacity, around 110 kWh of which is usable at 90 % depth of discharge – ideal for commercial and industrial operations with high storage requirements.Is 50 kW sufficient for continuous loads?Yes. The integrated power electronics (PCS) provides 50 kW continuous output and can supply up to 125 A for 10 seconds at short notice, making it sufficiently dimensioned even for peak loads.Can I expand the system later?Up to ten cabinets can be operated in parallel. This makes capacities of up to 1.2 MWh and a total AC output of 500 kW possible, without changing the system or adding additional infrastructure.How hot may the system get?The cell temperature must not exceed 35 °C at full load. The integrated climate module automatically monitors and regulates the temperature in order to avoid loss of performance or ageing.Which inverter is suitable for the system?The integrated 50 kW PCS is factory-preconfigured for all three-phase Deye hybrid inverters in the SUN-29.9 kW to 50 kW series, and plug-&-play is possible without additional components. Checking against the compatibility list is strongly recommended, as changes may occur on the manufacturer’s side.Do I need external NA protection?No, the power conversion stack meets the requirements of VDE-AR-N 4105 and EN 50549-1/-2 and includes an integrated anti-islanding protection circuit, so additional NA protection is not required.

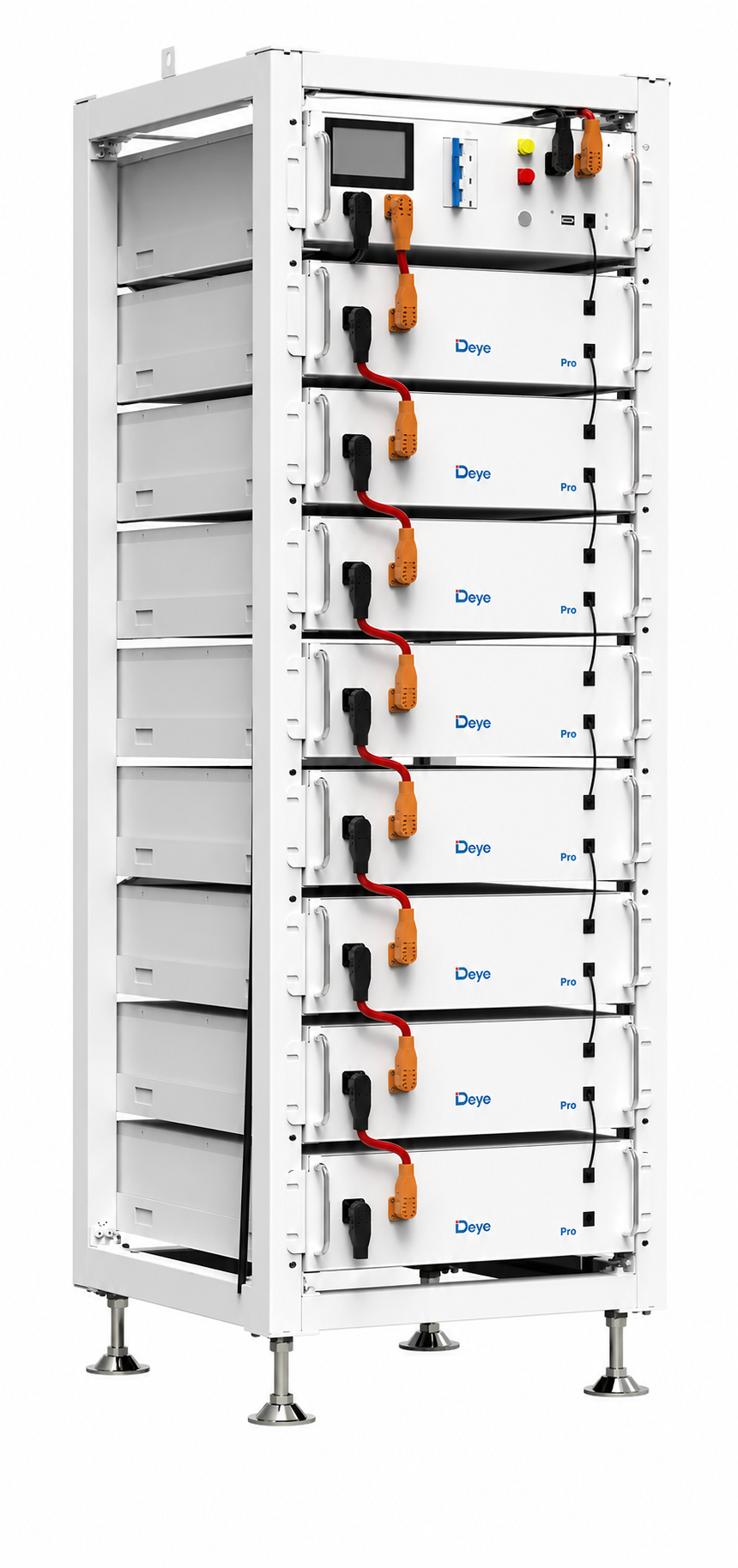

The Deye BOS-G 40 PRO high-voltage storage set is a powerful energy storage solution for commercial and private applications. With a storage capacity of 40.96 kWh, intelligent safety architecture and proven LiFePO4 technology, this system enables reliable, flexible and scalable utilisation of renewable energy sources.Highlights at a glanceHigh storage capacity: 40.96 kWh for demanding energy systemsUsable energy: 36.86 kWh at 90 percent depth of dischargeFlexible scaling: Parallel connection of up to 16 racks for larger systemsLong-lasting cell technology: Over 6000 charge cycles with 70 percent residual capacityCompatibility: Support for USB and remote upgrades with Deye invertersSafe operation: Intelligent BMS with comprehensive cell protectionEfficient energy storage for the highest demandsThe BOS-G 40 PRO system is based on stable and durable LiFePO4 cells, which offer above-average safety and efficiency. With a nominal system voltage of 409.6 V and a wide voltage range between 352 and 467.2 V, it is optimally suited for use in complex energy environments.Scalable and adaptableThe modular system design enables individual configuration according to energy requirements. Several BOS-G 40 PRO sets can be operated in parallel. In addition, the system supports up to 10 inverters in AC parallel operation. This flexibility makes it particularly suitable for applications with increasing power requirements.Intelligent control and maximum safetyThe integrated battery management system (BMS) protects against overcharging, deep discharge, overcurrent and excessively high or low temperatures. It automatically balances cell voltages and thus ensures even utilisation and a long service life for the entire system.Who is the Deye BOS-G 40 PRO storage set suitable for?This high-voltage storage system is ideal for:Commercial enterprises with high load requirements or backup needsPV system operators looking for a scalable high-performance storage solutionPrivate households with high energy requirements and a focus on own consumptionSystem integrators who require reliable, configurable high-voltage storage solutions  ModelDEYBOS-G-PRO Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 Max. battery module number in series (optional)5-16 System nominal voltage (V)256-819.2 System operating voltage (V)220~934.4 System capacity (kWh)25.6-81.92 System usable capacity (kWh)23.04-73.73 Charge/discharge current (A) - recommended50 Charge/discharge current (A) - nominal100 Charge/discharge current (A) - peak discharge (2 min,25°C)125 Operating temperature (°C)Charge: 0 ~ 55 / Discharge: -20 ~ 55 Display system indicator Yellow : Battery High VoltagePower On Red : Battery System Alarm Communication portCAN2.0, RS485 Humidity5% ~ 85%RH Altitude≤3000m IP protection class of enclosureIP20 Storage temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)530 * 602 * 2219 Weight (kg)290-837 Installation siteFloor mounting Recommended depth of discharge90% Cycle life25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsUN38.3 / CE / CE-EMC / IEC62040 / CEC / VDE  FAQs about the Deye BOS-G 40 PRO high-voltage storage setWhat is the total capacity and usable energy of the system?The system consists of 8 modules of 5.12 kWh each, resulting in a gross capacity of 40.96 kWh. At 90 % Depth of Discharge (DoD), a net of approx. 36.86 kWh is available.How durable is the BOS‑G 40 PRO?The system is designed for ≥ 6000 charge cycles at 0.5 C to 70 % DoD (at 25 ± 2 °C), with a 10-year warranty.What fire protection and installation requirements apply?The system has IP20 protection class → only for dry indoor areas.The EU version requires a T60 fire protection room.Installation is in 19-inch racks, requiring stable, dry and well-ventilated rooms. Which voltages and currents are technically relevant?Operating voltage: 352 V – 467.2 V (nominal 409.6 V DC)Max. continuous current: 100 APeak current (2 min.): 125 A.What fire protection and installation requirements apply?The system has IP20 protection class → only for dry indoor areas.The EU version requires a T60 fire protection room.Installation is in 19-inch racks, requiring stable, dry and well-ventilated rooms. Scope of delivery Deye BOS-G40 PRO high-voltage storage set (40.96 kWh) with rack system: System compositionThis product is a set and consists of a rack cabinet and the individual plug-in modules (BMS and batteries).Component 1: Deye rack system / battery cabinetA cabinet to accommodate the BMS unit and battery modules, often with castors and feet.Component 2: Deye control box / BMS slot-in moduleThe central control unit (BMS/BCCB), which is inserted into the rack cabinet as a module.Components 3 to 10: Eight Deye BOS-G-PRO-Pack5.1 high-voltage battery slot-in modules (each 5.12 kWh)Eight pure high-voltage battery modules, which are also inserted into the rack cabinet.1 x set of battery connection cables (plus & minus)A pair of special high-voltage power cables to connect the BMS module to a compatible high-voltage hybrid inverter.1 x communication cable (CAN/RS485)A long data cable for communication between the BMS module and the inverter.8 x connection bridge / series connection cableShort, robust cables or fixed bridges to connect the nine slot-in modules (BMS + 8 batteries) in the rack.1 x earthing cableA protective conductor cable for correct earthing of the rack system.1 x mounting accessories (rack mounting)Includes screws and rails for fixing the modules inside the rack, as well as material for anchoring the cabinet to the floor.1 x operating and installation manualA printed manual describing the assembly of the entire rack system.

The Felicity FLS48100SG1 battery storage system with 20.48 kWh is the powerful solution for anyone who wants to increase their self-consumption and, at the same time, permanently reduce their electricity costs. The system has been specially developed for households and smaller businesses that are looking for a future-proof and sustainable energy supply.Highlights at a glanceHigh storage capacity: 20.48 kWh for large households and companiesModern LiFePO4 technology: Durable, safe, and low-maintenanceBattery management system (BMS): Protection and efficiency thanks to integrated cell monitoringFlexible integration: Compatible with many common hybrid invertersCompact design: Space-saving and modular construction for easy expansionIndependent with clean electricityThe Felicity FLS48100SG1 stores solar power generated during the day and provides it as needed. In this way, you can cover a large part of your electricity needs with self-generated energy, even in the evening or on cloudy days. This not only reduces your electricity costs but also your dependence on external suppliers.Powerful and reliable in everyday useThe installed lithium iron phosphate technology (LiFePO4) stands for the highest level of safety, a long service life, and a high number of charging cycles. The integrated battery management system monitors the voltage, temperature, and charge status of each individual cell and protects the battery from overloading and deep discharge.Easy integration into your PV systemThanks to its modular and compact design, the storage unit can be easily integrated into existing systems. It is compatible with numerous hybrid inverters and is suitable for both new installations and retrofits. Floor mounting is space-saving and functional.Who is the Felicity FLS48100SG1 with 20.48 kWh suitable for?Owners of larger single-family houses Commercial users with constant energy demand PV system operators focusing on self-consumption Users seeking a powerful storage solution for future energy requirements  ModelFLS48100SG1-20 Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 System nominal voltage (V)51.2 System operating voltage (V)44.8-57.6 System capacity (kWh)20.48 System usable capacity (kWh)18.43 Charge/discharge current (A) - Recommendation200 Charge/discharge current (A) - nominal value240 Charge/discharge current (A) - Peak discharge (2 min,25°C)400 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 55 DisplayControl Module: LCD / Battery Module: LED Communication interfaceCAN, RS485 Humidity5% ~ 95% Altitude≤2000m IP protection rating of the housingIP65 Storage temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)600 * 450 * 720 Weight (kg)184 / With base 198 Installation locationFloor mounting / Wall mounting Recommended depth of discharge90% Cycle life25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsSee downloads / Enquire with Sales  FAQs on the Felicity battery storage with 20.48 kWh capacityCan I expand the storage capacity with additional modules?Yes, the system is modular. Each module has a capacity of 5.12 kWh, and up to 8 modules can be combined, resulting in a total capacity of up to 40.96 kWh.Which inverters is the system compatible with?The FLS48100SG1 is designed for seamless communication with common 48 V inverters, including models from Deye, Growatt, Victron, Solis, Sofar, and MPP Solar.Which safety features are integrated?The integrated battery management system (BMS) continuously monitors the voltage, temperature, and charge status of each cell. In addition, it offers protection mechanisms such as overvoltage protection up to 6000 V and an aerosol fire suppression system.Is the module maintenance-free and how is it installed?Yes, the module is maintenance-free. It is designed for wall mounting and weighs between 51 and 92 kg, depending on the version. The installation can be carried out by one person.Is there a way to monitor the battery status?Yes, the module offers integrated WiFi monitoring that enables real-time monitoring of charge status, temperature, and other parameters. Scope of delivery Felicity FLS48100SG1 battery storage (20.48 kWh tower system): System compositionThis product is a set and consists of four separate modules, which together provide the total capacity of 20.48 kWh.Module 1: FLS48100SCG1 master unit (5.12 kWh)The central control unit (Master BMS) with integrated 5.12 kWh storage, which manages the entire system.Modules 2, 3 & 4: Three FLS48100S slave units (each 5.12 kWh)Three pure expansion battery modules without their own control unit, which are connected to the master module or to each other.1 x set of battery connection cables (plus & minus)A pair of high-performance cables for connecting the master module to an external hybrid inverter.1 x communication cable (CAN/RS485)A data cable for communication between the master BMS and the inverter.3 x connecting bridge / parallel connection cableShort, robust cables or fixed bridges to connect the four modules together.1 x earthing cableA protective conductor cable for the proper earthing of the housing (to the master module).1 x mounting accessories (rack/tower mounting)Includes screws and clamps to securely stack the four modules on top of each other.1 x operating and installation manualA printed manual describing the installation of the entire tower system.

The Deye BOS-B80.3 kWh PRO-A3 is a highly efficient, three-phase high-voltage battery storage system developed specifically for the demanding requirements of the commercial and industrial (C&I) sectors. It replaces rigid and difficult-to-scale storage systems with a modular, turnkey cabinet solution, whilst offering intelligent functions to optimise commercial energy flow.With its sophisticated design, the BOS-B system is not just a passive energy storage solution, but serves as a future-proof foundation for your company’s energy management (Industrial Storage Hub). It supports seamless integration with high-performance Deye hybrid inverters (such as the SUN-125K series) and ensures that your business retains maximum control over its energy costs at all times.Highlights at a glanceLarge-scale industrial capacity: Offers a full 80.3 kWh of usable energy in a single, compact cabinet system, based on long-lasting lithium iron phosphate (LiFePO4) technology.High-voltage efficiency: Connecting the modules in series ensures a high system voltage, which minimises conversion losses and enables extremely rapid energy delivery.Excellent cycle stability: With over 6,000 charge cycles, the system guarantees an extremely long service life and maximum investment security, even with daily, intensive use.Intelligent Master BMS: The integrated control system in the cabinet continuously monitors cell voltages, temperatures and currents, and ensures fully automatic cell balancing.Safety functions: Multi-stage protection mechanisms, including automatic shutdown in the event of overcurrent, overvoltage or thermal irregularities, guarantee worry-free operation around the clock.Flexible scalability: Multiple cabinet units can be easily connected in parallel to flexibly scale the total capacity alongside your business growth.Areas of applicationThe Deye BOS-B80.3 kWh PRO-A3 is the perfect addition to commercial PV systems and industrial infrastructure:Peak shaving: Reduction in grid usage charges through the targeted absorption of expensive electricity peaks in the industrial production process.Optimisation of self-consumption: Efficient temporary storage of solar power from large industrial rooftops that is unused during the day, to provide self-sufficient power for operations in the evening and at night.Emergency power & backup systems: Reliable protection of critical loads (such as IT infrastructure, cooling systems or sensitive production lines) in the event of power failures.Installation & Safety InstructionsInverter compatibility: The system is designed as a high-voltage storage solution and must be operated with compatible Deye three-phase high-voltage hybrid inverters.Installation & environment: Due to the high weight of the system, the cabinet solution should be installed on a load-bearing, level surface and in a well-ventilated, temperature-controlled indoor environment.Installation by qualified personnel: Due to the high-voltage direct current (DC) environment and the industrial power ratings, installation, cabling and commissioning must be carried out exclusively by certified qualified electricians. Features ModelBOS-B80 Pro-A3 Battery typeLiFePO4 Module energy (kWh)16,08 Module nominal voltage (V)51,2 Module capacity (Ah)314 Number of battery modules in series5 System nominal voltage (V)256 System operating voltage (V)208~292 System capacity (kWh)80,3 Usable system capacity (kWh)72,27 Max. DC power (kW)46,08 Max. charge/discharge current (A)180 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 55 Thermal managementSmart fan cooling CommunicationTCP / RS485 / CAN Protection classIP20 Dimensions (W × H × D, mm)1067 × 1305 × 800 Approx. system weight (kg)758 Installation typeRack-Mounted Recommended depth of discharge90% Cycle lifeEOL70% ≥ 6000 Warranty10 years CertificationsCE / IEC62619 / IEC62040 / UN38.3  FAQs on the Deye BOS-B80.3 kWh PRO-A3Can the 80.3 kWh capacity be expanded at a later date?Yes. The system has a modular design. To increase the total capacity, several of these cabinet units can be connected in parallel, enabling storage capacities in the megawatt range to be achieved.Is the master control unit (BMS) already integrated into the cabinet?Yes. The system is supplied as a plug-and-play cabinet solution, in which both the individual battery modules and the central cluster control unit (high-voltage BMS) are integrated into the rack, ready for operation.What advantages does LiFePO4 technology offer in industrial applications?Maximum safety and durability. Unlike conventional lithium-ion batteries, lithium iron phosphate cells are extremely thermally stable, non-flammable and offer a significantly higher number of charge cycles, even under heavy use.Does the system support control via an external energy management system (EMS)?Yes. Via the integrated communication interfaces, the storage system can be seamlessly connected to higher-level commercial energy management systems (EMS) to implement complex charging and discharging strategies.

The Deye BOS-B112.5 kWh PRO-A3 is a highly efficient, three-phase high-voltage battery storage system developed specifically for the demanding requirements of the commercial and industrial (C&I) sectors. It replaces rigid and difficult-to-scale storage systems with a modular, turnkey cabinet solution, whilst offering intelligent functions to optimise commercial energy flow.With its sophisticated design, the BOS-B system is not just a passive energy storage solution, but serves as a future-proof foundation for your company’s energy management (Industrial Storage Hub). It supports seamless integration with high-performance Deye hybrid inverters (such as the SUN-125K series) and ensures that your business retains maximum control over its energy costs at all times.Highlights at a glanceLarge-scale industrial capacity: Offers a full 112.5 kWh of usable energy in a single, compact cabinet system, based on long-lasting lithium iron phosphate (LiFePO4) technology.High-voltage efficiency: Connecting the modules in series ensures a high system voltage, which minimises conversion losses and enables extremely rapid energy delivery.Excellent cycle stability: With over 6,000 charge cycles, the system guarantees an extremely long service life and maximum investment security, even with daily, intensive use.Intelligent Master BMS: The integrated control system in the cabinet continuously monitors cell voltages, temperatures and currents, and ensures fully automatic cell balancing.Safety functions: Multi-stage protection mechanisms, including automatic shutdown in the event of overcurrent, overvoltage or thermal irregularities, guarantee worry-free operation around the clock.Flexible scalability: Multiple cabinet units can be easily connected in parallel to flexibly scale the total capacity alongside your business growth.Areas of applicationThe Deye BOS-B112.5 kWh PRO-A3 is the perfect complement to commercial PV systems and industrial infrastructure:Peak shaving: Reduction in grid usage charges through the targeted absorption of expensive electricity peaks in the industrial production process.Optimisation of self-consumption: Efficient temporary storage of solar power from large industrial rooftops that is unused during the day, to provide self-sufficient power for operations in the evening and at night.Emergency power & backup systems: Reliable protection of critical loads (such as IT infrastructure, cooling systems or sensitive production lines) in the event of power failures.Installation & safety instructionsInverter compatibility: The system is designed as a high-voltage storage solution and must be operated with compatible Deye three-phase high-voltage hybrid inverters.Installation & environment: Due to the high weight of the system, the cabinet solution should be installed on a load-bearing, level surface and in a well-ventilated, temperature-controlled indoor environment.Installation by qualified personnel: Due to work in the high-voltage direct current (DC) range and the industrial power classes, installation, cabling and commissioning must only be carried out by certified qualified electricians Features ModelBOS-B112 Pro-A3 Battery typeLiFePO4 Module energy (kWh)16,08 Module nominal voltage (V)51,2 Module capacity (Ah)314 Number of battery modules in series7 System nominal voltage (V)358,4 System operating voltage (V)291,2~408,8 System capacity (kWh)112,5 Usable system capacity (kWh)101,25 Max. DC power (kW)64,512 Max. charge/discharge current (A)180 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 55 Thermal managementSmart fan cooling CommunicationTCP / RS485 / CAN Protection classIP20 Dimensions (W × H × D, mm)1067 × 1305 × 800 Approx. system weight (kg)1010 Installation typeRack Mounted Recommended depth of discharge90% Cycle lifeEOL70% ≥ 6000 Warranty10 years CertificationsCE / IEC62619 / IEC62040 / UN38.3  FAQs on the Deye BOS-B112.5 kWh PRO-A3Can the 112.5 kWh capacity be expanded at a later date?Yes. The system has a modular design. To increase the total capacity, several of these cabinet units can be connected in parallel, enabling storage capacities in the megawatt range to be achieved.Is the master control unit (BMS) already integrated into the cabinet?Yes. The system is supplied as a turnkey cabinet solution, in which both the individual battery modules and the central cluster control unit (high-voltage BMS) are integrated into the rack, ready for operation.What advantages does LiFePO4 technology offer in industrial applications?Maximum safety and durability. Unlike conventional lithium-ion batteries, lithium iron phosphate cells are extremely thermally stable, non-flammable and offer a significantly higher number of charge cycles, even under heavy use.Does the system support control via an external energy management system (EMS)?Yes. Via the integrated communication interfaces, the storage system can be seamlessly connected to higher-level commercial energy management systems (EMS) to implement complex charging and discharging strategies.

The Deye BOS-G 80 PRO high-voltage storage set is a reliable and high-performance storage solution for commercial applications and demanding private households. With a total capacity of 81.92 kWh, modular expandability and intelligent battery management, it meets high standards of safety, efficiency and flexibility.Key features at a glanceHigh capacity: 81.92 kWh gross storage capacity for large energy systemsUsable energy: 73.73 kWh at 90 percent depth of dischargeFlexible scalability: Up to 16 battery racks can be operated in parallelIntelligent control: Integrated BMS protects against overcharging, deep discharge, overcurrent and overheatingEasy integration: Fast installation in 19-inch rack formatEfficient energy storage for modern projectsWith its high voltage of 819.2 volts and a wide operating voltage range of 704 to 934.4 volts, the BOS-G 80 PRO offers an excellent basis for integration into existing energy systems. The lithium iron phosphate technology used ensures high safety, low self-discharge and a long service life.Modular and customisableThe system architecture allows flexible expansion to up to 16 parallel battery racks and the AC parallel operation of up to 10 Deye inverters. This allows the system to be precisely adapted to increasing requirements and remains scalable in the long term.Safe energy managementThe integrated BMS continuously monitors the cell voltages, temperatures and states of charge. It actively protects against critical operating conditions and optimises the service life of the battery units through automatic cell balancing.Who is the Deye BOS-G 80 PRO suitable for?The high-voltage storage set is ideal for:Businesses with high energy consumption or emergency power requirementsLarge photovoltaic systems focusing on optimising self-consumptionPrivate households with above-average energy demandProject developers needing a modular, certified high-voltage system  ModelBOS-G80 PRO Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 Number of battery modules16 Max. number of battery modules in series16 System nominal voltage (V)819.2 System operating voltage (V)704 ~ 934.4 System capacity (kWh)81.92 System usable capacity (kWh)73.73 Charge/discharge current (A) - recommendation50 Charge/discharge current (A) - nominal value100 Charge/discharge current (A) - peak discharge (2 min,25°C)125 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 55 Communication interfaceCAN2.0, RS485 Humidity5% ~ 85%RH Altitude≤3000m IP protection class of housingIP20 Storage temperature (°C)0 ~ 35 Installation locationRack installation / Floor mounting Recommended depth of discharge90% Cycle life≥ 6000 Warranty10 years CertificationsUN38.3 / CE / CE-EMC / IEC62040 / CEC / VDE  FAQs on the Deye BOS-G 80 PRO high-voltage storage setWhat storage capacity does the BOS-G 80 PRO provide and how much of it is usable?The set consists of 16 LiFePO₄ modules each with 5.12 kWh gross capacity. This results in a total storage capacity of 81.92 kWh. With 90% depth of discharge, around 73.73 kWh usable energy is available.What protection and management functions are provided by the BMS?The integrated battery management system continuously monitors and protects against over- and under-voltage, overcurrent, short circuit and temperature fluctuations. In addition, it ensures cell balancing and stable charging and discharging conditions.Which electrical parameters are relevant?Operating voltage: 704 to 934.4 VRated voltage: 819.2 V DCContinuous current: 100 A, peak discharge: 125 AIs the system modular and expandable?Yes, the modular concept allows the parallel operation of up to 16 battery racks and the integration of up to 10 inverters in the AC network.What is the temperature range for operation?Discharge: from -20 °C to +55 °CCharge: from 0 °C to +55 °C Scope of delivery Deye BOS-G80 PRO high-voltage storage set (81.92 kWh) with rack systemSystem compositionThis product is a set and consists of a rack system, a Deye BOS-G-PDU-2 high-voltage control box and 16 individual BOS-G-Pack5.1 battery modules.Component 1: Deye rack system / battery cabinetA rack for accommodating the control box and the battery modules.Component 2: Deye BOS-G-PDU-2 high-voltage control boxThe central control unit for communication, protection and system management.Component 3 to 18: Sixteen Deye BOS-G-Pack5.1 high-voltage battery modulesSixteen high-voltage battery modules, each with 5.12 kWh.Accessories and cablingBattery connection cables (plus & minus)Communication cables (CAN/RS485)Connecting bridges / Series connection cablesEarthing cableMounting accessories and installation instructions

The Deye BOS-G 75 PRO high-voltage storage set is a reliable and high-performance storage solution for commercial applications and demanding private households. With a total capacity of 76.80 kWh, modular expandability and intelligent battery management, it meets high requirements for safety, efficiency and flexibility.Key features at a glanceHigh capacity: 76.80 kWh gross storage capacity for large energy systemsUsable energy: 69.12 kWh at 90 percent depth of dischargeFlexible scalability: Up to 16 battery racks can be operated in parallelIntelligent control: Integrated BMS protects against overcharging, deep discharge, overcurrent and overheatingEasy integration: Quick installation in the 19-inch rack formatEfficient energy storage for modern projectsThe BOS-G 75 PRO, with its high voltage of 768.0 Volts and a wide operating voltage range from 660 to 876.0 Volts, provides an excellent basis for integration into existing energy systems. The lithium iron phosphate technology used ensures high safety, low self-discharge and a long service life.Modular and customisableThe system architecture allows flexible expansion to up to 16 parallel battery racks and AC-parallel operation of up to 10 Deye inverters. This means the system can be precisely adapted to increasing requirements and remains scalable in the long term.Safe energy managementThe integrated BMS permanently monitors cell voltages, temperatures and states of charge. It actively protects against critical operating conditions and optimises battery unit service life through automatic cell balancing.Who is the Deye BOS-G 75 PRO suitable for?The high-voltage storage set is ideal for:Commercial enterprises with high energy consumption or emergency power requirementsLarge photovoltaic systems with a focus on optimising on-site consumptionPrivate households with above-average energy consumptionProject developers who need a modular, certified high-voltage system  ModelBOS-G75 PRO Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 Number of battery modules15 Max. number of battery modules in series15 System nominal voltage (V)768.0 System operating voltage (V)660 ~ 876.0 System capacity (kWh)76.80 System usable capacity (kWh)69.12 Charge/discharge current (A) - recommendation50 Charge/discharge current (A) - nominal value100 Charge/discharge current (A) - peak discharge (2 min,25°C)125 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 55 Communication portCAN2.0, RS485 Humidity5% ~ 85%RH Altitude≤3000m IP protection rating of the housingIP20 Storage temperature (°C)0 ~ 35 Installation locationRack installation / floor mounting Recommended depth of discharge90% Cycle life≥ 6000 Warranty10 years CertificationsUN38.3 / CE / CE-EMC / IEC62040 / CEC / VDE  FAQs about the Deye BOS-G 75 PRO high-voltage storage setWhat storage capacity does the BOS-G 75 PRO provide and how much of it is usable?The set consists of 15 LiFePO₄ modules, each with a gross capacity of 5.12 kWh. This results in a total storage capacity of 76.80 kWh. At 90% depth of discharge, around 69.12 kWh of usable energy is available.What protection and management functions does the BMS provide?The integrated battery management system continuously monitors and protects against overvoltage and undervoltage, overcurrent, short circuits and temperature deviations. It also provides cell balancing and stable charging and discharging conditions.Which electrical parameters are relevant?Operating voltage: 660 to 876.0 VNominal voltage: 768.0 V DCContinuous current: 100 A, peak discharge: 125 AIs the system modularly expandable?Yes, the modular concept allows parallel operation of up to 16 battery racks and integration of up to 10 inverters in the AC network.In which temperature range can the storage system be operated?Discharging: from -20 °C to +55 °CCharging: from 0 °C to +55 °C Scope of supply Deye BOS-G75 PRO high-voltage storage set (76.80 kWh) with rack systemSystem compositionThis product is a set and consists of a rack system, a Deye BOS-G-PDU-2 high-voltage control box and 15 individual BOS-G-Pack5.1 battery modules.Component 1: Deye Rack system / Battery cabinetA rack to accommodate the control box and the battery modules.Component 2: Deye BOS-G-PDU-2 high-voltage control boxThe central control unit for communication, protection and system management.Component 3 to 17: Fifteen Deye BOS-G-Pack5.1 high-voltage battery modulesFifteen high-voltage battery modules, each with 5.12 kWh.Accessories and cablingBattery connection cables (plus & minus)Communication cables (CAN/RS485)Connecting bridges / series wiring cablesEarthing cableMounting accessories and installation instructions

The Deye BOS-G 85 PRO high-voltage storage set is a powerful and reliable storage solution for commercial applications, demanding private households as well as larger energy projects. With a total capacity of 87.04 kWh, modular expandability and intelligent battery management, it meets high standards for safety, efficiency and flexibility. Highlights at a glance High capacity: 87.04 kWh gross storage capacity for large energy systems and maximum self-consumption optimisation Usable energy: approx. 78.33 kWh at 90 percent depth of discharge Modular design: 17 battery modules of 5.12 kWh each in a high-voltage cluster Flexible scalability: Up to 16 battery racks can be operated in parallel Intelligent control: Integrated BMS protects against overcharging, deep discharge, overcurrent and overheating Simple integration: Modular 19-inch rack system with CAN and RS485 communication Efficient energy storage for demanding projects With its high system voltage of 870.4 volts and a wide operating voltage range of 748 to 992.8 volts, the BOS-G 85 PRO provides a strong foundation for integration into modern energy systems. The lithium iron phosphate technology used ensures high safety, low self-discharge and a long service life. Modular and expandable The system architecture of the Deye BOS-G 85 PRO is designed for maximum flexibility. The storage set consists of 17 modules and can be flexibly expanded within the BOS-G Pro platform as required. Thanks to the ability to operate up to 16 racks in parallel and use several Deye inverters in an AC network, the system is suitable for growing load profiles and scalable commercial applications. Safe energy management The integrated battery management system permanently monitors cell voltages, temperatures and charge states. It actively protects against critical operating conditions and supports permanently reliable and efficient operation through automatic cell balancing. Who is the Deye BOS-G 85 PRO suitable for? The high-voltage storage set is ideal for: Commercial operations with high energy consumption or backup requirements Large photovoltaic systems focused on optimising self-consumption and managing peak loads Agricultural and industrial applications with high power requirements Project developers who require a modular and high-performance high-voltage system   ModelBOS-G85 PRO Battery typeLiFePO4 Module energy (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 Number of battery modules17 System nominal voltage (V)870.4 System operating voltage (V)748 ~ 992.8 System capacity (kWh)87.04 System usable capacity (kWh)78.33 Charge/discharge current (A) – Recommendation50 Charge/discharge current (A) – nominal value100 Charge/discharge current (A) – peak discharge (2 min, 25°C)125 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 55 Communication portCAN2.0 / RS485 Humidity5% ~ 85% RH Altitude≤3000 m IP protection class of the housingIP20 Storage temperature (°C)0 ~ 35 Recommended depth of discharge90% Cycle lifetime≥ 6000 (25 ± 2°C, 0.5C/0.5C, EOL70%) Warranty10 years CertificationsUN38.3 / CE / CE-EMC / IEC62040 / CEC / VDE  FAQs on the Deye BOS-G 85 PRO high-voltage storage set What storage capacity does the BOS-G 85 PRO deliver and how much of it is usable? The set consists of 17 LiFePO₄ modules, each with 5.12 kWh gross capacity. This results in a total storage capacity of 87.04 kWh. With a recommended depth of discharge of 90 percent, around 78.33 kWh of usable energy is available. What protection and management functions does the BMS handle? The integrated battery management system continuously monitors and protects against overvoltage and undervoltage, overcurrent, temperature deviations and critical operating states. It also ensures even and efficient operation of all modules through cell balancing. Which electrical parameters are relevant for the BOS-G 85 PRO? System nominal voltage: 870.4 V DC Operating voltage: 748 to 992.8 V Charge/discharge current: recommended 50 A, nominal value 100 A, peak discharge 125 A Is the system modularly expandable? Yes, the BOS-G 85 PRO is part of the modular BOS-G Pro platform. Several racks can be operated in parallel, allowing capacity and performance to be flexibly adapted to project-specific requirements. Within which temperature range can the storage unit be operated? Charging: 0 °C to +55 °C Discharging: -20 °C to +55 °C This makes the system suitable for a wide range of demanding indoor application environments.  Scope of delivery Deye BOS-G 85 PRO high-voltage storage set (87.04 kWh) System configuration This product is a set consisting of the BOS-G Pro rack system, the BOS-G-PDU-2 high-voltage control box and 17 individual BOS-G-Pack5.1 battery modules. Component 1: Deye rack system / battery cabinet Modular rack system for accommodating the high-voltage control box and the battery modules for a structured and service-friendly installation. Component 2: Deye high-voltage control box / BOS-G-PDU-2 The central control unit of the system manages communication, protection functions and system coordination. Component 3 to 19: Seventeen Deye BOS-G-Pack5.1 high-voltage battery modules High-voltage battery modules of 5.12 kWh each, which are modularly integrated into the rack system. 1 x set of battery connection cables (plus & minus) High-voltage power cable for connecting the control box to a compatible high-voltage hybrid inverter. 1 x communication cable (CAN/RS485) Data cable for communication between the storage system and the inverter. 1 x set of connecting bridges / series connection cables Connecting components for the serial connection of the modules within the system. 1 x mounting accessories Includes the necessary materials for mounting the components in the rack system. 1 x operating and installation manual Documentation for installation, commissioning and operation of the system.

The Felicity FLB 48314TG1 is a powerful and safe low-voltage battery storage unit with modern LiFePO4 technology. It offers high cycle life, flexible expansion options and reliable energy supply for residential and commercial photovoltaic systems. With an integrated intelligent battery management system, remote monitoring functions and comprehensive protection mechanisms, it is the ideal solution for demanding energy storage projects.Highlights at a glance16 kWh LiFePO4 battery for maximum safety and durabilityRemote monitoring via integrated WiFi and BluetoothHigh charging and discharging rates for fast energy supplyExpandable up to 32 batteries (max. 512 kWh)Integrated intelligent BMS with comprehensive protectionCompatible with leading inverter brandsIntelligent energy management for maximum performanceThe FLB 48314TG1 ensures precise monitoring of all operating parameters, such as voltage, temperature and charge/discharge current, through its integrated BMS. Risks such as overcharging, deep discharge or overheating are reliably prevented. With a high charge and discharge current of up to 160 A continuous and 200 A peak (15 seconds), it is ideally suited for applications with high energy demand.Flexibility and easy expansionThanks to scalability up to 32 battery modules, the storage can be flexibly adapted to growing energy requirements. Communication via RS485 or CAN ensures smooth integration with inverters from well-known manufacturers. Thanks to floor mounting and compact design, the storage can be easily installed even where space is limited.Safety at the highest levelIn addition to its integrated battery management system, the FLB 48314TG1 is equipped with an aerosol fire extinguishing system, fuses and circuit breakers. The IP65 enclosure rating makes it resistant to dust and water, so it can also be used in demanding environments. The patented external fuse design allows for quick replacement in the event of service.Who is the Felicity FLB 48314TG1 suitable for?Operators of PV systems with high storage requirementsBusinesses and industry with continuous energy usageProjects with high safety requirementsInstallations in regions with demanding weather conditionsProperties  ModelFLB48314TG1 Battery typeLiFePO₄ System capacity (kWh)16 Nominal system voltage (V)51.2 System capacity (Ah)314 System operating voltage (V)44.8-57.6 Recommended depth of discharge (DoD)≥ 95 % Charge/discharge current (A) - recommendation60 Charge/discharge current (A) - peak discharge (2 min, 25°C)100 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 55 Communication interfaceCAN, RS485 Humidity5% ~ 95% IP enclosure ratingIP65 Storage temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)600 * 450 * 180 Weight (kg)121 Installation locationFloor mounting Cycle life≥ 8,000 cycles ScalabilityUp to 32 units in parallel (512 kWh) Warranty10 years CertificationsOn request from sales  FAQs about the Felicity low-voltage battery storageHow much energy is available and how much is usable?The nominal energy is 16 kWh. With up to 95 % recommended depth of discharge, up to approx. 15.2 kWh can be used.How many charge cycles can be expected?The manufacturer states up to 8,000 cycles under laboratory conditions. Please note that real values depend on use, temperature and C-rate. Does the storage support remote monitoring and what interfaces are there?Yes, the storage supports remote monitoring via integrated WiFi and Bluetooth for remote reading of battery data. In addition, RS485 and CAN interfaces are available for communication with compatible inverters.Can I integrate the battery storage into my existing PV system?Yes, the FLB 48314TG1 is compatible with leading inverter brands and can easily be integrated into existing photovoltaic systems.Is remote monitoring possible?Yes, thanks to integrated WiFi and Bluetooth you can conveniently monitor all operating data of the storage system remotely.How many battery modules can be connected in parallel?The storage is expandable to up to 32 units and thus reaches a total capacity of up to 512 kWh. Scope of delivery Felicity FLB 48314TG1 battery storage: 1 x Felicity 16 kWh battery storage (FLB 48314TG1)The central storage unit with a 314 Ah capacity. It contains the intelligent battery management system (BMS) and usually also an integrated aerosol fire extinguishing system.1 x set of battery connection cables (plus & minus)A pair of pre-assembled high-power cables (red and black) for connecting the storage unit to an external inverter.1 x communication cable (CAN/RS485)A data cable (typically with RJ45 connectors) to ensure communication between the battery BMS and the inverter.1 x earthing cableA protective earth cable (yellow-green) for proper earthing of the metal casing.1 x mounting accessories (floor mounting)This model is designed as a mobile, free-standing unit and is often supplied with pre-installed castors. Due to its very high weight of approx. 155 kg, wall mounting is excluded.1 x operating and installation instructionsA printed manual with all safety-relevant instructions, installation steps and configuration guidelines.1 x set of mounting materialsIncludes materials for attachment of an anti-tip safety device.

The Deye GB-W94 is the flagship of Deye's cabinet-based high-voltage storage systems. With a massive total capacity of 94 kWh it marks the summit of the modular HV series and has been specially designed for industrial applications as well as large-scale energy projects. It provides a complete all-in-one solution for users with the highest demands in terms of capacity, resilience and efficiency.Thanks to the intelligent interconnection of high-performance battery modules in a sturdy cabinet system, the GB-W94 supplies the required energy for complex load profiles. In combination with Deye hybrid inverters, it forms a highly efficient power plant that maximises self-consumption and reduces dependency on public power grids to a minimum.Highlights at a glanceMaximum energy density: With 94 kWh capacity, the system provides one of the largest storage capacities in its class for business and industry.Future-proof LiFePO4 cells: Uses lithium iron phosphate technology for maximum thermal stability and a superior service life of over 6000 cycles.Highly efficient HV design: The high operating voltage ensures minimal loss during energy transmission and allows the supply of high-performance consumers.Integrated master BMS: A state-of-the-art management system continuously monitors all parameters and ensures optimal power distribution and cell maintenance.Industrial cabinet system: The robust construction protects the modules from external influences and enables space-saving installation in the technical room.Outstanding load capability: Designed to buffer massive load peaks and, in the event of an emergency power supply, to supply even heavy machinery or entire building sections.Cloud-based monitoring: Seamless integration into the Deye platform for monitoring performance and predictive maintenance analysis.Areas of applicationThe GB-W94 system redefines the boundaries of energy independence:Industry & ProductionCompensation of peak loads (peak shaving) and provision of process energy to reduce grid charges.Large agricultural complexesSelf-sufficient supply of automated barns, large PV-powered irrigation systems or processing plants.Neighbourhood solutions & microgridsCentral storage unit for residential settlements or remote hotel complexes in off-grid operation.Data centres & logistics centresSecuring critical infrastructures through enormous capacity reserves for uninterruptible power supply (UPS).Installation & safety instructionsStatic requirementsThe total weight of this system is considerable. The installation location must have a tested, load-bearing foundation (concrete).Fire protection & safetyInstallation should take place in a separate technical room that complies with the applicable standards for large battery storage and provides sufficient ventilation.Certified installationDue to the complexity and high voltages, commissioning may only be carried out by qualified personnel trained by Deye. Properties  ModelDEYGB-W94 Battery typeLiFePO4 Number of battery modules in series8 Nominal system voltage409.6 Vdc System operating voltage332.8 ~ 467.2 Vdc System energy94 kWh Usable energy84.6 kWh Nominal charging/discharging capacity94.2 kW Continuous charging/discharging current230 A Peak current322 A (1 s) CommunicationCAN / RS485 Thermal ManagementNatural air cooling Recommended depth of discharge90 % Protection classIP20 Air humidity0 ~ 85 % Altitude≤ 3000 m Noise level≤ 50 dB Type of installationFloor Mount Warranty10 years FAQs about the Deye GB-W94 battery systemCan this system support a whole business in the event of a power outage?Yes, depending on the total load.With 94 kWh of capacity and the corresponding hybrid inverters, the system can carry significant loads for long periods of time and ensures a seamless transition to island operation.How is the longevity of the storage guaranteed?Thanks to the active BMS.The system continuously equalises charge differences between the modules and protects the cells from deep discharge, overcharging and extreme temperatures.Is the system compatible with wind turbines?Yes, without a hitch.Via a compatible Deye inverter, energy from various sources (PV, wind, diesel generator) can be centrally fed and stored in the GB-W94 system.How is delivery of such a system handled?Due to the size, by forwarding agent.The system is delivered securely packaged. On site, special lifting equipment is often required to position the cabinet in its final location. Scope of delivery1 x Deye GB-W-PDU-28 x Deye GB-W-Pack12-2-A3 battery module1 x Deye GB-W-Base1 x Top Cover

The Felicity Solar FLA48314-EU is a powerful 48V lithium iron phosphate storage (LiFePO4) system specially developed for efficient energy management in residential buildings and small commercial operations. With a gross capacity of 16.07 kWh this compact system offers impressive energy density and is the ideal choice for users who value safety, durability, and easy installation.Thanks to the low-voltage technology (48V/51.2V), the storage is compatible with a wide range of commonly available hybrid inverters. The robust construction and the intelligent battery management system (BMS) ensure that your photovoltaic system achieves maximum self-consumption and sustainably reduces your energy costs.Highlights at a glanceHigh storage capacity: With over 16 kWh capacity per unit, even larger households and heat pump systems can be reliably supplied overnight.Safe LiFePO4 chemistry: The lithium iron phosphate technology is extremely thermally stable and offers a lifespan of over 6000 cycles with high depth of discharge.Integrated smart BMS: Continuously monitors cell voltages, currents and temperatures to guarantee safe operation and uniform cell ageing.Broad compatibility: Works seamlessly with leading 48V inverters (e. g. Victron, Deye, Growatt, GoodWe), offering maximum flexibility in system selection.Scalable system: Up to 12 units can be connected in parallel to achieve total capacities of up to 192 kWh for commercial applications.Simple wall mounting: The compact design allows space-saving installation and neat wiring in the technical room or basement.Areas of applicationThe FLA48314-EU is versatile for modern energy concepts:Maximising self-consumptionStore your solar energy during the day to avoid expensive grid supply in the evenings and when it is cloudy.Emergency power & island solutions (off-grid)In combination with a suitable inverter, the storage ensures the power supply during grid failures or in remote areas.Retrofitting existing systemsIdeal for upgrading older PV systems with a modern, long-lasting 48V battery storage.Assembly & Safety InstructionsProfessional installationDue to the high capacities and currents, the connection must be carried out by a qualified electrician. Ensure sufficiently sized battery cables (cross-section).Site conditionsInstall the storage in a dry, well-ventilated place. The optimum operating temperature is between +15°C and +30°C to achieve maximum service life.Parallel connectionWhen expanding the system, ensure that all battery modules have the same software version and a similar state of charge (SOC) before connection. Features Model**Felicity Solar FLA48314-EU** Nominal energy**16.1 kWh** Nominal voltage**51.2 V** (low voltage) Nominal capacity314 Ah Battery typeLithium iron phosphate (LiFePO4) Max. charge/discharge current150 A (continuous) Parallel connectionUp to 12 units Degree of protectionIP21 (indoor installation) CertificationsCE, UN38.3, MSDS  FAQs about the Felicity Solar FLA48314-EUIs this storage compatible with my inverter?Usually yes.The FLA48314-EU supports the most common protocols for 48V systems. It is compatible with Victron Energy, Deye, Growatt, Voltronic and many other manufacturers. Please check Felicity Solar’s current compatibility list in advance.How many cycles does the battery last?Over 6000 cycles.At a depth of discharge of 80% (DoD) and proper handling, the LiFePO4 chemistry guarantees a service life of over 10 years, making it one of the most durable storage solutions on the market.Can I expand the capacity later?Yes.You can connect up to 12 units of the FLA48314-EU model in parallel. In this way, the system grows flexibly with your energy requirements, whether due to a new EV or an air conditioner.Does the storage require active cooling?No.The housing is designed for efficient passive heat dissipation. As a result, the storage operates completely silently, which is especially beneficial for installation in residential buildings.How safe is the LiFePO4 technology in the home?Very safe.Unlike conventional lithium-ion batteries (NMC), LiFePO4 cells are not flammable and are not prone to thermal runaway even in the event of damage or short circuit. They are considered the safest choice for home storage.  Scope of delivery: Felicity Solar FLA48314-EU (16.1 kWh LV battery storage) 1 x Felicity Solar FLA48314-EU battery moduleA standing 51.2V LiFePO4 energy storage with a capacity of 314 Ah (16.1 kWh) and integrated battery management system (BMS).1 x set of DC power cables (power cable)A pair of high-current cables (plus and minus) for electrically connecting the storage to the low-voltage inverter.1 x BMS communication cableA pre-assembled data cable (RJ45) for communication between the battery and the inverter via CAN or RS485 interface.1 x earth cableA yellow-green protective earth cable for safe earthing of the battery housing.1 x wall mounting kit / anti-tilt protectionMounting accessories for attaching the housing to the wall to prevent the standing storage from tipping over.1 x mounting kit (screws and accessories)All necessary small parts and screws for installation and electrical connections.1 x user manualA technical manual with installation instructions, pin assignments for various inverters, and safety instructions.

The DEYE AI-W5.1-B in the 15 kWh version is a high-performance, pluggable and scalable energy storage system for demanding applications in residential and commercial settings. It impresses with its high storage capacity, efficient charging and discharging performance, and simple integration into existing PV systems.H2: Highlights at a glanceHigh storage capacity: 15.36 kWh for high energy requirementsHigh-performance charging/discharging current: Up to 250 A for rapid power supplyLow-voltage system: 51.2 V for enhanced safety and compatibilityEasy installation: Pluggable system for rapid integrationScalability: Scalable to meet growing energy demandsRobust design: Long service life and reliability – ideal for demanding applicationsH2: Efficient energy storage for modern systemsThe DEYE AI-W5.1-B is specifically designed to reliably store large amounts of energy. The capacity of over 15 kWh combined with a high charging/discharging current of 250 A makes it an ideal solution for the efficient use of solar power, even with higher load requirements.Flexible integration & modular expansionThanks to the pluggable design, the storage system can be integrated particularly easily into new or existing photovoltaic systems. The modular architecture enables a scalable storage solution that grows with energy demand, whether in a private home, apartment building or commercial operation.Robust technology for reliable operationThe high-quality housing and solid construction ensure safe use, even under demanding conditions. With its modern battery management system, the storage unit offers maximum safety, durability and a stable energy supply.Who is the DEYE AI-W5.1-B 15 kWh battery storage system suitable for?This energy storage system is ideal for: Homeowners who want to increase their self-sufficiency and reduce electricity costs Commercial businesses that want to handle peak loads or integrate backup power solutions Installers who rely on simple, modular systems PV projects where future-proof and expandable storage systems are required  ModelDEYAI-W15.3-B Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 System nominal voltage (V)51.2 System operating voltage (V)44.8-57.6 System capacity (kWh)15.36 System usable capacity (kWh)13.8 Charging/discharging current (A) - Recommendation150 Charging/discharging current (A) - Rated value250 Charging/discharging current (A) - Peak discharge (2 min,25°C)360 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 60 LCD displaySOC%, Power, Total Voltage Communication connectionCAN2.0, RS485 Humidity5% ~ 90% Altitude≤2000m IP protection class of the enclosureIP65 Storage temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)720 * 255 * 1131 Weight (kg)180.5 Installation locationFloor mounting Recommended depth of discharge90% Cycle life25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsCE/IEC62619 /VDE2510-50/ UL1973/UL9540A/UN38.3  FAQs about the DEYE AI-W5.1-B energy storage systemHow far can I expand the system later?Up to six modules can be combined per tower, resulting in 30.7 kWh of storage capacity. By connecting up to six towers in parallel, expansion to a maximum total capacity of 184 kWh is possible without additional control technology.Which hybrid inverters is the 15 kWh package compatible with?The storage package is officially approved for three-phase Deye hybrid inverters of the low-voltage series.. The systems are fully matched to each other, and plug-&-play operation is possible directly without manual configuration. Please check the compatibility list beforehand. Deye storage systems are only compatible with Deye inverters.Do I need active cooling?No, the system operates completely fanless with passive convection. The only important thing is a location with free air circulation, as recommended in the manual. Additional air conditioning is not required.Does the battery need to be fully charged before initial commissioning?Yes, the initial charge to 100 % is necessary to ensure correct SoC detection (State of Charge). If this step is omitted, deviations in capacity display and charging behaviour may occur. For this reason, always fully charge the storage system first before you begin discharging it.How loud is the battery during operation?The battery operates completely without active fans and is therefore virtually silent. Only during switching do relays switch briefly, which can be heard for a short time. In regular operation, the system remains silent. Scope of delivery Deye AI-W5.1-B modular battery system (15.36 kWh): System compositionThis product is a set and consists of four separate main components, which together form a 15.36 kWh tower system.Component 1: Deye AI-W5.1-B-BMS (control unit & base)The central control unit (BMS cluster) that manages the entire system. This unit forms the base of the battery tower.Components 2, 3 & 4: Three Deye AI-W5.1-BATT battery modules (5.12 kWh each)Three pure battery modules with 5.12 kWh each, which are stacked onto the BMS unit and onto each other.1 x set of battery connection cables (positive & negative)A pair of high-performance cables for connecting the BMS unit to an external hybrid inverter.1 x communication cable (CAN/RS485)A data cable for communication between the BMS and the inverter.2 x connection bridge / parallel connection cableShort, robust cables or fixed bridges to connect the three battery modules to each other.1 x grounding cableA protective conductor cable for the proper grounding of the BMS unit.1 x installation accessories (tower mounting)Includes screws or locks to securely connect the four components into a tower.1 x operating and installation manualA printed manual that describes the installation of the entire tower system.

The Felicity Solar FLA 48460TG2-EU is a giant among home storage systems. With an enormous capacity of 23.5 kWh in a single housing, this 48V block redefines what a powerful all-in-one storage system can achieve. Instead of many small modules, you get a massive energy storage unit for maximum autonomy. This floor-mounted solution is based on safe LiFePO4 technology and is aimed at large PV systems, multi-family houses or commercial use. The TG2 version also offers modern features such as integrated WiFi/Bluetooth for real-time monitoring and an aerosol fire extinguishing system. Highlights at a glanceGigantic capacity (23.5 kWh / 460 Ah): A single block stores an extremely large amount of energy and reduces space requirements, wiring and installation effort. High performance (up to 12.5 kW): Designed for 250A continuous charge/discharge current and 500A peak (15s) – ideal for high loads and powerful hybrid systems. Monitoring integrated (WiFi/Bluetooth): Real-time monitoring of status, performance and system data directly via wireless connection. LiFePO4 cell chemistry: Lithium iron phosphate is considered particularly thermally stable and safe for stationary storage systems. Safety setup: Integrated Smart-BMS as well as breaker & fuse; additionally aerosol fire extinguishing system. External fuse (easy replacement): The external fuse design allows for service-friendly replacement. Scalable up to 15 units: Parallel connection of up to 15 storage units (up to 352.5 kWh) for large systems. Long service life: Designed for ≥ 6000 cycles (Test condition: 25°C ±2°C, 0.5C/0.5C, 90% DoD, 70% EOL). Areas of applicationThe FLA 48460TG2-EU is the solution for power users and large consumers: Maximum autonomy: More energy at home, less grid consumption – even in bad weather.Commercial & multi-family houses: High capacity and power reserve for demanding load profiles.Backup systems: High continuous output for emergency/back-up power scenarios (note system design).Scalable storage parks: Up to 15 units in parallel for very large capacities.Installation & safety instructionsLogistics & weight: Product weight approx. 186.5 kg (packaging weight approx. 220 kg). Delivery is typically on a pallet/forwarding agent. Suitable lifting/transport equipment must be planned for bringing in. Installation location: Floor-mounted. The surface must be level and load-bearing. Dimensions: 570 x 250 x 980 mm (W x D x H). Cable cross-section: For possible currents up to 250A, large cross-sections are usual. Please design the cross-section/protection according to standards, cable length and manufacturer specifications. Properties ModelFelicity Solar FLA 48460TG2-EU TechnologyLiFePO4 (Lithium iron phosphate) Nominal voltage51.2 V Energy content23.5 kWh Operating voltage44.8 – 57.6 V Max. continuous current (charge/discharge)250 A (depends on temperature & SOC) Peak current (15s)500 A Max. charge/discharge power12,500 W Depth of discharge (DoD)≥ 95% CommunicationRS485 / CAN Protection typeIP21 Cycles lifetime≥ 6000 (25°C ±2°C, 0.5C/0.5C, 90% DoD, 70% EOL) Temperature range charging0°C to +55°C Temperature range discharging-20°C to +55°C DisplayLCD + LED MountingFloor-mounted (Floor-Mounted) Protection / ComponentsSmart BMS, Breaker, Fuse (integrated) Warranty10 years CertificationUN38.3 Weight186.5 kg (product) / 220 kg (packed) Dimensions (W x D x H)570 x 250 x 980 mm FAQs for the Felicity FLA 48460TG2-EUHow long does it take to charge this battery?That depends on the available charging power of your inverter. With high charging power, the storage unit can be filled very quickly: At up to 12.5 kW (theoretical maximum), in practice this often corresponds to around about 2 hours for a full charge – depending on SOC, temperature and system limitations. Can I connect two of them in parallel?Yes. The storage unit is designed for parallel connection. With two units you get approx. 47 kWh capacity. In total, up to 15 units are possible in parallel (up to 352.5 kWh). How does the battery communicate with the inverter?Via CAN or RS485. Please check the compatibility and the necessary pin assignment/protocol selection in the documentation of your inverter.  Scope of delivery: Felicity Solar FLA 48460TG2-EU (23.5 kWh LV battery storage) 1 x Felicity Solar FLA 48460TG2-EU battery moduleA massive upright 51.2V LiFePO4 energy storage with a high capacity of 460 Ah (23.55 kWh) and integrated battery management system (BMS).1 x set of DC power cables (power cable)A pair of high-current cables (plus and minus) for electrical connection of the storage unit to the low-voltage inverter.1 x BMS communication cableA pre-assembled data cable (RJ45) for communication between the battery and the inverter via CAN or RS485 interface.1 x earthing cableA yellow-green protective earthing cable for safe earthing of the robust metal housing.1 x wall mounting set / anti-tilt deviceSpecial mounting accessories for attachment of the housing to a stable wall to prevent the heavy storage unit from tipping over.1 x mounting kit (screws and accessories)All required small parts, screws and connectors for professional mechanical and electrical installation.1 x user manual (User Manual)A technical manual with detailed installation instructions, pin assignments for communication and safety instructions.

The Deye GB-L-PRO12 is a powerful and highly flexible high-voltage energy storage system, specially developed for modern photovoltaic systems in residential and small commercial settings. With a gross capacity of 12.27 kWh offers a reliable solution for maximizing self-consumption and increasing independence from the public grid.The system stands out thanks to its modular design and advanced lithium iron phosphate technology (LiFePO4), which guarantees maximum safety and a long service life. Thanks to its simple stackable design, the system can be installed without complex cabling between the modules and easily expanded as required.Highlights at a glanceHigh safety: The cobalt-free LiFePO4 chemistry ensures maximum safety, thermal stability and a long cycle life.Easy installation: Thanks to the modular "plug-and-play" design, stacking assembly is quick and requires no additional cable connections between the battery modules.Integrated BMS: The intelligent battery management system monitors each cell individually and protects against overcharging, deep discharge and extreme temperatures.Efficient high-voltage technology: The high system voltage reduces conversion losses and optimises efficiency in combination with modern hybrid inverters.Emergency power capable: Supports high discharge rates to ensure a safe supply to critical household appliances even during power cuts.Robust design: With an IP65 protection rating, the system is dust-tight and protected against water jets, enabling installation in a variety of environments.Areas of applicationThe GB-L-PRO12 is the ideal storage solution for sophisticated energy concepts:Self-consumption optimisationStorage of surplus solar power during the day for use in the evening and at night.Back-up power supplyWhen used with compatible hybrid inverters, the system provides protection in the event of power cuts (blackout protection).Peak shavingReduction in electricity costs through the buffering of peak loads, particularly in households with heat pumps or electric vehicle charging points.Installation & safety instructionsSite selectionPlace the storage unit on a level, load-bearing surface. Ensure adequate ventilation and maintain the recommended minimum distances from walls.Protection against extreme temperaturesAlthough the system is designed for a wide temperature range, installation in cool, frost-free indoor areas (e.g. a basement or utility room) extends the service life of the cells.Professional commissioningThe electrical connection to the inverter and the configuration of the BMS must only be carried out by certified specialists in order to maintain the warranty. Features ModelDeye GB-L-PRO12 Nominal energy12 kWh Voltage307.2 V (high voltage) Battery typeLithium iron phosphate (LiFePO4) Max. charging/discharging current50 A Usable energy (90% DoD)10.08 kWh Protection ratingIP65 (indoor/outdoor installation) Operating temperature-20°C to +60°C (charging from 0°C) CertificationsCE, IEC62619, VDE2510-50  FAQs on the Deye GB-L-PRO12 battery systemCan I expand the system with additional modules at a later date?Yes.Thanks to the modular design, you can flexibly scale the capacity of your storage system to meet growing energy demands by adding compatible battery modules.Which inverters is the system compatible with?Primarily with Deye hybrid inverters.The system is optimally matched to the high-voltage hybrid inverters from Deye. Please check the current compatibility list for third-party manufacturers before installation.Why is LiFePO4 used as the cell chemistry?For superior safety.Unlike conventional lithium-ion batteries (NMC), LiFePO4 is chemically much more stable. Even if physically damaged, these cells do not tend to catch fire, making them the safest choice for residential buildings.Does the system have an integrated heating system for winter operation?Yes, optional.The Deye GB-L-PRO12 system supports an integrated heating function, which enables the battery cells to be charged safely even at low ambient temperatures. This is particularly important for installations in unheated rooms to prevent cell damage in freezing conditions.What is the maximum discharge power of the 12.27 kWh system?Depending on the module configuration.Thanks to high-voltage technology, the system can deliver high discharge currents. As a rule, this 12.27 kWh pack enables a continuous power output of approx. 6 kW to 10 kW, ideal for operating heat pumps or wall boxes.Scope of delivery Deye GB-L-PRO12 Modular high-voltage battery system (12.27 kWh) System compositionThis product is a set and consists of four separate main components, which together form a 12.27 kWh high-voltage tower system.Component 1: Deye GB-L-PRO-BMS (high-voltage control unit & base)The central control unit (BMS) that manages the entire high-voltage system. This unit forms the base of the battery tower.Components 2, 3 & 4: Three Deye GB-L-PRO-BATT high-voltage battery modules (4.09 kWh each)Three high-voltage battery modules, each with a capacity of 4.09 kWh, which are stacked on the BMS unit and on top of each other.1 x set of battery connection cables (plus & minus)A pair of special high-voltage power cables for connecting the BMS unit to a compatible high-voltage hybrid inverter.1 x communication cable (CAN/RS485)A data cable for communication between the BMS and the inverter.2 x connecting bridge / series connection cableShort, robust cables or fixed bridges to connect the three battery modules in series.1 x earthing cableA protective earth cable for the correct earthing of the BMS unit.1 x installation accessories (tower installation)Includes screws or fasteners to securely connect the four components into a tower.1 x operating and installation manualA printed manual describing the installation of the entire high-voltage tower system.

The Deye GB-L-PRO20 is a powerful and highly flexible high-voltage energy storage system, specially developed for modern photovoltaic systems in residential and small commercial settings. With a gross capacity of 20.45 kWh offers a massive energy reserve to maximise independence from the public grid and reliably supply even large households or commercial premises.The system is supplied including the GBL-PRO BMS supplied, which acts as an intelligent control unit monitoring the entire tower. Thanks to the advanced lithium iron phosphate technology (LiFePO4) the system guarantees maximum safety whilst offering a long service life. The simple stackable design allows for quick installation without complex cable connections between the modules.Highlights at a glanceHigh safety: The cobalt-free LiFePO4 chemistry ensures maximum safety, thermal stability and a long cycle life of over 6,000 cycles.Central GBL-PRO BMS: The intelligent control unit monitors each cell individually and protects the entire system against overcharging, deep discharge and thermal issues.Easy installation: Thanks to the modular "plug-and-play" design, stacking assembly is quick and requires no additional cable connections between the battery modules.Efficient high-voltage technology: The high system voltage reduces conversion losses and optimises efficiency in combination with modern hybrid inverters.Emergency power capable: Supports high discharge rates to safely supply critical loads or entire households even during power cuts.Robust design: With an IP65 protection rating, the system is dust-tight and protected against water jets, enabling installation in a variety of environments.Areas of applicationThe GB-L-PRO20 is the ideal storage solution for sophisticated energy concepts:Self-consumption optimisationStorage of surplus solar power during the day for use in the evening and at night, even with high baseline consumption.Back-up power supplyWhen used in conjunction with compatible hybrid inverters, the system provides protection against power cuts (blackout protection) for the entire house.Peak shavingReduction in electricity costs through the buffering of peak loads, particularly in households with multiple electric charging points or heat pumps.Installation & safety instructionsSite selectionPlace the storage unit on a level, load-bearing surface (note the weight). Ensure adequate ventilation and observe the recommended minimum clearances.Protection against extreme temperaturesAlthough the system is designed for a wide temperature range, installation in cool, frost-free indoor areas (e.g. a basement or utility room) extends the service life of the cells.Professional commissioningThe electrical connection to the inverter and the configuration of the GBL-PRO BMS must only be carried out by certified specialist personnel. Features ModelDeye GB-L-PRO20 Nominal energy20.45 kWh Nominal voltage512 V (high voltage) Battery typeLithium iron phosphate (LiFePO4) Max. charge/discharge current50 A Usable energy (90% DoD)18.41 kWh Protection ratingIP65 (indoor/outdoor installation) Cycle life≥ 6000 cycles (@25°C, 90% DoD) CertificationsCE, IEC62619, VDE2510-50, UN38.3  FAQs about the Deye GB-L-PRO20 battery systemCan I expand the system later with additional modules?Yes.Thanks to the modular design, you can flexibly scale the capacity of your storage system. The GBL-PRO BMS automatically detects new modules and integrates them into battery management.Which inverters is the system compatible with?Primarily with Deye hybrid inverters.The system is optimally matched to Deye's high-voltage hybrid inverters. Please check the current compatibility list for third-party suppliers before installation.Why is LiFePO4 used as the cell chemistry?For superior safety.Unlike conventional lithium-ion batteries (NMC), LiFePO4 is chemically much more stable. Even if mechanically damaged, these cells do not tend to catch fire.Does the system have integrated heating for winter operation?Yes, optionally.The Deye GB-L-PRO20 system supports an integrated heating function that enables the battery cells to be safely charged even at low ambient temperatures. This effectively protects the cells in installations in unheated rooms.What is the maximum discharge power of the 20.45 kWh system?Depending on the module configuration.Thanks to high-voltage technology, the system can deliver high discharge currents. As a rule, this 20.45 kWh pack enables a continuous power output of approx. 10 kW to 15 kW, ideal for operating wall boxes or air conditioning systems. Scope of delivery Deye GB-L-PRO20 modular high-voltage battery system (20.45 kWh): System compositionThis product is a set and consists of six separate main components which together form a 20.45 kWh high-voltage tower system.Component 1: Deye GBL-PRO BMS (high-voltage control unit & base)The central control unit (BMS) that manages the entire high-voltage system. This unit forms the base of the battery tower.Components 2 to 6: Five Deye GB-L-PRO-BATT high-voltage battery modules (4.09 kWh each)Five high-voltage battery modules, each with 4.09 kWh, which are stacked onto the BMS unit and on top of one another.1 x set of battery connection cables (positive & negative)A pair of special high-voltage power cables for connecting the BMS unit to a compatible high-voltage hybrid inverter.1 x communication cable (CAN/RS485)A data cable for communication between the BMS and the inverter.4 x connecting bridge / series connection cableShort, robust cables or fixed bridges for connecting the five battery modules in series.1 x earthing cableA protective earth conductor cable for compliant earthing of the BMS unit.1 x mounting accessories (tower assembly)Includes screws or locking elements for securely connecting the six components into a tower.1 x operating and installation manualA printed manual describing the installation of the entire high-voltage tower system.

The Deye GB-L-PRO8 is a powerful and highly flexible high-voltage energy storage system, specially developed for modern residential photovoltaic systems. With a gross capacity of 8.18 kWh offers a reliable solution for maximizing self-consumption and sustainably increasing independence from the public grid.The system stands out thanks to its modular design and advanced Lithium iron phosphate technology (LiFePO4), which guarantees maximum safety and a long service life. Thanks to its simple stackable design, the system can be installed without complex cabling between the modules and easily expanded as required.Highlights at a glanceHigh safety: The cobalt-free LiFePO4 chemistry ensures maximum safety, thermal stability and a long cycle life.Easy installation: Thanks to the modular "plug-and-play" design, stacking assembly is quick and requires no additional cable connections between the battery modules.Integrated BMS: The intelligent battery management system monitors each cell individually and protects against overcharging, deep discharge and extreme temperatures.Efficient high-voltage technology: The high system voltage reduces conversion losses and optimises efficiency in combination with modern hybrid inverters.Emergency power capable: Supports high discharge rates to ensure a safe supply to critical household appliances even during power cuts.Robust design: With an IP65 protection rating, the system is dust-tight and protected against water jets, enabling installation in a variety of environments.Areas of applicationThe GB-L-PRO8 is the ideal storage solution for compact and efficient energy concepts:Self-consumption optimisationStorage of surplus solar power during the day for use in the evening and at night.Back-up power supplyWhen used with compatible hybrid inverters, the system provides protection in the event of power cuts (blackout protection).Peak shavingReduction in electricity costs through the buffering of peak loads, particularly in households with heat pumps or electric vehicle charging points.Installation & Safety InstructionsSite selectionPlace the storage unit on a level, load-bearing surface. Ensure adequate ventilation and maintain the recommended minimum distances from walls.Protection against extreme temperaturesAlthough the system is designed for a wide temperature range, installation in cool, frost-free indoor areas (e.g. a basement or utility room) extends the service life of the cells.Professional commissioningThe electrical connection to the inverter and the configuration of the BMS must only be carried out by certified specialists in order to maintain the warranty. Features  ModelDeye GB-L-PRO8 Rated energy8.18 kWh Rated voltage204.8 V (high voltage) Battery typeLithium iron phosphate (LiFePO4) Max. charging/discharging current50 A Usable energy (90% DoD)7.2 kWh Protection classIP65 (indoor/outdoor installation) Cycle life≥ 6000 cycles (@25°C, 90% DoD) CertificationsCE, IEC62619, VDE2510-50, UN38.3  FAQs on the Deye GB-L-PRO8 battery systemCan I expand the system with additional modules at a later date?Yes.Thanks to the modular design, you can flexibly scale the capacity of your storage system to meet growing energy demands by adding compatible battery modules.Which inverters is the system compatible with?Primarily with Deye hybrid inverters.The system is optimally matched to the high-voltage hybrid inverters from Deye. Please check the current compatibility list for third-party manufacturers before installation.Why is LiFePO4 used as the cell chemistry?For superior safety.Unlike conventional lithium-ion batteries (NMC), LiFePO4 is chemically much more stable. Even if physically damaged, these cells do not tend to catch fire, making them the safest choice for residential buildings.Does the system have an integrated heating system for winter operation?Yes, optional.The Deye GB-L-PRO8 system supports an integrated heating function, which enables the battery cells to be charged safely even at low ambient temperatures. This is particularly important for installations in unheated rooms to prevent cell damage in freezing conditions.What is the maximum discharge power of the 8.18 kWh system?Depending on the module configuration.Thanks to high-voltage technology, the system can deliver high discharge currents. Typically, this 8.18 kWh pack enables a continuous power output of approx. 4 kW to 6 kW, ideal for operating standard household appliances during a power cut. Scope of delivery Deye GB-L-PRO8 Modular high-voltage battery system (8.18 kWh) System compositionThis product is a set and consists of three separate main components, which together form an 8.18 kWh high-voltage tower system.Component 1: Deye GB-L-PRO-BMS (high-voltage control unit & base)The central control unit (BMS) that manages the entire high-voltage system. This unit forms the base of the battery tower.Components 2 & 3: Two Deye GB-L-PRO-BATT high-voltage battery modules (4.09 kWh each)Two high-voltage battery modules, each with 4.09 kWh, which are stacked on the BMS unit.1 x set of battery connection cables (positive & negative)A pair of special high-voltage power cables for connecting the BMS unit to a compatible high-voltage hybrid inverter.1 x communication cable (CAN/RS485)A data cable for communication between the BMS and the inverter.1 x connecting bridge / series connection cableShort, robust cables or a fixed bridge to connect the two battery modules in series.1 x earthing cableA protective earth cable for the compliant earthing of the BMS unit.1 x installation accessories (tower assembly)Includes screws or locks to securely connect the three components into a tower.1 x operating and installation manualA printed manual describing the installation of the entire high-voltage tower system.

The Felicity Solar FLH96050SG01 in the version with 15.36 kWh is a performance-optimised high-voltage battery storage system for homes and businesses with high energy requirements. By combining three stacked 5.12 kWh modules, this system offers an enormous storage capacity, ideally suited to running heat pumps, overnight charging of electric vehicles, or bridging long periods of poor weather. Thanks to modern LiFePO4 technology and modular tower design, it combines safety, efficiency, and space savings.Highlights at a glanceMassive capacity: With 15.36 kWh usable capacity, this storage offers enough reserves for large households and maximises the degree of self-sufficiency of your PV system.Modular stack system: Consists of three battery modules and one control unit that wirelessly plug together (“Plug & Play”), simplifying installation.Maximum safety: Each module features an integrated aerosol fire suppression system and a multi-stage battery management system (BMS) for continuous monitoring of the cells.High-voltage efficiency: The higher system voltage ensures lower conversion losses and more efficient supply for high-power loads compared to low-voltage systems.Long service life: Uses high-quality lithium iron phosphate cells (LiFePO4) with over 6000 cycles at high depth of discharge (DOD).Wide compatibility: Seamless communication with common hybrid inverters (e.g. Deye, Growatt, Solis, GoodWe) via CAN/RS485 interfaces.Maximum independence for your homeWith 15.36 kWh, this storage system is in a performance class that far exceeds standard. It is the perfect solution for the energy transition at home (“sector coupling”). During the day it stores surplus solar power, which in the evening and at night is available for energy-intensive uses like cooking, the heat pump, or the EV charger. This minimises costly grid import to a minimum.Flexibility and expandabilityThe system grows with your needs. If your electricity demand increases in the future (e.g. due to a second EV), the storage tower can be expanded simply by adding more modules (depending on the maximum input voltage of the inverter). The smart BMS recognises new capacities and automatically integrates them into the system. Characteristics ModelFelicity Solar FLH96050SG01 (15.36 kWh system) ApplicationHigh-voltage storage system for PV installations (home storage) TechnologyLiFePO4 (Lithium iron phosphate) Nominal energy15.36 kWh Nominal voltage307.2 V Module capacity50 Ah Voltage range273.6 V - 345.6 V Charge/discharge current25 A (Recommended) / 50 A (Maximum) CommunicationCAN, RS485 Protection ratingIP65 (Dust-tight and protected against water jets) ExpandabilityModular construction (Stackable) Weight (kg)approx. 160 (complete system)  FAQs for the Felicity FLH96050SG01 (15.36 kWh)Who is the 15.36 kWh version suitable for?This size is ideal for detached houses with an annual electricity consumption of over 5,000 kWh or households actively using sector coupling (heat pump + EV). It allows a significant share of demand to be covered from the storage system even on cloudy days or in winter.How heavy is the system during installation?The total system weighs over 160 kg. However, thanks to the modular design, you do not need to move the full weight at once. Each individual battery module (about 50 kg each) and the control unit are stacked one after the other at the installation site.Is the storage suitable for outdoor use?The housing has protection rating IP65, i.e. it is dust-tight and protected against water jets. Installation in a garage, carport or beneath a canopy is therefore possible. However, to maximise the life of the cells, we recommend a location protected from direct sunlight and extreme frost (e.g. cellar or utility room).Can the system supply emergency power?Yes, the Felicity high-voltage storage can provide high discharge power. In combination with an emergency power capable hybrid inverter (with grid switching), the system can continue to supply the home grid in the event of a power failure. Scope of delivery: Felicity Solar FLH96050SG01 (15.36 kWh HV battery storage set) 1 x Felicity FLH96050SCG01 BMS control unitThe central high-voltage management module which monitors the cells and communicates with the inverter.3 x Felicity FLH48100-S battery modules (each 5.12 kWh)Three stackable high-voltage LiFePO4 storage units, connected in series to achieve the total capacity of 15.36 kWh.1 x Base plate (Base)A stable base for floor mounting on which the three battery modules and the control unit are safely stacked.1 x Set of internal connection cables (Plug & Play)Short plug connectors for electrical coupling and data transfer between the individual battery modules within the tower.1 x Set of external high-voltage cables (DC)A pair of specialist power cables for safe connection of the battery tower to the high-voltage hybrid inverter.1 x Communication cable (BMS-to-inverter)A pre-assembled data cable for connecting the control unit to the inverter (CAN/RS485).1 x Mounting kit (tip-over protection & screws)All fixtures for wall-mounting the tower and screws for mechanical module joining.1 x User manualA technical user guide with instructions for stacking, BMS configuration, and important safety information for high-voltage systems.

The Felicity Solar FLH96050SG01 with 25.6 kWh storage capacity is the most powerful single configuration of this high-voltage series and marks the top of home storage solutions. This system, consisting of a tower with five battery modules, offers massive energy reserves for large detached houses, multi-family houses or commercial applications. With a nominal voltage of 512 volts, it operates highly efficiently and is perfectly suited to supply energy-intensive consumers such as heat pumps or several electric vehicles simultaneously, even at night.Highlights at a glanceEnormous capacity: With 25.6 kWh usable capacity you achieve maximum independence from the grid and can also bridge periods of bad weather.5-stack design: The storage unit consists of five stacked 5.12 kWh modules plus control unit – compact in footprint, large in output.Maximum high-voltage efficiency: The system voltage of 512 V ensures minimal conversion losses and high discharge power with low heat generation.Industrial safety standard: Equipped with LiFePO4 cells and an integrated aerosol fire extinguishing system in each module for maximum fire protection.Sector coupling pure: Ideally dimensioned for the combination of photovoltaics, heat pump and e-mobility (wallbox).Proven communication: Compatible with powerful high-voltage hybrid inverters (e.g. Deye, Solis, GoodWe, Megarevo).Powerhouse for high demandsThis expansion level is intended for users who do not want to compromise. 25.6 kWh means that you can use the solar power produced during the day almost completely yourself, even if your night-time consumption is very high. For small businesses (bakeries, offices with server rooms), this storage unit also offers an effective option for peak shaving and serves as a powerful emergency power source in the event of a grid failure.Installation and handlingDespite an overall weight of over 260 kg, installation remains feasible thanks to the modular concept. The individual modules (each approx. 50 kg) are stacked one after the other at the installation site to form a tower. The wireless plug connection between the modules eliminates complex cabling, reducing susceptibility to errors. Characteristics ModelFelicity Solar FLH96050SG01  (25.6 kWh) System seriesFLH series (High Voltage Stackable) Configuration5x battery modules (5.12 kWh / 102.4 V each) + 1x control unit Nominal energy25.6 kWh Nominal voltage512 V Capacity50 Ah Voltage range420 V - 570 V Charging current / discharging current25 A (recommended) / 50 A (maximum) SafetyIntegrated aerosol fire extinguishing system Protection classIP65 (protected against dust and water jets) Weight (kg)approx. 300 (total system)  FAQs for the Felicity FLH96050SG01 (25.6 kWh)Which inverter is suitable for this voltage?With a nominal voltage of 512 V and a final charging voltage of up to 576 V, you need an inverter that supports this high range. The Deye SUN-10K/12K-SG01HP3 (battery input up to 700 V) is ideal for this. Some smaller HV inverters stop at 500 V or 600 V – here, you need to check the data sheet carefully to avoid overvoltage errors.How high is the storage tower?The tower, consisting of 5 modules plus BMS head and base, reaches a height of approx. 1.50 m to 1.60 m. Make sure you have a stable, level surface as the weight is distributed over a relatively small footprint (approx. 60x40 cm).Can I expand this configuration further?Technically, with the FLH96050SG01 series you can usually go up to 6 modules (approx. 30 kWh) per tower, as the voltage otherwise becomes too high for most inverters. If you need even more storage, you can alternatively place a complete second tower in parallel next to it (master/slave operation), provided the inverter supports this.Is the system suitable for commercial use?Absolutely. Due to the high capacity, cycle stability and safety features (extinguishing system), this storage unit is often used in commercial projects to increase self-sufficiency or safeguard sensitive loads. Scope of delivery: Felicity Solar FLH96050SG01 (25.6 kWh HV battery storage set) 1 x Felicity FLH96050SCG01 BMS control unitThe central high-voltage management module, which monitors the cells and communicates with the inverter.5 x Felicity FLH48100-S battery modules (each 5.12 kWh)Five stackable high-voltage LiFePO4 storage modules which, when connected in series, result in the total capacity of 25.6 kWh.1 x base plate (Base)A stable foundation for floor mounting, on which the five battery modules and the control unit are safely stacked.1 x set of internal connection cables (Plug & Play)Short plug-in connections for electrical coupling and data transmission between the five battery modules within the tower.1 x external high-voltage cable set (DC)A pair of specialised high-power cables for the safe connection of the battery tower to the high-voltage hybrid inverter.1 x communication cable (BMS-to-Inverter)A pre-configured data cable for connecting the control unit to the inverter (CAN/RS485).1 x mounting kit (tilt protection & screws)All mounting materials for fixing the tower to the wall and screws for the mechanical module connections.1 x User manualA technical manual with instructions for stacking, configuring the BMS and important safety information for high-voltage systems.

The Felicity Solar FLH96050SMG01 is the central battery expansion module for the high-voltage storage series FLH96050SG01. With a capacity of 5.12 kWh per unit, this module is used to enlarge existing storage systems or to individually configure a new storage tower. Equipped with durable LiFePO4 cells and an innovative plug-in system, it enables a flexible adjustment of storage capacity to your growing energy demand – without elaborate rewiring.Highlights at a glanceHigh energy density: Each module offers a storage capacity of 5.12 kWh, ideally portioned for gradual expansion.Wireless stacking: The integrated plug-in system on the top and bottom enables a "Plug & Play" installation by simply stacking the modules.Integrated fire protection: An advanced aerosol fire extinguishing system inside the module ensures maximum safety in your home.Long-lasting technology: Uses high-quality lithium iron phosphate cells (LiFePO4) for over 6000 charge cycles and high operational reliability.Robust housing: The IP65 protection class reliably protects the cell electronics from dust and moisture.High-voltage architecture: The module is designed for series connection in high-voltage towers, increasing system efficiency.Flexibility for your energy systemThe FLH96050SMG01 module is the building block of your independence. Whether you start with a small storage (e.g. 2 modules = 10.24 kWh) and expand later, or your consumption has increased due to purchasing an electric car: This module grows with you. You can combine between 2 and 6 of these modules in a tower (depending on BMS and inverter).Safety and installationFelicity Solar sets new standards in safety. Each individual module has sensors and an extinguishing unit that reacts instantly in the event of critical faults. Installation is extremely simple: the module is placed on the existing tower (or base). Guide pins ensure the correct fit, and the electrical connection is established automatically. No cables have to be screwed between the battery modules. Characteristics ModelFelicity Solar FLH96050SMG01 (expansion module) ApplicationBattery module for expansion of Felicity HV systems (LUX-X series) TechnologyLiFePO4 (lithium iron phosphate) Nominal energy5.12 kWh Nominal voltage102.4 V Nominal capacity50 Ah Voltage range84.0 V - 114.0 V Connection typeWireless stack connection (stack-design) SafetyIntegrated aerosol fire-fighting module Protection classIP65 Weight (kg)approx. 57.5  FAQs on the FLH96050SMG01 expansion moduleCan I operate this module individually?No. The FLH96050SMG01 is only the battery storage module. For operation you necessarily need the BMS control unit (head unit) and the base, which are included in the basic package of the FLH96050SG01 system. Additionally, you need at least two of these modules in a tower to reach the minimum voltage for most high-voltage inverters.Can I expand my storage at any time?Basically yes. However, it is recommended to carry out expansions within the first years after initial installation. If new modules are added to very old modules, the difference in capacity (due to the natural ageing of the old modules) can slightly limit the overall performance of the tower, as the system is oriented towards the weakest link.How heavy is a module?A single module weighs approx. 53 kg. For assembly (lifting onto the stack), two people or a suitable lifting aid are therefore recommended.Does the module also fit Felicity low-voltage systems?No. Felicity Solar also offers low-voltage storage (e.g. for 48V systems). Due to its voltage (approx. 100V) and connections, this module is exclusively suitable for the high-voltage (HV) series. Scope of delivery: Felicity Solar FLH96050SMG01 (5.12 kWh HV expansion module) 1 x Felicity FLH48100-S battery module (5.12 kWh)A stackable high-voltage LiFePO4 storage module for capacity expansion of existing Felicity FLH systems.1 x set of internal connection cables (Plug & Play)Short DC power bridges and communication cables for the electrical and data integration of the module into the existing stack.1 x mounting kit (screws and connection brackets)All necessary mechanical small parts for secure fixing of the module onto the underlying housing within the battery tower.1 x user manual / installation leafletShort manual with specific instructions for physical stacking and integration into the existing battery management system.

The Deye AI-W5.1-B is a powerful, safe and modularly expandable energy storage module with a capacity of 5.1 kWh. With its robust construction, simple installation and high scalability, it is ideal for residential and commercial photovoltaic systems. Thanks to cobalt-free LiFePO₄ technology and an intelligent battery management system, the module is particularly durable, efficient and environmentally friendly.Highlights at a glanceHigh security: Cobalt-free lithium iron phosphate battery cells (LiFePO₄) Scalable: Up to 6 modules per cluster, 36 modules in total (max. 184 kWh) Flexible deployment: Wall or floor mounting possible, stackable design Long service life: Over 6,000 charge cycles at 90% DOD Robust & weatherproof: IP65 protection rating for outdoor use Convenient: Automatic network, remote maintenance & firmware updatesVersatile energy storage for sustainable projectsWhether for a detached house, multi-family house or commercial business, the Deye AI-W5.1-B covers a wide range of requirements for modern energy storage. The efficient use of renewable energies reduces electricity costs and increases the proportion of self-consumption. The modular system can be easily expanded to keep pace with growing energy demand.Safety & reliability at the highest levelThanks to LiFePO₄ battery chemistry, the energy storage system is particularly safe, thermally stable and durable. The integrated battery management system (BMS) reliably protects against overcharging, overheating and short circuits. Passive cooling without fans enables low-noise and low-maintenance operation, even at temperatures from -20 °C to +55 °C.Easy installation & maintenanceThe flat, stackable design allows flexible placement on the wall or on the floor. No complex cabling is necessary. The modules recognise each other automatically in the system and can be conveniently monitored and updated via remote access.Who is the Deye AI-W5.1-B suitable for?This storage unit is ideal for: Private households that want to expand their solar system flexibly Commercial businesses that require modular and fail-safe storage solutions Installers who rely on simple and time-saving systems Sustainability-conscious users who value pollutant-free components ModelDEYAI-W5.1-B Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 System nominal voltage (V)51.2 System operating voltage (V)44.8-57.6 System capacity (kWh)5.12 System usable capacity (kWh)4.6 Charging/discharging current (A) - recommendation50 Charging/discharging current (A) - nominal value100 Charging/discharging current (A) - peak discharge (2 min,25°C)150 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 60 LCD displaySOC%, Power, Total Voltage Communication portCAN2.0, RS485 Humidity5% ~ 90% Altitude≤2000m Enclosure IP ratingIP65 Storage temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)720 * 255 * 300 Weight (kg)127.5 Installation locationFloor mounting Recommended depth of discharge90% Cycle life25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsCE/IEC62619 /VDE2510-50/ UL1973/UL9540A/UN38.3  FAQs on the DEYE AI-W5.1-B energy storage moduleHow much energy is actually usable per module?A single module delivers 5.12 kWh gross capacity. Of this, around 4.6 kWh is usable at a depth of discharge of 90% (DoD), ideal for modular storage solutions with high efficiency.Can I expand the system later?Yes, up to six modules are possible per tower, which corresponds to 30.72 kWh per stack. By connecting up to six towers in parallel, the system can be scaled to a total capacity of around 184 kWh without additional hardware.With which inverters does the module work without an additional interface box?The module is plug-&-play compatible with three-phase Deye hybrid inverters of the low-voltage series. Communication takes place directly via CAN or RS485 without a separate communication box. This is included with the PDU and the base. Without this PDU, the storage block alone cannot be connected to the inverter. Please contact sales if you have any questions.Is active cooling necessary?No, natural convection is sufficient to ensure reliable operation. According to the manual, only an air gap of at least 20 cm behind the module must be maintained so that the heat can dissipate unhindered.Must the module be fully charged before initial commissioning?Yes, an initial charge to 100% is recommended in order to correctly record the State of Charge (SoC). If this step is omitted, deviations in SoC values or an inaccurate charge status display may occur during operation. The storage unit can also be charged via the grid if there is too little solar energy. You can set up this function in the Deye inverter. Scope of delivery Deye AI-W5.1-BATT (Single 5.12 kWh battery module): Module typeThis is a pure expansion module (slave unit) for an existing Deye AI-W5.1-B system. It requires a separate BMS control unit for operation.1 x Deye AI-W5.1-BATT battery module (5.12 kWh)A pure battery module with 5.12 kWh that is stacked on a BMS unit or another battery module.1 x connecting bridge / parallel connection cableShort, robust cables or a fixed bridge to connect this module to an existing module.1 x earthing cable (short)A short protective conductor cable for connection to the earth point of the neighbouring module.1 x installation accessories (tower mounting)Includes screws or locking mechanisms to securely stack the module onto an existing unit.1 x installation instructions for expansion moduleInstructions specifically describing the expansion of an existing tower system.

The Felicity FLS48100SMG1 battery module from the renowned FLS Series is a powerful, stackable low-voltage lithium iron phosphate battery (LiFePO₄) with a capacity of 5.12 kWh. Thanks to its intelligent, space-saving design and modular expandability, the system is ideal for use in private households, commercial facilities and emergency power systems.Highlights at a glanceReliable capacity: 5.12 kWh per module for effective energy storageHigh scalability: Up to 8 modules operable in parallel (40.96 kWh)Flexible installation: Wall or floor-mountable, stackable designIntelligent safety: Integrated BMS, fuse, and circuit breakerLong-lasting: ≥ 6000 charge cycles at 90% depth of discharge (DoD)Efficient energy storage for private and commercial applicationsWith a nominal voltage of 51.2 V and 100 Ah capacity, the Felicity battery module is suitable for various application areas, from single-family homes to industrial emergency power supply. The high efficiency and modular expandability make the system particularly cost-effective.Flexibility and easy expansionThe clever, stackable design allows rapid expansion to up to 8 modules with up to 40.96 kWh total capacity. Thanks to the plug-and-play principle and simple handling, integration into existing systems is especially straightforward.Safety and reliabilityThe Felicity FLS series uses high-quality LiFePO₄ cells, which are known for their high thermal stability and long service life. The integrated battery management system (BMS) reliably protects against overcharging, deep discharge, short circuit, and overtemperature.Who is the Felicity battery module suitable for?This battery pack is ideal for: Homeowners wishing to increase their self-consumption ratio Commercial businesses seeking to manage peak loads or operate autonomously PV installers in need of flexible and scalable storage solutions Industrial users who depend on stable emergency power solutions ModelFLS48100SMG1 Battery typeLiFePO4 Module Capacity (kWh)5.12 Module Nominal Voltage (V)51.2 Module Capacity (Ah)100 System Nominal Voltage (V)51.2 System Operating Voltage (V)44.8-57.6 System Capacity (kWh)5.12 System Usable Capacity (kWh)4.6 Charge/discharge current (A) - Recommendation50 Charge/discharge current (A) - Nominal value60 Charge/discharge current (A) - Peak discharge (2 min,25°C)100 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 55 DisplayControl Module: LCD/Battery Module: LED Communication connectionCAN, RS485 Humidity5% ~ 95% Altitude≤2000m IP rating of the housingIP65 Storage temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)600 * 450 * 180 Weight (kg)46 Installation locationFloor mounting / Wall mounting Recommended depth of discharge90% Cycle life25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsSee downloads / sales enquiry  FAQs about the Felicity battery storageWhich inverters are compatible with the Felicity 5.12 kWh low-voltage module?The module is compatible with many 48 V inverters, including models from Deye, Growatt, Victron, Solis, Sofar, MPP Solar and Felicity itself. It is not compatible with high voltage inverters such as Huawei SUN2000 or Kostal Plenticore Plus.Can I expand the storage capacity with additional modules?Yes, the Felicity module is modular. Depending on the model, up to 8 or even 15 modules can be combined, enabling a total capacity of up to 40.96 kWh.What safety functions does the module offer?The module has an integrated battery management system (BMS) that continuously monitors voltage and temperature. Additionally, it offers protection mechanisms such as overvoltage protection up to 6000 V and an aerosol fire extinguishing system.Is the module maintenance-free and how is it installed?Yes, the module is maintenance-free. It is designed for wall mounting and weighs between 51 and 92 kg, depending on version. Installation can be carried out by one person.Is there a possibility to monitor the battery status?Yes, the module provides integrated WiFi monitoring for real-time monitoring of charge status, temperature, and other parameters. Scope of delivery Felicity FLS48100SMG1 battery module (5.12 kWh slave unit): Module typeThis is a pure expansion module (slave unit) for an existing Felicity tower system. It requires a master module (control module) for operation.1 x Felicity FLS48100SMG1 slave battery module (5.12 kWh)A pure expansion battery module with 5.12 kWh (100 Ah) without its own higher-level control unit.1 x connecting bridge / parallel connection cableShort, robust cables or a fixed bridge to connect this module to an existing master or slave module.1 x earthing cableA short protective conductor cable to connect with the earthing point of the neighbouring module.1 x mounting accessories (rack/tower mounting)Typically includes screws or clamps to safely stack the module on top of another.1 x operating and installation manualA printed manual describing the expansion of an existing tower system.

The Felicity FLS48100SCG1 control module including 5.12 kWh storage is the ideal introduction to self-sufficiency with solar power. It combines intelligent battery management with a powerful LiFePO4 battery and offers maximum flexibility for the future expansion of your energy storage system.Highlights at a glanceStorage included: 5.12 kWh LiFePO4 storage for households with low to medium energy consumptionIntegrated control module: Coordinates energy management and optimises charging cyclesIntelligent battery management system: Increases safety, efficiency and lifespanModularly expandable: Storage flexibly expandable up to 40.96 kWhCompatible: Connection to common inverters possible without problemsIntelligent control for maximum energy efficiencyThe integrated control module forms the core of the system. It ensures that the battery storage is used efficiently, optimises self-consumption and protects the battery by means of an integrated BMS with monitoring functions for voltage, temperature and state of charge.Powerful entry-level system with 5.12 kWh LiFePO4 technologyThe supplied battery with 5.12 kWh capacity is based on modern lithium iron phosphate technology. This not only delivers a high level of operational safety, but also impresses with a long service life and high cycle strength – ideal for daily use in your home.Flexibly expandable for future requirementsThe modular system design allows a step-by-step expansion of the storage capacity by adding additional FLS modules. This way, your storage grows with your energy requirements without having to replace the existing installation. Depending on the model, up to eight modules can be combined, making a total capacity of up to 40.96 kWh possible.Who is the Felicity FLS48100SCG1 system suitable for?This system is ideal for: Home owners with photovoltaic system who want to increase their self-consumption Users with limited budget who want to upgrade flexibly in the future Users looking for a safe, low-maintenance, scalable storage solution People with increasing energy requirements (e.g. due to heat pump or E-car)Your entry into independent energy supplyWith the Felicity FLS48100SCG1 control module including 5.12 kWh storage, you lay the foundation for a sustainable and flexible power supply in your own home. Thanks to its intelligent design, the system can be expanded at any time and offers you maximum control over your energy future.  ModelFLS48100SCG1 Battery typeLiFePO4 Module Capacity (kWh)5.12 Nominal Module Voltage (V)51.2 Module Capacity (Ah)100 Nominal System Voltage (V)51.2 System Operating Voltage (V)44.8-57.6 System Capacity (kWh)5.12 System Usable Capacity (kWh)4.6 Charging/Discharging Current (A) - Recommendation50 Charging/Discharging Current (A) - Nominal Value60 Charging/Discharging Current (A) - Peak Discharge (2 min,25°C)100 Operating Temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 55 DisplayControl Module: LCD/Battery Module: LED Communication portCAN2, RS485 Humidity5% ~ 95% Altitude≤2000m IP enclosure ratingIP65 Storage Temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)600 * 450 * 180 Weight (kg)46 / With base 60 Installation locationFloor mounting / Wall mounting Recommended depth of discharge90% Cycle Life25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsSee downloads / enquire sales  FAQs about the Felicity FLS48100SCG1 control module including energy storage What is the Felicity FLS48100SCG1 control module and what function does it have?The control module is the central element of the energy system. It coordinates the charging and discharging processes of the storage, optimises self-consumption and ensures efficient operation of the solar battery.How much storage capacity does the system have and can it be expanded?The basic module has a capacity of 5.12 kWh. It is modular and can be expanded up to 40.96 kWh by adding additional Felicity FLS48100SCG1 storage modules.Which inverters is the system compatible with?The system is designed for seamless communication with common 48 V inverters, including models from Deye, Growatt, Victron, Solis, Sofar and MPP Solar.What safety features are integrated?The integrated battery management system (BMS) continuously monitors the voltage, temperature and state of charge of each cell. This ensures safety, extends the service life of the LiFePO₄ storage and optimises performance.How is the system installed and maintained?The system is designed for easy installation and comes with all necessary accessories, including communication cables, wires and mounting materials. It is maintenance-free and easy to commission. Scope of delivery Felicity FLS48100SCG1 control module including 5.12 kWh energy storage: 1 x Felicity FLS48100SCG1 master moduleThe central control unit (Master BMS) including an integrated 5.12 kWh battery storage (100 Ah). This module forms the basis for an expandable tower system.1 x set of battery connection cables (plus & minus)A pair of pre-assembled high performance cables for connecting the master module with an external hybrid inverter.1 x communication cable (CAN/RS485)A data cable for communication between the master BMS and the inverter.1 x connecting bridge / parallel connection cableShort, robust cables or a fixed bridge to connect this master module to an expansion battery module.1 x earthing cableA protective ground cable for proper earthing of the housing.1 x mounting accessories (rack/tower installation)Usually includes screws or clamps to securely stack the modules. Wall installation is not intended for this system.1 x operating and installation manualA printed manual describing the installation of the entire tower system.

With the Felicity FLS48100SG1 battery storage system with a storage capacity of 10.24 kWh, you can create a reliable foundation for greater independence from external power suppliers. The powerful system with modern LiFePO4 technology stores your self-generated solar power efficiently and makes it available precisely when you need it.Highlights at a glanceHigh capacity: 10.24 kWh storage volume for private households and smaller commercial operations Longevity: Over 6000 charge cycles thanks to modern lithium iron phosphate technology Compact design: Space-saving form factor with easy integration into existing systems Compatibility: Works with many common hybrid inverters Safety: Integrated BMS monitors cell voltage, temperature and state of chargeEfficient energy storage for sustainable energy supplyThe Felicity FLS48100SG1 stores surplus power from your photovoltaic system and releases it according to your needs. This means you can supply your household appliances or your electric vehicle with solar energy even when the sun has long since set. The storage capacity of 10.24 kWh is ideal for households with medium energy consumption or for starting out with an autonomous energy supply.Reliable technology for long-term useThe heart of the system is lithium iron phosphate cell technology (LiFePO4). It ensures not only high energy efficiency, but also a particularly long service life and a high level of operational safety. Thanks to its high cycle stability, the performance remains stable even after many years.Flexibly integrable and easily expandableThanks to its compact dimensions, the storage unit can be easily installed in the house or technical room. The modular design allows future extensions with additional Felicity modules. This means your storage grows together with your energy requirements.Who is the Felicity FLS48100SG1 with 10.24 kWh suitable for?Homeowners with medium energy needs Households with a heat pump or electric vehicle Users aiming for more self-sufficiency with rising electricity prices Environmentally conscious households focusing on sustainability and CO₂ reduction  ModelFLS48100SG1-10 Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 System nominal voltage (V)51.2 System operating voltage (V)44.8-57.6 System capacity (kWh)10.24 System usable capacity (kWh)9.2 Charge/discharge current (A) - recommendation100 Charge/discharge current (A) - nominal value120 Charge/discharge current (A) - peak discharge (2 min,25°C)200 Operating temperature (°C)Charge: 0 ~ 55 / Discharge: -20 ~ 55 DisplayControl Module: LCD / Battery Module: LED Communication portCAN, RS485 Humidity5% ~ 95% Altitude≤2000m IP protection rating of the housingIP65 Storage temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)600 * 450 * 360 Weight (kg)92 / With base 106 Installation locationFloor mounting / wall mounting Recommended depth of discharge90% Cycle lifetime25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsSee downloads / enquire sales  FAQs for Felicity FLS48100SG1 battery storage with 10.24 kWh capacityCan I expand the storage capacity by adding extra modules?Yes, the system is modular. Each module has a capacity of 5.12 kWh, and up to 8 modules can be combined, which allows for a total capacity of up to 40.96 kWh.Which inverters is the system compatible with?The FLS48100SG1 is designed for seamless communication with standard 48 V inverters, including models from Deye, Growatt, Victron, Solis, Sofar, and MPP Solar.What safety features are integrated?The integrated Battery Management System (BMS) continuously monitors voltage, temperature and charge state of every cell. It also provides protection mechanisms such as overvoltage protection up to 6000 V and an aerosol fire extinguishing system.Is the module maintenance-free and how is the installation carried out?Yes, the module is maintenance-free. It is designed for wall mounting and weighs, depending on the version, between 51 and 92 kg. Installation can be performed by a single person.Is there an option for monitoring battery status?Yes, the module provides integrated WiFi monitoring, allowing real-time monitoring of state of charge, temperature, and other parameters. Scope of delivery Felicity FLS48100SG1 battery storage (10.24 kWh tower system): System compositionThis product is a set and consists of two separate modules, which together provide a total capacity of 10.24 kWh.Module 1: FLS48100SCG1 Master unit (5.12 kWh)The central control unit (Master BMS) with integrated 5.12 kWh storage, which manages the entire system.Module 2: FLS48100S Slave unit (5.12 kWh)A pure expansion battery module without its own control unit, which is connected to the master module.1 x set of battery connection cables (plus & minus)A pair of high-performance cables for connecting the master module to an external hybrid inverter.1 x communication cable (CAN/RS485)A data cable for communication between the Master BMS and the inverter.1 x connection bridge / parallel connection cableShort, robust cables or a fixed bridge to connect the master module with the slave module.1 x grounding cableA protective earth cable to ground the housing in compliance with regulations (to the master module).1 x mounting accessories (rack/tower mounting)Includes screws and clamps for safely stacking the two modules.1 x user and installation manualA printed manual that describes the installation of the entire tower system.

The Felicity FLS48100SG1 battery storage system with 15.36 kWh offers you a powerful and sustainable solution for energy storage. Developed for households and small commercial enterprises, it enables the efficient utilisation of your self-generated solar power – for greater independence and permanently lower energy costs.Highlights at a glanceHigh storage capacity: 15.36 kWh for larger households and commercial operations Modern LiFePO4 technology: Durable, safe and efficient Integrated BMS: Protection against overcharging, deep discharge and overheating Scalable: Expandable for future increasing energy demand Low maintenance: Once installed, the system runs reliably in the backgroundStore energy when it is available and use it when it is neededWith 15.36 kWh storage capacity, the FLS48100SG1 stores surplus electricity from your PV system and makes it available at later times. This significantly increases your self-consumption rate and makes you more independent from fluctuating electricity prices and grid suppliers.Lithium iron phosphate technology for maximum safetyThe LiFePO4 technology used stands for thermal stability, high cycle durability and longevity. The integrated battery management system ensures continuous monitoring of all operating data and reliably protects the battery in daily use. This means you benefit from constant performance over many years.Flexible and future-proofThanks to its modular design, the system can be expanded at a later date if required with additional storage. This makes the FLS48100SG1 an investment that adapts to your life, whether you have increasing energy consumption due to an electric car or are retrofitting additional solar panels.Who is the Felicity FLS48100SG1 with 15.36 kWh suitable for?Family households with high energy consumption Commercial enterprises with need for uninterrupted power supply Users with solar system and electric car Households wishing for energy self-sufficiency  ModelFLS48100SG1-15 Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 System nominal voltage (V)51.2 System operating voltage (V)44.8-57.6 System capacity (kWh)15.36 System usable capacity (kWh)13.9 Charge/discharge current (A) - Recommendation150 Charge/discharge current (A) - Nominal180 Charge/discharge current (A) - Peak discharge (2 min,25°C)300 Operating temperature (°C)Charge: 0 ~ 55 / Discharge: -20 ~ 55 DisplayControl Module: LCD / Battery Module: LED Communication connectionCAN, RS485 Humidity5% ~ 95% Altitude≤2000m IP protection rating of the enclosureIP65 Storage temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)600 * 450 * 540 Weight (kg)138 / With base 152 Installation locationFloor mounting / Wall mounting Recommended depth of discharge90% Cycle life25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsSee downloads / Sales enquiry  FAQs Felicity battery storage system with 15.36 kWh storageCan I expand the storage capacity with additional modules?Yes, the system is modular in structure. Each module has a capacity of 5.12 kWh, and up to 8 modules can be combined to give a total capacity of up to 40.96 kWh.Which inverters is the system compatible with?The FLS48100SG1 is designed for seamless communication with common 48 V inverters, including models from Deye, Growatt, Victron, Solis, Sofar and MPP Solar.Which safety functions are integrated?The integrated battery management system (BMS) continuously monitors the voltage, temperature and state of charge of each cell. In addition, it provides protection mechanisms such as overvoltage protection up to 6000 V and an aerosol fire extinguishing system.Is the module maintenance-free and how is it installed?Yes, the module is maintenance-free. It is designed for wall mounting and, depending on the version, weighs between 51 and 92 kg. The installation can be carried out by one person.Is there a way to monitor the battery status?Yes, the module provides integrated WiFi monitoring, which enables real-time monitoring of charge status, temperature and other parameters. Scope of delivery Felicity FLS48100SG1 battery storage (15.36 kWh tower system): System compositionThis product is a set and consists of three separate modules, which together provide the total capacity of 15.36 kWh.Module 1: FLS48100SCG1 master unit (5.12 kWh)The central control unit (Master BMS) with integrated 5.12 kWh storage, which manages the entire system.Module 2 & 3: Two FLS48100S slave units (each 5.12 kWh)Two pure extension battery modules without their own control unit, which are connected to the master module or each other.1 x set of battery connection cables (plus & minus)A pair of high-performance cables for connecting the master module with an external hybrid inverter.1 x communication cable (CAN/RS485)A data cable for communication between the Master BMS and inverter.2 x connecting bridge / parallel connection cableShort, robust cables or fixed bridges to connect the three modules together (Master to Slave 1, Slave 1 to Slave 2).1 x earthing cableA protective conductor cable for proper earthing of the housing (on the master module).1 x mounting accessories (rack/tower mounting)Includes screws and clamps to securely stack the three modules on top of each other.1 x operating and installation manualA printed manual describing the installation of the entire tower system.

The Felicity FLS48100SG1 battery storage system with a storage capacity of 25.6 kWh is the ideal solution for anyone striving for powerful and sustainable energy storage. Whether for private households or commercial applications, this system helps you to utilise your self-generated solar power efficiently and maximise your energy independence.Highlights at a glanceHigh storage capacity: 25.6 kWh for large households and businesses with higher energy demandReliable LiFePO4 technology: Durable, safe, and stable in operationBattery management system (BMS): Protection through monitoring of voltage, temperature, and state of chargeModular and compact: Easy integration into new or existing PV systemsCompatibility: Supports a wide range of commonly used hybrid invertersStore energy and make it available at any timeThe Felicity FLS48100SG1 with 25.6 kWh stores the solar power generated during the day and makes it available exactly when you need it. This significantly reduces your electricity costs and enables reliable supply during grid fluctuations or during peak consumption periods.Safety and efficiency through modern cell technologyThe battery storage system uses high-quality lithium iron phosphate cells, which are known for their high thermal stability, long service life, and cycle durability. With the integrated battery management system, every cell is continuously monitored and protected, ensuring safe and efficient operation.Space-saving installation with versatile application possibilitiesThanks to its compact and modular design, integrating the storage system is straightforward and flexible. The construction allows for use both in single-family homes and in commercial applications. Communication with common inverters takes place via RS485 or CAN, supporting seamless system integration.Who is the Felicity FLS48100SG1 with 25.6 kWh suitable for?Households with high electricity demand or multiple electrical appliances Commercial businesses with continuous energy requirements Operators of large photovoltaic systems focusing on self-consumption Users looking for a powerful storage solution with the potential for expansion  ModelFLS48100SG1-25 Battery TypeLiFePO4 Module Capacity (kWh)5.12 Nominal Module Voltage (V)51.2 Module Capacity (Ah)100 Nominal System Voltage (V)51.2 System Operating Voltage (V)44.8-57.6 System Capacity (kWh)25.6 Usable System Capacity (kWh)23 Charge/Discharge Current (A) - Recommendation250 Charge/Discharge Current (A) - Nominal300 Charge/Discharge Current (A) - Peak Discharge (2 min, 25°C)500 Operating Temperature (°C)Charge: 0 ~ 55 / Discharge: -20 ~ 55 DisplayControl Module: LCD / Battery Module: LED Communication PortCAN, RS485 Humidity5% ~ 95% Altitude≤2000m Housing IP RatingIP65 Storage Temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)600 * 450 * 900 Weight (kg)230 / With Base 244 Installation SiteFloor Mounting / Wall Mounting Recommended Depth of Discharge90% Cycle Life25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsSee Downloads / Sales Enquiry  FAQs about the Felicity battery storage with 25.6 kWh storageCan I expand the storage capacity with additional modules?Yes, the system is modular in structure. Each module has a capacity of 5.12 kWh, and up to 8 modules can be combined, resulting in a total capacity of up to 40.96 kWh.Which inverters is the system compatible with?The FLS48100SG1 is designed for seamless communication with commonly used 48 V inverters, including models from Deye, Growatt, Victron, Solis, Sofar and MPP Solar. Which safety features are integrated?The integrated battery management system (BMS) continuously monitors the voltage, temperature and state of charge of each cell. In addition, it offers protection mechanisms such as overvoltage protection up to 6000 V and an aerosol fire extinguishing system.Is the module maintenance-free and how is the installation done?Yes, the module is maintenance-free. It is designed for wall mounting and weighs between 51 and 92 kg, depending on the version. Installation can be carried out by one person.Is there a way to monitor the battery status?Yes, the module offers integrated WiFi monitoring, enabling real-time monitoring of the state of charge, temperature, and other parameters. Scope of delivery Felicity FLS48100SG1 battery storage (25.6 kWh tower system): System compositionThis product is a set and consists of five separate modules, which together result in a total capacity of 25.6 kWh.Module 1: FLS48100SCG1 master unit (5.12 kWh)The central control unit (Master BMS) with integrated 5.12 kWh storage, which manages the entire system.Module 2, 3, 4 & 5: Four FLS48100S slave units (5.12 kWh each)Four pure expansion battery modules without their own control unit, which are connected to the master module or to each other.1 x set of battery connection cables (plus & minus)A pair of high-performance cables for connecting the master module with an external hybrid inverter.1 x communication cable (CAN/RS485)A data cable for communication between the Master BMS and the inverter.4 x connection bridge / parallel connection cableShort, robust cables or fixed bridges to connect the five modules to each other.1 x grounding cableA protective conductor cable for legally compliant grounding of the enclosure (on the master module).1 x mounting accessories (rack/tower mounting)Includes screws and clamps to securely stack the five modules on top of each other.1 x operating and installation manualA printed manual describing the installation of the entire tower system.

The Felicity FLS48100SG1 battery storage system with 30.72 kWh offers a powerful and future-proof solution for storing solar energy. Developed for households with high energy consumption as well as commercial applications, it supports you on your way to greater energy independence and long-term reductions in electricity costs.Highlights at a GlanceStorage capacity of 30.72 kWh: Ideal for large households and commercial usersLithium iron phosphate technology: High safety and durability thanks to stable cell chemistryIntegrated battery management system: Continuous monitoring for reliable operationEfficient self-consumption optimisation: Use of solar power even at night or in poor weatherWide compatibility: Connection to common hybrid inverters possibleStore energy when it is availableThe Felicity FLS48100SG1 stores surplus energy from your photovoltaic system and releases it as needed. This allows you to use your solar energy even when the sun is not shining, clearly reducing your dependence on the public power grid. At the same time, you reduce your monthly energy costs and make an active contribution to climate protection.Reliable technology for lasting performanceThe storage system is based on lithium iron phosphate cells, which are known for their high cycle stability and operational safety. The integrated battery management system monitors voltage, temperature and charge status continuously, reliably protecting the system from malfunctions.Compact design for easy integrationThanks to its modular design and compact enclosure, the LUX-X 48100 can be easily integrated into existing energy systems. Installation is carried out by qualified specialists and requires little space. The storage unit is stackable and prepared for future expansions.Who is the Felicity FLS48100SG1 with 30.72 kWh suitable for?Households with particularly high electricity consumption Commercial operations with continuous energy usage Operators of large PV systems with a focus on self-consumption Users seeking a powerful and expandable storage system ModelFLS48100SG1-30 Battery TypeLiFePO4 Module Capacity (kWh)5.12 Module Nominal Voltage (V)51.2 Module Capacity (Ah)100 System Nominal Voltage (V)51.2 System Operating Voltage (V)44.8-57.6 System Capacity (kWh)30.72 System Usable Capacity (kWh)27.6 Charge/Discharge Current (A) - Recommendation300 Charge/Discharge Current (A) - Nominal360 Charge/Discharge Current (A) - Peak (2 min,25°C)600 Operating Temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 55 DisplayControl Module: LCD / Battery Module: LED Communication PortCAN, RS485 Humidity5% ~ 95% Altitude≤2000m Housing IP Protection ClassIP65 Storage Temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)600 * 450 * 1080 Weight (kg)276 / With base 290 Installation LocationFloor mounting / Wall mounting Recommended Depth of Discharge90% Cycle Lifetime25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsSee Downloads / Enquire Sales  FAQs about the Felicity battery storage system with 30.72 kWh storageCan I expand the storage capacity with additional modules?Yes, the system is modular. Each module has a capacity of 5.12 kWh, and up to 8 modules can be combined, allowing a total capacity of up to 40.96 kWh.Which inverters is the system compatible with?The LUX-X 48100 is designed for seamless communication with common 48 V inverters, including models from Deye, Growatt, Victron, Solis, Sofar and MPP Solar.Which safety features are integrated?The integrated battery management system (BMS) continuously monitors the voltage, temperature and charge status of each cell. It also provides protection mechanisms such as overvoltage protection up to 6000 V and an aerosol fire suppression system.Is the module maintenance-free and how is installation performed?Yes, the module is maintenance-free. It is designed for wall mounting and weighs between 51 and 92 kg depending on the version. Installation can be performed by one person.Is there a way to monitor the battery status?Yes, the module offers integrated WiFi monitoring, which allows real-time monitoring of charge status, temperature and other parameters. Scope of Delivery Felicity FLS48100SG1 Battery Storage (30.72 kWh Tower System): System CompositionThis product is a set and consists of six separate modules that together make up the total capacity of 30.72 kWh.Module 1: FLS48100SCG1 Master Unit (5.12 kWh)The central control unit (Master BMS) with integrated 5.12 kWh capacity, which manages the entire system.Module 2, 3, 4, 5 & 6: Five FLS48100S Slave Units (each 5.12 kWh)Five pure extension battery modules with no own control unit, which are connected to the master module or to each other.1 x set of battery connection cables (plus & minus)A pair of high performance cables for connecting the master module to an external hybrid inverter.1 x communication cable (CAN/RS485)A data cable for communication between the Master BMS and the inverter.5 x connecting bridge / parallel connection cableShort, robust cables or solid bridges in order to link the six modules together.1 x earthing cableA protective conductor cable for proper earthing of the case (at the master module).1 x mounting accessories (rack/tower mounting)Includes screws and clamps to securely stack the six modules together.1 x operating and installation manualA printed manual describing the installation of the entire tower system.

The Felicity FLS48100SG1 battery storage system with 35.48 kWh is a powerful solution for anyone who wants to use their photovoltaic system efficiently and maximise their energy independence. With its high storage capacity, the system is suitable for both larger residential buildings and smaller commercial enterprises with high energy demand.Highlights at a glance35.48 kWh storage capacity: Ideal for households with high electricity consumption and commercial enterprisesLiFePO4 technology: High safety, long service life and thermal stabilityIntegrated battery management system: Permanent cell monitoring for safe operationCompact, modular design: Flexible integration into new and existing PV systemsCompatible with common hybrid inverters: Simple connection and expansionStore energy and make it available at any timeWith the Felicity FLS48100SG1, you store surplus solar power from your photovoltaic system and use it exactly when you need it. The high capacity of 35.48 kWh is sufficient to ensure reliable power supply even during longer periods of little sunshine or grid outages.Durable, safe and powerfulThe lithium iron phosphate cells offer high cycle stability and are particularly resistant to overheating and deep discharge. The integrated battery management system monitors all relevant parameters in real time and ensures smooth operation for many years.Robust system for large amounts of energyThanks to the stackable and modular design, the FLS48100SG1 is not only designed for today's requirements, but can also be expanded with additional modules if required. This means the storage system grows flexibly with your energy needs.Who is the Felicity FLS48100SG1 with 35.48 kWh suitable for?Owners of large detached houses with photovoltaic systems Farmers and foresters with increased energy demand Commercial operations with high day and night consumption Users who want to integrate a powerful emergency power solution  ModelFLS48100SG1-35 Battery TypeLiFePO4 Module Capacity (kWh)5.12 Module Nominal Voltage (V)51.2 Module Capacity (Ah)100 System Nominal Voltage (V)51.2 System Operating Voltage (V)44.8-57.6 System Capacity (kWh)35.48 System Usable Capacity (kWh)32.2 Charge/Discharge Current (A) - Recommendation350 Charge/Discharge Current (A) - Nominal Value400 Charge/Discharge Current (A) - Peak Discharge (2 min,25°C)700 Operating Temperature (°C)Charge: 0 ~ 55 / Discharge: -20 ~ 55 DisplayControl Module: LCD / Battery Module: LED Communication PortCAN, RS485 Humidity5% ~ 95% Altitude≤2000m IP Protection Rating of HousingIP65 Storage Temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)600 * 450 * 1260 Weight (kg)322 / With base 336 Installation LocationFloor installation / wall installation Recommended Depth of Discharge90% Cycle Lifetime25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsSee Downloads / Sales Enquiry  FAQs about the Felicity battery storage system with 35.48 kWh storageCan I expand the storage capacity with additional modules?Yes, the system is modular. Each module has a capacity of 5.12 kWh, and up to 8 modules can be combined, giving a total capacity of up to 40.96 kWh.Which inverters is the system compatible with?The FLS48100SG1 is designed for seamless communication with standard 48 V inverters, including models from Deye, Growatt, Victron, Solis, Sofar, and MPP Solar.What safety features are integrated?The integrated Battery Management System (BMS) continuously monitors the voltage, temperature and charge level of each cell. Furthermore, it provides protection mechanisms such as overvoltage protection up to 6000 V and an aerosol fire suppression system.Is the module maintenance-free and how is installation done?Yes, the module is maintenance-free. It is designed for wall mounting and weighs between 51 and 92 kg depending on the version. Installation can be carried out by one person.Is there a way to monitor the battery status?Yes, the module offers integrated WiFi monitoring, which enables real-time monitoring of charge level, temperature and other parameters. Scope of delivery Felicity FLS48100SG1 battery storage (35.84 kWh Tower System): System compositionThis product is a set and consists of seven separate modules, which together provide the total capacity of 35.84 kWh.Module 1: FLS48100SCG1 Master unit (5.12 kWh)The central control unit (Master BMS) with integrated 5.12 kWh storage that manages the entire system.Modules 2 to 7: Six FLS48100S slave units (each 5.12 kWh)Six expansion battery modules without their own control unit, which are connected to the master module or to each other.1 x set of battery connection cables (plus & minus)A pair of high performance cables for connecting the master module to an external hybrid inverter.1 x communication cable (CAN/RS485)A data cable for communication between the master BMS and the inverter.6 x connecting bridge / parallel connection cableShort, robust cables or fixed bridges to connect the seven modules together.1 x earthing cableA protective conductor cable for grounding the enclosure (to the master module) in accordance with regulations.1 x mounting accessories (rack/tower mounting)Includes screws and clamps to securely stack the seven modules on top of each other.1 x operating and installation manualA printed manual describing installation of the entire tower system.

With the Felicity FLS48100SG1 battery storage system with 40.96 kWh, you get a powerful solution for maximum energy independence. This system has been specially developed for users with high energy requirements, whether in the home, on farms or in a commercial environment. It enables full utilisation of your photovoltaic system and offers a reliable energy supply even in the dark or in the event of a grid failure.Highlights at a glance40.96 kWh storage capacity: Enormous capacity for large households, businesses or apartment blocksModern LiFePO4 technology: Maximum safety, thermal stability and long service lifeBattery management system (BMS): Intelligent monitoring of cell voltage, temperature and state of chargeIntegration into existing PV systems: Compatible with many common hybrid invertersReliable emergency power supply: Backs up important consumers in the home or business in the event of a power failureMaximum energy self-sufficiency with 40.96 kWhThe FLS48100SG1 stores solar energy generated during the day and makes it available as required. With this storage capacity, even longer periods of low sunshine or power cuts can be safely bridged. Especially in combination with a powerful photovoltaic system, high self-consumption rates and significant savings can be achieved.Powerful and safe cell technologyThe storage system is based on lithium iron phosphate cells (LiFePO4), which are known for their high level of safety, long service life and stability. This technology is particularly ideal for large systems as it guarantees consistent performance over many years, even with intensive use.Intelligent control and simple integrationThe integrated battery management system ensures continuous monitoring and control of all operating parameters. It protects the storage system against overcharging, deep discharging and overheating while optimising the charging and discharging processes. The storage system can be seamlessly integrated into existing solar systems and communicates reliably with most common inverters.Who is the Felicity FLS48100SG1 with 40.96 kWh suitable for?Operators of large detached houses or apartment blocks Agricultural businesses with high energy requirements Businesses with electricity-intensive processes Households with heat pump, e-mobility or emergency power requirements  ModelFLS48100SG1-40 Battery typeLiFePO4 Module capacity (kWh)5.12 Nominal module voltage (V)51.2 Module capacity (Ah)100 Nominal system voltage (V)51.2 System operating voltage (V)44.8-57.6 System capacity (kWh)40.96 System usable capacity (kWh)36.8 Charging/discharging current (A) - recommendation400 Charging/discharging current (A) - nominal value400 Charging/discharging current (A) - peak discharge (2 min,25°C)800 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 55 DisplayControl Module: LCD / Battery Module: LED Communication connectionCAN, RS485 Humidity5% ~ 95% Altitude≤2000m IP protection class of the housingIP65 Storage temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)600 * 450 * 1440 Weight (kg)368 / With base 382 Installation locationFloor mounting / wall mounting Recommended depth of discharge90% Cycle life25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsSee downloads / sales enquiry  FAQs on the Felicity battery storage system with 40.96 kWh storage capacityCan I expand the storage capacity with additional modules?Yes, the system is modular. Each module has a capacity of 5.12 kWh, and up to 8 modules can be combined, resulting in a total capacity of up to 40.96 kWh.Which inverters is the system compatible with?The FLS48100SG1 is designed for seamless communication with common 48 V inverters, including models from Deye, Growatt, Victron, Solis, Sofar and MPP Solar.Which safety functions are integrated?The integrated battery management system (BMS) continuously monitors the voltage, temperature and charge status of each cell. In addition, it offers protection mechanisms such as overvoltage protection up to 6000 V and an aerosol fire extinguishing system.Is the module maintenance-free and how is it installed?Yes, the module is maintenance-free. It is designed for wall mounting and weighs depending on the version between 51 and 92 kg. Installation can be carried out by one person.Is there a way to monitor the battery status?Yes, the module offers integrated WiFi monitoring that allows real-time monitoring of charge status, temperature and other parameters. Scope of delivery Felicity FLS48100SG1 battery storage (40.96 kWh tower system): System compositionThis product is a set and consists of eight separate modules, which together make up the total capacity of 40.96 kWh.Module 1: FLS48100SCG1 master unit (5.12 kWh)The central control unit (master BMS) with integrated 5.12 kWh storage, which manages the entire system.Module 2 to 8: Seven FLS48100S slave units (5.12 kWh each)Seven pure extension battery modules without their own control unit, which are connected to the master module or to each other.1 x set of battery connection cables (plus & minus)A pair of high-performance cables for connecting the master module to an external hybrid inverter.1 x communication cable (CAN/RS485)A data cable for communication between the master BMS and the inverter.7 x connection bridge / parallel connection cableShort, robust cables or fixed bridges to interconnect the eight modules.1 x earthing cableA protective conductor cable for proper earthing of the housing (on the master module).1 x mounting accessories (rack/tower mounting)Includes screws and clamps to securely stack the eight modules on top of each other.1 x operating and installation manualA printed manual describing the installation of the entire tower system.

The Growatt APX 98034-P2 is the central control unit (BMS) for the innovative high-voltage storage system of the APX series. This BMS is specially designed for coupling with the inverters of the MOD-XH(BP) and MID-XH series. It forms the interface between the inverter and the battery modules and ensures safe, efficient, and long-lasting operation of your energy storage system.Thanks to the advanced technology of the APX system, this BMS enables the parallel connection of battery modules with different states of charge or even different ages, offering maximum flexibility for system expansions.Highlights at a glanceHigh compatibility: Perfectly matched to Growatt MOD 3-10KTL3-XH(BP) and MID 11-30KTL3-XH inverters for seamless system integration.Modular scalability: Supports the connection of 1 to 6 battery modules (APX 5.0P-B1), allowing capacities of 5 kWh up to 30 kWh per tower to be achieved.Active energy optimisation: Enables the use of the full energy of each module, even if these have different ageing or capacities.Simple installation: Thanks to the stackable design and plug-and-play cabling, the system can be quickly put into operation without complex configuration.Comprehensive protection functions: Integrated protection against overvoltage, undervoltage, overcurrent, short-circuit and extreme temperatures.Future-proof technology: The fanless design ensures silent operation and minimises maintenance effort throughout the entire service life.Areas of applicationThe APX 98034-P2 BMS is the centerpiece for modern photovoltaic storage systems:Self-consumption optimisation for householdsIn combination with the MOD-XH series, ideal for single-family houses to efficiently store the electricity generated during the day for use at night.Commercial PV systemsTogether with the MID-XH series, larger storage capacities of up to 30 kWh per BMS can be achieved to cap peak loads or maximise self-consumption in operation.System expansionsIdeal for users who want to start small and add modules later, because the BMS individually equalises the charge state of the modules.Assembly & safety instructionsCorrect stackingThe BMS always forms the top unit of the battery tower. Make sure that the base is stable and level before stacking the modules and the BMS.Communication cablingOnly use the original Growatt communication cables to the inverter to ensure flawless data transmission and correct detection of the battery parameters.Ambient conditionsEnsure installation in a well-ventilated area. Although the system is IP66 certified, a location protected from direct sunlight will extend the electronics' lifespan. Features Model**Growatt APX 98034-P2** CompatibilityGrowatt APX battery storage series Max. output current**34 A** Rated voltage600 V - 980 V (High-voltage) Dimensions (W/H/D)690 / 185 / 295 mm Weightapprox. 15 kg Protection class**IP66** (suitable for outdoor installation) CommunicationCAN / RS485 CertificationsCE, IEC62619, VDE2510-50  FAQs about the Growatt APX 98034-P2 BMSCan I mix old and new APX battery modules?Yes. The APX system features integrated module-level optimisation technology. The BMS detects the different module states and controls the energy flow so that the weaker module does not slow down the system.Do I absolutely need this BMS for the MOD-XH series?Yes, if you are using APX batteries. For the APX high-voltage storage series, this specific BMS is the necessary control unit. Older battery series (such as the ARK series) require a different BMS (HVC 60050-A1).Is the system suitable for outdoor use?Yes. Thanks to the IP66 protection class, the BMS and battery modules are protected against powerful water jets and dust. Outdoor installation is therefore possible, ideally in a weather-protected location.

The Deye AI-W5.1-B energy storage system with a capacity of 10.24 kWh offers a powerful, safe and future-proof solution for the efficient use of renewable energy. Thanks to its modular, stackable design, the system is suitable for both domestic and commercial applications. With robust LiFePO₄ technology, wireless plug-&-play installation and intelligent control, the storage system ensures maximum flexibility and long-term reliability.Highlights at a glance10.24 kWh rated capacity, of which 9.2 kWh is usable (2 modules of 5.12 kWh each, 90 % DoD) Wireless, pluggable stack installation without screws or wiring Cobalt-free LiFePO₄ cells, ≥ 6000 charge cycles (EOL 70 %) IP65 protection, natural convection cooling, -20 °C to +55 °C operating temperature Auto-networking, remote monitoring, firmware upgradesCompact. Flexible. Secure.The Deye AI-W5.1-B is designed to grow with your energy needs. The system can be expanded in stacks of up to 6 modules (30.72 kWh) and can be connected in parallel in up to 6 clusters,  for a total capacity of up to 184 kWh. The clever plug-&-play connection makes installation quick, safe and cost-effective, all without external cables or screws.Intelligent energy managementEach module is equipped with a high-precision battery management system (BMS) that intelligently controls charging and discharging processes, protects the cells and maximises service life. Remote monitoring, automatic addressing and wireless communication ensure easy system integration and high transparency during operation.Robust technology for all conditionsThanks to its IP65-certified housing, the storage system is protected against dust and splash water and is suitable for indoor areas such as basements, utility rooms and protected outdoor areas. Operation is possible even at temperatures from -20 °C to +55 °C. The wireless design with natural convection cooling makes the storage system silent, maintenance-free and durable.Who is the Deye AI-W5.1-B energy storage system suitable for?This battery system is ideal for: Private households that want to store surplus solar energy efficiently Commercial businesses that want to absorb peak loads or operate independently of the grid Installers who want to offer a modular, easily expandable storage system Hybrid or off-grid applications where a reliable energy supply is crucial Sustainability-conscious users who value pollutant-free, durable technology ModelDEYAI-W10.2-B Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 System nominal voltage (V)51.2 System operating voltage (V)44.8-57.6 System capacity (kWh)10.24 System usable capacity (kWh)9.2 Charge/discharge current (A) - Recommendation100 Charge/discharge current (A) - Rated value200 Charge/discharge current (A) - Peak discharge (2 min,25°C)270 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 60 LCD displaySOC%, Power, Total Voltage Communication connectionCAN2.0, RS485 Humidity5% ~ 90% Altitude≤2000m IP protection class of the housingIP65 Storage temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)720 * 255 * 831 Weight (kg)127.5 Installation locationFloor mounting Recommended depth of discharge90% Cycle life25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsCE/IEC62619 /VDE2510-50/ UL1973/UL9540A/UN38.3  FAQs about the Deye AI-W5.1-B battery storage systemCan I expand the storage system to 15 or 30 kWh later?Yes, up to six modules can be combined per tower, resulting in a total capacity of 30.7 kWh per stack. By connecting up to six towers in parallel, flexible scaling to significantly higher capacities is possible.How many cycles does the battery last?According to the datasheet, the storage system achieves over 6,000 charge cycles at 90 % depth of discharge (DoD). This makes the system suitable for long-term use with consistently high performance and reliability.Which inverters is the 10 kWh package compatible with?The system is officially approved for Deye hybrid inverters in the low-voltage series. The communication and operating parameters are matched to each other at the factory. “Plug-&-play” operation is possible without further configuration. A comparison with the compatibility list is recommended.Can I also operate the storage system with other inverters?There is no official approval from Deye for other inverters. Use with third-party devices is therefore at your own risk and without any guarantee of functionality.Does the battery need to be fully charged before initial commissioning?Yes, the manual recommends an initial charge to 100 % to ensure correct synchronisation of the state of charge (SoC). If this step is skipped, deviations in the SoC values and inaccurate capacity display may occur. If solar energy is not sufficient for the first full charge, the storage system can also be charged via the grid. Scope of delivery Deye AI-W5.1-B modular low-voltage battery system (10.24 kWh): System compositionThis product is a set and consists of three separate main components, which together form a 10.24 kWh tower system.Component 1: Deye AI-W5.1-B-BMS (control unit & base)The central control unit (BMS Cluster) that manages the entire system. This unit forms the base of the battery tower.Component 2 & 3: Two Deye AI-W5.1-BATT battery modules (5.12 kWh each)Two pure battery modules with 5.12 kWh each, which are stacked on the BMS unit.1 x set of battery connection cables (positive & negative)A pair of high-performance cables for connecting the BMS unit to an external hybrid inverter.1 x communication cable (CAN/RS485)A data cable for communication between the BMS and the inverter.1 x connection bridge / parallel connection cableShort, robust cables or a fixed bridge to connect the two battery modules to each other.1 x earthing cableA protective conductor cable for correct earthing of the BMS unit.1 x installation accessories (tower assembly)Includes screws or locking elements to securely connect the three components into a tower.1 x operating and installation manualA printed manual describing the installation of the entire tower system.

The DEYE AI-W5.1-B in the 20 kWh version is a high-performance, pluggable and modularly expandable energy storage system for reliable use in both residential and commercial PV systems. With a capacity of 20.48 kWh, a robust housing and a modern battery management system, this storage system offers a durable, flexible and safe solution for maximising self-consumption.Highlights at a glanceHigh storage capacity: 20.48 kWh for high energy requirements High-performance charging/discharging current: Up to 250 A for fast power transfer Low-voltage battery system: 51.2 V voltage for increased safety Easy integration: Plug-in design for effortless assembly Modular & Scalable: Expandable to suit individual requirements Durable enclosure: Long service life and protection for a wide range of operating environmentsEfficient energy storage for modern requirementsWith a storage capacity of 20.48 kWh, the DEYE AI-W5.1-B is ideally suited for households with high energy requirements or commercial premises. The powerful 250 A charge/discharge current enables a fast response time during load changes and ensures the availability of stored energy, even for short-term demand.Flexible & scalableThe modular design and plug-in system make the DEYE AI-W5.1-B particularly easy to install. It can be flexibly integrated into existing solar installations and easily expanded as energy requirements increase, without the need for complex system adjustments.Robust design for long-lasting useWith robust housing, high build quality and a reliable battery management system, the energy storage unit delivers both protection and performance. With dimensions of 1422 mm in height and a weight of over 230 kg, it is designed for long-term and secure installation.Who is the DEYE AI-W5.1-B 20 kWh battery storage system suitable for?This storage unit is ideal for: Homeowners with high energy consumption Commercial enterprises with a need for energy management & self-sufficiency Installers who rely on modular storage solutions System operators focusing on optimising self-consumption  ModelDEYAI-W20.4-B Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 System nominal voltage (V)51.2 System operating voltage (V)44.8-57.6 System capacity (kWh)20.48 System usable capacity (kWh)18.4 Charging/discharging current (A) - recommendation200 Charging/discharging current (A) - rated value250 Charging/discharging current (A) - peak discharge (2 min,25°C)360 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 60 LCD displaySOC%, Power, Total Voltage Communication portCAN2.0, RS485 Humidity5% ~ 90% Altitude≤2000m Enclosure IP ratingIP65 Storage temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)720 * 255 * 1412 Weight (kg)233.5 Installation locationFloor mounting Recommended depth of discharge90% Cycle life25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsCE/IEC62619 /VDE2510-50/ UL1973/UL9540A/UN38.3  FAQs on the 20 kWh DEYE AI-W5.1-B energy storage systemCan the system be expanded later to 25–30 kWh?Yes, up to six modules are possible per tower, which results in a maximum capacity of 30.7 kWh per stack. By connecting up to six towers in parallel, the system can be flexibly expanded to a total capacity of over 180 kWh.How much energy is actually available?A system with four modules offers 20.48 kWh gross capacity. With a recommended depth of discharge of 90 %, around 18.4 kWh of usable energy is available, ideal for demanding self-consumption and backup applications.Which inverters are “plug-&-play” compatible with the system?The storage system is fully matched to Deye hybrid inverters in the low-voltage series . The connection is made without additional configuration. All relevant communication protocols are integrated ex works. Checking against the compatibility list is recommended. Deye storage systems are only compatible with Deye inverters.Do I need active cooling?No, the system uses purely passive convection for heat dissipation. According to the manual, only a free air flow behind the housing is required to ensure reliable heat dissipation. Fans or external cooling systems are not necessary.Does the battery need to be fully charged before first use?Yes, the system should be charged to 100 % once before commissioning. This initial charge ensures that the state of charge (SoC) is correctly detected and prevents incorrect displays or abrupt SoC jumps during later operation. You can charge the storage unit with the inverter. If no solar energy is available, the inverter can also charge the storage unit via the grid. Scope of delivery Deye AI-W5.1-B modular battery system (20.48 kWh): System compositionThis product is a set and consists of five separate main components, which together form a 20.48 kWh tower system.Component 1: Deye AI-W5.1-B-BMS (control unit & base)The central control unit (BMS cluster) that manages the entire system. This unit forms the base of the battery tower.Components 2, 3, 4 & 5: Four Deye AI-W5.1-BATT battery modules (5.12 kWh each)Four pure battery modules with 5.12 kWh each, which are stacked on the BMS unit and on top of each other.1 x set of battery connection cables (positive & negative)A pair of high-performance cables for connecting the BMS unit to an external hybrid inverter.1 x communication cable (CAN/RS485)A data cable for communication between the BMS and the inverter.3 x connecting bridge / parallel connection cableShort, robust cables or fixed bridges to connect the four battery modules to each other.1 x earthing cableA protective earth conductor cable for the proper earthing of the BMS unit.1 x mounting accessories (tower assembly)Includes screws or locking elements to securely connect the five components into a tower.1 x operating and installation manualA printed manual describing the installation of the entire tower system.

The Deye AI-W5.1-B in the 25 kWh version is a high-performance, modular energy storage system for PV installations in both residential and commercial settings. With its high capacity, modular plug-in design and outstanding performance during charging and discharging, it offers a future-proof solution for sustainable electricity storage.Highlights at a glanceMaximum storage capacity: 25.6 kWh for the most demanding requirements High-performance charging/discharging current: 250 A for rapid power supply Low-voltage system: 51.2 V voltage for safety & compatibility Modular and scalable: Flexibly expandable to meet growing energy requirements Easy installation: Plug-in & installer-friendly Robust housing: Long service life, even with intensive useEfficient energy storage for large systemsWith a usable capacity of 25.6 kWh, the Deye AI-W5.1-B is ideal for large households, multi-family houses and commercial operations. It enables the reliable storage of surplus solar energy and ensures a continuous power supply even during high consumption or grid disturbances.Flexibility and scalability for a future-proof energy supplyThe plug-in system allows particularly simple commissioning and modular expansion. The storage system grows with your requirements, making it especially suitable for operators who want to respond flexibly to rising energy demands. Integration into existing systems is effortless and saves installation time.Robust construction for maximum operational reliabilityWith its solid housing, a net weight of over 280 kg and a height of 1.69 m, the storage system stands for long-term operational readiness. The integrated battery management system reliably protects against overcharging, deep discharge and overheating.Who is the Deye AI-W5.1-B 25 kWh battery storage system suitable for?This storage system is ideal for: Large single-family and multi-family homes seeking self-sufficiency and security of supply Commercial PV installations intended to balance energy peaks or operate independently from the grid Installers who rely on standardised, time-saving solutions Project planners wishing to integrate scalable storage systems into their planning  ModelDEYAI-W25.6-B Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 System nominal voltage (V)51.2 System operating voltage (V)44.8-57.6 System capacity (kWh)25.6 System usable capacity (kWh)23 Charging/discharging current (A) - Recommendation250 Charging/discharging current (A) - Rated value250 Charging/discharging current (A) - Peak discharge (2 min,25°C)360 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 60 LCD displaySOC%, Power, Total Voltage Communication portCAN2.0, RS485 Humidity5% ~ 90% Altitude≤2000m Enclosure IP ratingIP65 Storage temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)720 * 255 * 1693 Weight (kg)286.5 Installation locationFloor mounting Recommended depth of discharge90% Cycle life25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsCE/IEC62619 /VDE2510-50/ UL1973/UL9540A/UN38.3  FAQs on the 25 kWh Deye AI-W5.1-B energy storage systemHow much usable energy and power does the 25 kWh stack provide?The stack provides 23 kWh of usable energy at 90 % depth of discharge. The continuous current is 50 A, allowing even larger hybrid systems to be supplied safely and efficiently.Which inverter is the stack compatible with and which setup code is required?The storage system is compatible with Deye hybrid inverters from the low-voltage series. Setup code 00 CA is used for communication and is set either in the inverter menu or via DIP switches on the BMS. Prior checking against the compatibility list is recommended. Deye storage systems are only compatible with Deye inverters.Can firmware updates be carried out remotely?Yes, firmware updates for the BMS and the logger are possible over-the-air (OTA) via the Deye cloud platform. This keeps the system up to date even during operation without on-site access.Is active cooling necessary?No, the storage system operates with natural convection; no fans or external cooling systems are required. However, the manual recommends a minimum distance of 20 cm from the rear wall to ensure air circulation.Must the storage system be fully charged before initial commissioning?Yes, before first use the storage system should be charged once to 100 %. This initial charge is necessary to correctly detect the State of Charge (SoC) and to avoid deviating SoC values or jumps in the charging curve. If solar energy is insufficient, the storage system can also be charged from the grid. Scope of delivery Deye AI-W5.1-B modular battery system (25.6 kWh): System compositionThis product is a set and consists of six separate main components which together form a 25.6 kWh tower system.Component 1: Deye AI-W5.1-B-BMS (control unit & base)The central control unit (BMS cluster) that manages the entire system. This unit forms the base of the battery tower.Components 2, 3, 4, 5 & 6: Five Deye AI-W5.1-BATT battery modules (5.12 kWh each)Five pure battery modules of 5.12 kWh each, stacked on the BMS unit and on top of one another.1 x set of battery connection cables (positive & negative)A pair of high-performance cables for connecting the BMS unit to an external hybrid inverter.1 x communication cable (CAN/RS485)A data cable for communication between the BMS and the inverter.4 x connecting bridges / parallel connection cablesShort, robust cables or fixed bridges to connect the five battery modules to each other.1 x earthing cableA protective conductor cable for compliant earthing of the BMS unit.1 x mounting accessories (tower mounting)Includes screws or locking elements to securely connect the six components into a tower.1 x operating and installation manualA printed manual describing the installation of the entire tower system.

The DEYE AI-W5.1-B with a capacity of 30.72 kWh is the ideal solution for demanding energy projects in both private and commercial environments. Thanks to its pluggable, scalable design and high-performance technology, this storage system combines maximum efficiency with the highest level of flexibility.Highlights at a glanceHigh storage capacity: 30.72 kWh for large energy requirements Strong charging/discharging power: Up to 250 A for immediate energy use Low-voltage battery technology: 51.2 V for maximum compatibility and safety Modular and expandable: Perfectly adaptable to growing energy needs Pluggable system: Simple, quick installation without complex wiring Robust and durable: Industrial-grade design for a long service life and reliable operationMaximum storage capacity for demanding applicationsWith an impressive usable capacity of 30.72 kWh, the DEYE AI-W5.1-B offers a solution for maximum energy independence. Whether as a central storage unit in residential buildings with high power consumption or for peak load coverage in commercial applications. This storage system reliably provides energy at all times.Flexibility and future securityThe modular architecture enables individual adaptation to almost any project. The storage system can be expanded easily and adapts flexibly to changing requirements, entirely without complex reinstallation.Solid technology for long-term useWith a height of just under two metres and a dead weight of over 330 kg, the device is designed for stationary continuous operation. The combination of advanced battery technology, an intelligent management system and reliable protective functions makes the storage system a long-term investment in a stable energy supply.Who is the DEYE AI-W5.1-B 30 kWh suitable for?This storage system is ideal for: Large consumers in single-family and multi-family houses Businesses with PV systems that want to rely on grid independence Project developers implementing storage solutions for industry and commerce Installers who want to work in a time-saving and modular way ModelDEYAI-W30.7-B Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 System nominal voltage (V)51.2 System operating voltage (V)44.8-57.6 System capacity (kWh)30.72 System usable capacity (kWh)27.6 Charging/discharging current (A) - recommendation250 Charging/discharging current (A) - rated value250 Charging/discharging current (A) - peak discharge (2 min,25°C)360 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 60 LCD displaySOC%, Power, Total Voltage Communication portCAN2.0, RS485 Humidity5% ~ 90% Altitude≤2000m IP protection rating of the enclosureIP65 Storage temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)720 * 255 * 1974 Weight (kg)339.5 Installation locationFloor mounting Recommended depth of discharge90% Cycle life25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsCE/IEC62619 /VDE2510-50/ UL1973/UL9540A/UN38.3  FAQs on the 30 kWh DEYE AI-W5.1-B energy storage systemWhat voltage and currents apply to the 6-module tower?A tower with six modules reaches a nominal voltage of 307.2 V (6 × 51.2 V at 100 Ah). The permissible continuous current is 50 A per tower, and up to 150 A is possible for 10 seconds for short periods.How far can the system be expanded overall?The system is designed for maximum flexibility. Six modules per tower are possible, corresponding to 30.7 kWh. By connecting up to six towers in parallel, a total capacity of around 184 kWh can be realised.Which hybrid inverters is the 30 kWh tower compatible with?The storage system is officially approved for Deye hybrid inverters of the low-voltage series . The combination is factory-coordinated, and plug-&-play operation is possible without further configuration. Matching with the compatibility list is recommended. Deye storage systems are only compatible with Deye inverters.Is outdoor installation of the tower permitted?Yes, thanks to the IP65 enclosure, the system is fully protected against dust and water jets. The permissible temperature range is between –20 °C and +55 °C, with humidity of up to 95 %. The prerequisite is a weather-protected location with free air circulation.Does the system require active cooling?No, the storage system operates without a fan using passive convection. The manual merely specifies a minimum distance of 20 cm behind the enclosure to ensure sufficient heat dissipation. Scope of delivery DEYE AI-W5.1-B modular battery system (30.72 kWh): System compositionThis product is a set and consists of seven separate main components which together form a 30.72 kWh tower system.Component 1: Deye AI-W5.1-B-BMS (control unit & base)The central control unit (BMS cluster) that manages the entire system. This unit forms the base of the battery tower.Component 2 to 7: Six Deye AI-W5.1-BATT battery modules (5.12 kWh each)Six pure battery modules, each with 5.12 kWh, which are stacked onto the BMS unit and on top of one another.1 x set of battery connection cables (plus & minus)A pair of high-performance cables for connecting the BMS unit to an external hybrid inverter.1 x communication cable (CAN/RS485)A data cable for communication between the BMS and the inverter.5 x connecting bridge / parallel connection cableShort, robust cables or fixed bridges to connect the six battery modules to one another.1 x earthing cableA protective conductor cable for the compliant earthing of the BMS unit.1 x mounting accessories (tower assembly)Includes screws or locking elements to securely connect the seven components into one tower.1 x operating and installation manualA printed manual that describes the installation of the entire tower system.

The Deye SE-G5.1Pro-B is a high-performance battery module with a storage capacity of 5.12 kWh, based on safe lithium iron phosphate (LiFePO4) technology. With its modular design, support for high-current applications and flexibility in installation, it is the ideal solution for modern energy storage systems in both domestic and commercial settings.Highlights at a glanceSafe & durable: Cobalt-free LiFePO₄ cells with intelligent BMS Modular and scalable: Up to 64 modules – max. 327 kWh storage capacity High compatibility: Suitable for wall mounting, floor mounting & 19" rack Easy maintenance: Automatic networking, remote monitoring & USB firmware updates Reliable operation: IP20, natural cooling, wide temperature range down to -20 °CCompact, scalable & intelligently networkedWith an individual capacity of 5.12 kWh, the Deye SE-G5.1Pro-B is ideal for smaller storage solutions or as a component in large-scale modular storage systems. Thanks to the ability to connect up to 64 units in parallel, a maximum total capacity of 327 kWh is achievable. Perfect for applications with growing energy requirements. Automatic network addressing and support for firmware updates via USB or remote access significantly simplify commissioning and maintenance.Flexible mounting – space-saving & easy to installThanks to three mounting options—rack mounting (19-inch), wall mounting or floor installation—the module can be optimally positioned in almost any environment. With its compact design, measuring just 133 mm in height, it saves valuable space in technical rooms or living areas.Who is the Deye SE-G5.1Pro-B suitable for?Private households looking for a safe and sustainable storage system Commercial enterprises requiring scalable storage solutions for self-consumption or backup System integrators & installers who value easy integration and low maintenance Sustainability-minded users who rely on environmentally friendly storage technology ModelDEYSE-G5.1 Pro-B Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 System nominal voltage (V)51.2 System operating voltage (V)43.2-57.6 System capacity (kWh)5.12 System Usable Capacity (kWh)4.6 Charging/discharging current (A) - Recommendation50 Charging/discharging current (A) - rated value100 Charging/discharging current (A) - Peak discharge (2 min,25°C)150 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 60 LCD displaySOC%, Power, Total Voltage Communication portCAN2.0, RS485 Humidity5% ~ 90% Altitude≤2000m IP rating of the enclosureIP65 Storage temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)440 * 133 * 540 Weight (kg)45 Installation locationFloor mounting, rack mounting Recommended discharge depth90% Cycle life25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsUN38.3, IEC62619, CE, UK, VDE2510-50, CEI 0-21, FCC, UL1973, UL9540A  FAQs on the Deye SE-G5.1Pro-B battery storage systemHow much energy is actually usable?One module provides 5.12 kWh gross capacity, of which approximately 4.6 kWh is usable at a 90% depth of discharge; particularly suitable for residential and commercial applications.What are the applicable voltages and currents per module?The module operates at a nominal voltage of 51.2 V and has a capacity of 100 Ah. The continuous current is 50 A, with a peak current of up to 150 A possible for 10 seconds.How many modules can be combined?In the IP20 version, up to 64 modules can be connected in parallel, corresponding to a total capacity of over 327 kWh. Common in domestic applications: six modules per tower, i.e. 30.7 kWh per unit.What is the module's lifespan?The cells achieve over 6,000 cycles at 90% DoD, with a residual capacity of at least 70% at end of life, meaning they are designed for long-term use.Which Deye inverters is the system compatible with?The battery is officially approved for all three-phase hybrid inverters in the SUN-xK-HP3 and SUN-xK-BM series and is fully plug-and-play compatible without the need for additional adjustments. We strongly recommend checking the compatibility list, as the manufacturer may make changes. Contents of delivery Deye SE-G5.1Pro-B rack battery module (5.12 kWh): Module typeThis is a a single, flexible low-voltage battery module for installation in 19-inch racks, wall mounting or floor-standing.1 x Deye SE-G5.1Pro-B battery module (5.12 kWh)The central storage unit with 5.12 kWh (100 Ah) in rack format, including an intelligent, integrated battery management system (BMS).1 x set of mounting handles / rack earsHandles for easier handling and for securing the module in a 19-inch server rack.1 x set of battery connection cables (positive & negative)A pair of pre-assembled high-performance cables for connecting the module (or battery stack) to a compatible hybrid inverter.1 x communication cable (CAN/RS485)A data cable for communication between the battery module and the inverter.1 x parallel connection cable (power & communication)Short cables to connect this module’s power and data bus to another module.1 x earthing cableA protective earth cable for the correct earthing of the housing.1 x User and Installation GuideA printed manual describing the various installation types (rack, wall, stacking).2 x wall bracketsFor wall mounting the battery pack 4 x feetFor stacking and securing the battery

The Deye RW-F10.6 is an integrated low-voltage energy storage system designed for maximum efficiency, safety, and easy installation in modern photovoltaic systems. Based on superior lithium iron phosphate (LiFePO4) technology, this system offers a high usable capacity of 10.64 kWh in a single, enclosed unit. It is optimised for space-saving wall mounting, making it the ideal solution for homeowners and small businesses who want to maximise their self-consumption.Highlights at a glanceHigh storage capacity: Provides a large energy reserve of 10.64 kWh for maximum independence in a single device.Optimised for wall mounting: Designed for space-saving and safe installation on the wall.Maximum safety with LiFePO4: The cobalt-free lithium iron phosphate technology is considered the safest and most durable on the market.Intelligent battery management (BMS): The integrated BMS permanently monitors and protects the storage unit for safe and optimised operation.High compatibility: Perfectly matched to the low-voltage hybrid inverters from Deye and other compatible systems.Large capacity for maximum independenceWith its high capacity of 10.64 kWh, the Deye RW-F10.6 storage system allows a large part of the solar power generated during the day to be stored and used in the evening and at night. This significantly increases your self-consumption and reduces your dependence on the public electricity grid and rising energy prices. The capacity is ideal for a typical single-family house, even when using appliances such as a heat pump or an electric car.Maximum safety and durability with LiFePO4The use of lithium iron phosphate cells (LiFePO4) sets the highest safety standard in storage technology. These cells are thermally extremely stable, intrinsically safe, and do not require the use of cobalt. They are notable for their exceptionally high cycle life of over 6000 charge and discharge cycles, enabling a very long service life of over 15 years, making the system a sustainable and economical solution.Intelligent control and easy installationAt the heart of the system is the intelligent battery management system (BMS). It reliably protects the storage unit against overcharging, deep discharge, overheating and short-circuiting. It also ensures active cell balancing, which maximises efficiency and service life. As a self-contained unit, the storage block is securely mounted using the supplied wall bracket and connected directly to the inverter, allowing for a clean, quick, and professional installation. Properties  ModelDeye RW-F10.6 ApplicationLow-voltage storage system TechnologyLithium iron phosphate (LiFePO4) Nominal voltage (V)51.2 Energy (kWh)10.64 Usable energy (kWh)9.57 Max. charge/discharge current (A)100 Cycle life≥ 6000 (at 90% DOD) Dimensions (W x D x H in mm)560 x 340 x 780 Weight (kg)approx. 104  FAQs about the Deye RW-F10.6 storage systemFor which household is a storage system with approx. 10.6 kWh suitable?A storage unit of this size is ideal for detached houses with an annual electricity consumption of approx. 4,000 to 8,000 kWh. It provides enough capacity to store the surplus generated during the day by a typical 8-13 kWp PV system and to supply the household with its own solar power overnight as well as on cloudy days.Why is LiFePO4 the safest lithium technology?LiFePO4 cells have a very stable chemical structure. They are not susceptible to thermal runaway, even in the event of mechanical damage or overcharging. This makes them the safest choice for use in residential buildings.What is the advantage of wall mounting?Wall mounting allows for a very space-saving installation in utility rooms, garages, or basements without taking up valuable floor space. This ensures an organised appearance and protects the storage system against ground moisture or dirt.Which inverters is this system compatible with?The Deye RW-F10.6 system is perfectly matched to the low-voltage hybrid inverters from Deye. Communication between the storage BMS and the inverter ensures perfectly coordinated and efficient operation. Compatibility with inverters from other manufacturers should be checked in advance.  Scope of delivery Deye RW-F10.6 lithium iron phosphate battery (10.64 kWh): Module typeThis is a single, wall-mounted low-voltage battery storage unit. A separate, compatible hybrid inverter is required.1 x Deye RW-F10.6 battery module (10.64 kWh)The central storage unit with 10.64 kWh (208 Ah) in a single housing, including an integrated battery management system (BMS).1 x wall bracket (Wall Mount Bracket)A sturdy metal bracket for securely mounting the storage unit to a suitable wall.1 x set of battery connection cables (plus & minus)A pair of pre-assembled high-performance cables (red and black) for connecting the storage unit to the inverter.1 x communication cable (CAN/RS485)A data cable for communication between the battery BMS and the inverter.1 x grounding cableA protective conductor cable for proper grounding of the metal casing.1 x set of mounting materialsUsually includes heavy-duty screws and wall plugs for mounting the wall bracket.1 x operating and installation manualA printed manual with all safety-related instructions, installation steps, and configuration details.

The Felicity Solar FLH96050SG01 (10.24 kWh) is a powerful and modular high-voltage battery storage system, specially developed for modern photovoltaic systems in single and multi-family houses. Based on safe lithium iron phosphate technology (LiFePO4), this system with a usable capacity of 10.24 kWh offers the ideal energy reserve for households with high demand, heat pumps or electric vehicles. Thanks to its stackable design, the storage unit can be installed to save space and flexibly expanded as energy demand increases.Highlights at a glanceHigh storage capacity: With 10.24 kWh (consisting of two 5.12 kWh modules), the system provides enough buffer to significantly increase self-consumption and minimise grid usage.Modular stack design: The wireless plug-in system enables fast "Plug & Play" installation without complex cabling between the modules.Maximum safety: Equipped with an integrated aerosol fire extinguishing system and advanced battery management system (BMS) for maximum protection against overheating and malfunctions.Long-lasting technology: The LiFePO4 cells guarantee over 6000 charging cycles at high depth of discharge (DOD), providing investment security for many years.Wide compatibility: The high-voltage system works efficiently with leading hybrid inverters (e.g. Deye, Solis, GoodWe, Growatt) and communicates via CAN/RS485.Robust housing: With IP65 protection rating, the storage is protected against dust and water jets and is suitable for flexible installation locations (indoors and protected outdoors).Efficiency through high-voltage technologyUnlike low-voltage systems, the Felicity FLH96050SG01 operates in this configuration at a nominal voltage of approximately 204.8 V. This significantly reduces conversion losses and enables the use of thinner cable cross-sections while increasing the overall efficiency of the PV system. The system is therefore perfect for operating high-power consumers, as high discharge currents can be provided without significant heat generation.Scalability for the futureOne key advantage of this system is its flexibility. Start with 10.24 kWh and expand as required by simply stacking additional modules (up to 6 modules per tower possible, approx. 30 kWh). The intelligent BMS automatically detects the new modules and integrates them into the system management. Characteristics ModelFelicity Solar FLH96050SG01 (10.24 kWh system) ApplicationHigh-voltage storage system for PV systems (home storage / commercial) TechnologyLiFePO4 (lithium iron phosphate) Nominal energy10.24 kWh Nominal voltage204.8 V Module capacity50 Ah Voltage range182.4 V - 230.4 V Charging current / discharging current25 A (recommended) / 50 A (maximum) CommunicationCAN, RS485 Protection ratingIP65 (for indoor and protected outdoor installation) Dimensions (H x W x D in mm)approx. 1100 x 600 x 250 (system dependent) Weight (kg)approx. 105 - 115  FAQs about the Felicity FLH96050SG01Which inverters are compatible?The Felicity high-voltage storage is compatible with a wide range of high-voltage hybrid inverters. Officially supported devices include those from Deye, Solis, GoodWe, Growatt, Megarevo and SofarSolar. Always check the inverter manufacturer's current compatibility list before purchase.Can I expand the storage later?Yes, the system is modular. You can subsequently add further 5.12 kWh modules of the same type (up to a certain maximum voltage of the inverter, usually up to 6 modules per tower). However, it is recommended to carry out expansions in a timely manner to minimise capacity differences due to aging.What does the integrated aerosol extinguishing system mean?This is an advanced safety feature. Each module is equipped with sensors that, in the extremely unlikely event of thermal runaway (fire inside), automatically release an extinguishing aerosol to immediately stifle the source of the fire and prevent it spreading.Is the storage emergency power capable?Yes, the battery is powerful enough to supply the home grid during a power failure in combination with a backup-capable hybrid inverter. The high-voltage technology ensures stable discharge performance, even for larger consumers. Scope of delivery: Felicity Solar FLH96050SG01 (10.24 kWh HV battery storage set) 1 x Felicity FLH96050SCG01 BMS control unitThe central high-voltage management module that monitors the cells and communicates with the inverter.2 x Felicity FLH48100-S battery modules (each 5.12 kWh)Two stackable high-voltage LiFePO4 storage units connected in series to provide a total capacity of 10.24 kWh.1 x base plate (Base)A solid base for floor installation, on which the battery modules and control unit can be safely stacked.1 x set of internal connection cables (Plug & Play)Short plug connections for electrical coupling and data transfer between the individual battery modules within the tower.1 x external high-voltage cable set (DC)A pair of specialised power cables for safe connection of the battery tower to the high-voltage hybrid inverter.1 x communication cable (BMS-to-inverter)A pre-assembled data cable to connect the control unit to the inverter (CAN/RS485).1 x mounting kit (tilt protection & screws)All mounting material for fixing the tower to the wall as well as screws for the module connections.1 x User ManualA technical manual with instructions for stacking, BMS configuration, and important safety notes for high-voltage systems.

Deye BOS-A is a modular high-voltage energy storage module designed for use in high-performance and scalable storage systems for residential and commercial applications. Based on superior lithium iron phosphate (LiFePO4) technology, each module offers a capacity of 7.68 kWh. Multiple modules can be connected in series to create a high-voltage system that ensures maximum efficiency, safety and flexibility for modern photovoltaic installations.Highlights at a glanceScalable high-voltage system: Several modules (e.g. 7 to 21 units) are combined in series to form a high-performance high-voltage storage tower.Maximum safety with LiFePO4: Cobalt-free lithium iron phosphate technology is considered the safest and longest-lasting on the market.Intelligent Battery Management System (BMS): Each module is continuously monitored to ensure safe and optimised operation.High efficiency: High-voltage technology reduces energy losses and increases the overall efficiency of the system.Professional rack mounting: Designed for simple and secure installation in standard industrial racks.Flexible scalability for high energy requirementsDeye ’s BOS-A storage system is designed for maximum flexibility and future-proofing. Starting with a system size of, for example, seven modules (approx. 54 kWh), the capacity can be scaled up to meet growing energy requirements by adding further modules. This scalability positions the system as the ideal solution for high-demand homes with heat pumps and electric vehicles, as well as for agricultural and commercial businesses seeking to maximise their self-consumption and reduce peak loads.Maximum safety and longevity with LiFePO4The integration of lithium iron phosphate cells (LiFePO4) establishes the highest safety benchmark in energy storage solutions. These cells are highly thermally stable, inherently safe, and do not contain cobalt. They are characterised by an exceptionally high cycle life of over 6,000 charge and discharge cycles, which enables a very long service life of over 15 years and makes the system a sustainable and cost-effective solution.Intelligent control and professional installationAt the heart of the system is the intelligent battery management system (BMS), which is integrated into a higher-level control unit (Cluster Control Box). It reliably protects the storage system against overcharging, deep discharge, overheating and short circuits. It also ensures active cell balancing, which maximises efficiency and service life. The individual modules are designed for quick and safe installation in professional racks (control cabinets), ensuring a neat and standard-compliant installation. Features  ModelDeye BOS-A High-Voltage Storage Module ApplicationHigh-voltage storage system TechnologyLithium iron phosphate (LiFePO4) Rated voltage (V)38,4 Energy (kWh)7,68 Usable energy (kWh)6,91 Max. charge/discharge current (A)160 Cycle stability≥ 6000 (at 90% DOD) Dimensions (W x H x D in mm)approx. 601.5 x 520 x 135  H2: FAQs on the BOS-A storage system ( Deye )What is the advantage of a modular storage system?A modular system offers you the flexibility to start with a capacity tailored to your current needs and expand this later as required by adding further modules. You can adapt your storage system to rising energy requirements, e.g. due to an electric car.Why is LiFePO4 the safest lithium technology?LiFePO4 cells have a very stable chemical structure. They are not susceptible to thermal runaway, even in the event of mechanical damage or overcharging. This makes them the safest choice for use in residential and commercial buildings.What is the advantage of a high-voltage (HV) storage unit over a low-voltage (LV) one?A high-voltage system operates at a higher voltage and correspondingly lower currents to transmit the same power. Lower currents result in less heat loss in the cables and the inverter, which increases the overall efficiency of the system (PV system, storage and inverter).Which inverters is this system compatible with?The Deye BOS-A system is optimally matched to the high-voltage hybrid inverters from Deye (e.g. 50–100 kW series). Communication between the storage system’s BMS and the inverter ensures perfectly coordinated and efficient operation. Compatibility with inverters from other manufacturers should be checked in advance. We strongly recommend checking the compatibility list. Delivery scope: Deye BOS-A (7.68 kWh HV battery storage module) 1 x Deye BOS-A battery module (7.68 kWh)A high-performance high-voltage LiFePO4 storage module for industrial applications with a capacity of 7.68 kWh, designed for installation in 19-inch rack systems.1 x set of internal DC connection cablesShort, high-current-rated power cables for the serial connection of the module to the next module within the battery cabinet.1 x internal communication cable (RJ45)A data cable for integrating the module into the internal BMS communication chain for monitoring cell voltages and temperatures.1 x mounting kit (screws and mounting brackets)Special brackets and screws for the secure mechanical fixing of the module in the rack’s profile rails.1 x Grounding CableA yellow-green cable for correct equipotential bonding between the module housing and the central earthing point of the cabinet.1 x User manualA technical supplement containing specifications, installation instructions and information on the correct addressing of the module within the system network.

The Deye Combiner Box 300A is a central distribution unit for high-voltage battery storage solutions. It has been specially developed to connect up to four battery strings in parallel and connect them safely to an inverter. Thanks to its sophisticated design, it also supports the parallel connection of several combiner boxes for systems with higher energy requirements, perfect for PV systems in commercial and industrial environments.Highlights at a glanceUp to 4 batteries can be connected in parallel Parallel connection of several combiner boxes possible for higher capacities High operational reliability up to 300 A rated current IP55 housing: Protection against dust & water jets Naturally cooled, without active fans Wide temperature range from –40 °C to +60 °CApplication and system integrationThe Combiner Box serves as a central collection point for up to four high-voltage batteries (connection via M8 screws) and feeds the energy bundled via two outputs (M10 screws) to the inverter. The option of connecting several boxes in parallel allows the system to be flexibly adapted to growing power requirements, for example for large-scale solar storage systems, commercial operations or industrial grid applicationsCombiner_Box-300A-V1.1.FAQs about the Deye Combiner Box 300AWhat voltages and currents does the Combiner Box process?The box is designed for a DC voltage range of 120 – 1 000 V. The maximum total current is 300 A, with up to 100 A permitted per input.Can I combine different Deye battery modules?Yes, all HV series from Deye such as BOS-G Pack 5.1, AI-W 5.1-B and SE-G 5.1 Pro-B are compatible, provided that the string voltage remains below 1 000 V.With which Deye inverters is the box compatible?The Combiner Box is approved for all three-phase Deye hybrid inverters of the SUN-xK-HP3 and BM series. For communication via CAN, setup code 00 must be selected in the inverter menu.What cable cross-sections are recommended for 300 A?Deye recommends a DC cable cross-section of at least 25 mm² for cable lengths of less than 5 metres. For longer distances, correspondingly higher cross-sections are required.Which protective functions are integrated?The combiner box has a fully automatic protection circuit with short-circuit, overcurrent, overvoltage, undervoltage and overtemperature shutdown. All reactions take place within 5 ms.

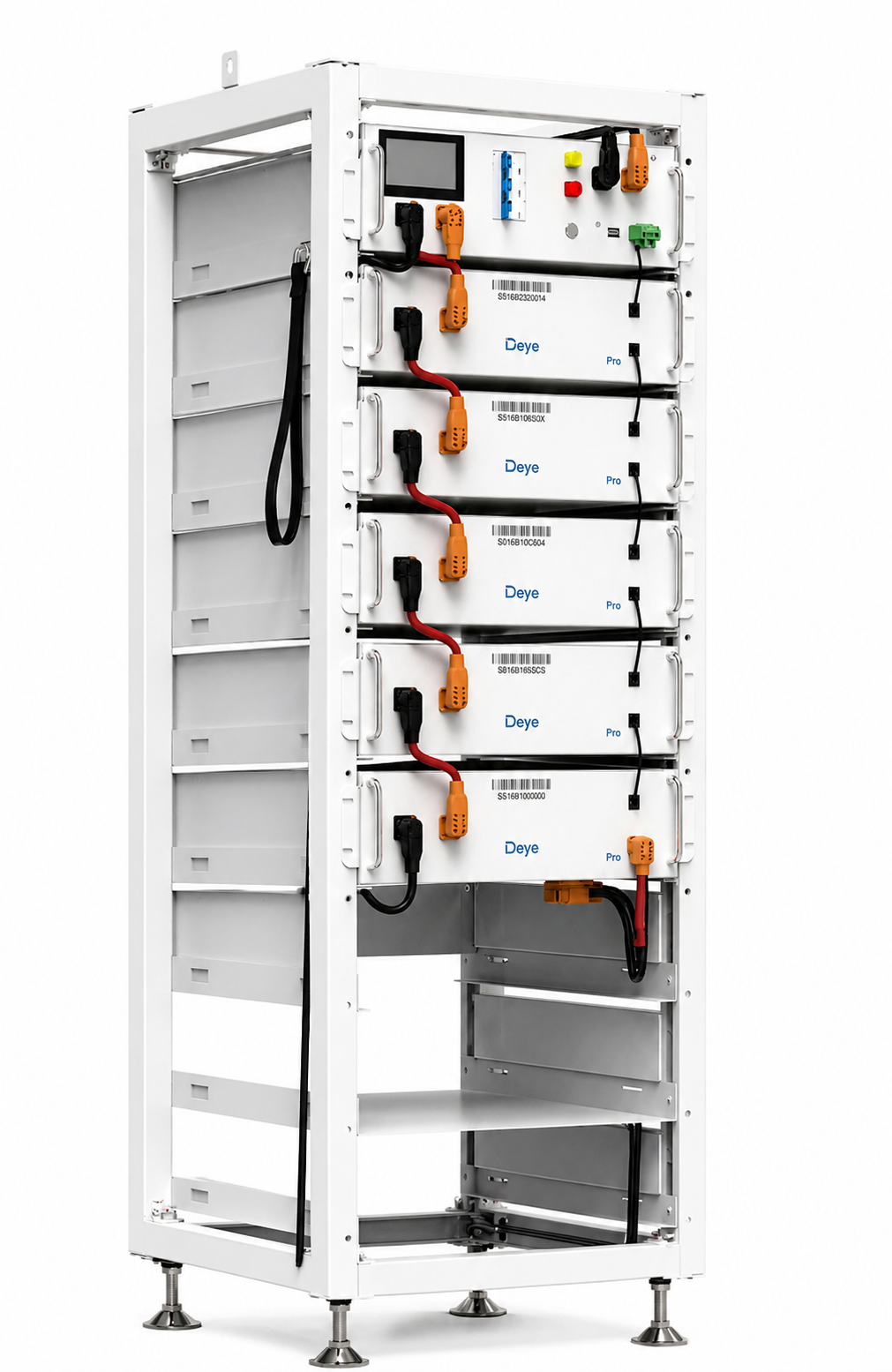

The Deye BOS-G25 PRO high-voltage storage set with 25.6 kWh is the ideal storage solution for small to medium-sized commercial and agricultural applications. It combines modern lithium iron phosphate technology (LiFePO4) with an intelligent battery management system and enables safe, flexible and long-lasting energy storage. Thanks to its modular design, the system can be easily expanded and is compatible with Deye high-voltage inverters.Highlights at a glance25.6 kWh of usable energy for business, agriculture or large householdsModularly expandable by connecting several battery modules or entire racks in parallelIntelligent BMS with protection against overcharging, deep discharge, overcurrent and temperature faultsSafe LiFePO4 cell technology with over 6000 charge cycles at 90 percent depth of dischargeEasy installation thanks to 19-inch rack standard with compact, easily serviceable modulesTechnical performance and safetyThe BOS-G25 PRO system consists of 5 battery modules, each with 5.12 kWh (100 Ah, 51.2 V). The modules are connected in series, resulting in a system voltage of 256 volts. The usable energy is 23.04 kWh. The high charging and discharging performance (nominal 100 A, peak 120 A for 2 minutes) ensures a stable supply even for increased power demand. An integrated battery management system monitors each cell individually and reliably protects the system. The charging and discharging temperatures range from -20°C to +55°C, making the system suitable for unheated technical rooms or containers.Modularity and expansionThe BOS-G25 PRO can be flexibly expanded: Up to 12 modules can be installed per rack. Several racks can be connected in parallel, with the system supporting up to 16 battery racks and 10 AC-coupled inverters. This enables systems with up to 184 kWh capacity. Installation is carried out using standardised components and pre-assembled cables, saving time and costs.Who is the Deye BOS-G25 PRO suitable for?Commercial enterprises with high energy requirements (e.g. machinery, cooling, lighting)Agricultural applications such as milking robots, pumps or cold storesApartment blocks or shared storage solutionsOff-grid systems or regions with unstable grid supplyProjects with growth option thanks to simple, modular expandability  ModelDEYBOS-G-PRO Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 Max. battery module number InSeries (optional)5-16 System nominal voltage (V)256-819.2 System operating voltage (V)220~934.4 System capacity (kWh)25.6-81.92 System usable capacity (kWh)23.04-73.73 Charge/discharge current (A) - recommendation50 Charge/discharge current (A) - nominal value100 Charge/discharge current (A) - peak discharge (2 min,25°C)125 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 55 Display system indicator Yellow : Battery High VoltagePower On Red : Battery System Alarm Communication connectionCAN2.0, RS485 Humidity5% ~ 85%RH Altitude≤3000m Housing IP protection classIP20 Storage temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)530 * 602 * 2219 Weight (kg)290-837 Installation locationFloor mounting Recommended depth of discharge90% Cycle life25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsUN38.3 / CE / CE-EMC / IEC62040 / CEC / VDE  FAQs about the Deye BOS-G25 PRO high-voltage storage setHow long does the battery last, and what safety features does it have?BOS‑G Pro modules offer a service life of ≥ 6,000 cycles at 70 % DoD (0.5 C charge/discharge at 25 °C) together with a 10-year warranty. The integrated LiFePO₄ technology is considered thermally stable and safe, with comprehensive BMS protection against overcharging, deep discharge, overcurrent, cell balancing, temperature monitoring and more.Can the storage system be operated in parallel with other units or inverters?Yes, thanks to its modular design, several 19‑inch modules can be connected in parallel, both for capacity expansion as well as for performance increase. The system also supports AC parallel operation with up to 10 Deye inverters. Firmware updates are flexible via USB, WLAN or remote access via the inverter.What about maintenance and fault diagnosis?The integrated BMS (Battery Management System) of the BOS‑G Pro continuously monitors the voltage, temperature and current of each cell and reliably protects against under/overcharging as well as overcurrent and temperature. Maintenance and initial diagnosis are performed via the touch display on the module or via remote access (USB/WLAN). Detailed fault descriptions and maintenance instructions can be found in the enclosed installation and operating manual .Is the system suitable for outdoor use?The storage system itself is rated IP20 and should therefore be installed in a weather-protected area (e.g. technical room or container).How is the installation organised, and is a rack required?The BOS‑G Pro module has a standardised 19‑inch embedded design, enabling quick, tool-free installation and greatly facilitating access for maintenance. For large installations with more than eight modules, optional 3‑unit racks can be used to provide stable support and allow tidy cabling. Up to 16 such racks can be installed in parallel as required, enabling high scalability and flexible configuration. Scope of delivery Deye BOS-G25 PRO high-voltage storage set (25.6 kWh) with rack system: System compositionThis product is a set and consists of a rack cabinet and the individual plug-in modules (BMS and batteries).Component 1: Deye rack system / battery cabinetA cabinet to house the BMS unit and battery modules, often with castors and feet.Component 2: Deye control box / BMS plug-in moduleThe central control unit (BMS/BCCB) that is inserted into the rack cabinet as a module.Components 3 to 7: Five Deye BOS-G-PRO-Pack5.1 high-voltage battery plug-in modules (each 5.12 kWh)Five pure high-voltage battery modules, also inserted into the rack cabinet.1 x set of battery connection cables (plus & minus)A pair of special high-voltage power cables for connecting the BMS module to a compatible high-voltage hybrid inverter.1 x communication cable (CAN/RS485)A long data cable for communication between the BMS module and the inverter.5 x connection bridge / series connection cableShort, robust cables or fixed bridges for connecting the six plug-in modules (BMS + 5 batteries) in the rack.1 x earthing cableA protective earth cable for properly earthing the rack system.1 x mounting accessories (rack mounting)Includes screws and rails for attaching the modules inside the rack and material for anchoring the cabinet to the floor.1 x operating and installation manualA printed manual describing the assembly of the complete rack system.

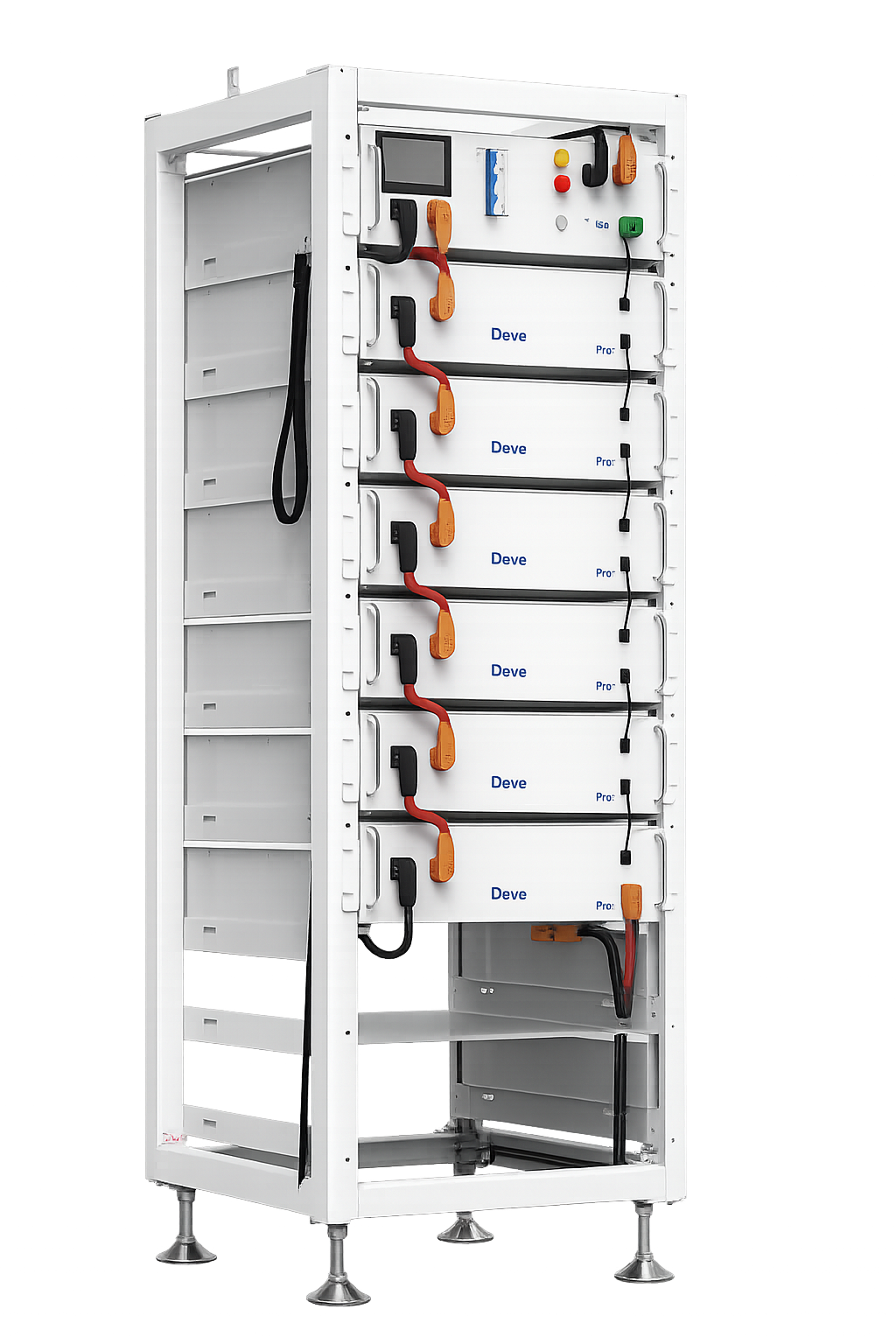

The Deye BOS-G 30 PRO high-voltage storage set offers a scalable and safe solution for energy storage applications in commercial and residential settings. With a capacity of 30.72 kWh, LiFePO4 technology and an intelligent battery management system (BMS), this storage system is ideal for demanding photovoltaic projects.Highlights at a glanceHigh storage capacity: 30.72 kWh of energy for high-performance storage applicationsFlexibly expandable: Parallel connection of up to 16 racks for capacities up to 80 kWhIntelligent BMS: Protection against overcharging, deep discharge, overcurrent & temperature variationDurable & safe: LiFePO4 cells with over 6000 cycles (70 % EOL guarantee)Environmentally friendly: Free of toxic substances, recyclable and low self-consumptionCompatibility: Perfectly matched to Deye inverters, incl. USB and remote upgradeEfficient energy storage for modern applicationsThe BOS-G 30 PRO set is based on durable LiFePO4 technology and provides a usable storage capacity of 27.65 kWh at a nominal voltage of 307.2 V. It is specially optimised for use with Deye inverters and can be easily upgraded via USB or remote access.Flexibility & scalabilityThe modular design allows easy expansion with additional battery units, up to 16 battery cabinets can be operated in parallel. This enables the system to grow with the needs from small commercial plants up to industrial solutions.Intelligent control & safetyThe integrated BMS reliably protects against overcharging, deep discharge, overcurrent and temperature variations. In addition, the system provides precise cell balancing and continuously monitors the state of charge for maximum safety and efficiency.Areas of application for the Deye BOS-G 30 PROThis high-voltage storage set is ideal for:Businesses aiming to reduce their electricity costs and smooth out consumption peaksPV system operators seeking flexible and highly scalable storage solutionsHomeowners with high energy needs who want to maximise their self-sufficiencyOff-grid systems & backup solutions that require maximum reliability and independence ModelDEYBOS-G-PRO Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 Max. battery module number InSeries (optional)5-16 System nominal voltage (V)256-819.2 System operating voltage (V)220~934.4 System capacity (kWh)25.6-81.92 System usable capacity (kWh)23.04-73.73 Charging/discharging current (A) - recommendation50 Charging/discharging current (A) - nominal value100 Charging/discharging current (A) - peak discharge (2 min,25°C)125 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 55 Display system indicator Yellow : Battery High VoltagePower On Red : Battery System Alarm Communication portCAN2.0, RS485 Humidity5% ~ 85%RH Altitude≤3000m Enclosure IP ratingIP20 Storage temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)530 * 602 * 2219 Weight (kg)290-837 Installation locationFloor mounting Recommended depth of discharge90% Cycle life25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsUN38.3 / CE / CE-EMC / IEC62040 / CEC / VDE  FAQs about the Deye BOS-G 30 PRO high-voltage storage systemHow do I charge individual BOS‑G modules manually?Individual modules must not be charged directly on the inverter. This is only possible in a composite system. If you still wish to charge manually, approximately 57 V (LFP‑16S, 16 × 3.6 V) are permissible, the optimum is about 55 V, as hardly any additional capacity is stored above this. The modules have their own protection circuits (BMS), but no higher voltages may be applied.Do I need a fireproof room (T60) to operate BOS‑G?Yes, the EU manual explicitly states that the BOS‑G Pro may only be installed in fireproof rooms with fireproof windows and doors of type T60. From an insurance and safety perspective, this requirement should be strictly observed.What capacity and cycle life does the BOS‑G 30 PRO offer?The system is available in several variants. The 30 PRO delivers 30.72 kWh gross, of which approximately 27.65 kWh are usable (90 % DoD). The service life is ≥ 6000 cycles at 25 °C and 0.5 C charge/discharge up to 70 % DoD. The warranty period is 10 years.What protection functions does the BMS offer?The integrated BMS protects against overcharging, deep discharge, overcurrent, short circuit, over/under voltage and extreme temperatures. Current and cell voltage balancing is also provided.What IP protection class does the system have?The enclosure is rated IP20, so it is suitable only for dry indoor areas, and not for outdoor installation or damp environments. Scope of delivery Deye BOS-G30 PRO high-voltage storage set (30.72 kWh) with rack system: System compositionThis product is a set and consists of a rack cabinet and the individual slide-in modules (BMS and batteries).Component 1: Deye rack system / battery cabinetA cabinet for housing the BMS unit and battery modules, often with castors and feet.Component 2: Deye control box / BMS plug-in moduleThe central control unit (BMS/BCCB), which is inserted as a module in the rack cabinet.Component 3 to 8: Six Deye BOS-G-PRO-Pack5.1 high-voltage battery slide-in modules (5.12 kWh each)Six pure high-voltage battery modules, also inserted in the rack cabinet.1 x set of battery connection cables (plus & minus)A pair of special high-voltage power cables for connecting the BMS module to a compatible high-voltage hybrid inverter.1 x communication cable (CAN/RS485)A long data cable for communication between the BMS module and the inverter.6 x connection bridge / series connection cableShort, robust cables or solid bridges for connecting the seven plug-in modules (BMS + 6 batteries) in the rack together.1 x earthing cableA protective earth cable for the proper earthing of the rack system.1 x mounting accessories (rack mounting)Includes screws and rails for securing the modules within the rack, as well as material for anchoring the cabinet to the floor.1 x operating and installation manualA printed manual describing the assembly of the complete rack system.

The Deye BOS-G 35 PRO high-voltage storage set offers a powerful and scalable storage solution for modern energy projects in the commercial and residential sectors. With its usable capacity of around 32.26 kWh, proven LiFePO4 technology, and an intelligent battery management system, it fulfils the highest standards of safety, durability, and efficiency.Highlights at a glanceHigh capacity: 35.84 kWh gross storage for reliable energy availabilityExpandable: Parallel connection of up to 16 battery racks possibleFuture-proof: Compatible with Deye inverters and remote maintenance via USB or remoteLong service life: Over 6000 charging cycles with 70 per cent residual capacitySafe cell technology: LiFePO4 with integrated protection against overcharging, deep discharge, and temperature fluctuationsEfficient energy storage for commercial and residential applicationsThe BOS-G 35 PRO set is based on high-quality LiFePO4 cells, which are known for their stability, safety, and long service life. With a system voltage of 358.4 volts and usable energy content of over 32 kWh, the system is ideal for optimising self-consumption, peak shaving, and backup applications.Scalable storage solution with systemThanks to its modular design, the BOS-G 35 PRO system can be flexibly expanded. The combination of several battery modules enables customised adaptation to growing energy requirements. The system can operate up to 16 racks in parallel and supports AC-parallel operation of up to 10 inverters.Intelligent energy managementThe integrated BMS (Battery Management System) protects each battery cell from critical conditions such as overcharging, deep discharge, or overheating. It automatically takes over cell balancing and ensures an even load on all modules.Who is the Deye BOS-G 35 PRO high-voltage storage set suitable for?This high-voltage storage system is ideal for:Operators of photovoltaic systems with medium to high energy requirementsCommercial enterprises seeking grid relief or backup solutionsHomeowners who want to increase self-consumption and independenceProjects with requirements for high scalability and compatibility with Deye systems ModelDEYBOS-G-PRO Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 Max. number of battery modules InSeries (optional)5-16 System nominal voltage (V)256-819.2 System operating voltage (V)220~934.4 System capacity (kWh)25.6-81.92 System usable capacity (kWh)23.04-73.73 Charge/discharge current (A) - recommendation50 Charge/discharge current (A) - nominal value100 Charge/discharge current (A) - peak discharge (2 min,25°C)125 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 55 Display system indicator Yellow : Battery High VoltagePower On Red : Battery System Alarm Communication connectionCAN2.0, RS485 Humidity5% ~ 85%RH Altitude≤3000m IP protection rating of enclosureIP20 Storage temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)530 * 602 * 2219 Weight (kg)290-837 Installation locationFloor mounting Recommended depth of discharge90% Cycle life25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsUN38.3 / CE / CE-EMC / IEC62040 / CEC / VDE  FAQs about the Deye BOS-G 35 PRO high-voltage storage setWhat capacity and cycle life does the system offer?The BOS‑G 35 PRO delivers gross 35.84 kWh and net approx. 32.25 kWh usable energy at 90 % DoD. The battery achieves ≥ 6000 charging cycles (0.5 C, up to 70 % DoD at 25 °C) with a 10-year warranty.In which temperature range can the BOS‑G 35 PRO be operated?Operation is possible from −20 °C to +55 °C. The charging circuit operates between 0 °C and +55 °C, discharge possible from −20 °C.What protective functions does the BMS offer?The integrated BMS actively monitors and protects against over-/undercharge, overcurrent, short circuit as well as temperature extremes, carries out cell balancing, and controls charging and voltage levels.Do I need special rooms or fire protection?The EU version stipulates that installation is only permitted in fireproof rooms (fire protection T60) is permitted. The system is also suitable for indoor locations with IP20 protection only.Can the system be expanded?Yes, thanks to the modular design, several BOS‑G modules can be operated in parallel. In the EU up to 16 battery racks and up to 10 inverters in AC parallel operation can be connected. Scope of delivery Deye BOS-G35 PRO high-voltage storage set (35.84 kWh) with rack system: System compositionThis product is a set and consists of a rack cabinet and the individual slide-in modules (BMS and batteries).Component 1: Deye rack system / battery cabinetA cabinet to accommodate the BMS unit and the battery modules, often with castors and feet.Component 2: Deye control box / BMS slide-in moduleThe central control unit (BMS/BCCB), which is inserted as a module into the rack cabinet.Component 3 to 9: Seven Deye BOS-G-PRO-Pack5.1 high-voltage battery slide-in modules (each 5.12 kWh)Seven pure high-voltage battery modules, which are also inserted into the rack cabinet.1 x set of battery connection cables (plus & minus)A pair of special high-voltage power cables to connect the BMS module with a compatible high-voltage hybrid inverter.1 x communication cable (CAN/RS485)A long data cable for communication between the BMS module and the inverter.7 x connection bridge / series connection cableShort, robust cables or fixed bridges for interconnecting the eight slide-in modules (BMS + 7 batteries) in the rack.1 x earth cableA protective earth conductor cable for the proper earthing of the rack system.1 x mounting accessories (rack mounting)Includes screws and rails for the attachment of the modules inside the rack as well as material for anchoring the cabinet to the floor.1 x operating and installation manualA printed manual describing the assembly of the complete rack system.

The Deye BOS-G 45 PRO high-voltage storage set is a powerful storage solution for commercial, industrial and demanding private customers. With 46.08 kWh capacity, LiFePO4 technology and intelligent battery management system, it offers maximum efficiency, safety and flexibility for modern energy storage systems.Highlights at a glanceHigh storage capacity: 46.08 kWh for high-performance energy applicationsHigh usable energy: up to 41.47 kWh at 90 percent depth of dischargeModular and scalable: Expansion through parallel connection of up to 16 racksIntelligent BMS: Monitoring of cell voltage, temperature, current and state of chargeLong-life cell technology: over 6000 cycles with 70 percent remaining capacityEfficient energy storage for professional applicationsThe BOS-G 45 PRO uses state-of-the-art lithium iron phosphate cells for high cycle stability and safety. With a nominal system voltage of about 460 volts and an operating voltage range between 395 and 525 volts, the system offers reliable performance with high energy availability at the same time.Flexible system architecture for growing requirementsThe storage system is modular and can easily be expanded with additional battery racks. It supports up to 16 racks connected in parallel and AC-parallel operation of up to 10 inverters. In this way, the system grows with the requirements and offers investment security for the future.Intelligent safety features and monitoringAn integrated battery management system ensures the continuous monitoring of all cells and protects against overcharging, deep discharge, overcurrent and critical temperatures. The cell voltages are automatically balanced, optimising the service life of the batteries.Who is the Deye BOS-G 45 PRO storage set suitable for?This storage system is ideal for:Businesses with consistently high energy consumption or peak loadsPV systems with high storage needs and a high proportion of self-consumptionPrivate households with increased electricity demand and a focus on self-sufficiencySystem solutions in combination with Deye inverters and charging infrastructure   ModelDEYBOS-G-PRO Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 Max. number of battery modules in series (optional)5-16 System nominal voltage (V)256-819.2 System operating voltage (V)220~934.4 System capacity (kWh)25.6-81.92 System usable capacity (kWh)23.04-73.73 Charge/discharge current (A) - Recommendation50 Charge/discharge current (A) - Nominal value100 Charge/discharge current (A) - Peak discharge (2 min,25°C)125 Operating temperature (°C)Charge: 0 ~ 55 / Discharge: -20 ~ 55 Display System indicator Yellow : Battery High VoltagePower On Red : Battery System Alarm Communication portCAN2.0, RS485 Humidity5% ~ 85%RH Altitude≤3000m Housing IP protection ratingIP20 Storage temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)530 * 602 * 2219 Weight (kg)290-837 Installation locationFloor mounting Recommended depth of discharge90% Cycle life25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Guarantee10 years CertificationsUN38.3 / CE / CE-EMC / IEC62040 / CEC / VDE  FAQs about the Deye BOS-G 45 PRO high-voltage storageCan the system be expanded or connected in series?Yes, modular expansion is possible. Up to 12 modules in series (max. 61.44 kWh) are possible and parallel operation enables flexible capacity expansion. Up to 16 racks and 10 inverters can be operated in parallel.What total and usable storage capacity does the system offer?The BOS‑G 45 PRO consists of 9 LiFePO₄ modules each with 5.12 kWh, resulting in a gross storage capacity of 46.08 kWh. With a typical depth of discharge (DoD) of 90 %, you have almost 41.5 kWh net available.In which temperature range can the storage system be used?The BOS‑G PRO supports a temperature range of −20 °C to +55 °C for discharging and 0 °C to +55 °C for charging. This ensures the system remains efficient under a wide range of climate and operating conditions.Which protective functions does the integrated BMS provide?The intelligent Battery Management System (BMS) continuously monitors critical parameters and automatically protects the system against overvoltage and undervoltage, overcurrent, short circuit, over- or under-temperature. It also manages cell equalisation to ensure uniform cell voltages.What fire protection and installation environment requirements must be observed?The system is designed for dry indoor areas only (protection class IP20). In the EU, a fireproof room (T60) is also required – for example with fire-resistant walls, doors and windows. Installation in a standard 19-inch rack requires stable and well-ventilated installation. Scope of delivery Deye BOS-G45 PRO high-voltage storage set (46.08 kWh) with rack system: System compositionThis product is a set and consists of a rack cabinet and the individual plug-in modules (BMS and batteries).Component 1: Deye rack system / battery cabinetA cabinet to house the BMS unit and the battery modules, often with castors and feet.Component 2: Deye control box / BMS plug-in moduleThe central control unit (BMS/BCCB) that is inserted into the rack cabinet as a module.Component 3 to 11: Nine Deye BOS-G-PRO-Pack5.1 high-voltage battery plug-in modules (each 5.12 kWh)Nine pure high-voltage battery modules, which are also inserted into the rack cabinet.1 x set of battery connection cables (plus & minus)A pair of special high-voltage power cables to connect the BMS module to a compatible high-voltage hybrid inverter.1 x communication cable (CAN/RS485)A long data cable for communication between the BMS module and the inverter.9 x connection bridge / series connection cableShort and robust cables or fixed bridges to connect the ten plug-in modules (BMS + 9 batteries) in the rack to each other.1 x earthing cableA protective conductor cable for grounding the rack system as required by regulations.1 x mounting accessories (rack mounting)Includes screws and rails for fixing the modules inside the rack and material for anchoring the cabinet to the floor.1 x operating and installation manualA printed manual describing the assembly of the complete rack system.

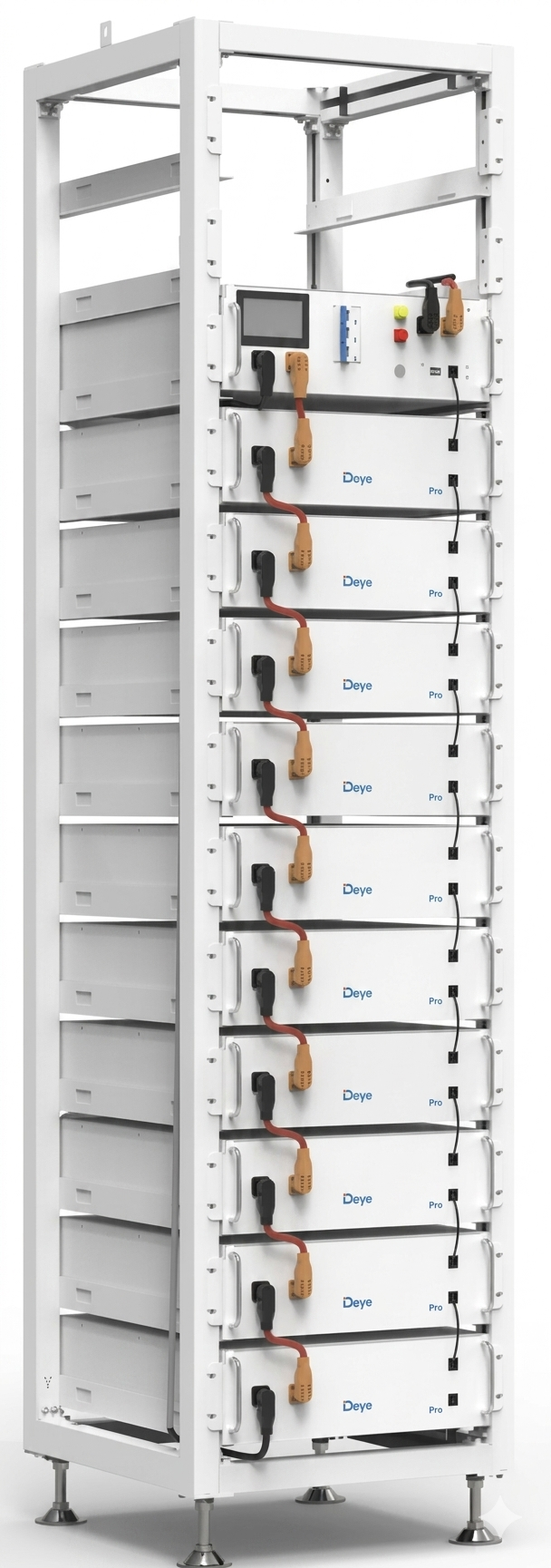

The Deye BOS-G 50 PRO high-voltage storage set is a flexible and powerful solution for energy storage projects in the commercial and private sectors. With 51.2 kWh storage capacity, an intelligent battery management system and high-quality LiFePO4 technology, the system provides a reliable basis for energy self-sufficient applications and peak load management.Highlights at a glanceTotal capacity: 51.2 kWh for medium to large energy systemsUsable energy: around 46.08 kWh at 90 per cent depth of dischargeLong service life: over 6000 charging cycles with 70 per cent remaining capacityIntelligent BMS: Protection against overcharging, deep discharge, temperature deviation and moreFlexible scalability: Parallel connection of up to 16 racks possibleEfficient energy storage for modern requirementsThe BOS-G 50 PRO impresses with a nominal voltage of approx. 512 volts and an operating voltage range of around 440 to 585 volts. The lithium iron phosphate cells used offer a high level of safety, low self-discharge and optimum performance in daily operation. The robust construction and modular system design allow easy adaptation to different application scenarios.Flexible and future-proof architectureThanks to its modular design, the system can be expanded as required. Up to 16 battery racks can be operated in parallel. In addition, AC parallel operation of up to 10 Deye inverters is possible. This flexibility makes the storage set particularly attractive for growing energy systems.Intelligent battery managementThe integrated BMS monitors and controls the battery units in real time. It reliably protects against overcurrent, overvoltage and undervoltage as well as extreme temperatures. The system automatically balances voltages, ensuring long-lasting, safe and stable operation.Who is the Deye BOS-G 50 PRO storage set suitable for?This storage system is particularly suitable for:Commercial enterprises with regular energy requirements or emergency power backupPV system operators wishing to maximise their self-consumption ratePrivate households with increased electricity consumption and a desire for self-sufficiencySystem integrators who rely on certified high-voltage storage solutions  ModelDEYBOS-G-PRO Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 Max. number of battery modules InSeries (optional)5-16 System nominal voltage (V)256-819.2 System operating voltage (V)220~934.4 System capacity (kWh)25.6-81.92 System usable capacity (kWh)23.04-73.73 Charge/discharge current (A) - recommendation50 Charge/discharge current (A) - nominal value100 Charge/discharge current (A) - peak discharge (2 min,25°C)125 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 55 Display system indicator Yellow : Battery High VoltagePower On Red : Battery System Alarm Communication interfaceCAN2.0, RS485 Humidity5% ~ 85%RH Altitude≤3000m IP protection class of the housingIP20 Storage temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)530 * 602 * 2219 Weight (kg)290-837 Installation locationFloor mounting Recommended depth of discharge90% Cycle life25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsUN38.3 / CE / CE-EMC / IEC62040 / CEC / VDE  FAQs about the Deye BOS-G 50 PRO high-voltage storage setWhat is the total capacity and how much electricity can I use effectively?The system consists of 10 LiFePO₄ modules each with 5.12 kWh, giving a total gross capacity of 51.2 kWh. Due to the recommended depth of discharge (DoD) of 90%, around 46.1 kWh of usable net energy is availableWhat safety functions does the integrated BMS offer?The intelligent battery management system (BMS) continuously monitors voltage, current and temperature. It reliably protects against:Overvoltage and undervoltageOvercurrent and short circuitOver and under temperatureIt also ensures cell balancing and optimises charging and discharging processes.What are the requirements for the installation environment?The Deye BOS-G 50 high-voltage storage system is suitable only for dry indoor areas (protection class IP20). In addition, a fire-resistant room with T60 classification is required in the EU, including fire-resistant doors/windows and, if necessary, a fire alarm system.Which inverters are compatible?The set includes the BOS-G-PDU-2 high-voltage cluster control box (200–1000 V DC, up to 100 A). Officially compatible with Deye SUN hybrid inverters, e.g. SUN-30K/35K/40K/50K. Firmware updates are also possible via USB or Wi-FiCan the system be expanded in a modular way?Yes, the BOS-G-PRO series is modular in design. Several systems can be operated in parallel. Deye allows technical expansion up to 16 battery cabinets and up to 10 inverters in the AC network. Scope of delivery Deye BOS-G50 PRO high-voltage storage set (51.2 kWh) with rack system: System compositionThis product is a set and consists of a rack cabinet and the individual plug-in modules (BMS and batteries).Component 1: Deye rack system / battery cabinetA cabinet for housing the BMS unit and the battery modules, often with castors and feet.Component 2: Deye control box / BMS plug-in moduleThe central control unit (BMS/BCCB), which is inserted as a module into the rack cabinet.Components 3 to 12: Ten Deye BOS-G-PRO-Pack5.1 high-voltage battery plug-in modules (each 5.12 kWh)Ten pure high-voltage battery modules, which are also inserted into the rack cabinet.1 x set of battery connection cables (plus & minus)A pair of special high-voltage power cables to connect the BMS module to a compatible high-voltage hybrid inverter.1 x communication cable (CAN/RS485)A long data cable for communication between the BMS module and the inverter.10 x connection bridge / series connection cableShort, robust cables or fixed bridges to connect the eleven plug-in modules (BMS + 10 batteries) in the rack.1 x earthing cableA protective earth cable for proper earthing of the rack system.1 x mounting accessories (rack mounting)Includes screws and rails for fastening the modules inside the rack as well as material for anchoring the cabinet to the floor.1 x operating and installation manualA printed manual describing the assembly of the entire rack system.

The Deye BOS-G 55 PRO high-voltage storage set is a powerful and flexible storage solution for demanding energy projects in the commercial and private sectors. With a gross capacity of 56.32 kWh, intelligent BMS technology and proven LiFePO4 cell chemistry, the system offers maximum safety, efficiency and future-proofing.Highlights at a glanceHigh storage capacity: 56.32 kWh for off-grid applications and peak load coverageUsable energy: approx. 50.52 kWh at 90 per cent depth of dischargeModular and scalable: Parallel connection of up to 16 battery racks possibleLongevity guaranteed: Over 6000 charging cycles with 70 per cent residual capacityIntelligent control: Integrated BMS with automatic cell balancingEfficient high-voltage storage for modern energy systemsWith a system voltage of around 563 volts and a wide operating voltage range, the BOS-G 55 PRO fulfils the requirements of modern photovoltaic and storage systems. The LiFePO4 technology used ensures high thermal stability, low self-discharge and an exceptionally long service life.Scalable system architecture for maximum flexibilityThe Deye BOS-G 55 PRO system has a modular design and can be customised to individual project requirements. Up to 16 battery racks can be operated in parallel. In addition, parallel AC operation of up to 10 inverters is possible, which is particularly advantageous for commercial applications.Intelligent safety with integrated BMSAn integrated battery management system reliably protects the system against overcharging, deep discharge, overcurrent and temperature deviations. Cell balancing is automatic and ensures the even utilisation of all battery modules.Who is the Deye BOS-G 55 PRO storage set suitable for?This storage system is ideal for:Companies with constantly high power requirements or off-grid applicationsOperators of larger PV systems focussing on self-consumption and self-sufficiencyPrivate households with above-average energy requirementsSystem integrators who rely on proven high-voltage storage solutions  ModelDEYBOS-G-PRO Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 Max. battery module number InSeries (optional)5-16 System nominal voltage (V)256-819.2 System operating voltage (V)220~934.4 System capacity (kWh)25.6-81.92 System usable capacity (kWh)23.04-73.73 Charging/discharging current (A) - recommendation50 Charging/discharging current (A) - nominal value100 Charging/discharging current (A) - peak discharge (2 min,25°C)125 Operating temperature (°C)Charge: 0 ~ 55 / Discharge: -20 ~ 55 Display system indicator Yellow : Battery High VoltagePower On Red : Battery System Alarm Communication portCAN2.0, RS485 Humidity5% ~ 85%RH Altitude≤3000m IP protection type of housingIP20 Storage temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)530 * 602 * 2219 Weight (kg)290-837 Installation locationFloor mounting Recommended depth of discharge90% Cycle life25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Guarantee10 years CertificationsUN38.3 / CE / CE-EMC / IEC62040 / CEC / VDE  FAQs about the Deye BOS-G 55 PRO high-voltage storage setWhat storage capacity does the BOS‑G 55 PRO offer?The system consists of 11 LiFePO₄ modules with a gross capacity of 5.12 kWh each, totalling approx. 56.32 kWh. Of this gross capacity, around 50.7 kWh net is available due to the recommended extraction depth of 90 % DoD.How durable is the system and how long is the warranty?Thanks to highly stable LiFePO₄ cells, the BOS‑G PRO achieves an impressive shelf life of ≥ 6000 charging cycles (at 0.5 C → approx. 70 % DoD, 25 ± 2 °C). The system also comes with a 10-year manufacturer's warranty, offering comprehensive safety and reliability.What are the requirements for the installation environment?The BOS‑G 55 PRO is only suitable for dry indoor areas (protection class IP20). For operation in the EU, Deye also requires a fireproof room with a T60 protection class. The modules are installed in a standardised 19″ rack, which requires a stable and well-ventilated environment.Which inverters is the system compatible with?The set contains the BOS‑G‑PDU‑2 high-voltage cluster control box (200–1000 V DC, 100 A). This makes it officially compatible with Deye SUN hybrid inverters from the SUN‑30K/35K/40K/50K/60K/80K series (SG01HP3 series) – firmware updates via USB or Wi‑Fi provide additional flexibility.How environmentally friendly and storable is the system?Thanks to LiFePO₄ technology, the system is non-toxic, pollutant-free and free from memory effects. It is also very storable; unused modules can be stored for up to 6 months without recharging and without any loss of performance. Scope of delivery Deye BOS-G55 PRO High-voltage storage set (56.32 kWh) with rack system: System compositionThis product is a set and consists of a rack cabinet and the 12 individual plug-in modules (1x BMS and 11x batteries).Component 1: Deye Rack system / battery cabinetA cabinet to house the BMS unit and the battery modules, often with castors and feet.Component 2: Deye Control box / BMS plug-in moduleThe central control unit (BMS/BCCB), which is inserted into the rack cabinet as a module.Components 3 to 13: Eleven Deye BOS-G-PRO-Pack5.1 high-voltage battery slide-in modules (5.12 kWh each)Eleven pure high-voltage battery modules, which are also inserted into the rack cabinet.1 x set of battery connection cables (plus & minus)A pair of special high-voltage power cables to connect the BMS module to a compatible high-voltage hybrid inverter.1 x communication cable (CAN/RS485)A long data cable for communication between the BMS module and the inverter.11 x connection bridge / series connection cableShort, robust cables or fixed bridges to connect the twelve plug-in modules (BMS + 11 batteries) in the rack.1 x earthing cableA protective conductor cable for earthing the rack system in accordance with regulations.1 x mounting accessories (rack mounting)Includes screws and rails for mounting the modules within the rack as well as material for anchoring the cabinet to the floor.1 x operating and installation manualA printed manual describing the assembly of the complete rack system.

The Deye BOS-G 60 PRO high-voltage storage set is a reliable and high-performance storage solution for commercial applications and demanding private households. With a total capacity of 61.44 kWh, modular expandability and intelligent battery management, it meets the highest standards of safety, efficiency and flexibility.Highlights at a glanceHigh capacity: 61.44 kWh gross storage capacity for large energy systemsUsable energy: 55.30 kWh at 90 per cent depth of dischargeFlexible scalability: Up to 16 battery racks can be operated in parallelIntelligent control: Integrated BMS protects against overcharging, deep discharge and overheatingEasy to use: Quick installation in 19-inch rack formatEfficient energy storage for modern projectsWith its high voltage of 614.4 V and a wide operating voltage range of 528 to 700.8 V, the BOS-G 60 PRO provides an excellent basis for integration into existing energy systems. The lithium iron phosphate technology used ensures high safety, low self-discharge and a long service life.Modular and customisableThe system architecture enables flexible scaling up to 16 parallel battery racks and the parallel AC operation of up to 10 Deye inverters. This allows the system to be tailored precisely to growing requirements while remaining expandable in the long term.Safe energy managementThe integrated BMS continuously monitors cell voltages, temperatures and state of charge. It actively protects against critical operating conditions and optimises the service life of the battery units through automatic cell balancing.Who is the Deye BOS-G 60 PRO suitable for?The high-voltage storage set is ideal for:Commercial premises with high energy consumption or emergency power requirementsLarge-scale photovoltaic systems with a focus on optimising self-consumptionPrivate households with above-average energy consumptionProject developers who require a modular, certified high-voltage system  ModelDEYBOS-G-PRO Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 Max. battery module number InSeries (optional)5-16 System nominal voltage (V)256-819.2 System operating voltage (V)220~934.4 System capacity (kWh)25.6-81.92 System usable capacity (kWh)23.04-73.73 Charging/discharging current (A) - recommendation50 Charging/discharging current (A) - rated value100 Charging/discharging current (A) - peak discharge (2 min,25°C)125 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 55 Display system indicator Yellow : Battery High VoltagePower On Red : Battery System Alarm Communication portCAN2.0, RS485 Humidity5% ~ 85%RH Altitude≤3000m IP protection rating of the enclosureIP20 Storage temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)530 * 602 * 2219 Weight (kg)290-837 Installation locationFloor mounting Recommended depth of discharge90% Cycle life25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsUN38.3 / CE / CE-EMC / IEC62040 / CEC / VDE  FAQs on the Deye BOS-G 60 PRO high-voltage storage setWhat storage capacity does the BOS‑G 60 PRO deliver and how much of it is usable?The set consists of 12 LiFePO₄ modules, each with a gross capacity of 5.12 kWh, resulting in a total storage capacity of 61.44 kWh. Thanks to the recommended 90% depth of discharge (DoD), around 55.3 kWh net usable energy is available, ideal for large private households or commercial applications.What protection and management functions does the BMS perform?The integrated battery management system (BMS) continuously monitors and protects against overvoltage and undervoltage, overcurrent, short circuit and temperature deviations. It also actively balances all cells and ensures optimal charging and discharging conditions.Which electrical parameters (voltage & current) are relevant?Operating voltage: between 528 V and 700.8 V, nominal voltage at 614.4 V DCMaximum continuous current: 100 AShort-term peak current: 125 A (approx. 2 minutes)Is the system modularly expandable?Yes, the modular concept allows several BOS‑G 60 PRO storage systems to be operated in parallel. Up to 16 tanks (racks) in series connection and up to 10 inverters in AC connection are possible in order to scale capacity and redundancy as required.In which temperature range can the storage system be operated?Discharging: from −20 °C to +55 °CCharging: from 0 °C to +55 °C. Scope of delivery Deye BOS-G60 PRO high-voltage storage set (61.44 kWh) with rack system: System compositionThis product is a set and consists of a rack cabinet and the 13 individual slide-in modules (1x BMS and 12x batteries).Component 1: Deye rack system / battery cabinetA cabinet for accommodating the BMS unit and the battery modules, often with castors and feet.Component 2: Deye control box / BMS slide-in moduleThe central control unit (BMS/BCCB), which is inserted into the rack cabinet as a module.Component 3 to 14: Twelve Deye BOS-G-PRO-Pack5.1 high-voltage battery slide-in modules (5.12 kWh each)Twelve pure high-voltage battery modules, which are also inserted into the rack cabinet.1 x set of battery connection cables (plus & minus)A pair of special high-voltage power cables for connecting the BMS module to a compatible high-voltage hybrid inverter.1 x communication cable (CAN/RS485)A long data cable for communication between the BMS module and the inverter.12 x connecting bridge / series connection cableShort, robust cables or fixed bridges for connecting the thirteen slide-in modules (BMS + 12 batteries) to each other in the rack.1 x earthing cableA protective conductor cable for the compliant earthing of the rack system.1 x mounting accessories (rack mounting)Includes screws and rails for fastening the modules within the rack, as well as material for anchoring the cabinet to the floor.1 x operating and installation instructionsA printed manual describing the assembly of the complete rack system.

Deye’s GE-F60 series represents the next generation of intelligent high-voltage energy storage systems. It combines high-performance lithium iron phosphate (LiFePO₄) technology with an integrated energy management system, thereby offering a reliable, safe and scalable solution for energy storage in both domestic and industrial applications.Highlights at a glanceCapable of black start & suitable for off-grid use: Automatic restart in the event of a power cut High efficiency and service life: Over 6,000 charge cycles with minimal capacity loss Scalable up to 600 kWh & 500 kW: Flexible expansion for growing requirements IP55-certified: Dust- and splash-proof for a wide range of applications Security & protection at the highest levelThe GE-F60 sets new standards in terms of safety:Active gas/smoke/temperature monitoring Aerosol fire extinguishing system in the module & complete system Redundant power supply for maximum reliability Intelligent cell balancing and automatic fault detection Scalable for any applicationThe base system comprises 12 modules, each with a capacity of 5.12 kWh, resulting in a total capacity of 61.44 kWh (55.29 kWh usable). Depending on the application, the battery capacity can be expanded to up to 360 kWh. Up to 10 systems can be connected in parallel via the AC side, making it well suited for large commercial or industrial projects.Who is the Deye GE-F60 suitable for?Private households seeking maximum energy independence SMEs & industrial facilities requiring a stable power supply and peak load management Emergency power systems that must be fail-safe and capable of black start PV projects with high output and storage requirements Off-grid systems, e.g. for remote buildings or island grids  ModelDEYGE-F60 Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 Battery module quantity InSeries (optional)12 System nominal voltage (V)614.4 System operating voltage (V)480-700 System capacity (kWh)61.44 System usable capacity (kWh)55.29 Charging/discharging current (A) - Recommendation50 Charging/discharging current (A) - Rated value100 Charging/discharging current (A) - Peak discharge (2 min,25°C)125 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 55 LCD displaySOC%, Power, Total Voltage Communication portCAN2.0, RS485 Humidity5% ~ 90% Altitude≤2000m Enclosure IP ratingIP65 Storage temperature (°C)0 ~ 35 Dimensions (W/D/H, mm)780 * 1056 * 2235 Weight (kg)1200 Installation locationFloor mounting Recommended depth of discharge90% Cycle life25 ± 2°C, 0.5C/0.5C, EOL70% ≥ 6000 Warranty10 years CertificationsCE, IEC62619, IEC62040, UN38.3  FAQs on the Deye GE-F60 energy storage solutionHow much energy is available when fully equipped?A tower with 12 modules delivers 61.44 kWh gross. With a depth of discharge of 90%, approximately 55.29 kWh of this is usable.What voltages and currents apply?The nominal system voltage is 614 V. The operating range is from 480 to 700 V. The continuous discharge current is specified as 100 A; up to 125 A is possible for short periods.How far can the system be scaled?For larger commercial or industrial applications, up to six GE-F60 units can be operated in parallel. This enables total capacities of up to 360 kWh to be achieved.Which inverters is the system compatible with?The GE-F60 is fully pre-configured for hybrid inverters in the SUN-29.9K/30K/35K-SG01HP3-EU-BM3 and SUN-40K/50K-SG01HP3-EU-BM4 series. The appropriate CAN profile (code 00) is already pre-set at the factory; manual configuration is not required. We strongly recommend checking the compatibility list, as the manufacturer may make changes.What protection functions are integrated?The safety concept includes gas and smoke detection, active pressure relief, an integrated aerosol extinguishing cartridge and an automatic shut-off within three seconds. These measures specifically address common concerns regarding installation indoors or in the basement.

The Felicity Solar FLH96050SG01 in the maximum configuration with 20.48 kWh is the ultimate power station for demanding homes, apartment buildings and small businesses. This system, consisting of four stacked battery modules, offers an enormous energy reserve that enables maximum independence from the public grid. It is specially designed to efficiently cover high energy demands from electromobility and heat pump heating, as well as to bridge longer periods without sunlight.Highlights at a glanceMaximum storage capacity: At 20.48 kWh, this system offers one of the highest capacities in the home storage segment, ideal for maximum self-sufficiency and emergency power supply.Modular construction (4-stack): The system consists of four battery modules, each 5.12 kWh, and a BMS control unit, which are wirelessly stacked on top of each other ("Plug & Play").Integrated safety: Each module is equipped with an advanced aerosol fire extinguishing system that reacts immediately in the event of an emergency – an industry-level safety standard.High-voltage efficiency: The high system voltage minimises line losses and ensures optimum efficiency, especially when operating powerful consumers.Durable & robust: Uses modern LiFePO4 cells for over 6000 cycles lifespan and an IP65-certified housing for flexible installation locations.Smart communication: Compatible with the market-leading hybrid inverters (Deye, Solis, Growatt, GoodWe, etc.) via CAN/RS485 interfaces.The power station for the energy transition at homeWith over 20 kWh of storage capacity, this system is predestined for sector coupling. It stores enough solar energy to meaningfully charge an electric car even after sunset or to run a heat pump through cold winter nights without needing expensive grid electricity. For commercial operators, it effectively helps with "peak shaving" (cutting load peaks) to reduce grid charges.Simple installation despite high outputDespite the impressive performance data, installation remains manageable. Thanks to the modular design, you do not need to move 200 kg all at once. The individual modules are placed one after another at the installation location and automatically lock with each other. This saves time and installation costs. Characteristics ModelFelicity Solar FLH96050SG01 (20.48 kWh) System typeHigh voltage storage system (High Voltage) - stackable Configuration4x battery modules (each 5.12 kWh / 102.4 V) Nominal energy20.48 kWh Nominal voltage409.6 V Capacity50 Ah Voltage range336 V - 456 V (approx. range for 4 modules) Charging current / discharging current25 A (standard) / 50 A (maximum) SafetyIntegrated aerosol fire extinguishing system in each module Protection classIP65 (Suitable for indoor and protected outdoor installation) Weight (kg)approx. 243 (4x 57.5kg module + approx. 12.5kg control unit)  FAQs for the Felicity FLH96050SG01 (20.48 kWh)Do I need a special inverter for this size?You need a high-voltage hybrid inverter, which can manage the appropriate voltage and capacity. Most 3-phase hybrid inverters (e.g., Deye 10kW/12kW, Growatt SPH series) are perfectly suited for this battery size. Pay attention to the permissible voltage range (Input Voltage Range) of the inverter.How big is the storage tower?Since four modules plus the BMS unit (base/top) are stacked on top of each other, the tower reaches a considerable height. Make sure there is enough vertical space at the installation location (e.g., basement, garage) and that the floor can bear the weight of over 200 kg (solid ground recommended).Can I connect two of these towers in parallel?Yes, where there is very high energy demand (e.g., multi-generation house or business), several of these towers can be connected in parallel to one or more inverters to achieve capacities of 40 kWh or more. However, this requires careful coordination with the inverter.Why LiFePO4 and not Li-Ion (NMC)?LiFePO4 (lithium iron phosphate) is considered the safest cell chemistry on the market. It is thermally stable (no "thermal runaway" in normal faults), cobalt-free (more environmentally friendly), and has a significantly higher cycle life than traditional Li-Ion batteries, which is crucial for the economics of an investment of this size. Scope of delivery: Felicity Solar FLH96050SG01 (20.48 kWh HV Battery Storage Set) 1 x Felicity FLH96050SCG01 BMS control unitThe central high-voltage management module, which is mounted on top of the stack and controls communication with the inverter.4 x Felicity FLH48100-S battery modules (5.12 kWh each)Four stackable high-voltage LiFePO4 storage units that together provide the total capacity of 20.48 kWh.1 x base plate (Base)A solid base for floor mounting, serving as a stable pedestal for the entire battery tower.1 x set of internal connection cables (Plug & Play)Short DC bridges and communication cables for the electrical coupling of the four modules within the tower.1 x external high voltage cable set (DC)A pair of specialised power cables for the safe connection of the battery tower to the high-voltage hybrid inverter.1 x communication cable (BMS-to-Inverter)A pre-assembled data cable for connecting the control unit to the inverter via CAN or RS485 interface.1 x mounting set (tilt protection & screws)All mounting materials for wall fixing of the tower as well as screws for mechanical module connections.1 x user manual (User Manual)A technical manual with detailed instructions for stacking, BMS configuration, and important safety notes.

The Felicity Solar FLH96050SG01 in the 30.72 kWh version is the absolute flagship model of this high-voltage series and represents the maximum that is possible in a single storage tower. Consisting of six powerful battery modules, this system offers massive energy density with minimal footprint. It is the perfect solution for large multi-generation houses, agricultural enterprises, commercial properties or sophisticated homes with maximum autonomy requirements and high night-time energy demands (e.g. due to electric vehicle fleets or server rooms).Highlights at a glanceMaximum tower capacity: With 30.72 kWh, this system fully exploits the capacity of a single battery stack – more energy on less than 0.3 m² floor space is hardly possible.6-stack design: The system consists of six 5.12 kWh modules and the control unit. Thanks to the wireless plug-in system, installation remains straightforward despite the size.Highest system voltage: With a nominal voltage of over 600 volts, the system operates extremely efficiently, minimises line losses and enables very high charging and discharging performance.Industrial safety: Like all models in the series, this version has LiFePO4 cells and an integrated aerosol fire extinguishing system in every module for maximum protection.Commercial-ready: Ideal for peak shaving (load peak capping) and emergency power supply in small businesses or large residential buildings.Smart management: The BMS actively monitors and balances the six modules and communicates via CAN/RS485 with compatible inverters.The power station for business and large-scale consumersWith over 30 kWh of storage capacity, this system leaves the scope of classic single-family home applications. It is designed to efficiently use large PV systems (> 20 kWp). During the day, the huge storage is charged to supply entire businesses or several households at night. High-voltage technology ensures that even at high discharge currents (e.g. fast charging of electric cars) efficiency remains high and heat generation low.Installation and staticsWith this configuration, the storage tower reaches a height of approx. 1.70 m to 1.80 m and a weight of over 300 kg. The modular construction makes transport to the installation site easier, but the ground must be absolutely level, firm and load-bearing (concrete floor recommended). Wall mounting for anti-tip protection is highly recommended at this height. Characteristics ModelFelicity Solar FLH96050SG01 (30.72 kWh) System seriesFLH series (High Voltage Stackable) Configuration6x battery modules (5.12 kWh / 102.4 V each) + 1x control unit Nominal energy30.72 kWh Nominal voltage614.4 V Capacity50 Ah Voltage range504 V - 684 V Charging / discharging current25 A (recommended) / 50 A (maximum) SafetyIntegrated aerosol fire extinguishing system Protection classIP65 (protected against dust and water jets) Weight (kg)approx. 360 (total system)  FAQs for the Felicity FLH96050SG01 (30.72 kWh)Which inverter do I need for 6 modules?This is the most critical point for this size: the final charging voltage is close to or above 700 V. You absolutely need an inverter that supports this high battery voltage range (e.g. Deye SUN-10K/12K/15K-SG01HP3 or large Solis hybrid devices). Smaller high-voltage inverters, which are only designed for up to 600 V battery voltage, are not compatible!Can I expand the system?A single tower is usually mechanically and electrically stretched to its limits with 6 modules. If you require even more capacity (e.g. 60 kWh), you must build a complete second tower in parallel and connect these via a combiner box or directly to the inverter (depending on the inverter model).Is installation difficult?The principle ("stacking") is simple. However, due to the tower's height (6 modules + head), you may need a small ladder or step for the upper modules. In addition, installation should be carried out by two people to safely lift the 50 kg modules to head height.What happens if a module is defective?Thanks to the modular construction, it's not necessary to replace the entire system. A single defective module can be removed from or replaced within the tower. The BMS may then need to be recalibrated to balance the new voltage levels. Scope of delivery: Felicity Solar FLH96050SG01 (30.72 kWh HV battery storage set) 1 x Felicity FLH96050SCG01 BMS control unitThe central high-voltage management module that handles all monitoring and communication with the inverter.6 x Felicity FLH48100-S battery modules (each 5.12 kWh)Six stackable high-voltage LiFePO4 storage units, connected in series to provide the maximum overall capacity of 30.72 kWh for one tower.1 x base plate (Base)A solid foundation for floor mounting, which serves as a stable base for the high battery tower.1 x set of internal connection cables (Plug & Play)All the required DC bridges and internal data cables for coupling the six modules within the stack.1 x External high-voltage cable set (DC)A pair of specialised power cables for the safe electrical connection of the storage system to the high-voltage hybrid inverter.1 x communication cable (BMS-to-Inverter)A pre-assembled data cable for connecting the control unit to the inverter via CAN or RS485 interface.1 x mounting kit (tilt protection & screws)Special fastening material for wall mounting the tower and all necessary screws for the mechanical connection of the modules.1 x User ManualA technical manual with detailed instructions for stacking, configuring the BMS and important safety notes.

The Deye BOS-G-PRO-Pack5.1 is a state-of-the-art, high-voltage-capable lithium iron phosphate battery module (LiFePO4), specially developed for use in commercial and demanding residential photovoltaic systems. It replaces confusing individual solutions with a modular, highly efficient system and at the same time offers intelligent functions to optimise storage performance.With its sophisticated design, the BOS-G-PRO-Pack5.1 is not just a pure energy storage unit, but serves as a future-proof building-block solution (Modular Storage) for your energy independence. It supports seamless integration with Deye high-voltage inverters and ensures that your system can call up maximum performance at any time.Highlights at a glanceHigh safety: The proven lithium iron phosphate chemistry (LiFePO4) offers maximum thermal stability and longevity with minimal self-discharge risk.Modular 19-inch design: The compact 3U standard format enables quick, uncomplicated rack mounting and flexible scalability of the overall system.Excellent cycle stability: With over 6,000 charge cycles (at a recommended depth of discharge of 90%), the module guarantees an extremely long service life.Intelligent BMS: Integrated protective functions against deep discharge, overcharging, overcurrent and extreme temperatures ensure fully automatic cell balancing.Safety functions: A comprehensive battery management system ensures worry-free operation around the clock.Future-proof capacity: Enables flexible expansion from smaller commercial storage systems to large industrial projects in the megawatt range. Areas of applicationThe Deye BOS-G-PRO-Pack5.1 is the perfect addition for commercial PV systems and demanding private homes: Private homes & prosumers: Maximising self-consumption of solar power and ensuring a reliable emergency power supply for the entire building.Commerce & industry: Peak shaving and optimisation of operating costs through efficient intermediate storage of low-cost solar power.Agriculture & trade: Clear and scalable storage of energy to operate energy-intensive machines and systems (e.g. cooling systems or workshops) autonomously.Installation & safety instructionsMinimum system size: To build a functional high-voltage system (BOS-G25 Pro), at least 5 battery modules connected in series are required.Control unit (PDU): In addition to the battery modules, a suitable master control unit (High Voltage Cluster Control Box) is absolutely required for battery management and protection.Transport & installation: Due to the dead weight of approx. 45 kg per module, installation in the rack cabinet should be carried out by at least two people or with suitable lifting equipment. Properties CategoryDeye BOS-G-PRO-Pack5.1 Nominal capacity100 Ah (5.12 kWh) Battery typeLithium iron phosphate (LiFePO4) Nominal voltage51.2 V DC (high-voltage system) Nominal discharge current100 A (max. 120 A for 2 min.) Cycle life≥ 6000 cycles (at 25°C) Depth of discharge (DoD)90 % Protection classIP20 (rack mounting) CommunicationCAN 2.0 / RS485 Operating temperature rangeCharging: 0~55°C / Discharging: -20~55°C ExpandabilityModular (up to 16 clusters in parallel) FAQs about the DEYE BOS-G-PRO-Pack5.1 Can a single module be connected directly to a high-voltage inverter? No. As this is a high-voltage system, at least 5 modules must be connected in series in order to reach the required system voltage. In addition, a master control unit (PDU) is absolutely necessary. How long does the manufacturer's warranty on the module apply? 10 years. Deye grants a long-term manufacturer's warranty of 10 years on the battery module, provided it is operated within the specified operating conditions and temperature windows. Is the BMS included in the scope of delivery of the individual module?  Partially. Each module has an integrated sub-BMS for monitoring its own cells. However, the higher-level control and communication with the inverter is handled by the master control unit (PDU), which must be purchased separately.

The Deye GB-L-PRO4.1 is a state-of-the-art expansion module for the GB-L high-voltage battery series from Deye. With a gross capacity of 4.09 kWh serves as a building block for scalable energy storage systems in the residential and small commercial sectors. By combining several modules, the capacity can be precisely tailored to individual energy requirements.Based on the secure lithium iron phosphate technology (LiFePO4) the module offers exceptional cycle stability and thermal stability. The innovative stacking design enables a wireless connection between the modules, which minimises installation effort and ensures a clean, compact appearance.Highlights at a glanceScalable energy: One module offers a capacity of 4.09 kWh – a bespoke high-voltage system can be built by simply stacking several units.Safe LiFePO4 technology: The cobalt-free cell chemistry guarantees maximum safety and a long service life, and virtually eliminates the risk of thermal runaway.Plug-and-play installation: Thanks to integrated plug-in contacts, there is no need for complex DC cabling between the individual battery modules during stacking.High efficiency: As part of a high-voltage system, the module operates with minimal conversion losses, which increases the efficiency of the entire PV system.Robust & Durable: Designed for over 6,000 charge cycles, the module offers a future-proof investment in your energy independence.Protection class IP65: The housing reliably protects the sensitive electronics from dust and water spray, making it ideal for a variety of installation locations.Areas of applicationThe GB-L-PRO4.1 module is the flexible basis for a wide range of storage solutions:System extensionEasily scale up your existing Deye GB-L battery storage system by an additional 4.09 kWh if your energy requirements increase (e.g. due to an electric car or a heat pump).New installations in residential areasCombine 2 to 6 modules to form a powerful high-voltage tower for maximum self-consumption of electricity.Commercial storage solutionsCreation of larger storage capacities by connecting several battery towers in parallel to manage peak loads.Installation & Safety InstructionsRequired componentsPlease note that at least one battery management system (GBL-PRO BMS) and a base plate (Base) are required. The module alone is not operational.Stacking limitsPlease note the maximum number of modules per tower as specified for your Deye system (usually up to 6 modules per BMS).Condition of the modulesIn the event of a subsequent expansion, the existing modules and the new module should be brought to a similar state of charge (SOC balancing) to enable optimal balancing by the BMS. Features Model**Deye GB-L-PRO4.1** Rated energy**4.09 kWh** Rated voltage**102.4 V** (per module) Battery typeLithium iron phosphate (LiFePO4) Max. charging/discharging current50 A Usable energy (90% DoD)3.68 kWh Dimensions (W/H/D)540 / 232 / 385 mm Weightapprox. 45 kg CertificationsCE, IEC62619, VDE2510-50, UN38.3  FAQs on the Deye GB-L-PRO4.1 battery moduleCan I connect a single 4.09 kWh module directly to the inverter?No.As this is a high-voltage system, a minimum number of modules (usually 2 or 3, depending on the inverter specifications) and the associated control unit (BMS) are essential to achieve the required operating voltage.How long is the warranty on the Deye battery modules?Usually 10 years.Deye typically offers a 10-year performance warranty or a specified cycle count for its LiFePO4 storage modules, provided that the installation has been carried out by qualified personnel.Can I install the module outdoors?Yes, subject to certain conditions.Thanks to IP65, the module is weatherproof. Nevertheless, the installation site should be protected from direct sunlight and extreme frost to preserve the cell chemistry and optimise the efficiency of the optional heating function.Do I need to purchase additional cables if I scale the system?No.Power and communication are connected directly via the integrated connectors when the modules are stacked. Only the connection from the BMS to the inverter requires a suitable cable set. However, this is included with the PDU and the Base. Please contact the sales department if you have any questions.How heavy is a battery tower with 4 modules?Quite substantial.A single module weighs approx. 39 kg. A tower consisting of 4 modules, including the BMS and base, weighs over 170 kg. It is therefore essential that you check the load-bearing capacity of your floor. Scope of delivery: Deye GB-L-PRO4.1 – 4.09 kWh battery module for modular high-voltage storage solutions 1 x Deye GB-L-PRO4.1 battery moduleA modular LiFePO4 storage element with a nominal capacity of 4.09 kWh and a cell voltage of 51.2 V (connected in series in the stack to form a high-voltage unit).1 x set of connection accessories (internal)Includes the internal connectors and fastening elements required to connect the module mechanically and electrically to the next module in the stack.1 x communication cable (daisy-chain)A short data cable for forwarding the BMS information to the next battery module within the tower.1 x earthing cableA protective conductor cable (yellow-green) for proper earthing of the module housing within the overall system.1 x assembly and fixing setIncludes screws and securing elements to fasten the modules to one another and prevent slipping.1 x operating and installation instructions (user manual)A printed manual containing technical data, safety instructions and instructions for the correct stacking of the modules.

The Felicity Solar FLA48230-EU is a powerful lithium iron phosphate (LiFePO4) home storage system in the low-voltage range (48V). With an impressive capacity of 11.8 kWh in a single housing, this model is aimed at homeowners who want to realise a large storage capacity in a small space and with minimal cabling.In contrast to modular systems, where you often have to stack two to three modules for 10-12 kWh, the FLA48230-EU offers this energy in a single, wall-mountable block. It is particularly popular in combination with Deye, Growatt or Victron inverters and is characterised by an excellent price-performance ratio.Highlights at a glanceMassive capacity (11.8 kWh): Offers 230 Ah at 51.2 V in a single device. This drastically reduces the installation effort, as fewer cable bridges and connections are required than with small storage systems.Safe LiFePO4 technology: Utilises lithium iron phosphate cells which are considered thermally stable, intrinsically safe (no thermal runaway) and extremely durable.Integrated display & BMS: A front-mounted LCD display shows SOC (state of charge), voltage and cell status. The BMS protects against overcharging, deep discharge and overheating.Space-saving wall mounting: The slimline design enables flat wall mounting (similar to a radiator), saving valuable floor space in the plant room.High cycle stability: Designed for >6000 cycles (at 80% DOD / 25°C). This corresponds to a service life of over 15 years with daily use.Wide compatibility: Has CAN and RS485 interfaces and is compatible with the market leaders in the 48V segment (Deye, Victron, GoodWe, Growatt, SMA via CAN box).Built-in DC isolator switch: Often has an integrated circuit breaker on the side to safely and quickly disconnect the battery from the system.Areas of applicationThe FLA48230-EU is ideal for medium to large households:Self-consumption optimisation: Stores enough energy to power households with heat pumps or electric cars through the night.Emergency power supply (backup): In combination with hybrid inverters (e.g. Deye 12K), the storage system can supply the entire house in the event of a grid failure.Off-grid systems: Popular for self-sufficient holiday homes due to its robust design and high capacity.Technology & Advantages"All-in-one" advantage: Instead of wiring three 4kWh blocks (sources of error, contact resistances, space requirements), you only install one unit here. The BMS only has to balance one large cell block, which is often more efficient.Scalability: Despite its size, the system is expandable. Up to 12 or 15 units (depending on the firmware) can be connected in parallel to build storage systems in the three-digit kWh range.Ease of maintenance: The connections are easily accessible and the display allows diagnostics without a laptop/PC.Installation & safety instructionsWeight warning: With over 100 kg this storage system is extremely heavy. The wall bracket must be anchored in load-bearing masonry (concrete/brick). Installation on plasterboard walls is not possible without solid reinforcement. Use a pallet truck or lift for installation.Cable cross-section: Due to the high currents (up to 120A), battery cables with at least 35mm², better 50mm² can be used to minimise voltage drops.DIP switch: When communicating with the inverter (esp. Deye/Victron), the DIP switches on the communication port must be set correctly to define the BMS protocol. Characteristics ModelFelicity Solar FLA48230-EU Technology**LiFePO4** (Lithium Iron Phosphate) - Safe & Durable Nominal voltage**51.2 V** (standard low voltage system) Capacity**230 Ah** Energy content**11.77 kWh** (Marketed as ~11.8 kWh) Usable energy (DOD)approx. 90% - 95% (depending on inverter setting) Lifespan**≥ 6000 cycles** (at 25°C, 80% DOD) Communication**CAN / RS485** (Compatible with Deye, Growatt, etc.) Mounting**Wall mounting** (bracket included) or stand Weightapprox. **100 - 105 kg** (Attention: Very heavy!) Dimensions (H x W x D in mm)approx. 900 x 675 x 200 (flat design)  FAQs for the Felicity FLA48230-EUDoes this battery work with the Deye SUN-12K-SG04LP3?Yes, excellent. This is one of the most common combinations. The battery is connected via CAN bus. In the Deye inverter, you usually select "Lithium Mode" and the protocol "00" (or "12" for Felicity, depending on the firmware), and the system automatically recognises the 230Ah.Can I retrofit two of these batteries later?Yes. You can connect several FLA48230s in parallel. One battery is configured as the "master" (DIP switch 1 ON) and the others as "slaves". Important: The batteries should have the same voltage (same state of charge) when they are connected in order to avoid high equalising currents.Why is "EU" in the name?The "EU" model is specifically certified for the European market (CE, UN38.3, MSDS) and complies with the applicable safety standards. The instructions and support are often also orientated towards European dealers. Scope of delivery: Felicity Solar FLA48230-EU (11.8 kWh LV battery storage) 1 x Felicity Solar FLA48230-EU battery moduleA standing 51.2V LiFePO4 energy storage system with a capacity of 230 Ah (11.77 kWh) and integrated battery management system (BMS).1 x set of DC power cables (power cable)A pair of high-current-resistant cables (plus and minus) for the electrical connection of the storage system to the low-voltage inverter.1 x BMS communication cableA pre-assembled data cable (RJ45) for communication between the battery and the inverter via CAN or RS485 interface.1 x earthing cableA yellow-green protective earthing cable for safe earthing of the battery housing.1 x wall mounting set / anti-tilt deviceMounting accessories for fixing the housing to the wall to prevent the upright storage system from tipping over.1 x mounting kit (screws and accessories)All small parts and screws required for installation and electrical connections.1 x User manualA technical manual with installation instructions, pin assignments for various inverters and safety instructions.

The Deye GB-L-PRO16 is a powerful and highly flexible high-voltage energy storage system, specially developed for modern photovoltaic systems in residential and small commercial settings. With a gross capacity of 16.36 kWh offers a generous energy reserve to significantly increase self-consumption and sustainably boost independence from the public grid.The system stands out thanks to its modular design and advanced Lithium iron phosphate technology (LiFePO4), which guarantees maximum safety and a long service life. Thanks to its simple stackable design, the system can be installed without complex cabling between the modules and easily expanded as required.Highlights at a glanceHigh safety: The cobalt-free LiFePO4 chemistry ensures maximum safety, thermal stability and a long cycle life.Easy installation: Thanks to the modular "plug-and-play" design, stacking assembly is quick and requires no additional cable connections between the battery modules.Integrated BMS: The intelligent battery management system monitors each cell individually and protects against overcharging, deep discharge and extreme temperatures.Efficient high-voltage technology: The high system voltage reduces conversion losses and optimises efficiency in combination with modern hybrid inverters.Emergency power capable: Supports high discharge rates to ensure a safe supply to critical household appliances even during power cuts.Robust design: With an IP65 protection rating, the system is dust-tight and protected against water jets, enabling installation in a variety of environments.Areas of applicationThe GB-L-PRO16 is the ideal storage solution for sophisticated energy concepts:Self-consumption optimisationStorage of surplus solar power during the day for use in the evening and at night.Back-up power supplyWhen used with compatible hybrid inverters, the system provides protection in the event of power cuts (blackout protection).Peak shavingReduction in electricity costs through the buffering of peak loads, particularly in households with heat pumps or electric vehicle charging points.Installation & safety instructionsSite selectionPlace the storage unit on a level, load-bearing surface. Ensure adequate ventilation and maintain the recommended minimum distances from walls.Protection against extreme temperaturesAlthough the system is designed for a wide temperature range, installation in cool, frost-free indoor areas (e.g. a basement or utility room) extends the service life of the cells.Professional commissioningThe electrical connection to the inverter and the configuration of the BMS must only be carried out by certified specialists in order to maintain the warranty. Features ModelDeye GB-L-PRO16 Nominal energy16.36 kWh Voltage409.6 V (high voltage) Battery typeLithium iron phosphate (LiFePO4) Max. charging/discharging current40 A Usable energy (90% DoD)14.4 kWh Protection classIP65 (dust- and water-jet-protected) Cycle life≥ 6000 cycles (@25°C, 90% DoD) CertificationsCE, IEC62619, VDE2510-50, UN38.3  FAQs on the Deye GB-L-PRO16 battery systemCan I expand the system with additional modules at a later date?Yes.Thanks to the modular design, you can flexibly scale the capacity of your storage system to meet growing energy demands by adding compatible battery modules.Which inverters is the system compatible with?Primarily with Deye hybrid inverters.The system is optimally matched to the high-voltage hybrid inverters from Deye. Please check the current compatibility list for third-party manufacturers before installation.Why is LiFePO4 used as the cell chemistry?For superior safety.Unlike conventional lithium-ion batteries (NMC), LiFePO4 is chemically much more stable. Even if physically damaged, these cells do not tend to catch fire, making them the safest choice for residential buildings.Does the system have an integrated heating system for winter operation?Yes, optional.The Deye GB-L-PRO16 system supports an integrated heating function, which enables the battery cells to be charged safely even at low ambient temperatures. This is particularly important for installations in unheated rooms to prevent cell damage in freezing conditions.What is the maximum discharge power of the 16.36 kWh system?Depending on the module configuration.Thanks to high-voltage technology, the system can deliver high discharge currents. As a rule, this 16.36 kWh pack enables a continuous power output of approx. 8 kW to 12 kW, ideal for operating heat pumps or wall boxes. Scope of delivery Deye GB-L-PRO16 modular high-voltage battery system (16.36 kWh): System compositionThis product is a set and consists of five separate main components that together form a 16.36 kWh high-voltage tower system.Component 1: Deye GBL-PRO BMS (high-voltage control unit & base)The central control unit (BMS) that manages the entire high-voltage system. This unit forms the base of the battery tower.Component 2, 3, 4 & 5: Four Deye GB-L-PRO-BATT high-voltage battery modules (4.09 kWh each)Four high-voltage battery modules, each with 4.09 kWh, which are stacked on the BMS unit and on top of each other.1 x set of battery connection cables (positive & negative)A pair of special high-voltage power cables for connecting the BMS unit to a compatible high-voltage hybrid inverter.1 x communication cable (CAN/RS485)A data cable for communication between the BMS and the inverter.3 x connecting bridge / series connection cableShort, robust cables or fixed bridges to connect the four battery modules in series.1 x earthing cableA protective earth cable for the proper earthing of the BMS unit.1 x installation accessories (tower assembly)Includes screws or locking elements to securely connect the five components into a tower.1 x operating and installation instructionsA printed manual describing the installation of the entire high-voltage tower system.

The Deye GB-L-PRO24 is a high-capacity high-voltage energy storage system designed for demanding photovoltaic projects in the domestic and small commercial sectors. With a massive gross capacity of 24.56 kWh represents one of the most powerful configurations in the GB-L series and enables almost complete energy independence, even with high power consumption.The system utilises the tried-and-tested lithium iron phosphate technology (LiFePO4), which is renowned for its exceptional safety and cycle stability. Thanks to its modular stacking design, this storage system can be installed quickly and neatly without the need for complicated internal cabling between the individual battery modules.Highlights at a glanceMaximum capacity: With 24.56 kWh, the system offers enormous reserves for heat pumps, electric vehicles and commercial applications.Safe cell chemistry: The cobalt-free LiFePO4 technology prevents thermal runaway and guarantees a long service life of over 6,000 cycles.Efficient high-voltage architecture: The high operating voltage minimises conversion losses and ensures highly efficient coupling with modern hybrid inverters.Easy scalability: The modular "plug-and-play" principle enables quick assembly by simply stacking the components on top of one another.Intelligent management: The integrated GBL-PRO BMS continuously monitors all cell parameters and optimises the charging and discharging strategy.All-weather housing: The IP65 protection rating ensures reliable operation and protection against dust and water jets in various installation locations.Areas of applicationThe GB-L-PRO24 is the ideal solution for complex energy scenarios:Large private householdsStorage of substantial solar surpluses for night-time use, ideal for simultaneous operation of air conditioning and pool systems.Commercial & AgricultureCovering high base loads and buffering power peaks (peak shaving) to reduce grid charges.Complete self-sufficiency (off-grid)In combination with high-performance inverters, it forms the heart of an off-grid system for an uninterrupted power supply.Installation & safety instructionsObserve structural requirementsA fully kitted tower in this capacity class has a significant dead weight (approx. 250–280 kg). Check the load-bearing capacity of the ground beforehand.Central BMS requiredTo operate this 24.56 kWh battery pack, the appropriate GBL-PRO BMS as well as the associated base plate (Base) is essential.Fire protection & ventilationObserve the minimum clearances from walls and flammable materials specified by the manufacturer to ensure optimum heat dissipation. Features ModelDeye GB-L-PRO24 Rated energy24.56 kWh Voltage614.4 V (high voltage) Battery typeLithium iron phosphate (LiFePO4) Max. charge/discharge current50 A Usable energy (90% DoD)22.10 kWh Protection ratingIP65 (indoor/outdoor installation) Cycle life≥ 6000 cycles (@25°C, 90% DoD) CertificationsCE, IEC62619, VDE2510-50, UN38.3  FAQs on the Deye GB-L-PRO24 battery systemCan I connect two of these 24.56 kWh towers in parallel?Yes.The Deye system supports the parallel connection of multiple battery towers. This allows capacities well in excess of 24 kWh to be achieved, enabling even larger commercial requirements to be met.Is the system compatible with single-phase inverters?No, not usually.The GB-L high-voltage series is specifically designed for 3-phase hybrid inverters (such as the Deye high-voltage series). For 1-phase systems, Deye usually offers low-voltage solutions (48V). We recommend checking the compatibility list beforehand.Does the system have an emergency power function?Yes, in conjunction with the inverter.The battery system is designed for high discharge currents and can provide backup power to the house in the event of a mains power failure, provided that the connected inverter supports this.How deeply can the storage system be discharged?Up to 90% (DoD).The intelligent BMS allows a depth of discharge of up to 90% to maximise usable capacity without negatively affecting the service life of the cells.Does the system require regular maintenance?No.The system is maintenance-free. However, its status can be monitored at any time via the app or web portal using the integrated communication interface to ensure optimum performance. Scope of delivery: Deye GB-L-PRO24 (24.56 kWh high-voltage battery system) 1 x Deye GB-LB BMS controller (control unit)The central high-voltage control unit, which is mounted on top of the battery stack and handles all management functions as well as communication with the inverter.6 x Deye GB-L-PRO4.1 battery modulesModular LiFePO4 storage cells, each with a capacity of 4.09 kWh, which together provide a total capacity of 24.56 kWh.1 x Deye GB-L Base (base plate)The solid base for floor mounting, which serves as a stable foundation for the entire battery tower.1 x set of internal connection cables (Plug & Play)All necessary connectors and short communication bridges for the electrical coupling of the modules within the tower.1 x External cable set (Power & BMS)Includes the high-voltage power cables to the inverter and the necessary data cable for BMS communication.1 x wall mounting kit (anti-tilt device)Mounting accessories for securing the battery tower to the wall to ensure maximum stability.1 x set of mounting hardwareAll necessary screws and small parts for the mechanical connection of the modules and the controller.1 x operating and installation manual (User Manual)A technical manual with detailed instructions on stacking, cabling and configuring the high-voltage system.

The Deye SE-F12 is a state-of-the-art low-voltage energy storage system (48V / 51.2V) designed for maximum reliability and performance in residential and commercial solar installations. With an impressive rated capacity of 11.8 kWh (approx. 230 Ah) in a single, compact housing, this storage unit offers an excellent balance of high energy density and proven safety.Thanks to the long-lasting lithium iron phosphate (LiFePO4) cell chemistry and the intelligent battery management system (BMS), the SE-F12 is the ideal choice for users who wish to maximise their self-sufficiency. The system’s enormous scalability also makes it a flexible and future-proof investment in your own energy independence.Highlights at a glanceHigh storage capacity (11.8 kWh): It offers a massive 230 Ah at a nominal voltage of 51.2 V in a single module, which drastically reduces the amount of cabling required compared to smaller 5 kWh blocks.Safe LiFePO4 technology: It uses lithium iron phosphate, the safest and most thermally stable cell chemistry on the market, with no risk of thermal runaway.Powerful power handling: Enables a maximum continuous discharge current of 230 A (approx. 11.5 kW output) and peak currents of up to 280 A for 10 seconds – ideal for large consumers such as heat pumps or electric car charging stations.Extreme scalability: The system scales with your requirements. Up to 32 units can be connected in parallel as standard (with a CAN-Bridge, up to 64 units for a storage capacity of up to 18 MWh).Smart monitoring: Equipped with LED status indicators as well as Bluetooth, RS485 and CAN2.0. Seamless integration in the Deye app enables precise real-time monitoring on your smartphone.Long service life: Certified for over 6,000 cycles (at 80 % depth of discharge / DoD), which corresponds to a service life of 15+ years with daily charging and discharging.Flexible installation: Certified to IP21, the housing supports both wall mounting and floor-standing (stacked) installation to make optimum use of space in the plant room.Areas of applicationThe Deye SE-F12 is extremely versatile and is primarily suitable for:Detached houses: To maximise self-consumption and as a robust emergency power storage solution in combination with hybrid inverters.Commercial systems (C&I): For peak shaving and the storage of large PV yields in agricultural or commercial operations.Off-grid systems: The high continuous load capacity easily serves stand-alone off-grid systems with large inrush currents.Installation & safety instructionsTransport and handling: With a weight of 84 kg the module is extremely heavy. Be sure to plan transport into the basement or plant room with two people or suitable lifting equipment (e.g. stair climber).Temperature management: The storage unit operates within a wide range (-20°C to 55°C during discharge), but should be installed in a frost-free, dry room (15°C to 25°C) for maximum service life and capacity yield. Charging below 0°C is blocked by the integrated BMS for safety reasons.Cable sizing: To transmit the enormous maximum continuous current of 230 A without voltage losses or dangerous heat build-up, high-quality battery cables with a cross-section of at least 70 mm² (better 95 mm²) between the storage unit and busbar or inverter are essential.Compatibility: The system "speaks" the Deye protocol natively and works best via Plug & Play with Deye low-voltage hybrid inverters (e.g. the SUN-10K or 12K-SG04LP3 series). Features  ModelDeye SE-F12 Technology**LiFePO4** (lithium iron phosphate) Rated voltage**51.2 V** (operating range: 44.8 V - 57.6 V) Rated capacity**230 Ah** Nominal energy**11.8 kWh** Max. continuous current**230 A** (peak current 280 A for 10s) Cycle life**≥ 6000 cycles** (at 80% DOD and 25°C) CommunicationCAN 2.0 / RS485 / Bluetooth + app connectivity Dimensions (W x D x H)approx. 400 x 232 x 583 mm Weightapprox. **84 kg** Installation typeFloor mounting, wall mounting or stacked  FAQs on the Deye SE-F12Can I use this battery with an inverter from another brand?In principle, yes. The Deye SE-F12 uses standard communication protocols (CAN/RS485) and can often also be operated with compatible third-party brands. However, the correct BMS protocol on the battery must be configured manually (via software or DIP switch). There is no support for this third-party use during setup from the manufacturer or retailer. A functioning system can only be guaranteed with the Deye own brand. Please compare the compatibility list in advance.What happens in the event of a power cut in the house?If you combine the SE-F12 with a hybrid inverter capable of emergency power supply (such as the Deye SG04 series), the system switches to battery operation within milliseconds in the event of a grid failure. Thanks to the high discharge power (up to 11.5 kW from just one battery), you can continue to supply even large 3-phase loads in the house grid without problems.Why do some shops list "SE-F12-C"?The suffix "-C" generally denotes the latest model revision (often the EU version), which is equipped with an integrated LCD display on the front of the housing. This allows cell voltages and SoC to be read directly. The pure performance data compared to the standard SE-F12 are identical.

The Deye SE-F5 Pro-C is a state-of-the-art 5.12 kWh battery storage module based on safe lithium iron phosphate (LiFePO4) technology. As part of the "Pro" series, this 51.2V low-voltage battery has been specially developed for seamless integration with Deye hybrid inverters and other common 48V systems.The storage unit is characterised by its high energy density, the cobalt-free chemistry and the intelligent battery management system (BMS). The SE-F5 Pro-C is the ideal solution for residential and commercial applications requiring reliable optimisation of self-consumption (solar) or a robust emergency power supply. Thanks to its modular design, the capacity can be flexibly expanded from 5 kWh up to the high double-digit kWh range.Highlights at a glanceSafest cell chemistry (LiFePO4): Uses lithium iron phosphate, which is extremely thermally stable, does not burn and is considered the safest lithium technology on the market.High capacity (5.12 kWh): Provides 100 Ah at a nominal voltage of 51.2 V in a compact housing, ideal for long operating times.Long service life (6000+ cycles): Designed for over 6000 charge/discharge cycles (at 25°C, 90% DOD), which corresponds to a service life of well over 10-15 years.Intelligent BMS: The integrated battery management system protects against overcharging, deep discharge, overcurrent and overtemperature, and ensures active cell balancing.Environmentally friendly (cobalt-free): The battery contains absolutely no toxic cobalt, which minimises the environmental impact during both manufacture and disposal.Flexible scalability: Supports the parallel connection of up to 32 units (up to 64 in some cases, depending on the module) to achieve storage capacities of over 160 kWh.Easy installation: Thanks to its standard 19-inch dimensions, the module is perfectly suited for rack systems or wall mounting (with suitable brackets).Deye compatibility: Perfectly matched to Deye hybrid inverters (automatic detection via CAN bus), but also compatible with Victron, Growatt, SMA etc. (depending on protocol).Areas of applicationThe Deye SE-F5 Pro-C is highly versatile:Optimisation of self-consumption: Storage of surplus PV electricity for use at night.Emergency power systems (backup): A reliable power source in the event of a power cut.Peak Shaving: Peak load shedding in commercial premises.Off-grid systems: Stand-alone systems without a grid connection.Technology & BenefitsThe SE-F5 Pro-C stands out thanks to the following technical features:LFP technology: Unlike NMC batteries, LiFePO4 does not tend to experience "thermal runaway" if damaged. This makes installation in the home particularly safe.Smart communication: The BMS actively communicates with the inverter. It reports state of charge (SOC), state of health (SOH) and temperature in real time, enabling the inverter to dynamically adjust the charging curve.Soft start: Integrated pre-charge resistors prevent high inrush currents that could trip fuses when the battery is switched on. Installation & operating instructionsCabling: Standard battery cables (often 25mm² or 35mm²) with Amphenol or M-type screw terminals (check depending on model!) are required for connection to the inverter. The communication cable (RJ45, CAN bus) is essential for the warranty.Addressing: When connected in parallel, the batteries often need to be addressed via DIP switches (master/slave configuration), with the master handling communication with the inverter.Temperature: Lithium batteries should not be charged at temperatures below 0°C. The BMS stops charging in frosty conditions to protect the cells. Ideal operating range: 15°C to 30°C. Features ModelDeye SE-F5 Pro-C (Cobalt Free) Technology**LiFePO4** (lithium iron phosphate) Rated voltage**51.2 V** Rated capacity**100 Ah** Energy content**5.12 kWh** Recommended depth of discharge (DOD)90% (for maximum service life) Cycle life**≥ 6000 cycles** (at 25°C, 0.5C rate) CommunicationCAN 2.0 / RS485 (Perfectly matched to Deye inverters) Dimensions (W x D x H in mm)440 x 530 x 133 (standard **3U** rack height) Weight (kg)approx. **45.0 kg**  FAQs on the Deye SE-F5 Pro-CDoes this battery also work with other inverters?Yes. Deye uses standard protocols (Pylontech protocol, among others). The battery is compatible with many 48V low-voltage inverters, provided the relevant protocol is selected in the BMS or inverter. However, it offers the best performance within the Deye ecosystem. It is strongly recommended that you check the compatibility list beforehand.What is the difference compared to the SE-G5.1 Pro?The designations (Pro, Pro-C, Pro-B) often refer to revisions in the casing design, chip availability or certifications (e.g. UL certificates for specific markets). The core technical specifications (5.12 kWh, LFP) are usually identical. The "C" version is often the current variant, optimised for the European market.Can I expand the battery later?Yes, no problem. You can connect additional modules in parallel at any time to increase capacity. The BMS compensates for differences in charge between new and old modules to a certain extent. However, it is recommended to combine modules with a similar state of ageing or to perform a one-off full balancing of the system. Scope of delivery: Deye SE-F5 Pro-C (5.12 kWh)This product is a set and consists of the inverter unit and the separate battery modules.1 x Deye SE-F5 Pro-C battery moduleThe main unit with 5.12 kWh capacity, integrated battery management system (BMS) and LCD display for status indication.1 x wall bracket (Mounting Bracket)A mounting plate that is fixed to the wall in order to securely hang the battery module.1 x set of battery connection cablesUsually includes a negative battery cable as well as the positive connection plug (or a pair of cables) for connection to the inverter.1 x RJ45 communication cableRequired for the data connection between the battery (PCS port) and the hybrid inverter.1 x grounding cable (Grounding Cable)A yellow-green cable for the proper protective earth connection on the housing.1 x set of mounting materialConsisting of expansion plugs (usually M6x100), screws (M4) and hexagon screws for fixing to the bracket.4 x stacking brackets (Stacking Brackets)Special brackets that are required if several modules are not hung on the wall, but are instead to be stacked on top of each other on the floor.1 x positioning template (Positioning Paperboard)A cardboard template for marking the drill holes for the wall bracket exactly.1 x user manual (User Manual)Technical manual with installation instructions and safety information.

The Deye SE-F16 is a high-capacity low-voltage energy storage system (51.2 V) designed for demanding use in residential and commercial photovoltaic systems. With an enormous rated capacity of 16 kWh (314 Ah) in just one compact housing module, this storage system significantly minimises the space required and the installation effort.This model uses the proven and intrinsically safe lithium iron phosphate (LiFePO4) cell chemistry. Combined with the intelligent Battery Management System (BMS) and a wide range of monitoring options (including Bluetooth), the SE-F16 offers maximum safety, scalability and longevity for the self-sufficient energy supply of your home or business.Highlights at a glanceMassive storage capacity (16 kWh): With a rated capacity of 314 Ah at 51.2 V, this single module provides enough energy to reliably supply large households even during prolonged periods of low sunlight.Safe LiFePO4 cell chemistry: The lithium iron phosphate technology guarantees maximum thermal stability and virtually eliminates the risk of thermal runaway (fire hazard).Powerful power handling: The system supports an enormous continuous discharge current of up to 230 A and peak currents of 280 A (for 10 seconds), ideal for power-hungry large loads such as heat pumps or wallboxes.Extreme scalability: For even greater energy requirements, up to 32 units can be connected in parallel as standard. With a CAN bridge, scaling up to 64 modules is even possible.Smart monitoring & connectivity: In addition to CAN2.0 and RS485, the storage system features Bluetooth for convenient monitoring via smartphone app. The "C" version (SE-F16-C) also has an integrated LCD display.Longevity & efficiency: Certified for over 6,000 charge cycles (at 25°C), ensuring decades of reliable operating life in daily use.Flexible installation: Despite the high weight, the housing system is extremely flexible and can be installed either on the wall, floor-standing or stacked.ApplicationsThe Deye SE-F16 is the perfect solution for demanding energy scenarios:Single-family and multi-family houses: Maximises self-consumption of PV power and, in combination with a hybrid inverter, provides a powerful emergency power supply for the entire building.Commercial applications (C&I): Used to cap expensive peak loads (peak shaving) and stores large PV surpluses in agricultural or commercial businesses.Off-grid & stand-alone systems: Thanks to its gigantic capacity and high continuous discharge power, it offers a reliable energy source for completely off-grid properties.Installation & safety instructionsLogistics and weight: At a weight of 109 kg, the module is extremely heavy. Installation should обязательно be carried out with suitable lifting equipment (stair climber) or by at least two to three people.Choice of location: The storage system must be installed in a dry and ideally frost-free room (protection class IP21). Charging at temperatures below 0°C is automatically blocked by the BMS to protect the cells.Cable cross-sections: Due to the extremely high currents (up to 230 A continuous load), the connection cables to the inverter or busbar must have a cross-section of at least 70 mm², preferably 95 mm², in order to avoid overheating and voltage losses.Commissioning with parallel connection: If you connect several SE-F16 modules together, all units must be charged to exactly the same voltage level before cabling in order to prevent dangerous equalisation currents. Features  ModelDeye SE-F16 (C series with display) Technology**LiFePO4** (lithium iron phosphate) Rated voltage**51.2 V** (operating range: 44.8 V - 57.6 V) Rated capacity**314 Ah** Nominal energy**16.0 kWh** Max. continuous current**230 A** (peak current 280 A for 10s) Cycle life**≥ 6000 cycles** (at 90% DOD and 25°C) CommunicationCAN 2.0 / RS485 / Bluetooth + app (incl. LCD display) Dimensions (W x D x H)approx. 400 x 233 x 708 mm Weightapprox. **109 kg** Mounting typeFloor mounting, wall mounting or stacked  H2: FAQs about the Deye SE-F16What is the difference between the SE-F16 and the SE-F12?The main difference lies in the capacity and the housing height. The SE-F16 delivers 16 kWh (314 Ah) and weighs around 109 kg, while the SE-F12 11.8 kWh (230 Ah) offers and weighs approx. 84 kg. Both use the same 51.2V architecture and are designed for identical applications, but the F16 offers significantly more autonomy per installed module.What does the "C" in the designation SE-F16-C mean?The suffix "-C" in Deye storage systems indicates the extended model variant which, in addition to Bluetooth monitoring, is also equipped with an integrated LCD display on the front of the housing. This allows the current state of charge (SoC), cell voltages and warning messages to be read directly on the device without having to open the app.Do I absolutely need a Deye inverter for this battery?No, but it is strongly recommended for smooth operation. The SE-F16 is "Plug & Play" compatible with Deye low-voltage hybrid inverters (such as the SG04 series), since the BMS protocol matches natively. With third-party brands (such as Victron, SMA or Solis), communication must first be configured manually via DIP switches or software settings. It is strongly recommended to check the compatibility list, as changes may occur on the manufacturer side.

The Deye GB-W58.8 is a powerful, cabinet-based complete solution for storing large amounts of energy. With a total capacity of 58.8 kWh this system combines several high-voltage battery modules in a pre-assembled unit. It is the ideal choice for users seeking a robust and plug-and-play solution for demanding residential or commercial applications.As a high-voltage (HV) system, it operates at a high nominal voltage which, in conjunction with Deye hybrid inverters, enables maximum efficiencies during charging and discharging. The modular internal architecture also ensures easy maintenance and provides the safety of proven lithium iron phosphate technology.Highlights at a glanceEnormous storage capacity: Provides 58.8 kWh of usable energy to guarantee a reliable power supply even for high consumption or periods of bad weather lasting several days.Safe cell chemistry (LiFePO4): Uses lithium iron phosphate cells, which are known for their high thermal stability, safety and long service life.Efficient high-voltage technology: Reduces current during transmission, resulting in lower heat losses and increased system efficiency.Integrated master BMS: A central battery management system monitors all internal modules, ensuring precise balancing and comprehensive protection.All-in-one design: The modules are safely housed in a stable cabinet system, optimising space requirements and simplifying on-site installation.High charging and discharging performance: Enables the operation of high-power devices and supports fast recharging via photovoltaic or mains electricity.Intelligent communication: Fully compatible with the Deye ecosystem for real-time monitoring and straightforward remote maintenance via the cloud.Areas of applicationThe GB-W58.8 system is designed for scenarios with high energy requirements:Larger residential complexes & apartment buildingsCentral storage of PV surplus to supply multiple residential units or communal areas.Commercial & agricultureOptimisation of self-consumption for operations requiring high electricity during the day and night as well as for reducing peak loads.Island operation & off-grid solutionsProvision of a massive energy reserve for sites without a stable grid connection in combination with powerful hybrid inverters.Installation & safety instructionsStatics & baseDue to the high total weight of the cabinet system, a load-bearing, level concrete floor at the installation site is essential.Ventilation & environmentEnsure adequate ventilation clearances to walls and other devices to maintain the system's optimum operating temperature at all times.Electrical connectionInstallation must only be performed by qualified personnel to ensure correct protection and earthing of the high-voltage system. Properties ModelDEYGB-W58 Battery typeLiFePO4 Number of battery modules in series5 Nominal system voltage256 Vdc System operating voltage208 ~ 292 Vdc System energy58.8 kWh Usable energy53 kWh Nominal charge/discharge power58.8 kW Continuous charge/discharge current230 A Peak current322 A (1 s) CommunicationCAN / RS485 Thermal managementNatural air cooling Recommended depth of discharge90 % Degree of protectionIP20 Air humidity0 ~ 85 % Altitude≤ 3000 m Noise level≤ 50 dB Installation typeFloor mount Cycle life25 ± 2 °C, 0.5C/0.5C, 70%EOL ≥ 6000 Warranty10 years FAQs about the Deye GB-W58.8 battery systemCan the system be expanded later?Conditionally.As the GB-W58.8 is already a pre-configured unit with high capacity, expansion is usually achieved by paralleling additional cabinet systems, provided the inverter supports this.Is the enclosure suitable for outdoor installation?Model dependent.By default, these systems are optimised for installation in technical rooms. For outdoor installation, the enclosure must provide the appropriate protection class (e.g. IP55) and temperature management.How long can the system supply a house with backup power?Depends on the load.With an average household consumption of 500 W to 1 kW, the system could theoretically supply power for over 50 hours without sunlight.Does the system support communication with the Internet?Yes.Via the connected Deye inverter, battery data is transmitted to the Deye cloud portal, allowing you to view status at any time via the app.Scope of delivery1 x Deye GB-W-PDU-25 x Deye GB-W-Pack12-2-A3 battery module1 x Deye GB-W-Base1 x Top Cover

The Deye BOS-A System with a total capacity of 61.44 kWh is a high-performance storage solution based on lithium iron phosphate (LiFePO4) cells. It has been specially developed for use in commercial buildings, industrial facilities and for the storage of renewable energy. The system is based on the modular BOS-A battery module, which is characterised by simple installation, high safety and intelligent monitoring.By connecting up to 13 modules in series (per rack), the BOS-A system offers a flexible high-voltage configuration that minimises conversion losses and enables seamless integration into modern energy management systems.Highlights at a glanceHigh performance: A single module offers 7.68 kWh of capacity and is designed for over 6,000 charge cycles, guaranteeing an extremely long service life.Intelligent cloud management: Thanks to the Deye cloud platform, battery status and energy consumption can be monitored and optimised in real time to effectively reduce electricity costs.Flexible scalability: The system scales with your requirements – up to 13 modules can be connected in series to create high-performance high-voltage storage systems.Safety through Smart-BMS: An integrated battery management system provides reliable protection against overcharging, deep discharge and short circuits, ensuring the longevity of the cells.Easy installation: With a module weight of approx. 70 kg and a well-designed rack, installation in professional environments is quick and straightforward.Robust industrial design: Designed for use in various environmental conditions with a high IP rating and a wide operating temperature range.Long-term warranty: You can rely on a 10-year warranty and a full replacement guarantee for up to 6,000 usage cycles.Areas of applicationThe BOS-A system is the ideal choice for demanding energy projects:Commercial & industrial facilitiesOptimising self-consumption for large photovoltaic systems and ensuring emergency power supply for critical processes.Storage of renewable energyEfficient temporary storage of solar power for peak shaving in businesses.Rack environmentsIts standardised dimensions make it perfectly suited for installation in control cabinets and plant rooms in office buildings.Installation & safety instructionsOptimal environmentThe system is optimised for installation in rack structures. Ensure a dry installation site within the specified temperature range to maintain efficiency of over 90%.Communication & integrationUse the CAN2.0 connection for seamless integration with other Deye devices (e.g. hybrid inverters) to establish a comprehensive energy management system.Ease of maintenanceThe embedded design enables quick access to the modules, significantly simplifying maintenance in industrial environments. Features Model**Deye BOS-A (Standard Rack)** Nominal energy (system)61.44 kWh Module nominal voltage38.4 V (high voltage) Battery typeLithium iron phosphate (LiFePO4) Usable energy (90% DoD)55.30 kWh Dimensions (W/H/D)approx. 610 / 1900 / 610 mm (rack) Protection classIP20 (indoor installation) CertificationsCE, IEC62619, VDE2510-50, UN38.3  FAQs on the Deye BOS-A high-voltage storage systemWhat does "cloud-based monitoring" mean for the BOS-A?Real-time monitoring from anywhere. Via the Deye cloud platform, you can conveniently monitor your energy consumption and the condition of the batteries via smartphone or PC. This enables proactive maintenance and helps to continuously optimise the system’s performance.What is the maximum number of modules that can be combined?Up to 13 modules in series. This flexible configuration allows the system voltage to be precisely matched to the inverter’s requirements and makes it easy to add further modules to the rack as energy demand grows.Is the system environmentally friendly?Yes. By using LiFePO4 chemistry, Deye avoids the use of toxic heavy metals such as cobalt. Furthermore, the high efficiency of over 90% ensures that hardly any energy is lost during the storage process.Can the BOS-A system be used for emergency power supply?Yes, absolutely. Thanks to its high discharge capacity and fast response time, the system is ideally suited as a back-up solution to ensure smooth operation in commercial or industrial facilities, even during power cuts.

The Deye GB-W70.6 represents the maximum expansion stage of Deye's cabinet-based high-voltage storage systems. With an impressive total capacity of 70.6 kWh this pre-assembled unit provides an enormous energy reserve for the most demanding applications. The system is designed as an "all-in-one" solution, where highly efficient battery modules are combined in a robust cabinet system.The high-voltage architecture (HV) achieves optimal system efficiency as the conversion losses between the photovoltaic system and storage are minimised. In combination with the powerful Deye hybrid inverters, the GB-W70.6 offers a future-proof solution for complete energy self-sufficiency in large residential and commercial buildings.Highlights at a glanceMaximum storage capacity: With 70.6 kWh capacity, the system is capable of supplying even energy-intensive businesses or large building complexes autonomously for long periods.Safest cell technology: Uses high-quality lithium iron phosphate cells (LiFePO4), which meet the highest fire safety standards and guarantee an extremely long lifespan.High system voltage: The serial interconnection of the modules ensures high operating voltage, which increases the overall system's efficiency under high loads.Centralised monitoring: The integrated battery management system (BMS) monitors each individual cell and communicates seamlessly with the inverter for maximum safety.Cabinet-based plug-and-play solution: The modules are pre-installed in the system cabinet, greatly reducing the on-site installation time and protecting the cabling.Superior cycle resistance: Designed for daily use over decades with a guaranteed performance of over 6000 charging cycles.Emergency power performance: Thanks to the high discharge capacity, even heavy loads such as heat pumps or machines can be safely operated in backup mode.Areas of applicationThe GB-W70.6 is ideal for scenarios with the highest energy demand:Agricultural businessesStoring solar power for milking systems, cold stores or drying units to drastically reduce operating costs.Commercial & industrial propertiesEffective peak shaving (capping of load peaks) to reduce grid charges and optimise self-consumption.Neighbourhood storage & apartment buildingsCentral storage solution to supply entire housing units as part of tenant electricity models.Critical infrastructureReliable buffering for data centres or medical facilities in regions with unstable electricity grids.Installation & safety instructionsRequirements for the installation siteThe system is considerably heavy. The floor must be statically designed for the point load of the cabinet and absolutely level.Fire protection & ventilationAlthough LiFePO4 cells are regarded as very safe, the installation room should comply with local fire protection regulations for large storage units and be well ventilated.CommissioningDue to the high voltages, the electrical connection and configuration of the BMS may only be carried out by certified electricians. Properties ModelDEYGB-W70 Battery typeLiFePO4 Number of battery modules in series6 Nominal system voltage307.2 Vdc System operating voltage249.6 ~ 350.4 Vdc System energy70.6 kWh Usable energy63.5 kWh Nominal charging/discharging power70.6 kW Continuous charge/discharge current230 A Peak current322 A (1 s) CommunicationCAN / RS485 Thermal managementNatural air cooling Recommended depth of discharge90 % Protection ratingIP20 Air humidity0 ~ 85 % Altitude≤ 3000 m Noise level≤ 50 dB Mounting typeFloor Mount Warranty10 years FAQs about the Deye GB-W70.6 battery systemIs the capacity sufficient for commercial peak shaving?Yes, for many medium-sized companies.With over 70 kWh, the system can effectively absorb peak loads by supplying energy at times of high demand, thereby reducing the expensive power provision of the grid operator.Is the system compatible with the Deye Cloud?Yes, fully.Through the Deye inverter's monitoring system you can track the state of charge, temperature, and health (SoH) of the battery anytime, anywhere, via app.How is the system delivered?Usually pre-assembled.The system is usually delivered as a complete unit, which minimises logistics effort and reduces error rates during assembly of individual modules.Can I use the system for a pure off-grid installation?Absolutely.In combination with the Deye hybrid inverters, the GB-W70.6 is ideal for stand-alone grids, as it provides a very high capacity for times of low sunlight.Scope of delivery1 x Deye GB-W-PDU-26 x Deye GB-W-Pack12-2-A3 battery module1 x Deye GB-W-Base1 x top cover

The Deye GB-W82.4 is a high-performance industrial storage solution designed for maximum energy independence in commercial and demanding private sectors. With a massive total capacity of 82.4 kWh this cabinet-based system marks the top end of the modular high-voltage (HV) series from Deye. It combines maximum storage density with the reliability of a pre-configured all-in-one system.Thanks to the serial connection of the highly efficient battery modules inside, the system achieves a very high operating voltage. This optimises the efficiency of the entire energy circuit and makes the GB-W82.4 the ideal partner for large Deye hybrid inverters to supply even power-intensive consumers with minimal losses.Highlights at a glanceOutstanding capacity: 82.4 kWh of energy provide enormous reserves for self-consumption, peak shaving or multi-day emergency power scenarios.Safe LiFePO4 technology: Uses thermally stable lithium iron phosphate cells that ensure maximum safety, cycle stability and environmental compatibility.HV system efficiency: Thanks to the high system voltage, conversion losses are minimised, which is especially advantageous when operating high-performance components.Integrated high-performance BMS: The central management system monitors and protects all modules in real time and guarantees a uniform cell balance.Pre-configured cabinet system: The modules are safely and space-savingly housed in a robust enclosure, which greatly simplifies on-site installation.Excellent charge and discharge rates: Supports high currents to quickly store large PV yields and, when required, supply massive loads (e.g. machines, e-fleets).Future-proof monitoring: Full integration into the Deye ecosystem for detailed data analysis and remote maintenance via app or web portal.Areas of applicationThe GB-W82.4 system is the solution for professional energy infrastructures:Medium-sized industrial enterprisesReduction of energy costs by maximising self-consumption and intelligently capping expensive peak loads (peak shaving).Large agricultural enterprisesBuffering solar power for energy-intensive processes such as cooling, ventilation or automated feeding systems.Charging infrastructure for e-mobilityProviding high outputs for fast charging stations without overloading the local power grid.Large building complexes & neighbourhoodsCentral storage unit for tenant electricity models or self-sufficient residential projects with a shared PV field.Installation & safety instructionsFoundation & staticsDue to the extreme weight of the 82.4 kWh system, a tested, level and load-bearing sub-base (concrete foundation) is absolutely essential.Indoor climate & fire protectionThe installation room should be cool, dry and well ventilated. In addition, local regulations for the installation of battery storage systems of this size must be followed.Professional installationConnection to the power grid and configuration of the high-voltage BMS may only be carried out by certified personnel to maintain warranty and safety. Properties  ModelDEYGB-W82 Battery typeLiFePO4 Number of battery modules in series7 Nominal system voltage358.4 Vdc System operating voltage291.2 ~ 408.8 Vdc System energy84.2 kWh Usable energy74.1 kWh Nominal charging/discharging capacity82.4 kW Continuous charging/discharging current230 A Peak current322 A (1 s) CommunicationCAN / RS485 Thermal managementNatural air cooling Recommended discharge depth90 % Protection classIP20 Air humidity0 ~ 85 % Altitude≤ 3000 m Noise level≤ 50 dB Type of installationFloor Mount Guarantee10 years FAQs about the Deye GB-W82.4 battery systemCan the system provide several days of autonomy?Depends on consumption.For an average business or a very large residential building with a daily requirement of 20–30 kWh, this system can easily bridge 2 to 3 days without PV yield.Is the system high-maintenance?No.The LiFePO4 modules are largely maintenance-free. The BMS carries out the automatic care of the cells. However, regular visual checks and software updates via the cloud are recommended.Can I combine the storage system with wind turbines?Yes, via the hybrid inverter.Provided the Deye inverter used is suitable for AC coupling or has the appropriate DC inputs, the system can also store energy from wind turbines or other sources.How high is the safety in the event of a fault?Very high.In addition to the stable cell chemistry, the system features multi-level protective mechanisms (overcurrent, overvoltage, temperature) that disconnect the system safely within milliseconds in an emergency. Scope of delivery1 x Deye GB-W-PDU-27 x Deye GB-W-Pack12-2-A3 battery module1 x Deye GB-W-Base1 x Top Cover

The Deye GB-W-11.7 is a powerful high-voltage (HV) battery module that serves as a central component for scalable energy storage systems. With a gross capacity of 11.7 kWh per unit, it is specially optimised for use with Deye high-voltage hybrid inverters (such as the SG01HP3 series).Thanks to its modular design, the GB-W system allows flexible adaptation of storage capacity to individual energy requirements. The modules are connected in series to increase the system voltage, which increases the overall system efficiency and minimises conversion losses compared to low-voltage systems.Highlights at a glanceHigh storage capacity: Provides 11.7 kWh of energy per module for long-lasting power supply in the home or business.Lithium iron phosphate technology (LiFePO4): Maximum safety and durability thanks to thermally stable cell chemistry with high cycle resistance.Modular scalability: Easy expansion of the system by adding more modules to cover even larger energy requirements.High-voltage efficiency: Operates in a high voltage range, which harmonises perfectly with modern three-phase hybrid inverters.Integrated battery management system (BMS): Continuously monitors cell voltages and temperatures for safe and optimised operation.Easy installation: Thought-out plug-and-mount system for quick commissioning and neat cabling.High depth of discharge (DoD): Enables the efficient use of stored energy up to a depth of approx. 90%.Areas of applicationThe GB-W-11.7 module is the ideal choice for demanding storage scenarios:Single-family houses with a high degree of self-sufficiencyStorage of surplus solar power for use in the evening and at night.Commercial energy storageBuilding up larger storage capacities for peak shaving or for optimising self-consumption.Emergency power & backup systemsProvision of a reliable energy reserve for critical consumers in the event of grid failures in combination with Deye hybrid systems.Installation & safety instructionsSystem control unit requiredA suitable BMS control unit (controller) is mandatory for operation of the modules, which carries out communication with the inverter.Professional installationThe battery should be installed on a level, load-bearing surface in a cool, dry place.Observe protection classAlthough the system is robustly built, it should be protected from direct sunlight and extreme humidity to maximise the service life of the electronics. Properties ModelDEYGB-W-11.7 Battery typeLiFePO4 Module energy11.7 kWh Module capacity230 Ah Nominal module voltage51.2 Vdc Max. charge/discharge current230 A CommunicationCAN / RS485 Thermal managementNatural air cooling Operating temperature charging0 ~ 55 °C Operating temperature discharging-20 ~ 55 °C Storage temperature-30 ~ 60 °C Protection classIP20 Dimensions (W x D x H)690 x 436 x 270.5 mm Weight92.2 kg Cycle life≥ 6000 Warranty10 years FAQs on the Deye GB-W-11.7 battery moduleWhat is the maximum number of modules that can be combined?Depending on system configuration.Several modules can usually be stacked in a tower or connected in parallel. The exact maximum number depends on the capacity of the BMS control unit and the specifications of the inverter used.Is the battery compatible with inverters from other brands?Primarily optimised for Deye.The best performance and simplest setup is achieved in combination with Deye hybrid inverters. For use with third-party systems, the compatibility of the communication protocol (BMS) must be checked in advance.Do I need special tools for expansion?Normally no.The modules are designed for easy coupling. However, manufacturer-specific connection cables and terminating resistors should be used, which are often included with the controller or modules.What warranty does Deye offer for the modules?Usually 10 years.Deye usually grants a performance warranty of 10 years or a certain number of cycles (whichever comes first) on its LiFePO4 storage systems.Scope of delivery1 x Deye GB-W-Pack12-2-A3 battery moduleNote: GB-W-PDU-2, GB-W-Base and Top Cover are also required for a complete storage system.

The Deye GB-W105.9 is the ultimate powerhouse for large-scale energy storage projects. With an impressive total capacity of 105.9 kWh, this cabinet-based high-voltage (HV) system represents the highest expansion stage of the GB-W series. It was specially developed to safely and efficiently meet the energy needs of industrial enterprises, large agricultural complexes, and independent residential quarters.The system impresses with its modular architecture within a robust cabinet system which offers maximum energy density on minimum floor area. In combination with the powerful Deye hybrid inverters, it enables almost complete independence from the public grid and highly effective capping of peak loads.Highlights at a glanceMaximum storage capacity: 105.9 kWh offers enormous reserves for the most demanding applications and multi-day bridging periods.Safe LiFePO4 technology: Uses thermally stable lithium iron phosphate cells for maximum safety and outstanding service life.High-voltage efficiency: The high operating voltage minimises conversion losses and optimises the overall efficiency of the PV system.Intelligent Master BMS: A central battery management system permanently monitors all cell parameters and ensures perfect balancing across all modules.Robust all-in-one solution: The battery modules are securely accommodated in an industrial cabinet system, significantly reducing installation effort on site.Enormous load capacity: Designed for high discharge currents to stably operate even heavy industrial machines or extensive backup systems.Comprehensive monitoring: Fully integrated into the Deye Cloud for real-time monitoring, detailed statistics, and remote maintenance options.Areas of ApplicationThe GB-W105.9 system is the first choice for projects in the megawatt-hour range or self-sufficient large-scale objects:Industrial & manufacturing businessesDrastic reduction in electricity costs through self-consumption optimisation and professional peak shaving to avoid expensive power rates.Large agricultural operationsBuffering massive PV yields to supply drying facilities, cold storage, or automated barns around the clock.District solutions & microgridsCentral storage unit for residential settlements or hotels aiming for sustainable and independent energy supply.Charging infrastructure for fleetsBuffering for rapid charging stations for electric trucks or bus fleets to avoid grid overloads.Installation & Safety InstructionsStatic requirementsDue to the massive weight of the 105.9 kWh unit, the site must have a reinforced, perfectly level concrete foundation.Fire protection & environmentInstallation should be carried out in a dedicated technical room that complies with local fire protection regulations for large battery storage facilities and allows active ventilation.Specialist personnelInstallation and commissioning of the high-voltage components may only be carried out by specially trained and certified personnel. Properties  ModelDEYGB-W105 Battery typeLiFePO4 Number of battery modules in series9 System nominal voltage460.8 Vdc System operating voltage374.4 ~ 525.6 Vdc System energy105.9 kWh Usable energy95.3 kWh Nominal charge/discharge power105.9 kW Continuous charge/discharge current230 A Peak current322 A (1 s) CommunicationCAN / RS485 Thermal managementNatural air cooling Recommended depth of discharge90 % Degree of protectionIP20 Humidity0 ~ 85 % Altitude≤ 3000 m Noise level≤ 50 dB Mounting typeFloor Mount Warranty10 years FAQs about the Deye GB-W105.9 battery systemCan the system be connected in parallel with other storage systems?Yes, via the Deye system management.Multiple of these cabinet systems can often be operated in parallel to achieve capacities in the range of several hundred kilowatt-hours or even megawatt-hours.How long does the battery last under maximum load?Depending on the discharge rate.Thanks to the high capacity, the system can supply electricity for over two hours even at a constant load of 50 kW, which is more than enough for most industrial bridging scenarios.Is remote maintenance possible?Yes, without limitation.Authorised technicians can check the status of the BMS and upload software updates via the Deye web portal or app, without having to be on site.How is the safety of the cells monitored?Through multi-level sensors.Each module features its own sensors for temperature, voltage, and current flow. The master BMS can galvanically disconnect the system from the grid within milliseconds in case of irregularities. Scope of delivery1 x Deye GB-W-PDU-29 x Deye GB-W-Pack12-2-A3 battery module1 x Deye GB-W-Base1 x Top Cover

The Deye BOS-A System in the 76.8 kWh configuration is a powerful, modular high-voltage storage solution developed specifically for the requirements of commercial enterprises, industrial facilities and large PV projects. Based on the robust BOS-A battery module (7.68 kWh per unit), this system provides a strong energy reserve for emergency power supply and optimisation of self-consumption from renewable energy sources.By using the safe lithium iron phosphate technology (LiFePO4) and an intelligent, cloud-based management system, the storage system guarantees maximum reliability and efficiency. The system is optimised for installation in rack environments and enables quick installation and uncomplicated maintenance in a professional environment.Key features at a glanceHigh capacity: With 76.8 kWh (realised by 10 modules in series), the system offers strong reserves for commercial applications, emergency power solutions and peak shaving.Safe LiFePO4 chemistry: The cobalt-free cell chemistry ensures maximum thermal stability and an extremely long service life of over 6000 cycles.Intelligent cloud management: Real-time monitoring of energy consumption and battery status via the Deye Cloud platform to optimise operating costs.High-voltage efficiency: Series connection of the modules provides high system voltage, which minimises conversion losses and increases efficiency to over 90%.Effortless installation: The embedded design and a module weight of approx. 70 kg allow for a structured setup in standard rack systems.Robust industrial design: High IP rating and resistance to a wide range of environmental conditions for long-term use in equipment rooms.Comprehensive warranty: 10-year manufacturer's warranty and a full replacement guarantee for up to 6000 cycles offer long-term investment security.Areas of applicationThe 76.8 kWh version of the BOS-A is the ideal solution for demanding projects in commercial and industrial environments:Industrial & commercial enterprisesEnsuring an uninterruptible power supply (UPS) for critical machinery and reducing costly peak loads.Larger photovoltaic systemsEfficient intermediate storage of solar power to maximise the self-sufficiency rate in office buildings, agricultural businesses or production sites.Neighbourhood storageCentralised storage solution for residential complexes or municipal energy projects for shared use of solar power.Installation & safety instructionsRack configurationThe system achieves its capacity through the series connection of 10 battery modules per rack. Make sure the modules are properly mechanically fastened in the control cabinet.Safety managementThe integrated Smart-BMS protects each module individually from overcharging, deep discharge and short circuit. Communication takes place seamlessly via CAN 2.0.Structure & weightA fully equipped 76.8 kWh rack weighs approx. 700–800 kg. Make sure the foundation at the installation site is dimensioned for these loads. Features Model (System)Deye BOS-A – 76.8 kWh Nominal voltage (module)38.4 V System nominal voltage (10 modules)384 V System capacity (10 modules)76.8 kWh Battery typeLiFePO4 (cobalt-free) Max. charging/discharging current100 A Recommended depth of discharge90% (DoD) Cycle life≥ 6000 cycles  FAQs on the Deye BOS-A 76.8 kWh storage systemCan the 76.8 kWh system be further expanded?Yes. Multiple racks can be connected in parallel to achieve significantly larger total capacities for commercial or industrial applications. The modular design allows the system to be precisely adapted to the growing energy demand.How does the emergency power supply work at this size?Automatic and powerful. In combination with a suitable Deye high-voltage inverter, the system can switch to battery operation within milliseconds in the event of a power failure and continue to reliably supply critical loads.Why is the BMS so important in this system?For balance and safety. In a series connection of 10 modules, the BMS ensures that all cells are charged and discharged evenly. This prevents individual modules from ageing prematurely and maximises the usable energy of the entire storage block.Is the system high-maintenance?No. Thanks to the fanless design of the battery modules and robust LiFePO4 technology, the system is virtually maintenance-free. Remote monitoring via the cloud also makes it possible to detect irregularities at an early stage before they become a problem.

The Deye BOS-A System in the 161.28 kWh configuration is a high-performance, modular high-voltage storage solution developed specifically for the needs of commercial enterprises, industrial facilities and large PV projects. Based on the robust BOS-A battery module (7.68 kWh per unit), this system offers an enormous energy reserve for emergency power supply, load shifting and optimising self-consumption from renewable energies.By using safe lithium iron phosphate technology (LiFePO4) and an intelligent, cloud-based management system, the storage system guarantees the highest level of reliability and efficiency. The system is optimised for installation in rack environments and enables rapid assembly as well as straightforward maintenance in a professional environment.Key features at a glanceVery high capacity: With 161.28 kWh (achieved by 21 modules in series), the system provides enormous reserves for industrial applications, emergency power solutions and peak shaving.Safe LiFePO4 chemistry: The cobalt-free cell chemistry ensures maximum thermal stability and an extremely long service life of over 6000 cycles.Intelligent cloud management: Real-time monitoring of energy consumption and battery status via the Deye cloud platform to optimise operating costs.High-voltage efficiency: The series connection of the modules ensures a high system voltage, which minimises conversion losses and improves overall system efficiency.Scalable system architecture: The modular concept enables structured integration into standard rack systems and is ideal for professional large storage solutions.Robust industrial design: High protection standards and resistance to various environmental conditions enable long-term operation in technical rooms and industrial settings.Comprehensive warranty: 10-year manufacturer’s warranty and a full replacement guarantee for up to 6000 operating cycles ensure long-term investment security.Areas of applicationThe 161.28 kWh version of the BOS-A is the ideal solution for challenging large-scale projects in commercial and industrial environments:Industrial & commercial enterprisesEnsuring an uninterruptible power supply (UPS) for critical machines, production lines and reducing costly peak loads.Large photovoltaic systemsEfficient intermediate storage of solar power to maximise self-consumption rates in office buildings, agricultural businesses or production sites.Neighbourhood storage and energy centresCentralised storage solution for residential complexes, community energy projects or commercial zones for the shared use of solar energy.Installation & safety instructionsRack configurationThe system achieves its capacity by connecting 21 battery modules in series per rack or system cluster. Ensure proper mechanical securing and appropriate system design in the control cabinet or technical room.Safety managementThe integrated smart BMS protects each module individually against overcharging, deep discharge and short circuit. Communication takes place seamlessly via CAN 2.0.Statics & weightA fully equipped 161.28 kWh system can – depending on the rack and housing configuration – weigh well over 1400 kg. Ensure that the foundation and installation location are designed for these loads. Features Model (System)Deye BOS-A – 161.28 kWh Nominal voltage (module)38.4 V System nominal voltage (21 modules)806.4 V System capacity (21 modules)161.28 kWh Battery typeLiFePO4 (cobalt-free) Max. charge/discharge current100 A Recommended depth of discharge90% (DoD) Cycle life≥ 6000 cycles  FAQs on the Deye BOS-A 161.28 kWh storage systemCan the 161.28 kWh system be expanded further?Yes. Multiple racks or system clusters can be connected in parallel to achieve significantly larger total capacities for commercial or industrial applications. The modular design allows the system to be precisely adapted to the growing energy needs.How does the emergency power supply work at this size?Automatically and powerfully. When combined with a suitable Deye high-voltage inverter, the system can switch to battery operation in milliseconds in the event of a mains failure and reliably supply even larger consumers and critical loads.Why is the BMS so important in this system?For balance and safety. With 21 modules in series, the BMS ensures that all cells are charged and discharged evenly. This prevents individual modules from ageing prematurely and maximises the usable energy of the entire storage unit.Is the system high-maintenance?No. Thanks to the fanless design of the battery modules and the robust LiFePO4 technology, the system is virtually maintenance-free. Remote cloud monitoring also makes it possible to detect irregularities at an early stage before they become a problem.

The Deye BOS-A System in the 99.84 kWh configuration is a high-performance, modular high-voltage storage solution developed specifically for the needs of commercial enterprises, industrial plants and large PV projects. Based on the robust BOS-A battery module (7.68 kWh per unit), this system provides a strong energy reserve for emergency power supply and for optimising self-consumption from renewable energies.By using safe lithium iron phosphate technology (LiFePO4) and an intelligent, cloud-based management system, the storage guarantees maximum reliability and efficiency. The system is optimised for installation in rack environments and enables fast assembly and straightforward maintenance in professional settings.Highlights at a glanceHigh capacity: With 99.84 kWh (realised by 13 modules in series), the system provides strong reserves for commercial applications, emergency power solutions and peak shaving.Safe LiFePO4 chemistry: The cobalt-free cell chemistry provides maximum thermal stability and an extremely long service life of over 6000 cycles.Intelligent cloud management: Real-time monitoring of energy consumption and battery status via the Deye Cloud platform for optimising operating costs.High-voltage efficiency: The series connection of the modules provides high system voltage, which minimises conversion losses and increases efficiency to over 90%.Effortless installation: The embedded design and a module weight of approx. 70 kg enable structured installation in standard rack systems.Robust industrial design: High IP protection rating and resistance to various environmental conditions for long-term use in technical rooms.Comprehensive warranty: 10-year manufacturer warranty and a full replacement guarantee for up to 6000 charge cycles provide long-term investment security.Areas of applicationThe 99.84 kWh variant of the BOS-A is the ideal solution for demanding projects in commercial and industrial environments:Industrial & commercial operationsEnsuring uninterruptible power supply (UPS) for critical machines and reducing costly peak loads.Large photovoltaic systemsEfficient intermediate storage of solar energy to maximise the degree of self-sufficiency in office buildings, agricultural operations or production sites.Neighbourhood storageCentral storage solution for housing developments or municipal energy projects for communal use of solar power.Installation & Safety InstructionsRack configurationThe system achieves its capacity by connecting 13 battery modules in series per rack. Ensure proper mechanical fixing in the control cabinet.Safety managementThe integrated Smart-BMS protects each module individually from overcharging, deep discharge and short circuit. Communication takes place seamlessly via CAN 2.0.Statics & weightA fully equipped 99.84 kWh rack weighs approx. 900–1000 kg. Make sure that the foundation at the installation site is designed for these loads. Features Model (System)Deye BOS-A – 99.84 kWh Nominal voltage (module)38.4 V System nominal voltage (13 modules)499.2 V System capacity (13 modules)99.84 kWh Battery typeLiFePO4 (cobalt-free) Max. charge/discharge current100 A Recommended depth of discharge90% (DoD) Cycle life≥ 6000 cycles  FAQs on the Deye BOS-A 99.84 kWh storage systemCan the 99.84 kWh system be further expanded?Yes. Multiple racks can be connected in parallel to realise significantly larger total capacities for commercial or industrial applications. The modular design enables the system to be adapted precisely to growing energy requirements.How does the emergency power supply work at this capacity?Automatically and with high performance. In combination with a suitable Deye high-voltage inverter, the system can switch to battery mode within milliseconds in the event of a power failure and reliably continue to supply critical loads.Why is the BMS so important in this system?For balance and safety. In a series connection of 13 modules, the BMS ensures all cells are charged and discharged evenly. This prevents individual modules from ageing prematurely and maximises the usable energy of the entire storage block.Is the system maintenance-intensive?No. Thanks to the fanless design of the battery modules and the robust LiFePO4 technology, the system is almost maintenance-free. Remote monitoring via cloud also allows irregularities to be detected at an early stage before they become a problem.

The Deye BOS-A System in the 53.76 kWh configuration is a high-performance, modular high-voltage storage solution, specially developed for the requirements of commercial enterprises, industrial plants and larger PV projects. Based on the robust BOS-A battery module (7.68 kWh per unit), this system provides a reliable energy reserve for emergency power supply and the optimisation of self-consumption from renewable energies.By using safe lithium iron phosphate technology (LiFePO4) and an intelligent, cloud-based management system, the storage provides maximum reliability and efficiency. The system is optimised for installation in rack environments and enables quick assembly as well as straightforward maintenance in professional contexts.Highlights at a glanceHigh capacity: With 53.76 kWh (achieved by 7 modules connected in series), the system provides powerful reserves for commercial applications, emergency power solutions and load management.Safe LiFePO4 chemistry: The cobalt-free cell chemistry ensures maximum thermal stability and an extremely long service life of over 6000 cycles.Intelligent cloud management: Real-time monitoring of energy usage and battery status via the Deye Cloud platform to optimise operating costs.High-voltage efficiency: The serial connection of the modules ensures a high system voltage, minimising conversion losses and improving overall system efficiency.Effortless installation: The embedded design and a module weight of approx. 70 kg enable a structured set-up in standard rack systems.Robust industrial design: High protection standards and resistance against various environmental conditions enable long-term use in technical rooms.Comprehensive warranty: 10-year manufacturer's warranty and a full replacement guarantee for up to 6000 cycles provide long-term investment security.Areas of applicationThe 53.76 kWh version of the BOS-A is the ideal solution for demanding projects in commercial and industrial environments:Industrial & commercial enterprisesEnsuring an uninterruptible power supply (UPS) for critical machines and reducing load peaks during ongoing operations.Larger photovoltaic systemsEfficient interim storage of solar power to maximise the self-consumption rate in office buildings, agricultural businesses or smaller production sites.Neighbourhood storageCentral storage solution for residential complexes or municipal energy projects for the shared use of solar power.Installation & Safety InstructionsRack configurationThe system achieves its capacity through the series connection of 7 battery modules per rack. Ensure that they are properly secured mechanically in the control cabinet.Safety managementThe integrated Smart-BMS protects each module individually against overcharging, deep discharge and short-circuiting. Communication takes place seamlessly via CAN 2.0.Static & weightA fully equipped 53.76 kWh rack weighs approx. 500–600 kg. Ensure that the foundation at the installation location is designed for these loads. Features Model (System)Deye BOS-A – 53.76 kWh Nominal voltage (module)38.4 V System nominal voltage (7 modules)268.8 V System capacity (7 modules)53.76 kWh Battery typeLiFePO4 (cobalt-free) Max. charge/discharge current100 A Recommended depth of discharge90% (DoD) Cycle life≥ 6000 cycles  FAQs on the Deye BOS-A 53.76 kWh storageCan the 53.76 kWh system be further expanded?Yes. Several racks can be connected in parallel to achieve larger total capacities for commercial or industrial applications. The modular design allows the system to be precisely adapted to growing energy demands.How does the emergency power supply work at this scale?Automatic and powerful. In combination with a suitable Deye high-voltage inverter, the system can switch to battery operation within milliseconds in the event of a grid failure and continue to reliably supply important loads.Why is the BMS so important in this system?For balance and safety. In a series connection of 7 modules, the BMS ensures that all cells are charged and discharged evenly. This prevents individual modules from aging prematurely and maximises the usable energy of the entire storage block.Is the system maintenance-intensive?No. Thanks to the fanless design of the battery modules and the robust LiFePO4 technology, the system is almost maintenance-free. Remote monitoring via the cloud also makes it possible to detect irregularities early before they become a problem.

The Deye MS-GS215-2H3 is an air-cooled solar and battery storage system for commercial and industrial applications. With 215 kWh storage capacity, 100 kW AC output power and integrated PV connection up to 200 kWp, the system is ideally suited for grid-connected applications, backup solutions and off-grid scenarios. The compact design, IP54 outdoor protection rating and communication interfaces ETH/4G, CAN, RS485 and Ethernet make the system a powerful all-in-one solution for optimising self-consumption, load management and supply reliability. Key features at a glance 215 kWh storage capacity for demanding C&I applications 100 kW AC output power for on-grid, backup, and off-grid operation Integrated PV connection with up to 200 kWp PV access power, 160 kW PV input power and 8 MPPT High system efficiency with up to 88% RTE and 97.6% maximum converter efficiency Robust outdoor housing with IP54, corrosion protection class ≤ C5 and operating temperature from -20 °C to +50 °C Up to 10 systems can be operated in parallel in off-grid mode Technical performance and system configuration The Deye MS-GS215-2H3 delivers 100 kW AC power at 50/60 Hz and 380/400 Vac. The battery voltage is in the range of 660 to 864 Vdc, while the system operating voltage is DC 600 to 935 V in grid mode and DC 700 to 935 V in off-grid mode. With a maximum AC output current of 167 A, a power factor of -1 to 1 and a THD of less than 3%, the system is also suitable for demanding load profiles in commercial settings. On the PV side, the system supports a maximum PV access power of 200 kW, a maximum PV input power of 160 kW and 8 MPPT trackers. The MPPT voltage range is 180 to 750 V, the full-load range 450 to 750 V. This allows the system to be flexibly integrated into larger photovoltaic projects and precisely matched to different string layouts. For system monitoring, LCD display, ETH/4G communication as well as CAN, RS485 and Ethernet are available. Protection functions such as DC Type II / AC Type II surge protection, protection class 1 and relevant grid and system certifications underscore the suitability for professional C&I energy storage projects. Applications and scaling The MS-GS215-2H3 is designed for various application scenarios: as a grid-connected solar and storage solution, as an on-grid backup system, and as an off-grid system with generator connection and critical loads. This makes the system particularly suitable for manufacturing companies, commercial properties, logistics sites, infrastructure projects, and businesses seeking to reduce energy costs and simultaneously increase supply reliability. Commercial and industrial with high self-consumption, peak loads or backup requirements PV projects in the C&I sector with need for self-consumption optimisation and storage integration Locations with critical loads such as production lines, IT infrastructure or technical installations Off-grid and hybrid projects with generator connection and scalable system configuration ModelMS-GS215-2H3 System typeSolar & Battery Energy Storage System, On-Grid / Off-Grid AC Output Power (kW)100 AC Output Frequency and Voltage50 / 60 Hz; 380 / 400 Vac Grid Type3L / N / PE Battery Operating Voltage (Vdc)660 - 864 System Operating Voltage (Vdc)DC: 600 - 935 (grid on) / DC: 700 - 935 (grid off) Energy (kWh)215 Max. RTE88% System CommunicationETH / 4G Operating temperature (°C)-20 ~ 50 (>45 Derating) Max. working height (m)≤3000 IP protection classIP54 Corrosion protection class≤C5 System dimensions (W x D x H, mm)1865 x 1000 x 2500 Weight approx. (kg)3030 AC Output Rated Current (A)152 Max. AC Output Current (A)167 Max. Number of Parallel (off-grid)10 pcs Peak Power1.1 times of rated power Power Factor-1 ~ 1 THD<3% DC injection current<0.5In DisplayLCD Relative humidity15% - 85% (No Condensing) CommunicationCAN, RS485, ETH Overvoltage ProtectionDC Type II / AC Type II Protection LevelClass 1 Grid RegulationEN50549, AS4777.2, CEI 0-21, CEI-016, NRS097 Max. Efficiency97.6% Max. PV Access Power (kW)200 Max. PV input power (kW)160 Max. Input Voltage (V)800 Start Voltage (V)200 MPPT Voltage Range (V)180 - 750 Full Load Voltage Range (V)450 - 750 Number of MPPT8 pcs MPPT Max. Current / Short Current (A)40 / 60 System CertificationUN3536, IEC61000, IEC62477, IEC60730  FAQs on the Deye MS-GS215-2H3 Can the Deye MS-GS215-2H3 be operated both grid-connected and off-grid? Yes, the system supports both on-grid and off-grid operation. Typical application scenarios include grid-connected storage solutions, on-grid backup solutions as well as off-grid systems with generator connection and supply to critical loads. How much PV power can be combined with the system? The MS-GS215-2H3 supports up to 200 kW PV access power and 160 kW maximum PV input power. In addition, 8 MPPT trackers are available, allowing even larger and more complex PV layouts to be connected efficiently. Is the system suitable for outdoor use? Yes, the housing is classified as IP54 and designed for operating temperatures from -20 °C to +50 °C. The maximum allowable working height is 3000 m; in addition, the system is designed with a corrosion protection class up to ≤ C5. What communication interfaces and monitoring functions are available? The system uses ETH/4G for system communication and provides CAN, RS485 and Ethernet at converter level. An LCD display supports local status indication and makes commissioning and ongoing monitoring easier. How scalable is the Deye MS-GS215-2H3? In off-grid operation, up to 10 systems can be operated in parallel. This makes the system suitable for scalable projects with growing energy demand or for applications with increased requirements for redundancy and supply reliability.

The Deye BOS-G 70 PRO high-voltage storage set is a reliable and high-performance storage solution for commercial applications and demanding private households. With a total capacity of 71.68 kWh, modular expandability and intelligent battery management, it meets high standards of safety, efficiency and flexibility.Key features at a glanceHigh capacity: 71.68 kWh gross storage capacity for large energy systemsUsable energy: 64.51 kWh at 90 percent depth of dischargeFlexible scalability: Up to 16 battery racks can be operated in parallelIntelligent control: Integrated BMS protects against overcharging, deep discharge, overcurrent and overheatingEasy integration: Quick installation in 19-inch rack formatEfficient energy storage for modern projectsThe BOS-G 70 PRO offers, with its high voltage of 716.8 volts and a wide operating voltage range of 616 to 817.6 volts, an excellent basis for integration into existing energy systems. The lithium iron phosphate technology used ensures high safety, low self-discharge and a long service life.Modular and customisableThe system architecture allows flexible expansion to up to 16 parallel battery racks and AC-parallel operation of up to 10 Deye inverters. This means the system can be precisely adapted to increasing requirements and remains expandable in the long term.Safe energy managementThe integrated BMS permanently monitors cell voltages, temperatures and charge states. It actively protects against critical operating conditions and, by means of automatic cell balancing, optimises the service life of the battery units.Who is the Deye BOS-G 70 PRO suitable for?The high-voltage storage set is ideal for:Commercial operations with high energy consumption or emergency power requirementsLarge photovoltaic systems focused on optimising self-consumptionPrivate households with above-average energy needsProject developers requiring a modular, certified high-voltage system  ModelBOS-G70 PRO Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 Number of battery modules14 Max. battery module quantity in series14 System nominal voltage (V)716.8 System operating voltage (V)616 ~ 817.6 System capacity (kWh)71.68 System usable capacity (kWh)64.51 Charge/discharge current (A) - recommendation50 Charge/discharge current (A) - nominal value100 Charge/discharge current (A) - peak discharge (2 min,25°C)125 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 55 Communication portCAN2.0, RS485 Humidity5% ~ 85%RH Altitude≤3000m IP protection rating of the housingIP20 Storage temperature (°C)0 ~ 35 Installation locationRack installation / Floor mounting Recommended depth of discharge90% Cycle life≥ 6000 Warranty10 years CertificationsUN38.3 / CE / CE-EMC / IEC62040 / CEC / VDE  FAQs on the Deye BOS-G 70 PRO high-voltage storage setWhat storage capacity does the BOS-G 70 PRO provide and how much of it is usable?The set consists of 14 LiFePO₄ modules, each with a gross capacity of 5.12 kWh. This results in a total storage capacity of 71.68 kWh. With a 90% depth of discharge, around 64.51 kWh of usable energy is available.What protection and management functions does the BMS provide?The integrated battery management system continuously monitors and protects against overvoltage and undervoltage, overcurrent, short-circuit and temperature deviations. It also provides cell balancing and stable charging and discharging conditions.Which electrical parameters are relevant?Operating voltage: 616 to 817.6 VNominal voltage: 716.8 V DCContinuous current: 100 A, peak discharge: 125 AIs the system modular and expandable?Yes, the modular concept allows the parallel operation of up to 16 battery racks and the integration of up to 10 inverters in the AC network.Within which temperature range can the storage system be operated?Discharge: from -20 °C to +55 °CCharging: from 0 °C to +55 °C Scope of delivery Deye BOS-G70 PRO high-voltage storage set (71.68 kWh) with rack systemSystem compositionThis product is a set and consists of a rack system, a Deye BOS-G-PDU-2 high-voltage control box and 14 individual BOS-G-Pack5.1 battery modules.Component 1: Deye rack system / battery cabinetA rack to accommodate the control box and the battery modules.Component 2: Deye BOS-G-PDU-2 high-voltage control boxThe central control unit for communication, protection and system management.Components 3 to 16: Fourteen Deye BOS-G-Pack5.1 high-voltage battery modulesFourteen high-voltage battery modules, each with 5.12 kWh.Accessories and cablingBattery connection cable (plus & minus)Communication cables (CAN/RS485)Connecting bridges / series connection cablesEarthing cableMounting accessories and installation instructions

The Deye BOS-G 65 PRO high-voltage storage set is a reliable and high-performance storage solution for commercial applications and demanding private households. With a total capacity of 66.56 kWh, modular expandability and intelligent battery management, it meets high standards of safety, efficiency and flexibility.Key features at a glanceHigh capacity: 66.56 kWh gross storage performance for large energy systemsUsable energy: 59.90 kWh at 90 percent depth of dischargeFlexible scalability: Up to 16 battery racks can be operated in parallelIntelligent control: Integrated BMS protects against overcharging, deep discharge, overcurrent and overheatingEasy integration: Fast installation in 19-inch rack formatEfficient energy storage for modern projectsWith its high voltage of 665.6 volts and a wide operating voltage range of 572 to 759.2 volts, the BOS-G 65 PRO provides an excellent basis for integration into existing energy systems. The lithium iron phosphate technology used ensures high safety, low self-discharge and a long service life.Modular and customisableThe system architecture allows for flexible expansion to up to 16 parallel battery racks and the AC parallel operation of up to 10 Deye inverters. This enables the system to be precisely adapted to increasing requirements and remains expandable in the long term.Safe energy managementThe integrated BMS continuously monitors cell voltages, temperatures and states of charge. It actively protects against critical operating conditions and optimises battery unit service life through automatic cell balancing.Who is the Deye BOS-G 65 PRO suitable for?The high-voltage storage set is ideal for:Commercial businesses with high energy consumption or emergency power requirementsLarge photovoltaic systems focusing on optimising self-consumptionPrivate households with above-average energy needsProject developers who require a modular, certified high-voltage system  ModelBOS-G65 PRO Battery typeLiFePO4 Module capacity (kWh)5.12 Module nominal voltage (V)51.2 Module capacity (Ah)100 Number of battery modules13 Max. number of battery modules in series13 System nominal voltage (V)665.6 System operating voltage (V)572 ~ 759.2 System capacity (kWh)66.56 System usable capacity (kWh)59.90 Charge/discharge current (A) - Recommendation50 Charge/discharge current (A) - nominal value100 Charge/discharge current (A) - Peak discharge (2 min,25°C)125 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 55 Communication interfaceCAN2.0, RS485 Humidity5% ~ 85%RH Altitude≤3000m IP protection class of the housingIP20 Storage temperature (°C)0 ~ 35 Installation locationRack installation / Floor mounting Recommended depth of discharge90% Cycle lifetime≥ 6000 Warranty10 years CertificationsUN38.3 / CE / CE-EMC / IEC62040 / CEC / VDE  FAQs about the Deye BOS-G 65 PRO high-voltage storage setWhat storage capacity does the BOS-G 65 PRO provide and how much of it is usable?The set consists of 13 LiFePO₄ modules, each with 5.12 kWh gross capacity. This results in a total storage capacity of 66.56 kWh. At 90% depth of discharge, around 59.90 kWh usable energy is available.What protection and management functions does the BMS cover?The integrated battery management system continuously monitors and protects against over- and under-voltage, overcurrent, short circuit and temperature deviations. It also provides cell balancing and stable charging and discharging conditions.Which electrical parameters are relevant?Operating voltage: 572 to 759.2 VNominal voltage: 665.6 V DCContinuous current: 100 A, peak discharge: 125 AIs the system modularly expandable?Yes, the modular concept permits parallel operation of up to 16 battery racks and integration of up to 10 inverters in the AC network.Within which temperature range can the storage unit be operated?Discharging: from -20 °C to +55 °CCharging: from 0 °C to +55 °C Scope of delivery Deye BOS-G65 PRO high-voltage storage set (66.56 kWh) with rack systemSystem compositionThis product is a set and consists of a rack system, a Deye BOS-G-PDU-2 high-voltage control box and 13 individual BOS-G-Pack5.1 battery modules.Component 1: Deye rack system / battery cabinetA rack to accommodate the control box and battery modules.Component 2: Deye BOS-G-PDU-2 high-voltage control boxThe central control unit for communication, protection and system management.Component 3 to 15: Thirteen Deye BOS-G-Pack5.1 high-voltage battery modulesThirteen high-voltage battery modules each with 5.12 kWh.Accessories and wiringBattery connection cables (plus & minus)Communication cables (CAN/RS485)Connecting bridges / Series connection cablesEarthing cableMounting accessories and installation manual

The Deye BOS-B96.4 kWh PRO-A3 is a highly efficient, three-phase high-voltage battery storage system developed specifically for the demanding requirements of the commercial and industrial (C&I) sectors. It replaces rigid and difficult-to-scale storage systems with a modular, turnkey cabinet solution, whilst offering intelligent functions to optimise commercial energy flow.With its sophisticated design, the BOS-B system is not just a passive energy storage solution, but serves as a future-proof foundation for your company’s energy management (Industrial Storage Hub). It supports seamless integration with high-performance Deye hybrid inverters (such as the SUN-125K series) and ensures that your business retains maximum control over its energy costs at all times.Highlights at a glanceLarge-scale industrial capacity: Offers a generous 96.4 kWh of usable energy in a single, compact cabinet system, based on long-lasting lithium iron phosphate (LiFePO4) technology.High-voltage efficiency: Connecting the modules in series ensures a high system voltage, which minimises conversion losses and enables extremely rapid energy delivery.Excellent cycle stability: With over 6,000 charge cycles, the system guarantees an extremely long service life and maximum investment security, even with daily, intensive use.Intelligent Master BMS: The integrated control system in the cabinet continuously monitors cell voltages, temperatures and currents, and ensures fully automatic cell balancing.Safety features: Multi-stage protection mechanisms, including automatic shutdown in the event of overcurrent, overvoltage or thermal irregularities, guarantee worry-free operation around the clock.Flexible scalability: Multiple cabinet units can be easily connected in parallel to flexibly adapt the total capacity to the growth of your business.Areas of applicationThe Deye BOS-B96.4 kWh PRO-A3 is the perfect addition to commercial PV systems and industrial infrastructure:Peak shaving: Reduction in grid usage charges through the targeted absorption of expensive electricity peaks in the industrial production process.Optimisation of self-consumption: Efficient temporary storage of solar power from large industrial rooftops that is unused during the day, to provide self-sufficient power for operations in the evening and at night.Emergency power & backup systems: Reliable protection of critical loads (such as IT infrastructure, cooling systems or sensitive production lines) in the event of power failures.Installation & Safety InstructionsInverter compatibility: The system is designed as a high-voltage storage system and must be operated with compatible Deye three-phase high-voltage hybrid inverters.Installation & Environment: Due to the high weight of the system, the cabinet solution should be installed on a load-bearing, level surface and in a well-ventilated, temperature-controlled indoor environment.Installation by qualified personnel: Due to the high-voltage direct current (DC) environment and the industrial power ratings, installation, cabling and commissioning must be carried out exclusively by certified qualified electricians. Features ModelBOS-B96 Pro-A3 Battery typeLiFePO4 Module energy (kWh)16,08 Module nominal voltage (V)51,2 Module capacity (Ah)314 Number of battery modules in series6 System nominal voltage (V)307,2 System operating voltage (V)249,6~350,4 System capacity (kWh)96,4 Usable system capacity (kWh)86,76 Max. DC power (kW)55,296 Max. charge/discharge current (A)180 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 55 Thermal managementSmart fan cooling CommunicationTCP / RS485 / CAN Protection classIP20 Dimensions (W × H × D, mm)1067 × 1305 × 800 Approx. system weight (kg)884 Installation typeRack Mounted Recommended depth of discharge90% Cycle lifeEOL70% ≥ 6000 Warranty10 years CertificationsCE / IEC62619 / IEC62040 / UN38.3  FAQs on the Deye BOS-B96.4 kWh PRO-A3Can the 96.4 kWh capacity be expanded at a later date?Yes. The system has a modular design. To increase the total capacity, several of these cabinet units can be connected in parallel, enabling storage capacities in the megawatt range to be achieved.Is the master control unit (BMS) already integrated into the cabinet?Yes. The system is supplied as a turnkey cabinet solution, in which both the individual battery modules and the central cluster control unit (high-voltage BMS) are integrated into the rack, ready for operation.What advantages does LiFePO4 technology offer in industrial applications?Maximum safety and durability. Unlike conventional lithium-ion batteries, lithium iron phosphate cells are extremely thermally stable, non-flammable and offer a significantly higher number of charge cycles, even under heavy use.Does the system support control via an external energy management system (EMS)?Yes. Via the integrated communication interfaces, the storage system can be seamlessly connected to higher-level commercial energy management systems (EMS) to implement complex charging and discharging strategies.

The Deye BOS-B160.7 kWh PRO-A3 is a highly efficient, three-phase high-voltage battery storage system that has been specially developed to meet the demanding requirements of the commercial and industrial (C&I) sectors. It replaces rigid and difficult-to-scale storage systems with a modular, turnkey cabinet solution, whilst offering intelligent functions to optimise commercial energy flow.With its sophisticated design, the BOS-B system is not just a passive energy storage solution, but serves as a future-proof foundation for your company’s energy management (Industrial Storage Hub). It supports seamless integration with high-performance Deye hybrid inverters (such as the SUN-125K series) and ensures that your business retains maximum control over its energy costs at all times.Highlights at a glanceLarge-scale industrial capacity: Offers a generous 160.7 kWh of usable energy in a compact cabinet system solution, based on long-lasting lithium iron phosphate (LiFePO4) technology.High-voltage efficiency: Connecting the modules in series ensures a high system voltage, which minimises conversion losses and enables extremely rapid energy delivery.Excellent cycle stability: With over 6,000 charge cycles, the system guarantees an extremely long service life and maximum investment security, even with daily, intensive use.Intelligent Master BMS: The integrated control system in the cabinet continuously monitors cell voltages, temperatures and currents, and ensures fully automatic cell balancing.Safety functions: Multi-stage protection mechanisms, including automatic shutdown in the event of overcurrent, overvoltage or thermal irregularities, guarantee worry-free operation around the clock.Flexible scalability: Multiple cabinet units can be easily connected in parallel to flexibly scale the total capacity alongside your business growth.Areas of applicationThe Deye BOS-B160.7 kWh PRO-A3 is the perfect addition to commercial PV systems and industrial infrastructure:Peak shaving: Reduction in grid usage charges through the targeted absorption of expensive electricity peaks in the industrial production process.Optimisation of self-consumption: Efficient temporary storage of solar power from large industrial rooftops that is unused during the day, to provide self-sufficient power for operations in the evening and at night.Emergency power & backup systems: Reliable protection of critical loads (such as IT infrastructure, cooling systems or sensitive production lines) in the event of power failures.Installation & Safety InstructionsInverter compatibility: The system is designed as a high-voltage storage solution and must be operated with compatible Deye three-phase high-voltage hybrid inverters.Installation & environment: Due to the high weight of the system, the cabinet solution should be installed on a load-bearing, level surface and in a well-ventilated, temperature-controlled indoor environment.Installation by qualified personnel: Due to the high-voltage direct current (DC) environment and the industrial power ratings, installation, cabling and commissioning must be carried out exclusively by certified qualified electricians. Features ModelBOS-B160 Pro-A3 Battery typeLiFePO4 Module energy (kWh)16,08 Module nominal voltage (V)51,2 Module capacity (Ah)314 Number of battery modules in series10 System nominal voltage (V)512 System operating voltage (V)416~584 System capacity (kWh)160,7 Usable system capacity (kWh)144,63 Max. DC power (kW)92,16 Max. charge/discharge current (A)180 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 55 Thermal managementSmart fan cooling CommunicationTCP / RS485 / CAN Protection classIP20 Dimensions (W × H × D, mm)1608 × 1305 × 800 Approx. system weight (kg)1436 Installation typeRack Mounted Recommended depth of discharge90% Cycle lifeEOL70% ≥ 6000 Warranty10 years CertificationsCE / IEC62619 / IEC62040 / UN38.3  FAQs on the Deye BOS-B160.7 kWh PRO-A3Can the 160.7 kWh capacity be expanded at a later date?Yes. The system has a modular design. To increase the total capacity, several of these cabinet units can be connected in parallel, enabling storage capacities in the megawatt range to be achieved.Is the master control unit (BMS) already integrated into the cabinet?Yes. The system is supplied as a turnkey cabinet solution, in which both the individual battery modules and the central cluster control unit (high-voltage BMS) are integrated into the rack, ready for operation.What advantages does LiFePO4 technology offer in industrial use?Maximum safety and durability. Unlike conventional lithium-ion batteries, lithium iron phosphate cells are extremely thermally stable, non-flammable and offer a significantly higher number of charge cycles, even under heavy use.Does the system support control via an external energy management system (EMS)?Yes. Via the integrated communication interfaces, the storage system can be seamlessly connected to higher-level commercial energy management systems (EMS) to implement complex charging and discharging strategies.

The Deye BOS-B241.1 kWh PRO-A3 is a highly efficient, three-phase high-voltage battery storage system of the very highest calibre, developed specifically for the most demanding large-scale projects in the commercial and industrial (C&I) sectors. It replaces rigid and difficult-to-scale legacy systems with a highly integrated, turnkey cabinet solution offering maximum energy density, whilst providing intelligent functions to optimise industrial energy flow.With its sophisticated design, the BOS-B system is not just a passive energy storage solution, but serves as a future-proof foundation for your company’s energy management (Industrial Storage Hub). It supports seamless integration with high-performance Deye hybrid inverters (such as the SUN-125K series) and ensures that your business retains maximum control over its energy costs at all times.Highlights at a glanceMaximum industrial capacity: Offers a massive 241.1 kWh of usable energy in a single, optimized cabinet system, based on the safest lithium iron phosphate (LiFePO4) technology.High-voltage efficiency: The series connection of the modules ensures an extremely high system voltage, which minimises conversion losses when used in conjunction with large inverters and enables a massive supply of energy.Excellent cycle stability: With over 6,000 charge cycles, the system guarantees an extremely long service life and maximum investment security, even with daily, intensive use.Intelligent Master BMS: The integrated control system in the cabinet continuously monitors cell voltages, temperatures and currents, and ensures fully automatic cell balancing.Safety functions: Multi-stage protection mechanisms, including automatic shutdown in the event of overcurrent, overvoltage or thermal irregularities, guarantee worry-free operation around the clock.Flexible scalability: Multiple cabinet units can be easily connected in parallel to flexibly scale the total capacity alongside your business growth.Areas of applicationThe Deye BOS-B241.1 kWh PRO-A3 is the perfect addition to commercial PV systems and industrial infrastructure:Peak shaving: Reduction in grid usage charges through the targeted absorption of expensive electricity peaks in the industrial production process.Optimisation of self-consumption: Efficient temporary storage of solar power from large industrial rooftops that is unused during the day, to provide self-sufficient power for operations in the evening and at night.Emergency power & backup systems: Reliable protection of critical loads (such as IT infrastructure, cooling systems or sensitive production lines) in the event of power failures.Installation & safety instructionsInverter compatibility: The system is designed as a high-voltage storage solution and must be operated with compatible Deye three-phase high-voltage hybrid inverters.Installation & environment: Due to the extremely high system weight, the cabinet solution should be installed on a specially reinforced, level base (foundation) and in a well-ventilated, temperature-controlled indoor space.Installation by qualified personnel: Due to the high-voltage direct current (DC) environment and the industrial power ratings, installation, cabling and commissioning must be carried out exclusively by certified qualified electricians. Features ModelBOS-B240 Pro-A3 Battery typeLiFePO4 Module energy (kWh)16,08 Module nominal voltage (V)51,2 Module capacity (Ah)314 Number of battery modules in series15 System nominal voltage (V)768 System operating voltage (V)624~876 System capacity (kWh)241,1 Usable system capacity (kWh)216,99 Max. DC power (kW)138,24 Max. charge/discharge current (A)180 Operating temperature (°C)Charging: 0 ~ 55 / Discharging: -20 ~ 55 Thermal managementSmart fan cooling CommunicationTCP / RS485 / CAN Protection classIP20 Dimensions (W × H × D, mm)2150 × 1305 × 800 Approx. system weight (kg)2114 Installation typeRack Mounted Recommended depth of discharge90% Cycle lifeEOL70% ≥ 6000 Warranty10 years CertificationsCE / IEC62619 / IEC62040 / UN38.3  FAQs on the Deye BOS-B241.1 kWh PRO-A3Can the 241.1 kWh capacity be expanded at a later date?Yes. The system has a modular design. To increase the total capacity, several of these cabinet units can be connected in parallel, enabling storage capacities in the megawatt range to be achieved.Is the master control unit (BMS) already integrated into the cabinet?Yes. The system is supplied as a turnkey cabinet solution, in which both the individual battery modules and the central cluster control unit (high-voltage BMS) are integrated into the rack, ready for operation.What advantages does LiFePO4 technology offer in industrial applications?Maximum safety and durability. Unlike conventional lithium-ion batteries, lithium iron phosphate cells are extremely thermally stable, non-flammable and offer a significantly higher number of charge cycles, even under heavy use.Does the system support control via an external energy management system (EMS)?Yes. Via the integrated communication interfaces, the storage system can be seamlessly connected to higher-level commercial energy management systems (EMS) to implement complex charging and discharging strategies.
