PV kits
This perfectly coordinated photovoltaic kit combines the state-of-the-art, true three-phase hybrid inverter Deye SUN-6K-SG05LP3-EU-SM2 with two units of the advanced low-voltage storage system Deye SE-F5 Pro-C and 16 high-performance JA Solar 460W Full-Black Glass-Glass Modules. It replaces traditional, rigid systems with a highly flexible, intelligent energy management system that operates in the safe and cost-effective 48V/51.2V low-voltage range, despite three-phase power supply.With a PV module output of 7.36 kWp, this bundle leverages the three-phase control centre’s (Smart Energy Hub) capacity to deliver optimal performance. It offers residential and small commercial customers full symmetry in grid feed-in, massive storage capacity of 10.24 kWh, and maximum reliability.Highlights at a glanceTrue three-phase operation in the low-voltage segment: The inverter feeds the solar and battery power evenly across all three phases (400V) into your home grid – ideal for the German market and for avoiding unbalanced loads.10.24 kWh storage capacity: By using two SE-F5 Pro-C modules connected in parallel, you not only double your capacity but also the maximum charging and discharging power of the storage system.Future-proof LiFePO4 technology: The battery modules are based on lithium iron phosphate – currently the safest, most thermally stable and longest-lasting cell chemistry for home storage systems.Premium glass-glass modules: The 16 JA Solar modules impress with their extreme mechanical resilience, minimal degradation, N-type low-light efficiency and a highly efficient full-black design.2 independent MPPT trackers: Enables the 16 modules to be divided into two separate strings (e.g. 8 modules East / 8 modules West), to maximise yield throughout the day.Ultra-fast UPS function: Provides automatic switchover to three-phase emergency power in under 4 ms in the event of a mains failure. Essential household appliances continue to run without interruption.Areas of applicationThis three-phase Deye low-voltage set is the perfect complete solution for demanding projects:Upscale detached houses: Maximising self-consumption by temporarily storing large amounts of energy for the evening, night and cloudy days.Homes with three-phase high-power consumers: Optimal support for heat pumps, air conditioning systems or workshop equipment through the even distribution of power across all three phases.Business & home office: Reliable, uninterrupted protection for IT infrastructure, servers and heating systems thanks to the genuine UPS emergency power function.Installation & safety instructionsString connection (MPPT): Ideally, the 16 modules are divided into two strings of 8 modules each. With an open-circuit voltage of approx. 38–42V per module, you achieve a string voltage that lies perfectly within the inverter’s optimal operating range.Installation & environment: Thanks to its IP65 protection rating, the inverter is suitable for installation in a sheltered outdoor area or in the garage. The two battery modules (IP20) must be installed securely side by side or stacked in a dry, frost-free indoor space (e.g. cellar or utility room).Installation by qualified personnel: As this is a three-phase system (AC 400V), the installation, connection to the AC mains and high-current DC cabling of the low-voltage batteries must be carried out exclusively by a certified electrician. Features ModelDEYE SUN-6K-SG05LP3-EU-SM2 Battery input data (low voltage) Battery typeLiFePO4 / lead-acid Battery voltage range (V)40 ~ 60 V Max. charging current (A)135 A Max. discharge current (A)135 A Charging strategy for Li-ion batterySelf-adaptation to BMS PV string input data Max. DC input power (W)9000 W Nominal PV input voltage (V)550 V Start voltage (V)160 V MPP voltage range (V)160 V - 650 V Max. DC input voltage (V)800 V PV input current (A)20 A + 20 A Max. PV short-circuit current (A)30 A + 30 A Number of MPPT / strings2 MPPT / 1+1 AC output data AC rated power and UPS power (W)6000 W Max. AC output power (W)6600 W AC output rated current (A)9,1 A Grid typeThree-phase / 3L/N/PE Peak power (without grid)2x rated power, 10 S General data & protection Max. efficiency97,60 % Protection class / coolingIP65 / Intelligent cooling Warranty10 years Model2x DEYE SE-F5 Pro-C (low-voltage storage) Battery typeLithium iron phosphate (LiFePO4) System energy content (total)10,24 kWh (2x 5,12 kWh) System nominal voltage (V)51,2 V (connected in parallel) Nominal capacity (total)200 Ah (2x 100 Ah) Operating voltage range (V)43,2 V ~ 57,6 V Recommended charging/discharging current100 A Max. charging/discharging current135 A (limited by inverter) Recommended depth of discharge (DoD)90 % Cycle life≥ 6000 cycles (at 25°C, EOL 70%) Communication portCAN 2.0, RS485 Enclosure protection ratingIP20 (rack / indoor area) Dimensions per module (mm)440 * 410 * 133 mm (3U) Weight (total)approx. 88 kg (2x 44 kg) Warranty10 years Model16x JA Solar 460W Full-Black (JAM54D41-460/LR) Total output of the set7,36 kWp (7360 Wp) Module type / technologyGlass-glass / monocrystalline n-type (Full-Black) Rated output per module (Pmax)460 Wp Voltage at Pmax (Vmp)32,65 V Current at Pmax (Imp)14,09 A Open-circuit voltage (Voc)39,05 V Short-circuit current (Isc)14,80 A Module efficiency22,5 % Dimensions per module (mm)1762 * 1134 * 30 mm Weight per module (kg)22,0 kg Product warranty / performance warranty25 years / 30 years linear performance warranty FAQs on the 6 kW three-phase low-voltage PV setCan the system also supply heavy three-phase loads in emergency power mode?Yes, within the scope of the device’s performance. The inverter provides genuine three-phase emergency power (400V) in the event of a grid failure. Devices such as smaller heat pumps or ovens can continue to operate without problems up to a total output of 6 kW, as long as the battery is sufficiently charged.Why is a low-voltage storage system used here on a three-phase inverter?Safety and significant cost advantages. Deye is one of the few manufacturers offering highly efficient, three-phase inverters for affordable 48V/51.2V low-voltage batteries. You benefit from the lower acquisition costs of the low-voltage modules and simple plug & play expandability, without having to forgo the advantages of a three-phase domestic grid.Is the system "black-start capable" and does it recharge the batteries in the event of a grid failure?Yes, absolutely. If the public grid fails for days and the batteries are completely empty, the system switches itself back on fully automatically the next morning through the first solar radiation (black start). It supplies your emergency power consumers and simultaneously recharges the batteries.How does battery management work with two modules?Via automatic parallel communication. The two SE-F5 Pro-C modules are connected directly to each other with a short data cable. One module automatically takes on the role of the "master" and communicates with the Deye inverter on behalf of the entire bank via the CAN/RS485 bus. This ensures a perfectly balanced charge and depth of discharge of both units.
This perfectly coordinated photovoltaic kit combines the state-of-the-art, true three-phase hybrid inverter Deye SUN-8K-SG05LP3-EU-SM2 with three units of the advanced low-voltage storage system Deye SE-F5 Pro-C and 22 high-performance JA Solar 460W Full-Black Glass-Glass Modules. It replaces traditional, rigid systems with a highly flexible, intelligent energy management system that operates in the safe and cost-effective 48V/51.2V low-voltage range, despite three-phase power feed-in.With a considerable PV module output of 10.12 kWp, this set makes optimum use of the capacities of the three-phase control centre (Smart Energy Hub). It offers private households and businesses full symmetry in grid feed-in, an enormous storage capacity of 15.36 kWh and maximum independence from the public power grid.Highlights at a glanceTrue three-phase operation in the low-voltage segment: The inverter feeds the solar and battery power evenly across all three phases (400V) into your home network – ideal for the local market and for avoiding unbalanced loads.15.36 kWh storage capacity: By using three SE-F5 Pro-C modules connected in parallel, you not only triple your capacity but also increase the maximum charging and discharging power of the entire storage system for periods of high power consumption.Future-proof LiFePO4 technology: The battery modules are based on lithium iron phosphate – currently the safest, most thermally stable and longest-lasting cell chemistry for home storage systems.Premium glass-glass modules: The 22 JA Solar modules impress with their extreme mechanical resilience, minimal degradation, N-type low-light efficiency and a highly efficient full-black look.2 independent MPPT trackers: Enables the 22 modules to be divided into two separate strings (e.g. 11 modules east / 11 modules west) in order to maximise yield throughout the day.Ultra-fast UPS function: Offers automatic switchover to three-phase emergency power in under 4 ms in the event of a power failure. Important household appliances continue to run without interruption.Areas of applicationThis three-phase Deye low-voltage set is the perfect complete solution for demanding projects:Large detached houses & multi-generational homes: Maximisation of self-consumption through the temporary storage of large amounts of energy for the evening, the night and cloudy days.Houses with three-phase major consumers: Optimum support for heat pumps, air conditioning systems or workshop equipment through the even distribution of power across all three phases.Combination with e-mobility: The PV output of over 10 kWp provides sufficient surplus in spring and summer to supply a wallbox in parallel with household and storage requirements.Installation & safety instructionsString wiring (MPPT): The 22 modules are ideally divided into two strings of 11 modules each. With an open-circuit voltage of approx. 38–42V per module, you achieve a perfect string voltage that lies optimally within the inverter's most efficient operating range.Installation & environment: Thanks to its IP65 protection rating, the inverter is suitable for installation in a sheltered outdoor area or in a garage. The three battery modules (IP20) must be installed safely side by side or stacked in a dry, frost-free indoor space (e.g. cellar or utility room).Installation by qualified personnel: As this is a three-phase system (AC 400V), installation, AC grid connection and the high-current DC wiring of the low-voltage batteries may only be carried out by a certified electrician. Features ModelDEYE SUN-8K-SG05LP3-EU-SM2 Battery input data (low voltage) Battery typeLiFePO4 / lead-acid Battery voltage range (V)40 ~ 60 V Max. charging current (A)190 A Max. discharge current (A)190 A Charging strategy for Li-ion batterySelf-adaptation to BMS Input data of the PV string Max. DC input power (W)12000 W Nominal PV input voltage (V)550 V Start voltage (V)160 V MPP voltage range (V)160 V - 650 V Max. DC input voltage (V)800 V PV input current (A)20 A + 20 A Max. PV short-circuit current (A)30 A + 30 A Number of MPPT / strings2 MPPT / 1+1 AC output data AC rated power and UPS power (W)8000 W Max. AC output power (W)8800 W AC nominal output current (A)12,1 A Grid typeThree-phase / 3L/N/PE Peak power (without grid)2x rated power, 10 S General data & protection Max. efficiency97,60 % Protection class / coolingIP65 / Intelligent cooling Warranty10 years Model3x DEYE SE-F5 Pro-C (low-voltage storage) Battery typeLithium iron phosphate (LiFePO4) System energy content (total)15,36 kWh (3x 5,12 kWh) System nominal voltage (V)51,2 V (connected in parallel) Nominal capacity (total)300 Ah (3x 100 Ah) Operating voltage range (V)43,2 V ~ 57,6 V Recommended charge/discharge current150 A Max. charge/discharge current190 A (limited by inverter) Recommended depth of discharge (DoD)90 % Cycle life≥ 6000 cycles (at 25°C, EOL 70%) Communication portCAN 2.0, RS485 Enclosure protection classIP20 (rack / indoor area) Dimensions per module (mm)440 * 410 * 133 mm (3U) Weight (total)approx. 132 kg (3x 44 kg) Warranty10 years Model22x JA Solar 460W Full-Black (JAM54D41-460/LB) Total output of the set10,12 kWp (10120 Wp) Module type / technologyGlass-glass / monocrystalline n-type (Full-Black) Nominal output per module (Pmax)460 Wp Voltage at Pmax (Vmp)32,65 V Current at Pmax (Imp)14,09 A Open-circuit voltage (Voc)39,05 V Short-circuit current (Isc)14,80 A Module efficiency22,5 % Dimensions per module (mm)1762 * 1134 * 30 mm Weight per module (kg)22,0 kg Product warranty / performance warranty25 years / 30 years linear performance warranty FAQs on the 8 kW three-phase low-voltage PV setCan the system also supply heavy three-phase loads in emergency power mode?Yes, within the scope of the unit's output. The inverter provides genuine three-phase emergency power (400V) in the event of a grid failure. Appliances such as heat pumps or ovens can continue to operate without problems up to a total output of 8 kW, as long as the battery is sufficiently charged.Why is a low-voltage storage system used here on a three-phase inverter?Safety and considerable cost advantages. Deye is one of the few manufacturers that offer highly efficient, three-phase inverters for low-cost 48V/51.2V low-voltage batteries. You benefit from the lower acquisition costs of the low-voltage modules and the simple plug & play expandability, without having to do without the advantages of a three-phase home grid.Is the system "black-start capable" and does it recharge the batteries in the event of a grid failure?Yes, absolutely. Should the public grid fail for days and the batteries be completely empty, the system switches itself fully automatically back on the next morning through the first sunlight (black start). It supplies your emergency power consumers and simultaneously recharges the batteries.How does battery management work with three modules?Via automatic parallel communication. The three SE-F5 Pro-C modules are connected directly to each other with short data cables. One module automatically assumes the role of the "master" and communicates representatively for the entire block with the Deye inverter via the CAN/RS485 bus. This ensures a perfectly balanced charge and depth of discharge of all units.

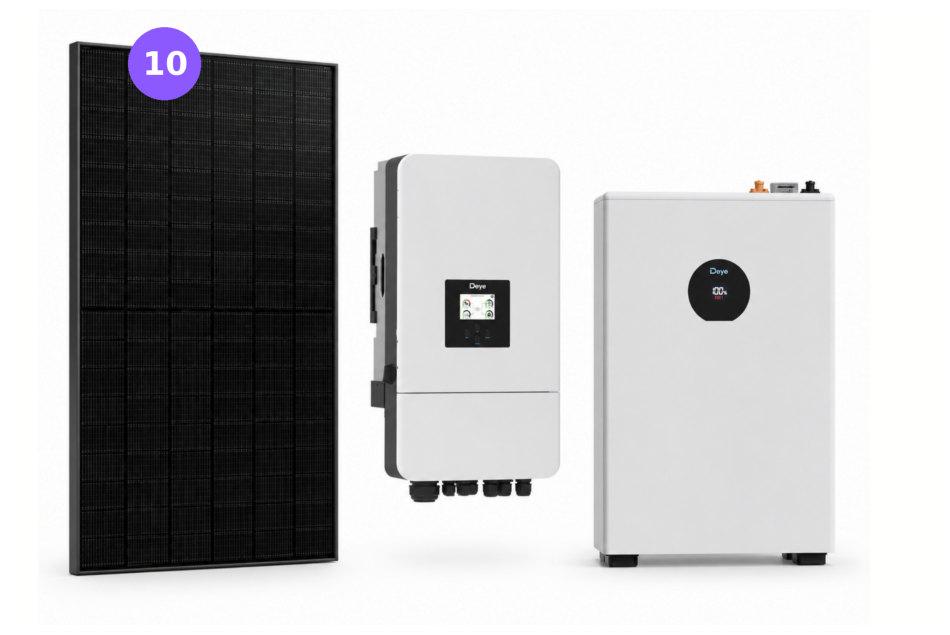

This perfectly coordinated photovoltaic bundle combines the state-of-the-art single-phase hybrid inverter Deye SUN-3.6K-SG05LP1-EU-AM2 with the advanced low-voltage storage system Deye SE-F5 Pro-C and 10 high-performance JA Solar 460W Full-Black Glass-Glass Modules. This replaces rigid standalone solutions with highly flexible, intelligent energy management in the safe 48V/51.2V low-voltage range.With a perfectly dimensioned module output of 4.60 kWp, this bundle leverages the capacity of the single-phase control centre (Smart Energy Hub) to the optimum. It offers private households maximum independence from the power grid, ultra-fast backup power and maximum service life through state-of-the-art components.Highlights at a glanceOptimal energy utilisation: The ideal DC/AC ratio of approx. 125% ensures that the inverter delivers maximum performance even in cloudy conditions. Surplus summer energy is charged directly into the battery instead of being curtailed.Future-proof LiFePO4 technology: The SE-F5 Pro-C module is based on lithium iron phosphate – currently the safest, most thermally stable and longest-lasting cell chemistry for residential storage.Premium glass-glass modules: The 10 JA Solar modules impress with their extreme mechanical resilience, minimal degradation and a highly efficient full-black design.2 independent MPPT trackers: Enables the flexible distribution of modules across two different roof areas (e.g. east/west orientation) or tilt angles.Ultra-fast UPS function: Provides automatic switchover to emergency power in under 4 ms in the event of a mains failure. Sensitive devices such as computers continue to run without interruption.Modular Plug & Play scalability: In future, as energy requirements increase, the storage system can be easily expanded in parallel by stacking additional modules – without the need for a separate BMS box.Areas of applicationThis Deye low-voltage kit is the perfect all-in-one solution for modern homes:Detached houses & flats: Maximising self-consumption by storing solar power generated during the day for use in the evening and at night.Home office & critical infrastructure: Reliable protection for computers, routers and smart home hubs thanks to the genuine, uninterrupted UPS emergency power function.Future-oriented retrofitters: Ideal for users who wish to start with a compact storage capacity (5.12 kWh) whilst keeping the option open for a straightforward capacity upgrade.Installation & safety instructionsString connection: If all 10 modules face the same direction, they are connected in series to a single MPPT input. The total voltage is then within the inverter’s optimal efficiency range.Installation location for inverter & storage unit: Thanks to its IP65 protection rating, the inverter is suitable for installation in sheltered outdoor areas or garages. The battery module (IP20) must be installed in a dry, frost-free indoor location (e.g. a basement or utility room).Installation by qualified personnel: For safety reasons, the electrical connection to the domestic mains supply (AC) and the DC cabling of high-current low-voltage batteries must only be carried out by a certified electrician.. Features ModelDEYE SUN-3.6K-SG05LP1-EU-AM2 Battery input data (low voltage) Battery typeLiFePO4 / Lead-acid Battery voltage range (V)40 ~ 60 V Max. charging current (A)90 A Max. discharge current (A)90 A Charging strategy for Li-ion batterySelf-adaptation to BMS PV string input data Max. DC input power (W)5760 W Nominal PV input voltage (V)370 V Start voltage (V)125 V MPP voltage range (V)150 V - 425 V Max. DC input voltage (V)500 V PV input current (A)13 A + 13 A Max. PV short-circuit current (A)17 A + 17 A Number of MPPT / strings2 MPPT / 1+1 AC output data AC rated power and UPS power (W)3600 W Max. AC output power (W)3960 W AC nominal output current (A)15,7 A / 15 A Grid typeSingle-phase / L/N/PE Peak power (without grid)2x rated power, 10 S General data & protection Max. efficiency97,60 % Protection class / coolingIP65 / Natural convection (fanless) Warranty10 years ModelDEYE SE-F5 Pro-C (low-voltage storage) Battery typeLithium iron phosphate (LiFePO4) Module energy capacity (kWh)5,12 kWh Rated voltage (V)51,2 V Rated capacity (Ah)100 Ah Operating voltage range (V)43,2 V ~ 57,6 V Recommended charge/discharge current50 A Max. charge/discharge current100 A Recommended depth of discharge (DoD)90 % Cycle life≥ 6000 cycles (at 25°C, EOL 70%) Communication portCAN 2.0, RS485 Enclosure protection ratingIP20 (rack / indoor use) Dimensions (W/D/H, mm)440 * 410 * 133 mm (3U) Weight (kg)approx. 44 kg Warranty10 years Model10x JA Solar 460W Full-Black (JAM54D41-460/LB) Total power of the set4,60 kWp (4600 Wp) Module type / technologyGlass-glass / monocrystalline n-type (Full-Black) Rated power per module (Pmax)460 Wp Voltage at Pmax (Vmp)32,65 V Current at Pmax (Imp)14,09 A Open-circuit voltage (Voc)39,05 V Short-circuit current (Isc)14,80 A Module efficiency22,5 % Dimensions per module (mm)1762 * 1134 * 30 mm Weight per module (kg)22,0 kg Product warranty / performance warranty25 years / 30 years linear performance warranty FAQs on the 3.6 kW low-voltage PV kitCan the system recharge the battery via the solar modules even during a power cut?Yes, the system is fully capable of black start. In the event of a power cut, the inverter switches to off-grid mode. If the sun shines the following day, the solar power generated is primarily used to power the emergency loads in the house and, in parallel, the battery is recharged (solar off-grid mode).Why is a low-voltage system used here instead of a high-voltage system?Cost-efficiency and easy scalability. Low-voltage systems (48V/51.2V) are extremely safe to handle in the extra-low-voltage range. Furthermore, the SE-F5 Pro-C series in the low-voltage segment does not require an expensive, separate master BMS box – each module is ready for immediate use and can be easily expanded in parallel.What are the benefits of the glass-glass design of the JA Solar modules?Maximum robustness and durability. As the solar cells are protected by glass on both the front and back, they are extremely resistant to environmental influences such as hail, ammonia or micro-cracks. This ensures a significantly longer performance guarantee and more stable yields over decades.How do the inverter and the storage system communicate with each other?Via a direct CAN/RS485 data cable. The communication cable included in the scope of delivery connects the battery directly to the inverter. This enables a continuous exchange of data, ensuring that the inverter always charges or discharges the battery in a cell-friendly and highly efficient manner.
