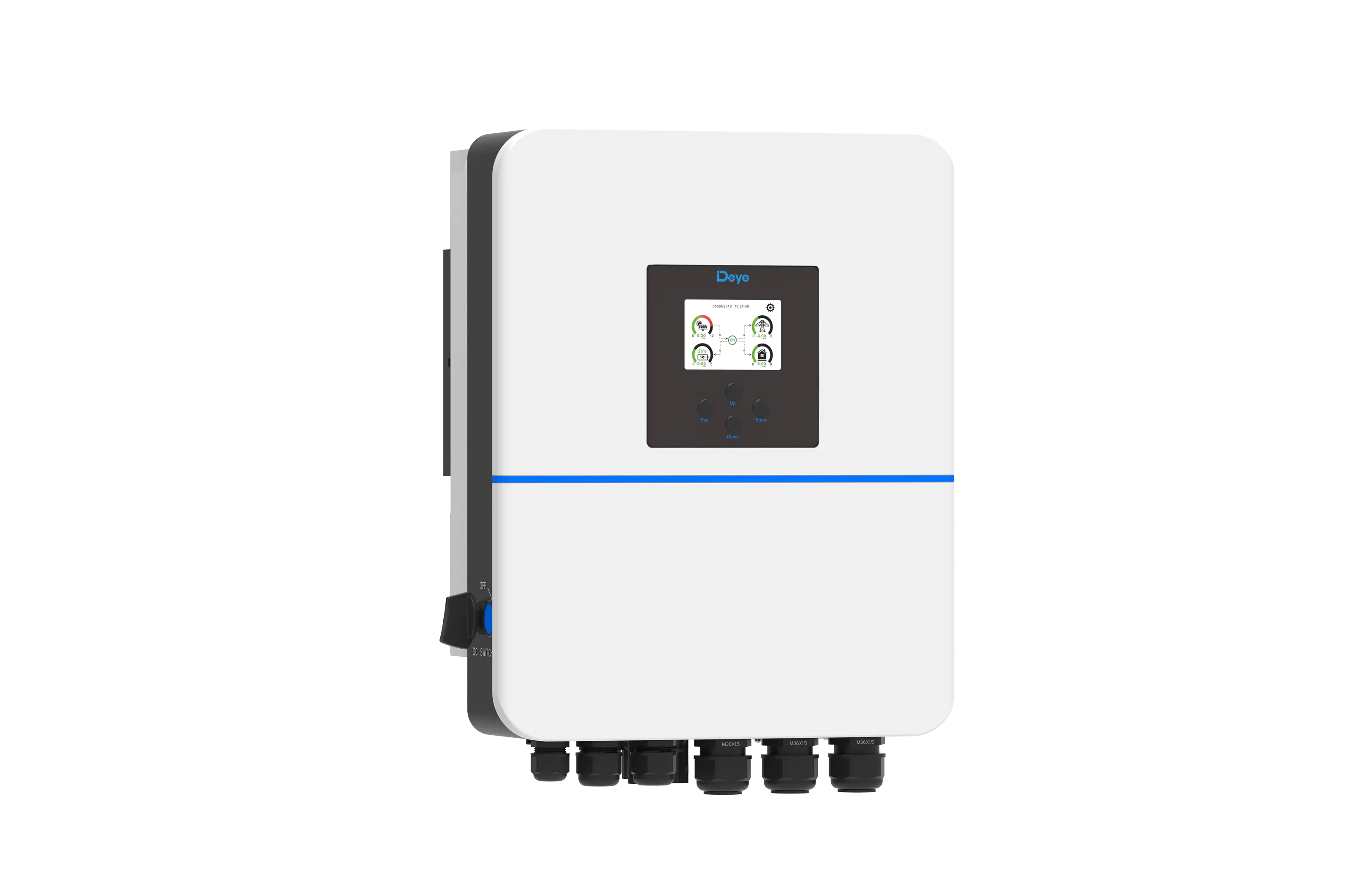

Deye SUN-12K-SG01HP3-EU-DM2 - 10 kW high-voltage hybrid inverter

The Deye SUN-10K-SG01HP3-EU-DM2 is a powerful, three-phase high-voltage hybrid inverter that serves as the heart of modern photovoltaic systems in detached houses. With an AC output power of 10 kW enables highly efficient energy utilisation through the combination of solar power generation, intelligent battery charging and a reliable emergency power supply.

This model of the SG01 series is specifically designed for operation with high-voltage battery storage systems optimised. The higher system voltage minimises conversion losses, increasing the overall efficiency of your system. Whether optimising self-consumption, zero feed-in or off-grid operation – this inverter offers the right solution for every scenario.

Highlights at a glance

• High-voltage battery support: Compatible with storage systems in the range from 160 V to 700 V, ensuring maximum efficiency during charging and discharging.
• 100% unbalanced load capability: Each of the three phases can be loaded independently with up to 100% of the rated power – ideal for uneven household consumption.
• 2 MPPT trackers: Enables flexible design of two module strings in order to achieve optimum yields even with different roof inclinations or partial shading.
• UPS function (backup): Guarantees an uninterrupted power supply in the event of a grid failure with an extremely fast switchover time of less than 10 ms.
• Smart Load & AC Coupling: Intelligent output for controllable loads (e.g. heat pump) and the option to integrate existing PV inverters into the system.
• Colour touch display: Easy configuration and visualisation of all performance data directly on the device via a user-friendly interface.
• Parallel connection: Supports parallel operation of up to 10 units in order to scale system performance for future demand.

Areas of application

The SUN-10K is the all-rounder for the modern home:

• Detached houses with storage
  • Perfectly matched to high-voltage batteries such as the Deye BOS-A series or Pylontech Force H2 in order to maximise the degree of self-sufficiency.
• Emergency power backup
  • Reliably protects important household appliances such as heating pumps, fridges and lighting against power cuts.
• Sector coupling
  • Intelligent control of wallboxes or hot water heating elements via the Smart Load contact when there is a solar surplus.

Installation & safety instructions

• Battery compatibility
  • Make sure that only certified high-voltage storage systems are connected. Communication takes place via the BMS port (CAN/RS485).
• Heat dissipation
  • Install the device in a cool, well-ventilated location. Although IP65-certified, a mounting location protected from direct sunlight extends the service life of the components.
• Protective devices
  • The system has integrated DC disconnectors and Type II DC surge protection to protect the installation against lightning damage and faults.

Features

FAQs on the Deye SUN-10K-SG01HP3

Can I operate this inverter with 48V batteries?

No.

• This model is a high-voltage hybrid (HP3). For 48V low-voltage storage systems, you need the LP3 series from Deye. Operating with the wrong battery voltage can cause damage. It is necessary to check the battery against the compatibility list beforehand.

Do I need a separate smart meter for zero feed-in?

Generally no.

• With these hybrid models, Deye usually does not supply the matching 3-phase smart meter directly, so that the inverter can better detect household consumption at the grid connection point. However, the inverter can itself measure household consumption via the CT clamps and provide the required energy.

Is the Wi-Fi module included in the scope of delivery?

Yes.

• A WiFi dongle for integration into the Solarman app or the Deye Cloud portal is included as standard in the scope of delivery, allowing the system to be monitored worldwide.

Can the inverter control a heat pump?

Yes.

• Via the programmable Smart Load output, a signal can be sent to the heat pump (SG-Ready) when there is sufficient solar yield or the battery is full in order to store thermal energy.
